Broan BP19 Fan Assembly Replacement Instruction Manual

1. Introduction

This document provides essential instructions for the safe and effective installation, operation, and maintenance of the Broan BP19 Fan Assembly Replacement. This fan assembly is designed to replace original components in Broan 41000 Series Range Hoods and other specified compatible models, ensuring proper ventilation and air circulation in your kitchen environment.

Please read this manual thoroughly before proceeding with installation or use. Retain this manual for future reference.

2. Safety Information

Always adhere to the following safety guidelines to prevent injury or damage to the product and property:

• Disconnect Power: Before installing, servicing, or cleaning the fan assembly, always ensure the power supply to the range hood is disconnected at the circuit breaker or fuse box.
• Qualified Personnel: Installation and electrical wiring should be performed by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction.
• Proper Grounding: Ensure the fan assembly is properly grounded to reduce the risk of electric shock.
• Inspect for Damage: Before installation, inspect the fan assembly for any shipping damage. Do not install if damaged.
• Wear Protective Gear: Wear gloves and safety glasses during installation to protect against sharp edges and debris.
• Ventilation: Ensure adequate ventilation in the area where the range hood is installed.

3. Product Overview and Compatibility

The Broan BP19 Fan Assembly Replacement is a critical component for maintaining the exhaust function of your range hood. It includes the motor, fan blades, and necessary wiring for integration.

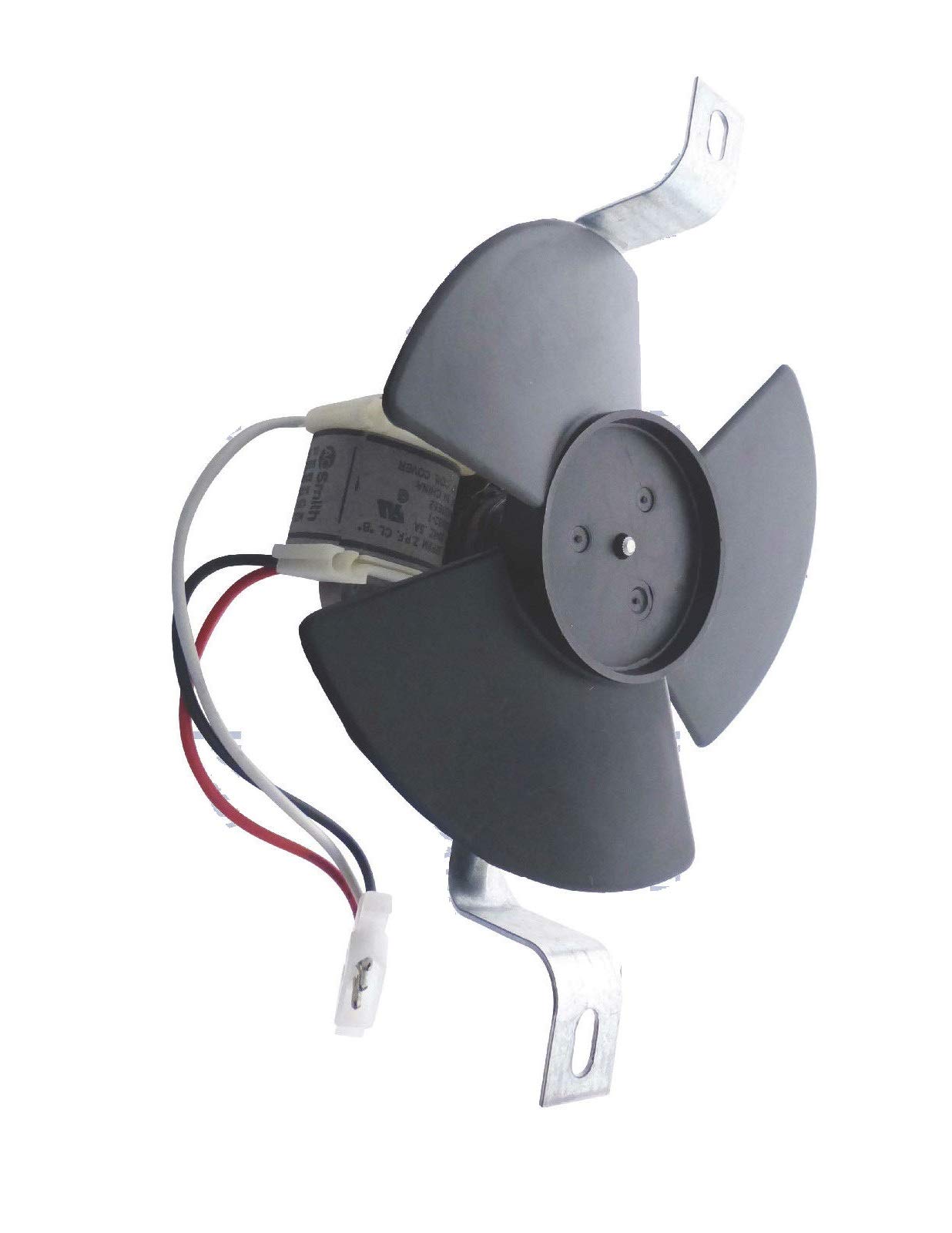

Figure 1: Broan BP19 Fan Assembly Replacement. This image displays the fan assembly, featuring a three-blade fan attached to a motor unit with electrical wiring and metal mounting brackets.

Compatible Models:

This fan assembly is compatible with Broan 41000 Series Range Hoods and replaces the following part numbers:

• 97007966
• 97011247
• S97005162
• S97007966
• S97011247

Always verify your existing part number or range hood model to ensure compatibility.

4. Setup and Installation

Installation of this fan assembly requires basic electrical and mechanical skills. If you are unsure about any step, consult a qualified technician.

Tools and Materials (Not Included):

• Screwdriver set (Phillips and Flathead)
• Pliers
• Wire strippers/cutters (if wiring modifications are needed)
• Safety gloves and glasses

Installation Steps:

1. Power Disconnection: Locate the circuit breaker for your range hood and turn off the power. Verify power is off using a voltage tester.
2. Access Old Fan Assembly: Remove the range hood filter(s) and any protective covers to gain access to the existing fan assembly. Refer to your specific range hood manual for detailed access instructions.
3. Disconnect Wiring: Carefully disconnect the electrical wiring from the old fan assembly. Note the color coding and connection points for reassembly.
4. Remove Old Assembly: Unscrew or unclip the old fan assembly from its mounting brackets.
5. Install New Assembly: Position the new Broan BP19 Fan Assembly Replacement into the mounting location. Secure it using the existing screws or clips. Ensure it is firmly seated.
6. Connect Wiring: Connect the electrical wiring to the new fan assembly, matching the connections noted in step 3. Ensure all connections are secure.
7. Replace Covers and Filters: Reinstall any protective covers and filters that were removed.
8. Restore Power: Turn the power back on at the circuit breaker.
9. Test Operation: Test the range hood fan to ensure it operates correctly and quietly.

5. Operating Instructions

Once the Broan BP19 Fan Assembly Replacement is correctly installed, its operation is integrated with your range hood's controls. Refer to your specific range hood's user manual for detailed instructions on how to operate the fan speeds and lighting.

• Fan Activation: Use the fan speed control switch on your range hood to turn the fan on and select the desired speed.
• Optimal Use: For best results, turn on the range hood fan a few minutes before cooking to establish airflow and leave it on for several minutes after cooking to clear residual odors and steam.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your fan assembly.

• Cleaning Filters: Regularly clean or replace your range hood's grease filters as per your range hood manual. Clogged filters can reduce airflow and strain the fan motor.
• Fan Blade Inspection: Periodically (e.g., every 6-12 months), with power disconnected, inspect the fan blades for grease buildup or damage. Clean blades gently with a mild detergent and soft cloth if necessary. Ensure blades are dry before restoring power.
• Motor Inspection: The motor is generally maintenance-free. Do not attempt to lubricate or disassemble the motor. If the motor shows signs of malfunction, replacement of the entire assembly is recommended.
• Wiring Check: Ensure all electrical connections remain secure and free from corrosion.

7. Troubleshooting

If you encounter issues with your fan assembly, refer to the following common troubleshooting steps:

If troubleshooting steps do not resolve the issue, contact a qualified service technician.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your Broan BP19 Fan Assembly Replacement, please refer to the documentation provided at the time of purchase or contact the seller directly. This manual provides general operational guidance and does not supersede any specific warranty terms.

For technical support or further assistance, please contact the retailer or manufacturer of your product.
