Seentech W10130913 Washer Drain Pump Instruction Manual

Product Overview

The Seentech W10130913 Washer Drain Pump is a high-quality replacement part designed to restore proper drainage function to your washing machine. Manufactured from durable steel, copper, and plastic, this pump is built to ensure long-lasting and effective performance. It is compatible with a wide range of washing machine models from leading brands.

Image: Seentech W10130913 Washer Drain Pump, a white and black pump assembly.

Specifications

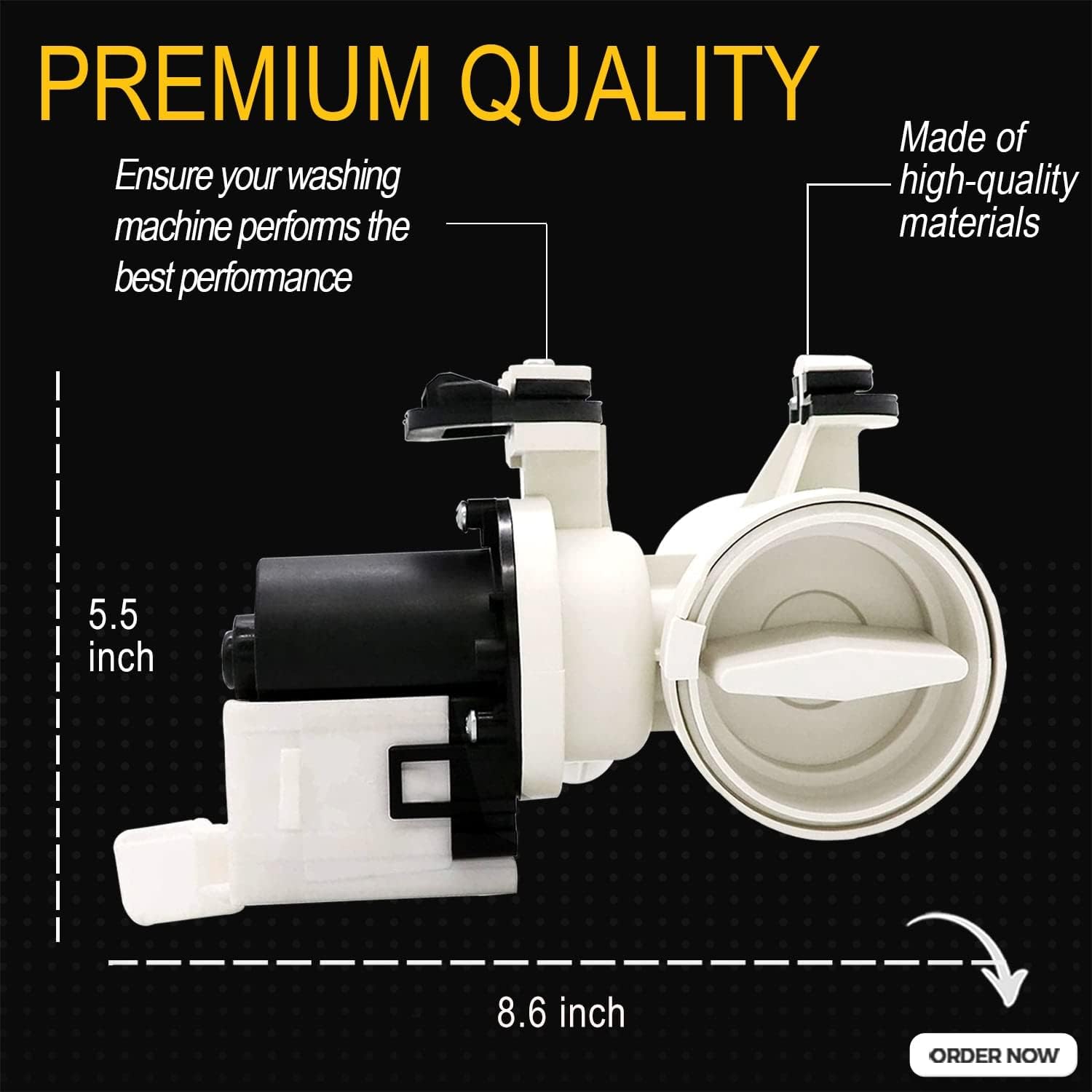

Image: Diagram showing the dimensions of the drain pump, indicating a height of 5.5 inches and a length of 8.6 inches.

Compatibility

This drain pump is a direct replacement for numerous part numbers and is compatible with a wide range of washing machines from the following brands:

• Kenmore
• Whirlpool
• Amana
• Magic Chef
• Admiral
• Norge
• Roper
• And others

Replaces Part Numbers:

• W10130913
• W10730972
• 8540024
• W10117829
• AP4308966
• PS1960402
• W10183434
• W10130913-B
• 8540024-B
• AP6023956
• PS11757304
• W10190648
• W10190647
• W10201457
• WPW10730972V
• 4281917

Examples of Compatible Models:

• Whirlpool: WFW8200TW00, WFW8200TW01, WFW8300SW03, WFW8300SW04, WFW8300SW05, WFW8400TB00, WFW8400TB01, WFW8400TB02, WFW8400TE00, WFW8400TE01
• Kenmore: 11047511700, 11047511701, 11047511702, 11047512603, 11047512604, 11047512605, 11047542605

Image: Visual representation of the drain pump's compatibility with major washing machine brands.

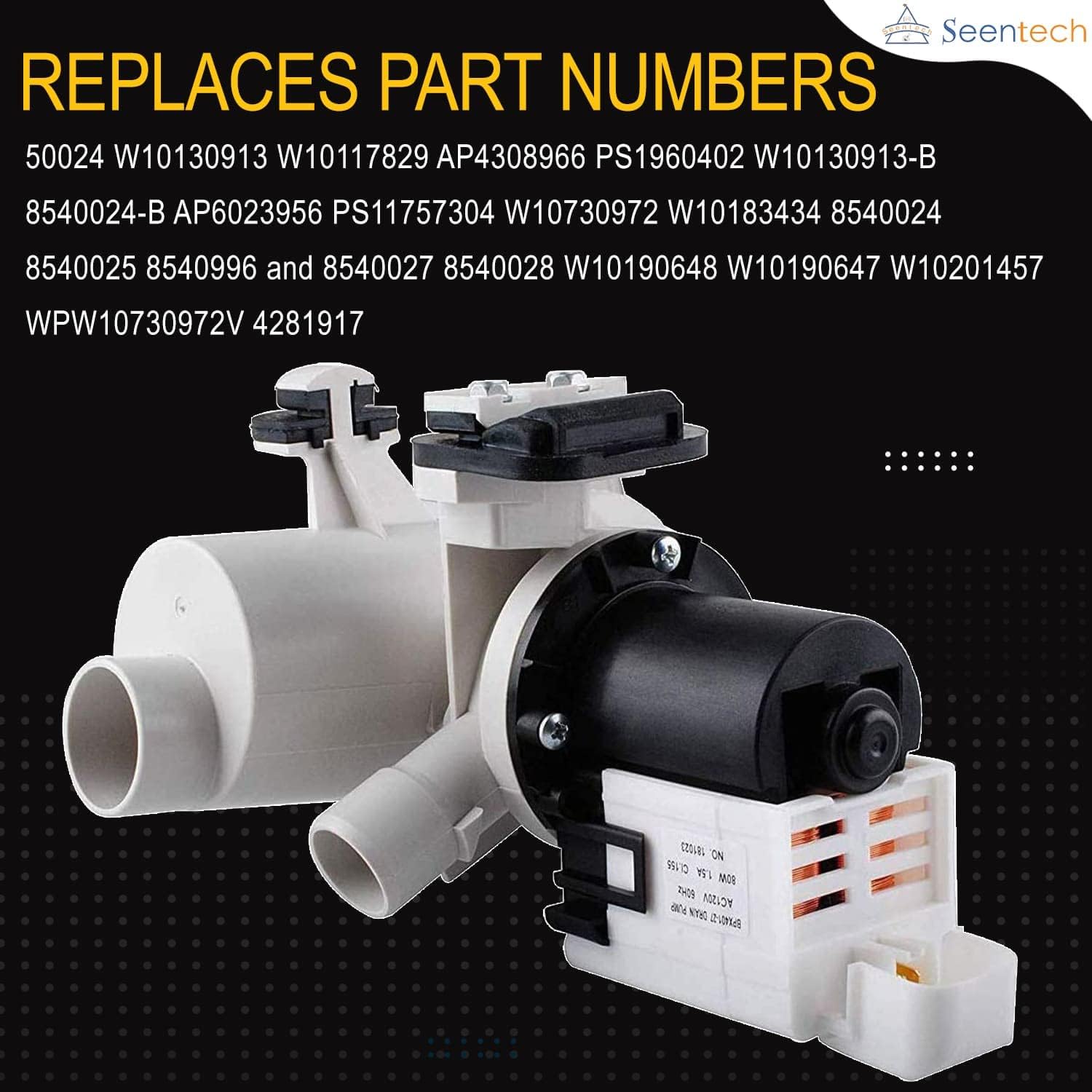

Image: A list of various part numbers that the W10130913 drain pump replaces.

Setup and Installation

The Seentech W10130913 Washer Drain Pump is designed for easy installation, arriving fully assembled to simplify the replacement process. Follow these general guidelines for installation:

1. Safety First: Always unplug your washing machine from the power outlet before beginning any repair or installation work.
2. Wear Protective Gear: It is recommended to wear work gloves to protect your hands during the installation process.
3. Access the Pump: Refer to your washing machine's specific service manual or online resources to locate and access the existing drain pump. This typically involves removing front or back panels.
4. Disconnect Old Pump: Carefully disconnect the hoses and electrical connections from the old drain pump. Be prepared for residual water to drain.
5. Install New Pump: Position the new Seentech W10130913 drain pump and securely connect the hoses and electrical wiring. Ensure all connections are tight to prevent leaks.
6. Test Functionality: Once installed, reassemble the washing machine panels, plug it back in, and run a test cycle to ensure proper drainage and operation.

This part is an ideal solution for DIY repairs, saving you time and potential maintenance costs associated with professional service calls.

Image: Instructions for an easy DIY fix, emphasizing unplugging the washer and wearing gloves.

Troubleshooting

The Seentech W10130913 Washer Drain Pump is designed to fix several common washing machine issues. If your washing machine is experiencing any of the following symptoms, replacing the drain pump may resolve the problem:

• Noisy Operation: The washer produces unusual or loud noises during the drain cycle.
• Leaking: Water is leaking from the bottom of the washing machine.
• Will Not Drain: The washer fills with water but fails to drain it out.
• Pumps but Will Not Spin: The pump activates, but the washer does not proceed to the spin cycle, leaving clothes wet.

If these issues persist after replacing the drain pump, consult a qualified appliance technician.

Image: Visual representation of common washing machine symptoms that the drain pump can fix.

Maintenance

To ensure the longevity and optimal performance of your Seentech W10130913 Washer Drain Pump and your washing machine, consider the following maintenance tips:

• Regular Cleaning: Periodically check and clean the drain pump filter (if accessible on your washer model) to remove lint, debris, or small objects that could obstruct the pump.
• Avoid Overloading: Do not overload your washing machine, as this can put excessive strain on the drain pump and other components.
• Proper Detergent Use: Use the correct amount and type of detergent recommended for your washing machine to prevent excessive suds that can hinder drainage.
• Inspect Hoses: Occasionally inspect the drain hoses for kinks, blockages, or damage that could impede water flow.

Official Product Video

Warranty and Support

Seentech is committed to customer satisfaction. Your purchase of the W10130913 Washer Drain Pump is backed by a 30-day return window. If you have any questions regarding compatibility, installation, or product performance, please do not hesitate to contact our customer service team. You can also reach out through the Seentech storefront for assistance.

Our goal is to help you select the correct replacement parts and ensure your home appliances function optimally, contributing to a comfortable family life.
