Multipurpose Cabinet 4 Doors Dueto 5000 User Manual

Introduction

This user manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your new Espresso Móveis Dueto 5000 Multipurpose Cabinet. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.

Figure 1: Front view of the Dueto 5000 Multipurpose Cabinet with four closed doors.

Safety Information

Please observe the following safety guidelines to prevent injury or damage to the product:

• The cabinet supports a maximum weight of 40 kg (88.18 lbs). Do not exceed this load limit to prevent structural damage or collapse.
• The doors feature metallic hinges. Exercise caution to avoid pinching fingers or clothing during opening and closing.
• Ensure the cabinet is placed on a flat, stable surface to prevent tipping.
• Keep small parts and assembly hardware out of reach of children.
• Assembly requires multiple steps. Follow all instructions carefully. If unsure, seek professional assistance.

Product Specifications

The Dueto 5000 Multipurpose Cabinet features the following specifications:

Figure 2: Dimensions and internal shelf load capacity of the Dueto 5000 Cabinet. Each shelf is designed to hold up to 5 kg.

Setup and Assembly

The Dueto 5000 Multipurpose Cabinet requires assembly. Please follow the detailed assembly instructions provided in the separate assembly manual included with your product packaging. Ensure all parts are present before beginning assembly.

Before You Begin:

• Unpack: Carefully remove all components from the packaging. Lay them out on a clean, soft surface (e.g., a blanket or cardboard) to prevent scratches.
• Identify Parts: Refer to the parts list in your assembly manual to identify all components and hardware.
• Tools Required: Typically, a Phillips head screwdriver and a hammer are needed. Specific tools will be listed in the assembly manual.
• Assistance: Assembly may require two people for easier and safer handling of larger panels.

General Assembly Steps (Refer to separate manual for details):

1. Attach cam locks and dowels to panels as indicated.
2. Assemble the base and top panels to the side panels.
3. Insert shelves into designated slots.
4. Attach door hinges to the doors and then to the cabinet frame.
5. Install door handles.
6. Attach the back panel using small nails.
7. Place the cabinet in its desired location, ensuring it is level and stable.

Figure 3: Angled view of the Dueto 5000 Cabinet, illustrating its design and finish.

Operating Instructions

The Dueto 5000 Multipurpose Cabinet is designed for organized storage in various environments, such as service areas, bedrooms, or offices.

Usage Guidelines:

• Loading: Distribute weight evenly across the shelves. Each shelf has a recommended maximum load capacity of 5 kg. The total maximum load for the entire cabinet is 40 kg.
• Door Operation: Open and close doors gently using the handles. Avoid forcing doors to prevent damage to hinges or the cabinet structure.
• Ventilation: Ensure adequate air circulation around the cabinet, especially if storing items that require ventilation.
• Stability: Periodically check the cabinet's stability. If it feels wobbly, ensure all assembly screws are tightened.

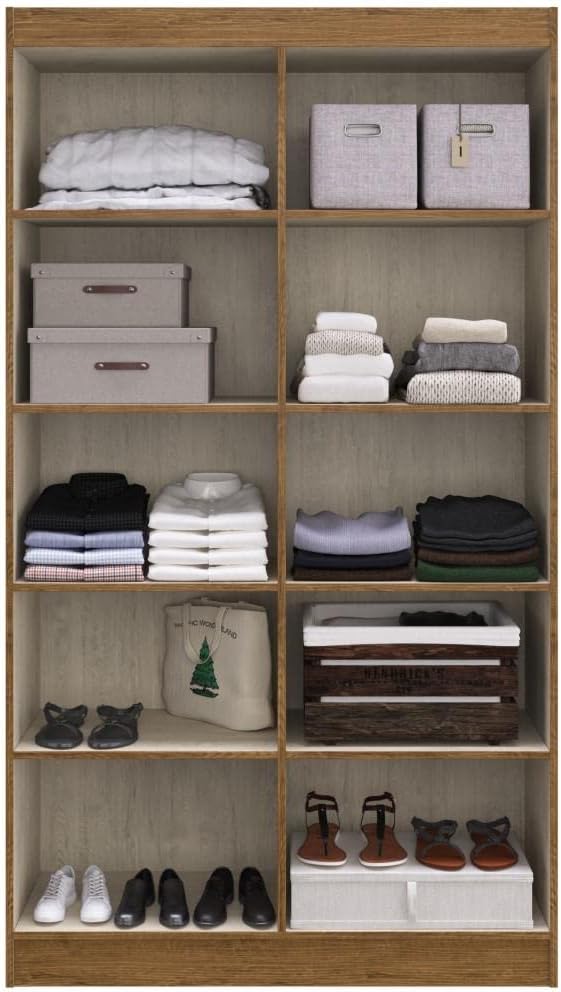

Figure 4: Internal view of the Dueto 5000 Cabinet demonstrating storage capacity.

Maintenance and Care

Proper care will extend the life and appearance of your cabinet.

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for wood or laminate surfaces. Dry immediately with a clean cloth.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or ammonia-based products, as these can damage the finish.
• Spills: Clean up spills immediately to prevent moisture absorption and swelling of the MDP material.
• Sunlight Exposure: Avoid prolonged direct sunlight exposure, which can cause fading or discoloration of the finish.
• Humidity: Maintain a stable room temperature and humidity level to prevent warping or cracking.
• Hardware Check: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary, but do not overtighten.

Troubleshooting

If you encounter issues with your cabinet, refer to the following common problems and solutions:

Warranty and Support

Your Espresso Móveis Dueto 5000 Multipurpose Cabinet comes with a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product for specific terms and conditions, including warranty duration and coverage details.

Return Policy:

This product is eligible for a return/replacement within 7 days of purchase, as per the seller's return policy. Please contact your retailer or the seller directly for return procedures.

Customer Support:

For technical assistance, missing parts, or warranty claims, please contact Espresso Móveis customer support. Contact information can typically be found on the product packaging or the manufacturer's official website. When contacting support, please have your product model (Dueto 5000) and purchase details ready.

Note: Official product videos from the manufacturer are not available at this time.
