Introduction
This manual provides instructions for the installation and maintenance of the Chuancheng Motor Rear Cover and Rear Filter Kit, designed as a replacement for Dyson V7 and V8 vacuum cleaners. Proper installation and maintenance ensure optimal performance and longevity of your vacuum cleaner.
Compatibility
This replacement kit is compatible with Dyson V7 and V8 series vacuum cleaners.
Important Note: This kit is not suitable for Dyson V7 Animal, V7, or V8 Absolute vacuum cleaner models. Please verify your vacuum cleaner model before installation.
Package Contents
- 1 x Motor Rear Cover
- 1 x Rear Filter
Installation Instructions
Follow these steps to replace the motor rear cover and rear filter on your Dyson V7 or V8 vacuum cleaner.
Step 1: Remove the Original Rear Cover
Locate the existing rear cover on your Dyson V7 or V8 vacuum cleaner.
Use a small, thin tool (such as a flat-head screwdriver or a plastic pry tool) to carefully pry open the back cover. The original back cover typically contains a sponge filter.
Image Description: A person using a small tool to carefully pry open the rear cover of a Dyson V7/V8 vacuum cleaner, revealing the internal components and sponge filter.
Remove the old sponge pads and discard them.
Step 2: Install the New Motor Rear Cover
Align the new motor rear cover with the vacuum cleaner's motor section. Ensure the logo part on the cover is facing upwards.
Press the new cover firmly into place until it clicks securely.
Image Description: A person aligning the new motor rear cover with the Dyson V7/V8 vacuum cleaner, ensuring the logo is oriented correctly before pressing it into position.
Step 3: Install the New Rear HEPA Filter
Take the new rear HEPA filter. Ensure the small black dot on the filter is facing upwards.
Insert the filter into the newly installed motor rear cover and twist clockwise until it is securely in place.
Image Description: The Chuancheng motor rear cover and a blue rear HEPA filter, shown separately and then assembled onto a Dyson V7/V8 vacuum cleaner.
The installation is now complete.
Video Description: This video demonstrates the step-by-step process of installing the Chuancheng motor rear cover and rear filter onto a Dyson V7 or V8 vacuum cleaner.
Operation Notes
After installing the new motor rear cover and filter, your Dyson V7 or V8 vacuum cleaner is ready for use. The new filter is designed to improve filtration performance and reduce operational noise.
Image Description: A Dyson V7/V8 vacuum cleaner with the Chuancheng replacement parts installed, shown in use for cleaning.
Maintenance
Filter Cleaning
The rear filter is washable. For optimal performance, it is recommended to clean the filter regularly.
- Remove the rear filter from the vacuum cleaner.
- Rinse the filter under warm water. Mild detergent can be used if desired.
- Gently squeeze the filter to remove excess water.
- Allow the filter to air dry completely for at least 24 hours before re-installing it. Do not use a dryer or direct heat.
Image Description: A blue rear HEPA filter being rinsed under running water, demonstrating the washable feature.
Replacement Frequency
For best performance and air quality, it is recommended to replace the filter every 3-6 months, depending on usage.
Troubleshooting
- Reduced Suction: Ensure the filter is clean and completely dry. A clogged or wet filter can significantly reduce suction power.
- Increased Noise: Verify that both the motor rear cover and the filter are correctly installed and securely seated. Improper installation can lead to increased operational noise.
- Filter Not Fitting: Double-check the compatibility section to ensure this kit is designed for your specific Dyson V7 or V8 model.
If issues persist after following these steps, please refer to the support information provided.
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Chuancheng |
| Model Compatibility | Dyson V7, V8 |
| Material | Premium Plastic, Sponge, HEPA Filter Paper |
| Dimensions (Motor Rear Cover) | Approx. 8.2cm W x 4.2cm H |
| Dimensions (Rear Filter) | Approx. 8.5cm W x 4.3cm H |
| Item Weight | 2.64 ounces |
| UPC | 190430974610 |

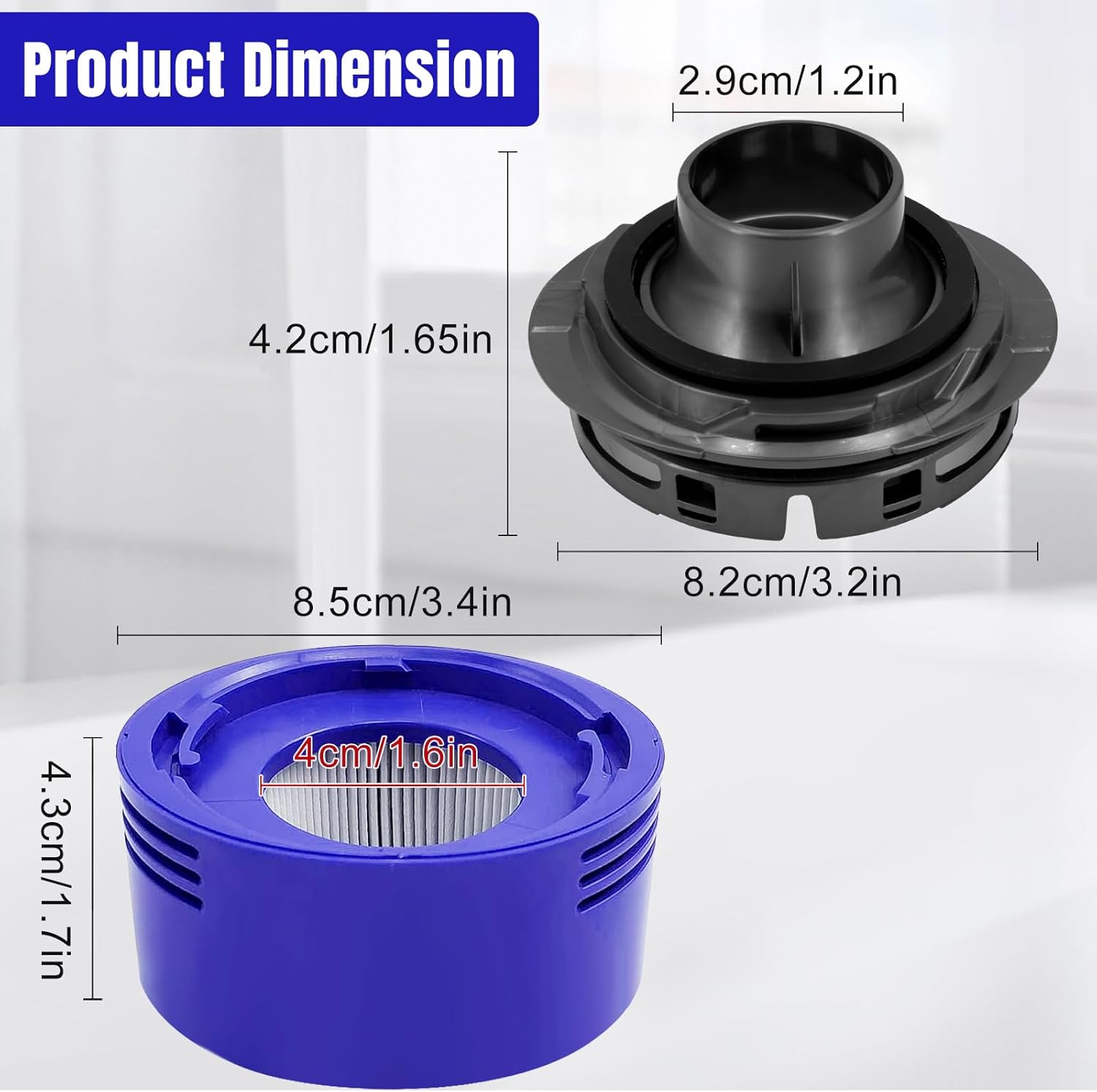

Image Description: Detailed measurements of the Chuancheng motor rear cover and rear filter, indicating their dimensions in centimeters and inches.
Warranty and Support
Chuancheng offers support for its products. If you have any questions or encounter issues with your Motor Rear Cover & Rear Filter Kit, please contact Chuancheng customer service.
For further assistance, please refer to the seller's contact information or the platform where the product was purchased.
