tinsay 18L Tankless LPG Propane Gas Hot Water Heater

Important Safety Information

Read all instructions carefully before installation and operation. Failure to follow these instructions could result in property damage, personal injury, or death.

• This appliance must be installed by a qualified professional in accordance with all local codes and regulations.
• Ventilation is Critical: Do not install this appliance in confined areas with low ventilation, such as bathrooms. Proper ventilation is essential to prevent the accumulation of toxic gases.
• Ensure the flue system is correctly installed for automatic gas discharge.
• Regularly check for gas leaks using a soapy water solution on connections. Never use an open flame.
• Keep flammable materials away from the water heater.
• Do not obstruct the air intake or exhaust vents.
• In case of gas odor, immediately shut off the gas supply, open windows and doors, and do not operate any electrical switches or appliances. Contact emergency services.

Image: Illustration showing incorrect installation in a bathroom with a warning against confined, low-ventilation areas.

Image: Text warning about automatic flue gas discharge and the necessity of installation in a ventilated place to prevent toxic gas leakage.

Product Overview

The tinsay 18L Tankless LPG Propane Gas Hot Water Heater provides on-demand hot water. It features a compact design and incorporates several safety and efficiency mechanisms.

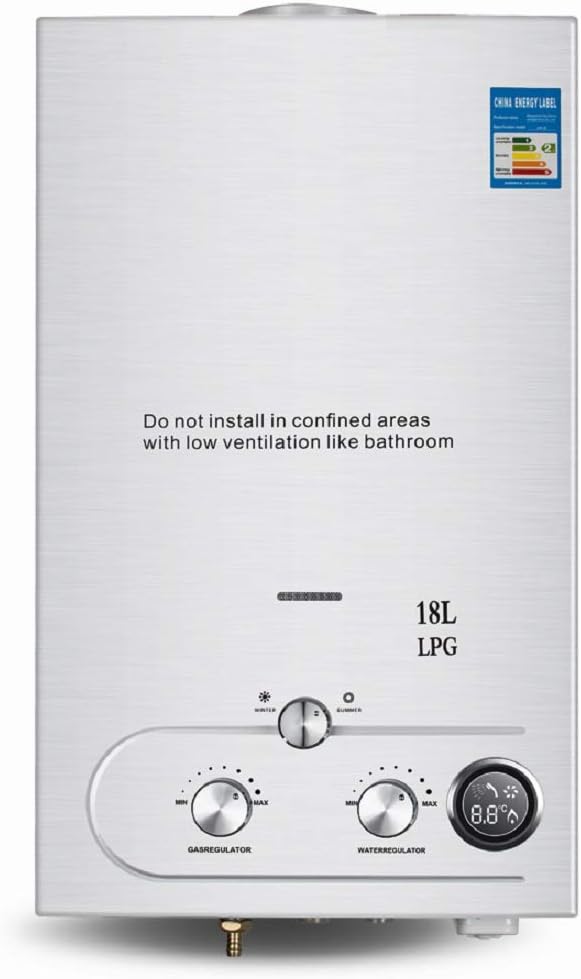

Image: Front view of the tinsay 18L Tankless LPG Propane Gas Hot Water Heater, showing the control knobs and digital display.

Key Features:

• Low Water-pressure Startup: The water control linkage valve enables the heater to activate even under low water pressure, ensuring stable water flow.
• Ion Flame Inspection: Automatically shuts down the gas supply in case of unexpected flameout, enhancing safety.
• Over Water Pressure Protection: Automatically reduces pressure if it becomes excessively high.
• Anti-freezing Protection: Discharges residual water to prevent damage from freezing in cold environments or during periods of non-use.
• High Efficient Energy Saving: Utilizes advanced energy-saving and combustion technology in the heat exchanger and main burner to minimize gas consumption and operational noise.

Technical Specifications

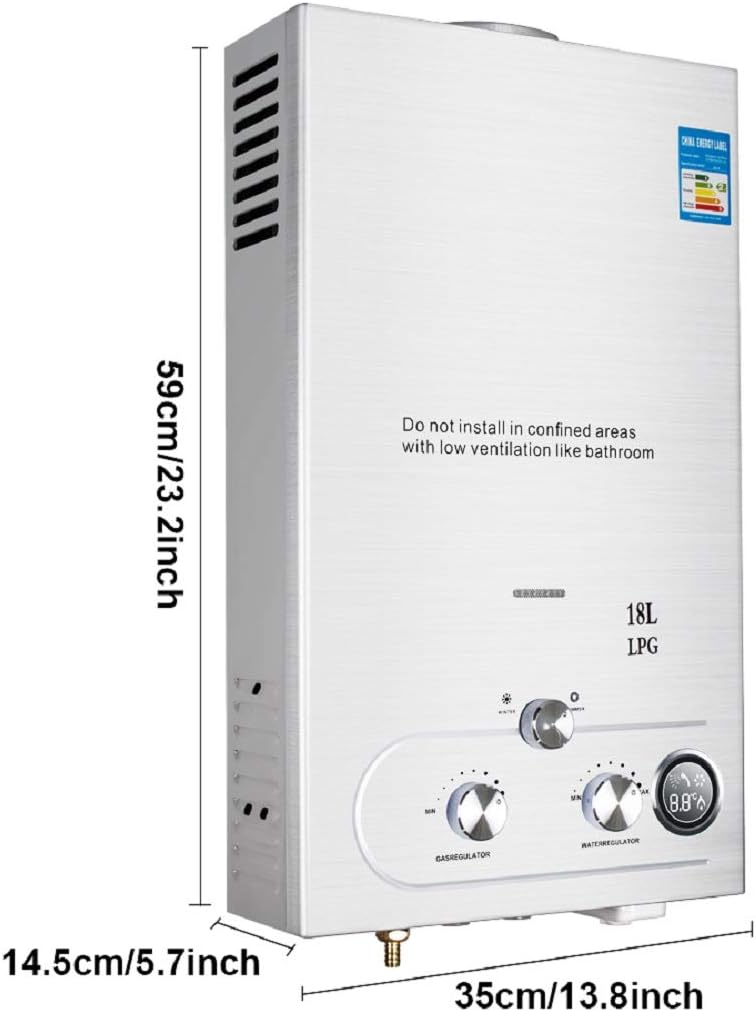

Image: Side view of the water heater with dimensions labeled: 59cm/23.2inch (height), 14.5cm/5.7inch (depth), 35cm/13.8inch (width).

Image: U.S. Government Energy Guide label for a Tankless Water Heater - Propane Gas, showing an estimated yearly energy cost of $199 and a maximum GPM of 4.8.

Installation Guidelines

This section provides general guidelines for installing your tinsay 18L Tankless LPG Propane Gas Hot Water Heater. Professional installation is highly recommended to ensure safety and compliance with local regulations.

Pre-Installation Checklist:

• Verify that the installation location is well-ventilated and not a confined space.
• Ensure adequate clearance around the unit for maintenance and proper airflow.
• Confirm that the gas supply type (LPG Propane) matches the appliance requirements.
• Gather all necessary tools and materials, including appropriate gas and water connectors, sealant, and mounting hardware.

Mounting the Unit:

1. Select a sturdy wall surface capable of supporting the unit's weight.
2. Mark the drilling points for the mounting brackets on the back of the unit.
3. Securely attach the mounting brackets to the wall using appropriate fasteners.
4. Carefully lift and hang the water heater onto the mounted brackets.

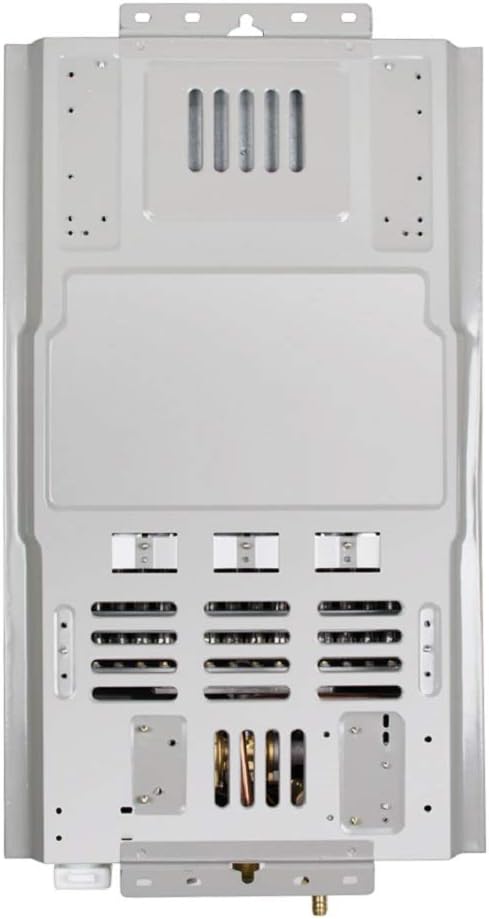

Image: Rear view of the water heater, highlighting the mounting points and internal components.

Connecting Water and Gas Lines:

Refer to the diagram below for connection points. Ensure all connections are tight and leak-free.

Image: Detailed view of the bottom connections of the water heater, clearly labeled as "Gas Inlet," "Water Intake," and "Outlet." The battery compartment is also visible.

• Gas Inlet: Connect the LPG propane gas supply line to the designated gas inlet. Use approved gas connectors and ensure a proper seal.
• Water Intake: Connect the cold water supply line to the "Water Intake" port.
• Outlet: Connect the hot water output line to the "Outlet" port.
• Battery Installation: Install two D-cell batteries (not included) into the battery compartment for ignition. Ensure correct polarity.

After all connections are made, slowly open the gas and water supply valves and check for any leaks. Test the unit according to the operating instructions.

Operating Instructions

Familiarize yourself with the control panel before operating the water heater.

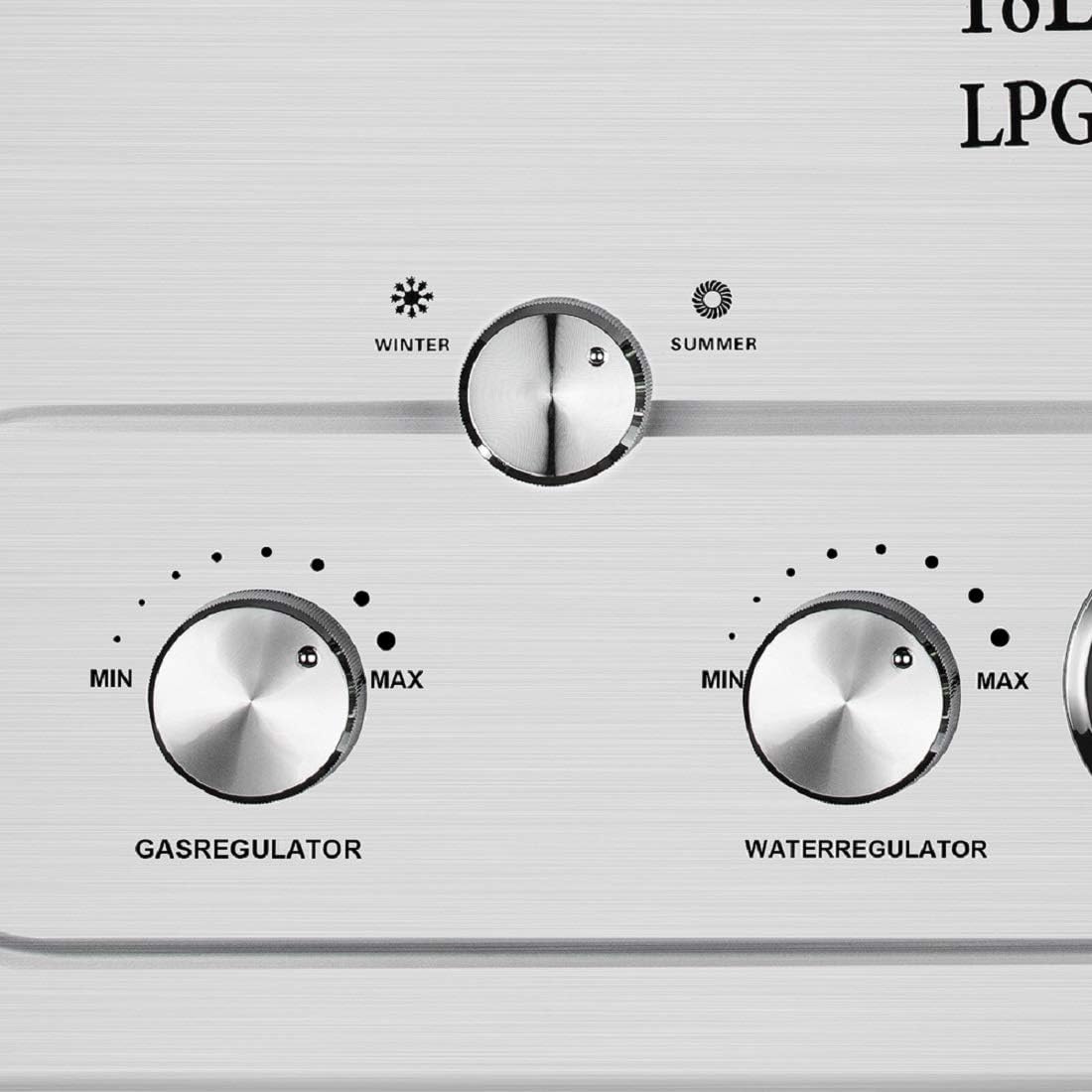

Image: Close-up of the water heater's control panel, showing the Gas Regulator knob, Water Regulator knob, and the Winter/Summer mode selector switch.

Control Panel Components:

• Gas Regulator Knob (MIN/MAX): Adjusts the gas flow to control the flame intensity and thus the water temperature. Turn towards MAX for hotter water, MIN for cooler.
• Water Regulator Knob (MIN/MAX): Controls the water flow rate through the heater. Turn towards MAX for higher flow, MIN for lower flow. Note that lower flow rates generally result in higher water temperatures.
• Winter/Summer Mode Switch: Selects the operating mode based on ambient temperature.
  • Winter Mode (Snowflake icon): Utilizes more burners for increased heating capacity in colder conditions.
  • Summer Mode (Sun icon): Uses fewer burners, suitable for warmer conditions and energy saving.
• Digital Display: Shows the current water temperature.

Image: Close-up of the digital display showing "8.8°C" and icons for shower, flame, and fan, alongside the Water Regulator knob.

Starting the Water Heater:

1. Ensure the gas supply is open and batteries are correctly installed.
2. Open a hot water faucet. The water heater will automatically detect water flow and ignite.
3. The digital display will show the water temperature.
4. Adjust the Gas Regulator and Water Regulator knobs to achieve your desired water temperature and flow.
5. Select Winter or Summer mode as appropriate for the season.

The unit is designed for low water pressure startup, meaning it can ignite even with minimal water flow.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your water heater. Always turn off the gas and water supply before performing any maintenance.

General Care:

• Exterior Cleaning: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ventilation: Periodically check that the ventilation openings are clear and unobstructed.
• Gas Connections: Annually inspect gas connections for any signs of wear or leaks.

Anti-Freezing Protection:

The unit includes an anti-freezing protection function. If the heater is installed in a cold area or will not be used for an extended period, it is recommended to drain the water from the unit to prevent freezing damage. Consult a professional for proper draining procedures if unsure.

Professional Inspection:

It is recommended to have the water heater inspected by a qualified technician at least once a year to ensure all components are functioning correctly and safely.

Troubleshooting Guide

This section addresses common issues you might encounter with your water heater. For problems not listed here or if solutions do not resolve the issue, contact a qualified technician.

Warranty and Support

For specific warranty details, please refer to the documentation included with your purchase or contact the manufacturer directly. If you require technical assistance, replacement parts, or have questions regarding your tinsay 18L Tankless LPG Propane Gas Hot Water Heater, please contact tinsay customer support.

Manufacturer: tinsay

Contact Information: Please refer to the contact details provided on the product packaging or the official tinsay website for the most up-to-date support information.
