1. Introduction
Thank you for choosing the Rock Series RKS-UL804OS 8-inch Dual Voice Coil Subwoofer. This manual provides essential information for the proper installation, operation, and maintenance of your product. Please read this manual thoroughly before use to ensure optimal performance and longevity.
The RKS-UL804OS is designed to deliver deep and powerful bass, enhancing your car audio experience. Its compact and durable design makes it suitable for various car audio and SPL applications.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product and vehicle:
- Professional Installation Recommended: Installation of car audio components can be complex. If you are unsure about any part of the installation process, seek assistance from a qualified professional.
- Disconnect Battery: Before starting any electrical work, disconnect the vehicle's negative battery terminal to prevent electrical shorts and damage.
- Proper Wiring: Ensure all wiring connections are secure and correctly polarized. Incorrect wiring can damage the subwoofer, amplifier, or vehicle's electrical system.
- Ventilation: Ensure the subwoofer enclosure has adequate ventilation to prevent overheating, especially when used with powerful amplifiers.
- Volume Levels: Prolonged exposure to high volume levels can cause hearing damage. Always listen at moderate levels.
- Secure Mounting: Securely mount the subwoofer and its enclosure to prevent it from becoming a projectile in the event of a sudden stop or accident.
- Avoid Moisture: This subwoofer is not waterproof. Avoid exposing it to water or excessive moisture.
3. Package Contents
Verify that all items are present in the package:
- 1x Rock Series RKS-UL804OS 8-inch Dual Voice Coil Subwoofer
- User Manual (this document)
4. Setup & Installation
The RKS-UL804OS subwoofer is designed for flush mounting within a suitable enclosure. Proper enclosure design and wiring are crucial for optimal performance.
4.1. Enclosure Requirements
This subwoofer requires a sealed or ported enclosure designed to match its specifications. Consult with a car audio specialist or use a reputable enclosure design software to determine the ideal enclosure volume and port tuning frequency for your specific application. An improperly sized enclosure can lead to poor sound quality and potential damage to the subwoofer.
4.2. Mounting the Subwoofer
Once your enclosure is built, carefully mount the subwoofer. Ensure the mounting hole is cut precisely to the subwoofer's diameter. Use appropriate screws to secure the subwoofer firmly to the enclosure baffle. Do not overtighten the screws, as this can damage the subwoofer frame.

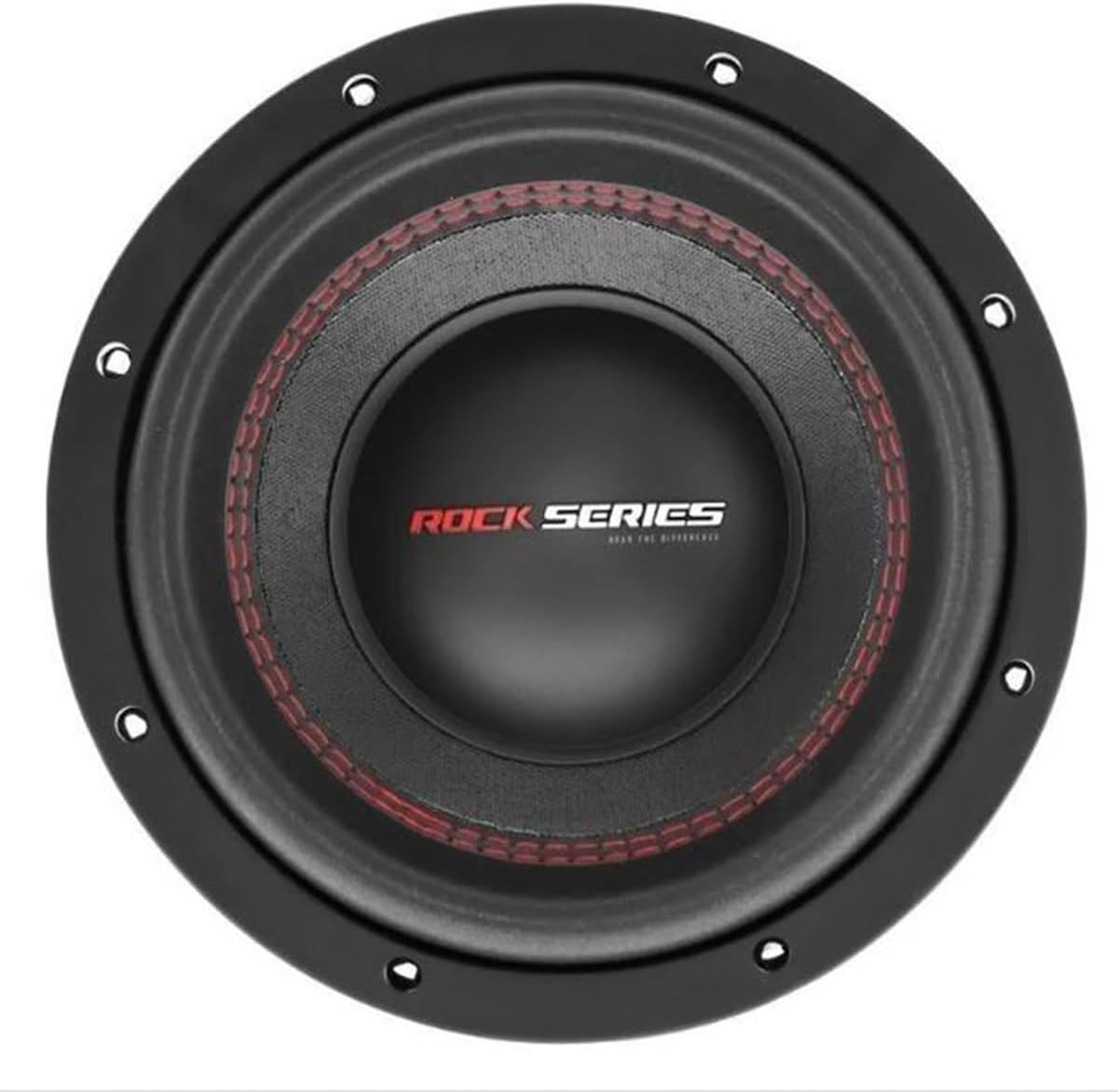

Image 1: Front view of the Rock Series RKS-UL804OS 8-inch subwoofer. This image shows the speaker cone, surround, and the Rock Series logo on the dust cap.
4.3. Wiring the Dual Voice Coils
The RKS-UL804OS features dual 4-ohm voice coils, offering flexibility in wiring configurations to achieve different impedance loads for your amplifier. Always ensure your amplifier is stable at the chosen impedance.
Image 2: Side view of the Rock Series RKS-UL804OS subwoofer, highlighting the dual speaker terminals for voice coil connections.
Image 3: Angled rear view of the Rock Series RKS-UL804OS subwoofer, displaying the robust magnet structure and the dual voice coil terminals.
Image 4: Angled side view of the Rock Series RKS-UL804OS subwoofer, showing the magnet assembly and the model number label.
Common wiring configurations:
- Parallel Wiring (2 Ohms): Connect the positive (+) terminals of both voice coils together, and the negative (-) terminals of both voice coils together. Then connect the combined positive to the amplifier's positive output and the combined negative to the amplifier's negative output. This configuration results in a 2-ohm load.
- Series Wiring (8 Ohms): Connect the positive (+) terminal of one voice coil to the negative (-) terminal of the other voice coil. Then connect the remaining positive (+) terminal to the amplifier's positive output and the remaining negative (-) terminal to the amplifier's negative output. This configuration results in an 8-ohm load.
Refer to your amplifier's manual to determine the lowest stable impedance it can handle. Incorrect impedance matching can lead to amplifier overheating and damage.
4.4. Connecting to Amplifier
Connect the subwoofer's wired output to the appropriate subwoofer output terminals on your amplifier. Ensure secure connections to prevent signal loss or short circuits. Use high-quality speaker wire of adequate gauge for the power levels involved.
5. Operating Instructions
5.1. Initial Power-Up and Break-In
After installation, perform an initial power-up at a low volume. Gradually increase the volume to ensure all connections are correct and there is no distortion. A break-in period of approximately 10-20 hours of moderate listening is recommended. During this time, the subwoofer's suspension will loosen, allowing it to perform optimally.
5.2. Adjusting Amplifier Settings
Adjust your amplifier's gain, crossover, and bass boost settings according to your preferences and the subwoofer's capabilities. Start with low gain and gradually increase it until you achieve the desired volume without distortion. Set the low-pass filter (LPF) on your amplifier to prevent higher frequencies from reaching the subwoofer, typically between 60Hz and 100Hz, depending on your other speakers.
5.3. Listening Levels
While the RKS-UL804OS is capable of high output, continuous listening at extreme volumes can cause damage to the subwoofer and your hearing. If you hear any distortion, reduce the volume immediately.
6. Maintenance
Regular maintenance will help ensure the longevity and performance of your subwoofer:
- Cleaning: Use a soft, dry cloth to wipe down the subwoofer cone and surround. Avoid using harsh chemicals or abrasive cleaners.
- Inspection: Periodically inspect the subwoofer for any signs of damage, such as tears in the cone or surround, or loose connections.
- Environmental Factors: Keep the subwoofer away from direct sunlight, extreme temperatures, and moisture.
7. Troubleshooting
If you experience issues with your RKS-UL804OS subwoofer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No Sound |
|
|
| Distorted Sound |
|
|
| Subwoofer Overheating |
|
|
If the problem persists after trying these solutions, contact Rock Series customer support or a qualified car audio technician.
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | RKS-UL804OS |
| Speaker Type | Subwoofer |
| Special Feature | 8-inch Dual Voice Coil |
| Subwoofer Diameter | 8 Inches (20.3 cm) |
| Impedance | Dual 4 Ohms |
| Max Power Output | 1500 Watts |
| RMS Power Output | 750 Watts |
| Product Dimensions (L x W x H) | 13.1 x 20.3 x 20.3 cm (approx. 5.16 x 7.99 x 7.99 inches) |
| Product Weight | 1 Kilogram (approx. 2.2 lbs) |
| Connectivity Technology | Wired |
| Speaker Amplification Type | Passive |
| Manufacturer | Rock Series |
| Mounting Type | Flush Mount |
| Waterproof | No |
Note: Specifications are subject to change without notice.
9. Warranty & Support
The Rock Series RKS-UL804OS subwoofer comes with an extended warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your purchase or visit the official Rock Series website.
For technical support, troubleshooting assistance, or warranty claims, please contact Rock Series customer service through their official website or the retailer from whom you purchased the product. Please have your model number (RKS-UL804OS) and proof of purchase ready when contacting support.
Rock Series Official Website: Visit Rock Series Store on Amazon.com.mx (This link directs to the brand's store page on Amazon, which may contain support contact information or links to the official website).
