1. Important Safety Information
Please read all instructions carefully before operating your new portable air conditioner. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Electrical Safety: Ensure the unit is plugged into a properly grounded 115V, 60Hz electrical outlet. Do not use extension cords or adapter plugs. Do not operate with a damaged cord or plug.
- Placement: Place the unit on a flat, stable surface. Maintain at least 20 inches (50 cm) of clearance from walls or other objects to ensure proper airflow. Do not block air inlets or outlets.
- Water and Moisture: Do not operate the unit near water or in excessively damp environments. Never immerse the unit in water.
- Children and Pets: Keep children and pets away from the unit. Adult supervision is required when the appliance is used by or near children.
- Maintenance: Always unplug the unit before cleaning or performing any maintenance. Do not attempt to repair or modify the unit yourself. Refer all servicing to qualified personnel.
- Ventilation: The exhaust hose must be properly installed and vented to the outside to ensure efficient operation and prevent overheating.
- Storage: When storing the unit for an extended period, ensure it is drained of all water and the filter is clean and dry.
2. Product Overview
The AuxAC MF-08KC2 is a versatile 8,000 BTU (ASHRAE) / 5,500 BTU (DOE) portable air conditioner designed to provide cooling, dehumidification, and fan-only operation for rooms up to 200-250 square feet. Its compact design, integrated side handles, and easy-rolling casters ensure convenient portability.
Figure 2.1: Front view of the AuxAC MF-08KC2 Portable Air Conditioner, showcasing its sleek white design and front air vents.
Key Features:
- Efficient Cooling: 8,000 BTU (ASHRAE) / 5,500 BTU (DOE) cooling capacity, ideal for spaces up to 200-250 sq. ft.
- 3-in-1 Functionality: Offers Cooling, Dehumidifier, and Fan-only modes for year-round comfort.
- Dehumidification: Removes up to 2.5 pints of moisture per hour, improving air quality.
- Portability: Equipped with 4 easy-rolling casters and integrated side handles for effortless movement between rooms.
- User-Friendly Setup: Includes a flexible exhaust hose and window venting kit for quick and simple installation.
- Programmable Timer: Allows scheduling operation to save energy.
- Auto Restart: Remembers previous settings and restarts automatically after a power outage.
- Washable Filter: Easy-access, washable filter for simple maintenance and optimal performance.
Figure 2.2: Illustration of the 3-in-1 functionality of the AuxAC portable air conditioner, highlighting its cooling, fan, and drying (dehumidification) modes.

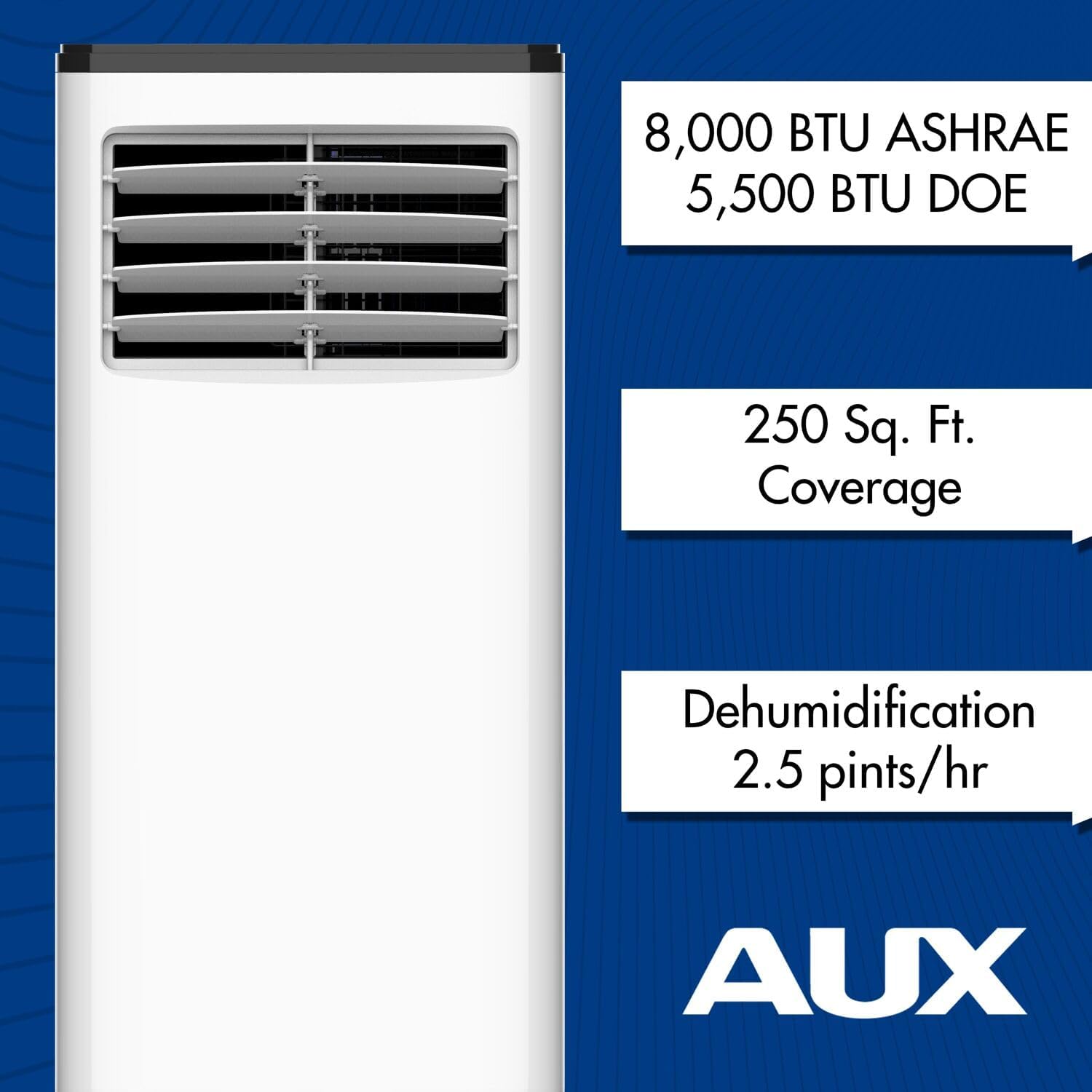

Figure 2.3: Key performance metrics for the AuxAC MF-08KC2, including 8,000 BTU ASHRAE / 5,500 BTU DOE, 250 Sq. Ft. coverage, and 2.5 pints/hr dehumidification capacity.
Product Video:
Video 2.1: An official product video from AuxAC, demonstrating the portable air conditioner's features and ease of use. This video highlights the unit's portability, 3-in-1 functions, and easy filter care.
3. Setup and Installation
The AuxAC MF-08KC2 is designed for quick and easy setup. Follow these steps to install your portable air conditioner:
- Unpack the Unit: Carefully remove the air conditioner and all accessories from the packaging. Ensure all components are present: portable AC unit, exhaust hose, window venting kit, and user manual.
- Position the Unit: Place the unit on a firm, level surface near a window and a grounded electrical outlet. Ensure there is at least 20 inches (50 cm) of clear space around the unit for proper air circulation.
- Install the Exhaust Hose:
- Attach the exhaust hose connector to the back of the air conditioner unit.
- Attach the window exhaust adapter to the other end of the exhaust hose.
- Install the Window Venting Kit:
- Open the window and place the window sealing plate kit into the window opening. Adjust the length of the kit to fit the window securely (adjustable for windows 24” to 36”).
- Close the window firmly against the sealing plate.
- Insert the window exhaust adapter into the opening of the window sealing plate.
- Plug In: Plug the power cord into a dedicated, grounded 115V, 60Hz electrical outlet.
Figure 3.1: The AuxAC portable air conditioner positioned in a living space, demonstrating the proper setup with the exhaust hose connected to the window venting kit.
4. Operating Instructions
Your AuxAC portable air conditioner features an intuitive control panel for easy operation. Refer to the control panel on the top of the unit for specific button functions.
Operating Modes:
- Cool Mode: Provides powerful cooling. Set your desired temperature using the temperature adjustment buttons. The unit will cool the room to the set temperature.
- Dehumidifier Mode: Removes excess moisture from the air. The unit can remove up to 2.5 pints of moisture per hour. In this mode, the fan speed is typically fixed, and the temperature cannot be adjusted.
- Fan Mode: Circulates air without cooling. Choose from multiple fan speeds (e.g., Low, Medium, High) to suit your preference.
Additional Functions:
- Timer Function: Use the timer button to program the unit to turn on or off automatically after a set period (e.g., 1-24 hours). This helps save energy by operating only when needed.
- Auto Restart: In the event of a power interruption, the unit will automatically restart with the previously selected settings once power is restored.
- Sleep Mode: (If applicable, check control panel) This mode typically adjusts the temperature and fan speed for quieter operation during sleep.
For detailed instructions on using the control panel and remote control (if included), please refer to the specific sections in your printed manual.
5. Maintenance and Care
Regular maintenance ensures optimal performance and extends the lifespan of your AuxAC portable air conditioner. Always unplug the unit before cleaning or maintenance.
Cleaning the Air Filter:
The unit features an easy-access, washable air filter that helps clean the air. A "Clean Filter" alert will notify you when it's time for cleaning.
- Remove the Filter: Locate the filter access panel (usually at the back or side of the unit) and carefully remove the air filter.
- Clean the Filter: Rinse the filter under warm, running water. For stubborn dirt, use a mild detergent and a soft brush.
- Dry the Filter: Allow the filter to air dry completely before reinstalling it. Do not use direct heat to dry the filter.
- Reinstall the Filter: Once dry, carefully slide the filter back into its slot until it clicks into place.
Recommended cleaning frequency: Every two weeks, or more often depending on usage and air quality.
Draining Accumulated Water:
During dehumidification or cooling, water will accumulate inside the unit. The unit has a self-evaporative system, but in high humidity conditions, manual draining may be necessary. Refer to your printed manual for specific draining procedures, which typically involve a drain plug at the bottom or back of the unit.
Cleaning the Unit Exterior:
Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals, abrasives, or solvents, as these can damage the surface.
6. Troubleshooting
Before contacting customer support, please refer to the following troubleshooting guide for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, tripped circuit breaker, power cord not fully plugged in. | Check power outlet, reset circuit breaker, ensure power cord is securely plugged in. |
| Unit is running but not cooling. | Dirty air filter, blocked air intake/exhaust, room too large, window kit not sealed, door/window open. | Clean air filter, ensure clear airflow, check room size, properly seal window kit, close doors/windows. |
| Water leakage. | Water tank full (in dehumidifier mode), unit not level, drain plug loose. | Drain the water tank, ensure unit is on a level surface, check drain plug. |
| Unit is noisy. | Unit not on a level surface, fan obstruction, normal operating sounds. | Ensure unit is level, check for obstructions in fan, some noise is normal during operation. |
If the problem persists after attempting these solutions, please contact AuxAC customer support.
7. Specifications
Detailed technical specifications for the AuxAC MF-08KC2 Portable Air Conditioner:
- Model Number: MF-08KC2
- Cooling Capacity (ASHRAE): 8,000 BTU
- Cooling Capacity (DOE): 5,500 BTU
- Recommended Coverage Area: Up to 200-250 Sq. Ft.
- Dehumidification Capacity: 2.5 Pints per hour
- Product Dimensions (D x W x H): 13.8" x 16.57" x 27.9"
- Item Weight: 61 pounds
- Voltage: 115 Volts
- Noise Level: 52 dB
- Seasonal Energy Efficiency Ratio (SEER): 10.2
- Color: White
- Included Components: Air Conditioner, Manual, Warranty, Exhaust Kit
Figure 7.1: Detailed dimensions of the AuxAC MF-08KC2 Portable Air Conditioner.
Figure 7.2: The U.S. Government EnergyGuide label for the MF-08KC2, indicating an estimated yearly energy cost of $75 and a Combined Energy Efficiency Ratio of 6.3.
BTU and Coverage Guide:
Figure 7.3: A guide to selecting the appropriate BTU size based on room coverage area, illustrating that the 8,000 BTU unit is suitable for up to 250 sq. ft.
8. Warranty and Support
Your AuxAC MF-08KC2 Portable Air Conditioner comes with a 1 Year Limited Warranty. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or any questions regarding your product, please contact AuxAC customer support. Please have your model number (MF-08KC2) and proof of purchase ready when contacting support.
For the most up-to-date support information, please visit the official AuxAC website or refer to the contact details provided in your product packaging.
