1. Introduction
This manual provides detailed instructions for assembling your Piececool Metal 3D Puzzle Macaws Model. This kit is designed for enthusiasts aged 16 and above, offering a unique and engaging building experience with high-quality stainless steel components. The finished model is a detailed representation of a Macaw, perfect for display.

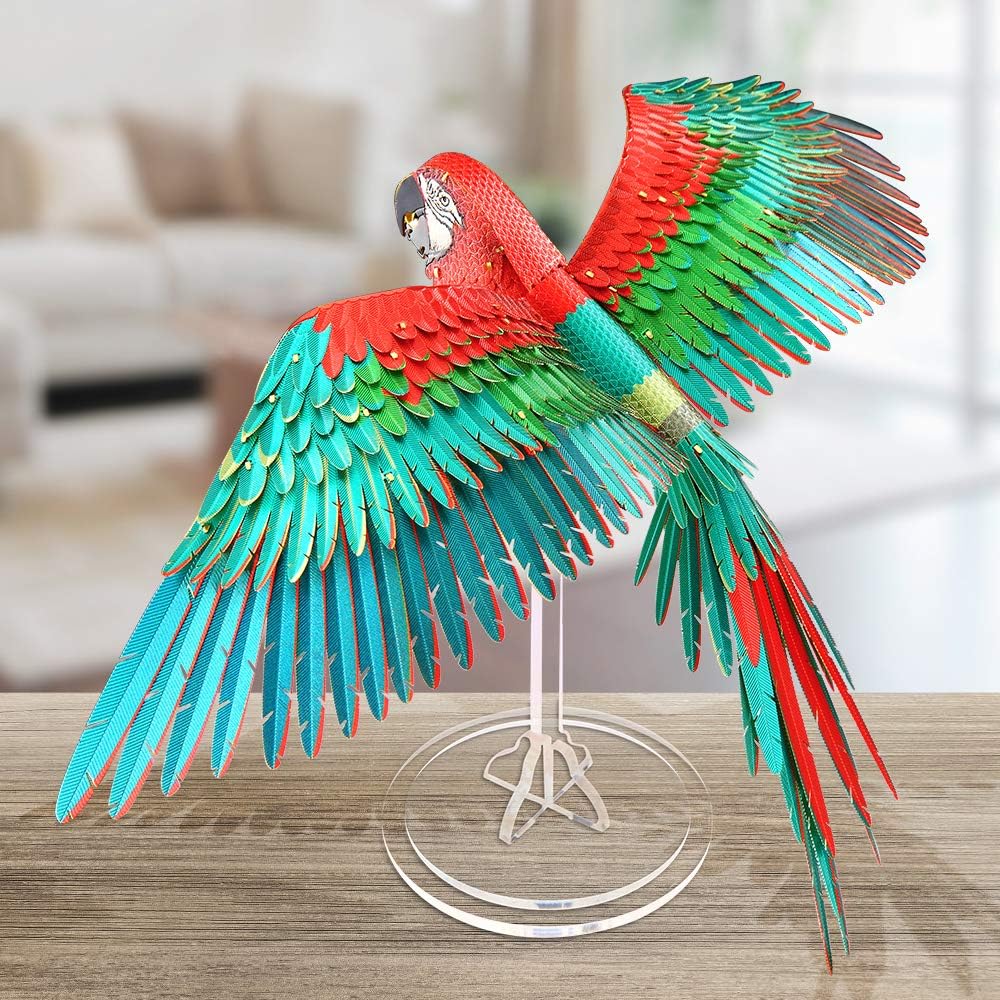

Image 1: Fully assembled Piececool Macaws Metal 3D Puzzle, showcasing its vibrant colors and intricate details.
2. Safety Information
Please read and understand all safety precautions before beginning assembly. This kit contains small parts and metal components with potentially sharp edges. Adult supervision is recommended for users under the age of 16, despite the recommended age being 16+.
- Small Parts: Keep all small components away from young children to prevent choking hazards.
- Sharp Edges: Metal sheets may have sharp edges. Handle with care to avoid cuts.
- Tools: Use appropriate tools (pliers, nippers) carefully to prevent injury.
- Storage: Store unassembled parts and the finished model in a safe place, out of reach of children and pets.
3. Setup and Assembly
The assembly process requires precision and patience. No glue or soldering is needed; parts are connected by bending and twisting tabs. The estimated assembly time is 4 to 8 hours, depending on individual concentration and experience.
3.1 Required Tools (Not Included)
- Nippers/Water-cutting Pliers: For carefully removing parts from the metal sheets.
- Pointed-nose Pliers: Essential for bending and twisting small tabs and folding metal parts accurately.
- Tweezers: Useful for handling very small parts and precise adjustments.
Image 2: Examples of recommended tools for assembly, including nippers and pointed-nose pliers.
3.2 Assembly Steps
- Remove the Parts: Carefully detach each piece from the metal sheets using water-cutting pliers. Ensure a clean cut at the nozzle position to avoid burrs.
Image 3: Demonstrating the careful removal of parts from the metal sheet using nippers.
- Identify the Parts: Each part has specific tabs and holes. Refer to the detailed instructions provided in the kit to identify the correct insert tabs, fold lines, and insert holes for each connection.
- Fold the Parts: Use pointed-nose pliers to accurately fold metal parts along the designated fold lines. Precision in this step is crucial for the model's final appearance and structural integrity.
Image 4: Illustrating the use of pointed-nose pliers for bending metal tabs during assembly.
- Retain the Parts: Insert the tabs into the corresponding holes. Secure the connection by either bending the tab flat or twisting it, as indicated in the instructions for each specific joint.
Image 5: Detailed diagram illustrating the installation method, including tab bending and twisting techniques.
Follow the numbered steps in the provided manual carefully. Each step builds upon the previous one, ensuring correct assembly of the Macaws model.
Image 6: Visual comparison of the unassembled metal sheets and the completed Macaws model.
4. Operating (Display)
Once assembled, the Piececool Macaws Model is a static display piece. It comes with a transparent stand for stable presentation. Position the model on a flat, stable surface where it can be admired without risk of falling or damage.
Image 7: The completed Macaws model elegantly displayed on its transparent stand.
5. Maintenance
To ensure the longevity and appearance of your metal 3D puzzle, follow these maintenance guidelines:
- Cleaning: Gently wipe the model with a soft, dry cloth to remove dust. Avoid using abrasive cleaners or solvents, which can damage the metal finish.
- Handling: Handle the model by its base or main body. Avoid gripping delicate parts like wings or tail feathers, as they can bend or detach.
- Environment: Keep the model in a dry environment, away from direct sunlight or extreme temperatures, to prevent discoloration or material degradation.
6. Troubleshooting
If you encounter difficulties during assembly, consider the following common issues and solutions:
- Parts Not Fitting: Double-check the part numbers and orientation against the instruction manual. Ensure tabs are fully inserted and bent/twisted correctly.
- Tabs Breaking: Apply gentle, even pressure when bending or twisting tabs. Avoid excessive force. If a tab breaks, you may need to use a small amount of model adhesive for a secure connection, though this is generally not required.
- Difficulty Bending: Ensure you are using appropriate pointed-nose pliers. For very small or tight bends, use the tip of the pliers for better control.
- Missing Parts: Carefully check all metal sheets and packaging. If a part is genuinely missing, contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | Macaws Model |
| Model Number | COMOYA |
| Brand | Piececool |
| Material | Stainless Steel |
| Number of Pieces | 83 |
| Assembled Dimensions (L x W x H) | 28 x 13 x 19 cm (approximately) |
| Product Weight | 250 grams (approximately) |
| Recommended Age | 16 years and up |
| Educational Value | Creative Skill Development |
Image 8: Dimensions of the assembled Macaws model.
8. Warranty Information
Specific warranty details for this product are typically provided by the retailer or manufacturer at the time of purchase. Please refer to your purchase documentation or the retailer's website for information regarding warranty coverage and terms.
9. Customer Support
For any questions regarding the assembly process, missing parts, or general inquiries about your Piececool Metal 3D Puzzle, please contact Piececool customer support. Detailed contact information can usually be found on the product packaging or the official Piececool website.
"If you have any questions about the assembly process, please contact us and we will give you a detailed answer."
