1. Introduction
This manual provides essential instructions for the safe installation, operation, and maintenance of your Warehouse of Tiffany RL8114UP Cadogan 3-Light Pendant. Please read this manual thoroughly before beginning installation and retain it for future reference.
The Cadogan 3-Light Pendant features an oil rubbed bronze finish and a clear glass shade, designed to provide illumination in various indoor settings such as entryways or dining areas.
2. Safety Information
- WARNING: To avoid electric shock, ensure power is turned off at the circuit breaker or fuse box before installation, servicing, or changing bulbs.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This fixture is intended for indoor use only. Do not expose to water or moisture.
- Use only the specified bulb type and wattage. Exceeding the maximum wattage may cause overheating and damage to the fixture or create a fire hazard.
- Handle glass components with care to prevent breakage.
- Keep flammable materials away from the light fixture when in operation.
3. Package Contents
Verify that all components are present before beginning installation:
- Pendant Fixture Assembly (Metal frame, glass shade, chain)
- Mounting Hardware (Canopy, mounting plate, screws, wire nuts)
- Instruction Manual
Note: Three (3) 60-Watt E12 bulbs are required and are not included in the package.
4. Setup and Installation
Professional installation is recommended for optimal safety and performance.
- Turn Off Power: Locate the circuit breaker or fuse box and turn off the power supply to the junction box where the fixture will be installed.
- Prepare Mounting: Carefully unpack the fixture and its components. Attach the mounting plate to the junction box using the provided screws.
- Adjust Chain Length: Determine the desired hanging height for your pendant. Adjust the chain length by removing links as needed. Feed the electrical wires through the chain and canopy.
- Wire Connections: Connect the fixture's electrical wires to the corresponding wires from the junction box using the provided wire nuts. Connect the black wire (live) to the black wire, the white wire (neutral) to the white wire, and the ground wire to the ground wire. Ensure all connections are secure.
- Mount Canopy: Carefully push the canopy up to the ceiling, covering the junction box, and secure it with the provided screws or nuts.
- Install Bulbs: Screw three (3) E12 base bulbs (max 60 watts each, not included) into the sockets. Do not overtighten.
- Attach Glass Shade: Carefully attach the clear glass shade to the fixture according to the specific design. Ensure it is securely fastened.
- Restore Power: Once installation is complete and all components are secure, restore power at the circuit breaker.
Image 1: Close-up view of the Warehouse of Tiffany Cadogan 3-Light Pendant, showing the oil rubbed bronze finish and clear glass shade.

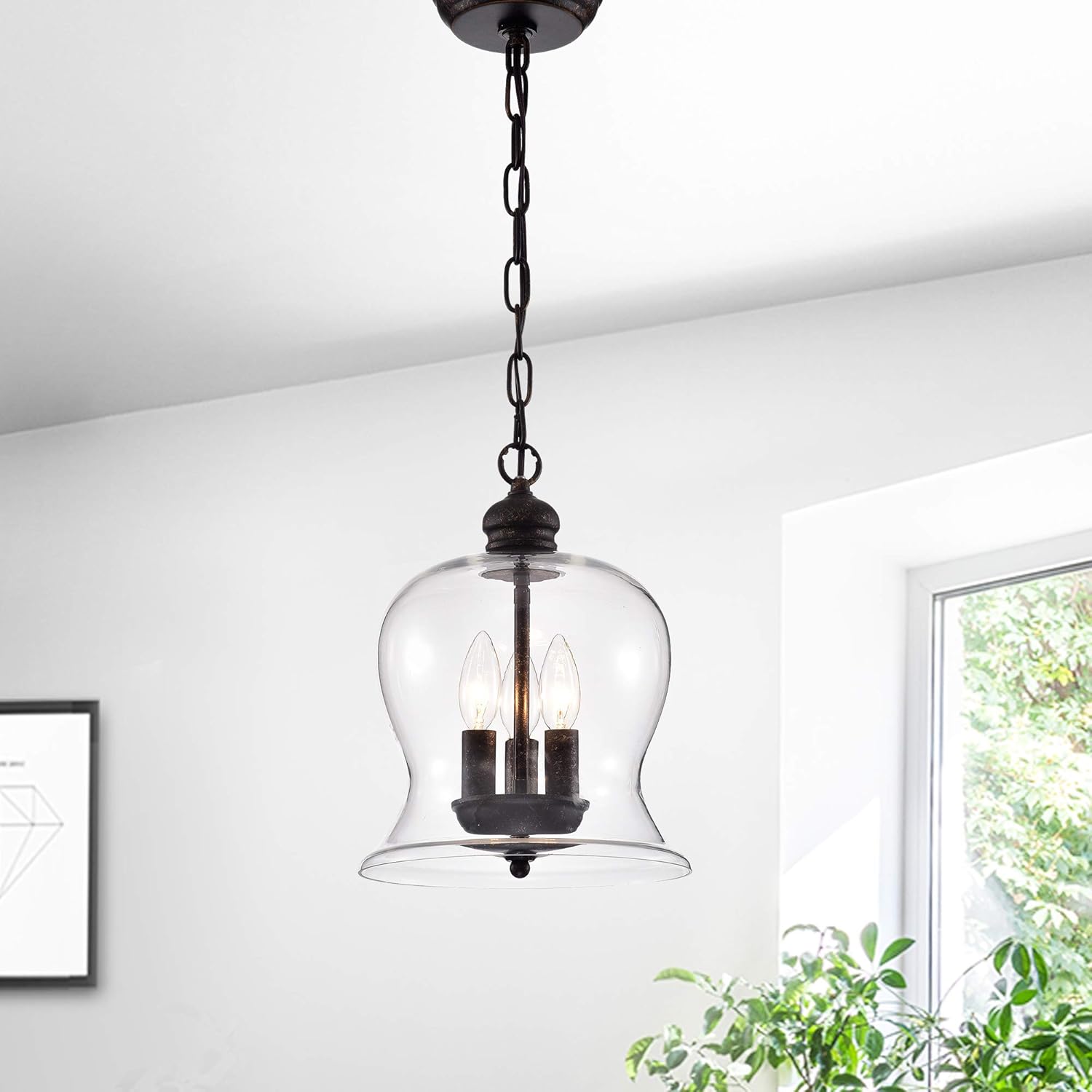

Image 2: The Warehouse of Tiffany Cadogan 3-Light Pendant installed in a room, demonstrating its appearance and scale.
5. Operating Instructions
Once properly installed and powered, the Warehouse of Tiffany Cadogan 3-Light Pendant operates via a standard wall switch connected to the circuit. Simply toggle the wall switch to turn the light fixture on or off.
6. Maintenance
- Cleaning: To clean the fixture, ensure the power is turned off and the fixture has cooled. Wipe the metal parts with a soft, dry cloth. For the glass shade, use a mild glass cleaner and a soft cloth. Avoid abrasive cleaners or harsh chemicals, as they may damage the finish.
- Bulb Replacement: Always turn off the power at the circuit breaker before replacing bulbs. Allow bulbs to cool completely before touching them. Replace with E12 base bulbs, not exceeding 60 watts per bulb.
- Inspection: Periodically inspect the wiring and connections for any signs of wear or damage. If any issues are found, consult a qualified electrician.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to fixture; Loose wiring; Faulty bulb; Faulty wall switch | Check circuit breaker/fuse; Ensure all wire connections are secure; Replace bulb; Test wall switch or consult electrician |
| Light flickers | Loose bulb; Loose wiring; Incompatible dimmer switch (if applicable) | Tighten bulb; Check wire connections; Ensure dimmer switch is compatible with LED/incandescent bulbs |
| Glass shade is loose | Securing mechanism not tightened | Carefully tighten the securing ring or screws holding the shade in place |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | RL8114UP |
| Brand | Warehouse of Tiffany |
| Lighting Type | Pendant |
| Fixture Finish | Oil Rubbed Bronze |
| Materials | Metal, Glass |
| Number of Lights | 3 |
| Bulb Type | E12 (Candelabra base) |
| Max Wattage per Bulb | 60 Watts |
| Voltage | 120 Volts |
| Product Dimensions | 10 x 10 x 13 inches |
| Item Weight | 6.44 pounds |
| Assembly Required | Yes |
| Certifications | ETL Listed |
9. Warranty and Support
This product is sold without an explicit warranty. For any questions regarding installation, operation, or parts, please contact the manufacturer directly.
You can find more information and support by visiting the Warehouse of Tiffany Store.
