1. Introduction
Thank you for choosing the BOSCH GSN33VWEP Upright Freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the freezer and keep it for future reference.
Image Description: A full front view of the white BOSCH GSN33VWEP upright freezer, showcasing its sleek design and integrated handle.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Ensure the appliance is properly grounded.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- This appliance is intended for household use only.
- Unplug the appliance before cleaning or performing maintenance.
3. Product Overview and Features
The BOSCH GSN33VWEP freezer is designed for efficient and convenient food storage, incorporating advanced technologies to maintain optimal conditions for your frozen goods.
3.1. Key Features
- NoFrost Technology: Eliminates the need for manual defrosting by preventing ice build-up. This saves time and effort while ensuring consistent performance.
Image Description: An interior shot of the freezer showing the "NoFrost" label and an indicator light, highlighting the automatic defrosting feature.
- BigBox Freezer Drawer: Provides ample space for storing large or bulky frozen items, such as whole cakes, pizzas, or for stacking multiple containers. This drawer is approximately 26 cm high.
Image Description: A large cake placed inside the spacious BigBox freezer drawer, demonstrating its capacity for oversized items.
Image Description: Several long baguettes stored vertically within the freezer compartment, illustrating flexible storage options for tall items.
- Multi Airflow System: Ensures uniform distribution of cold air throughout the freezer compartment. This minimizes temperature fluctuations and shortens cooling times, preserving the freshness and aroma of your food for longer.
Image Description: An illustration inside the freezer showing circular air currents, representing the Multi Airflow system's even cold air distribution.
- FreshSense: Advanced sensors monitor and control the temperature inside the freezer, ensuring a constant and stable freezing environment to protect your frozen goods.
3.2. Design and Capacity
- Color: White doors and white side panels.
- Total Net Capacity: 225 Liters.
- Door Orientation: Reversible, allowing for flexible placement in your kitchen.
4. Setup and Installation
4.1. Unpacking
Carefully remove all packaging materials. Inspect the freezer for any damage that may have occurred during transit. Report any damage to your retailer immediately. Keep packaging materials out of reach of children.
4.2. Placement
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., ovens, radiators). Ensure there is sufficient space around the appliance for proper ventilation.
- Allow at least 5 cm of space at the back and sides for air circulation.
- Ensure the floor is level and strong enough to support the weight of the fully loaded freezer.
4.3. Dimensions
The approximate dimensions of the BOSCH GSN33VWEP freezer are as follows:
- Width: 600 mm (60 cm)
- Depth: 650 mm (65 cm)
- Height: 1860 mm (186 cm)
Image Description: Technical diagram illustrating the precise dimensions of the freezer in millimeters, including width, depth, and height, as well as door swing clearance.
4.4. Electrical Connection
Connect the freezer to a dedicated, properly grounded electrical outlet. The appliance operates on 240 Volts. Do not use extension cords or adapters.
4.5. First Use
After installation, wait at least 4 hours before plugging in the appliance to allow the refrigerant to settle. Once plugged in, allow the freezer to run for several hours (e.g., 6-8 hours) to reach its operating temperature before loading it with food.
5. Operating Instructions
5.1. Temperature Control
The freezer's temperature is controlled via an internal panel. Refer to the specific controls on your appliance to adjust the temperature. The recommended temperature for freezing food is -18°C (0°F).
5.2. Loading the Freezer
Distribute food evenly to allow for proper air circulation. Avoid overloading the freezer, as this can hinder efficient cooling. Utilize the BigBox drawer for larger items and other drawers for organized storage.
Image Description: An interior view of the freezer with its door open, revealing multiple transparent drawers and shelves designed for organized food storage.
6. Maintenance
6.1. Cleaning
Regular cleaning helps maintain hygiene and efficiency.
- Unplug the freezer before cleaning.
- Clean the interior with a soft cloth and a mild detergent solution. Avoid abrasive cleaners or solvents.
- Wipe down the exterior with a damp cloth.
- Clean the condenser coils at the back of the appliance periodically (e.g., every 6-12 months) to ensure efficient operation.
6.2. Defrosting (NoFrost System)
Your BOSCH GSN33VWEP freezer is equipped with NoFrost technology, which automatically prevents ice build-up. Therefore, manual defrosting is not required. The system periodically initiates an automatic defrost cycle, and any resulting condensation is evaporated outside the appliance.
7. Troubleshooting
Before contacting customer service, please check the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer is not cooling. | Not plugged in; power outage; circuit breaker tripped; temperature setting too high. | Check power connection; check household fuse/circuit breaker; adjust temperature setting. |
| Freezer is too warm. | Door not closed properly; too much warm food added; poor ventilation; direct sunlight. | Ensure door is sealed; allow warm food to cool before freezing; ensure adequate ventilation; relocate if in direct sunlight. |
| Unusual noises. | Appliance not level; objects touching the back; normal operating sounds (e.g., refrigerant flow, fan). | Level the appliance; move objects away from the back; normal sounds are expected. |
| Excessive energy consumption. | Door left open frequently; temperature set too low; dirty condenser coils. | Minimize door openings; set temperature appropriately; clean condenser coils. |
8. Specifications
Detailed technical specifications for the BOSCH GSN33VWEP Upright Freezer:
- Model Number: GSN33VWEP
- Brand: Bosch
- Type: Upright Freezer
- Total Net Capacity: 225 Liters
- Energy Efficiency Class: E
- Annual Energy Consumption: 229 kWh/annum
- Noise Level: 39 dB(A) re 1 pW
- Voltage: 240 Volts
- Weight: 65 Kilograms
- Dimensions (H x W x D): 1860 mm x 600 mm x 650 mm
- Door Orientation: Reversible
- Color: White
- International Article Code (EAN): 04242005247752

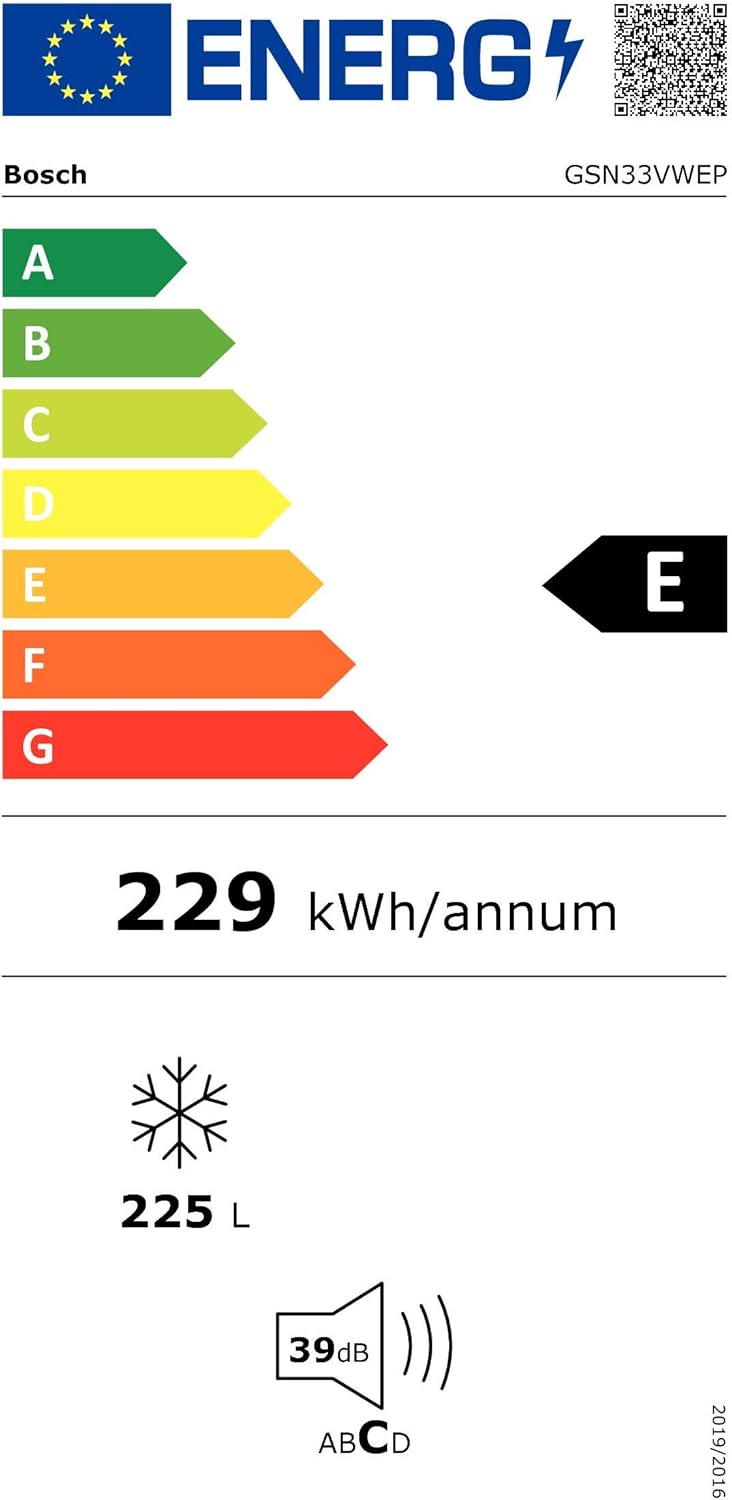

Image Description: The official EU energy label for the BOSCH GSN33VWEP freezer, displaying its energy efficiency class (E), annual energy consumption (229 kWh/annum), capacity (225 L), and noise level (39 dB).
For more details, visit the EPREL database: HTTPS://EPREL.EC.EUROPA.EU/QR/274264
9. Warranty and Support
9.1. Manufacturer's Warranty
This BOSCH GSN33VWEP freezer comes with a 2-year manufacturer warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
9.2. Customer Support
For technical assistance, spare parts, or warranty service, please contact Bosch customer support. Refer to the contact information provided with your appliance or visit the official Bosch website for your region.
Note: Information regarding the availability of spare parts and software updates is not available in the provided data.
