EVGATSAUTO Universal 5-Point Auto Car Earth Cable System Ground Wire Kit Instruction Manual

1. Product Overview

The EVGATSAUTO Universal 5-Point Auto Car Earth Cable System Ground Wire Kit is designed to enhance the electrical conductivity and performance of your vehicle's electrical system. In standard vehicle designs, the car body serves as a return path for current to the battery's negative terminal. This can introduce impedance, leading to inefficient electrical flow and potentially impacting the performance of various electrical components.

This kit provides high-performance enforced ground wires that directly connect electrical appliances and the car body to the battery's negative terminal. This direct connection significantly improves current flow, which can lead to benefits such as enhanced spark plug ignition, increased engine horsepower, improved electricity generation and charging efficiency, extended battery lifespan, and better engine combustion efficiency.

2. Safety Information

Always prioritize safety when working with vehicle electrical systems. Failure to do so can result in personal injury or damage to the vehicle.

• Ensure the vehicle's engine is off and the ignition key is removed before beginning any installation.
• Disconnect the negative terminal of the vehicle's battery before working on any electrical components to prevent accidental short circuits.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Avoid touching hot engine components.
• Ensure all connections are secure and free from corrosion. Loose connections can generate heat and pose a fire hazard.
• If you are unsure about any step of the installation process, consult a qualified automotive technician.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

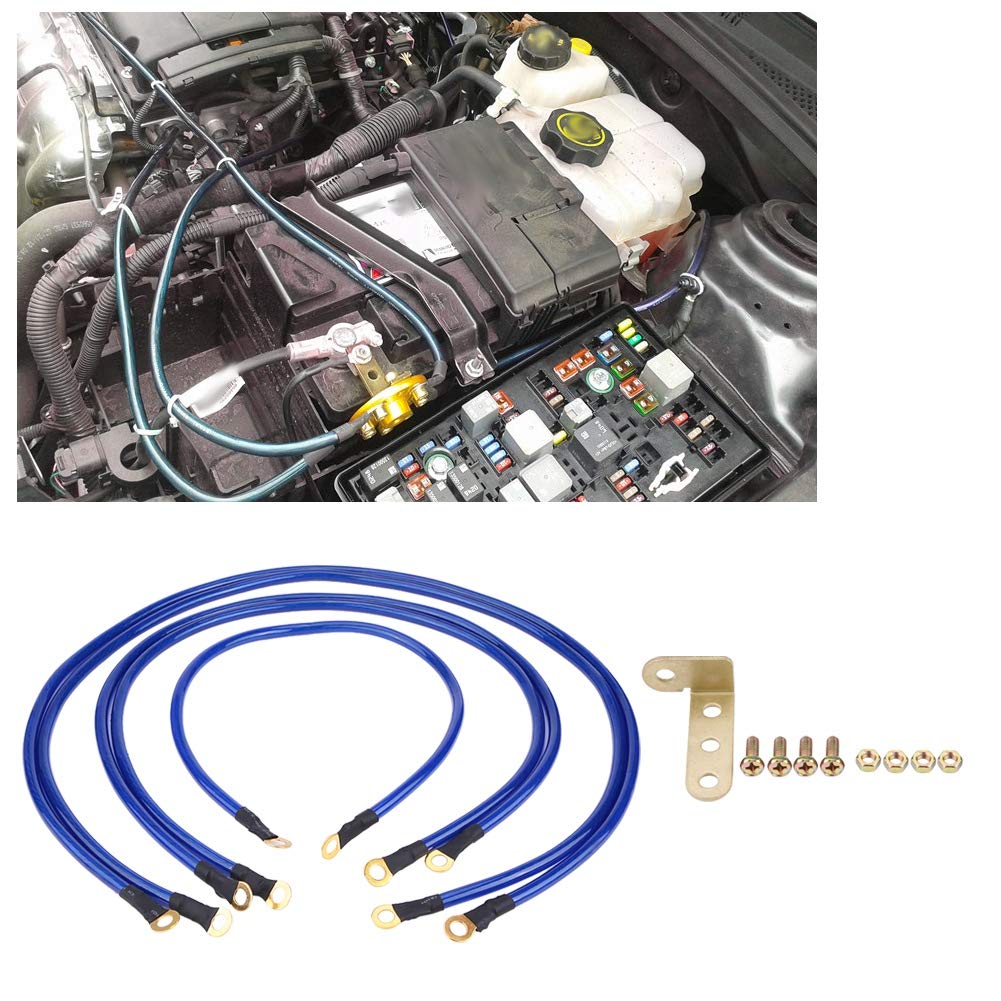

• 2 x Ground Wires (100cm / 39.4 inches)
• 2 x Ground Wires (80cm / 31.5 inches)
• 1 x Ground Wire (60cm / 23.6 inches)
• 1 x Mounting Bracket
• Screws and Nuts for installation

4. Installation Instructions

This kit is designed for universal fitment. The following steps provide a general guide for installation. Specific routing and attachment points may vary depending on your vehicle model.

1. Prepare the Vehicle: Ensure the vehicle is turned off and the negative terminal of the battery is disconnected.
2. Identify Grounding Points: Locate suitable grounding points on your vehicle. Common points include:
   • Engine block
   • Chassis frame
   • Transmission housing
   • Alternator mounting point
   • Other major electrical components (e.g., starter motor, ignition coil)
   Ensure the chosen points are clean, free of paint, rust, or grease to ensure optimal electrical contact. Sanding or wire-brushing may be necessary.
3. Mount the Distribution Block (Optional): If using a central distribution block (not explicitly included but implied by "5-point system" and general practice), mount it securely in an accessible location, typically near the battery. The included bracket can be used to create a central grounding point if desired.
4. Connect Wires to Grounding Points:
   • Select the appropriate length of ground wire for each connection.
   • Attach one end of each ground wire to a chosen grounding point on the engine, chassis, or other components. Secure the ring terminal firmly using existing bolts or by drilling new holes and using the provided screws and nuts.
   • Route the wires carefully, avoiding moving parts, sharp edges, and excessive heat sources. Use cable ties to secure them.
5. Connect Wires to Battery Negative Terminal: Gather the other ends of the ground wires and connect them to the negative terminal of the vehicle's battery. This can be done directly to the battery post or to a secure, existing ground point connected to the battery negative. Ensure all connections are tight and secure.
6. Reconnect Battery: Once all ground wires are securely installed, reconnect the negative terminal of the vehicle's battery.
7. Test System: Start the vehicle and observe for any changes in electrical performance or warning lights.

5. Functionality and Benefits

The EVGATSAUTO Ground Wire Kit functions by creating multiple direct, low-resistance paths for electrical current to return to the battery's negative terminal. This bypasses the vehicle's chassis as the primary return path, which can often have higher resistance due to various connections and materials.

Key benefits of an optimized grounding system include:

• Improved Electrical Stability: Reduces voltage drops across electrical components.
• Enhanced Engine Performance: Can lead to more consistent spark plug firing and improved fuel combustion.
• Increased Charging Efficiency: Optimizes the alternator's ability to charge the battery.
• Extended Battery Life: A more stable electrical system can reduce strain on the battery.
• Brighter Headlights: Improved current flow can result in brighter and more consistent headlight illumination.

6. Maintenance

Regular inspection of your ground wire kit can help ensure continued optimal performance.

• Inspect Connections: Periodically check all ground wire connections to ensure they remain tight and secure. Loose connections can lead to increased resistance and reduced effectiveness.
• Check for Corrosion: Examine the ring terminals and connection points for any signs of corrosion. If corrosion is present, disconnect the battery, clean the affected areas with a wire brush or sandpaper, and re-secure the connection.
• Examine Wire Condition: Inspect the PVC insulation of the wires for any signs of wear, fraying, or damage. Damaged insulation can expose the copper conductor, leading to short circuits. Replace any damaged wires immediately.
• Keep Clean: Ensure the wires and connection points are kept clean and free from dirt, oil, and debris.

7. Troubleshooting

If you experience issues after installing the ground wire kit, consider the following troubleshooting steps:

• No Perceptible Improvement:
  • Verify all connections are clean, tight, and making good electrical contact.
  • Ensure the chosen grounding points on the vehicle chassis and engine are free of paint, rust, or other insulating materials.
  • Confirm the wires are correctly connected to the negative terminal of the battery.
• Electrical Malfunctions:
  • Immediately disconnect the battery's negative terminal.
  • Re-check all wiring for any incorrect connections or accidental short circuits.
  • Ensure no wires are pinched or damaged.
  • If issues persist, remove the ground wire kit and test the vehicle's electrical system to determine if the problem is related to the kit or an existing vehicle issue.
• Loose Connections: If any wire feels loose, disconnect the battery, tighten the connection, and re-secure.

8. Specifications

9. Warranty and Support

EVGATSAUTO is committed to providing high-quality products and customer service. For any questions regarding installation, functionality, or product support, please contact the seller directly through your purchase platform.

Information regarding specific warranty periods and terms should be obtained from the seller or the product listing at the time of purchase, as these may vary.
