1. Introduction
The Heschen HSR1-63 Domestic AC Contactor is a 2-pole device designed for controlling electrical loads in residential and light industrial applications. It features a 220V/230V AC coil voltage and a 63 Amp rating, suitable for 35mm DIN rail mounting. This manual provides essential information for the safe and effective installation, operation, and maintenance of the HSR1-63 AC Contactor.
2. Safety Information
WARNING: Electrical shock hazard. Always disconnect power before installation or maintenance.
- Installation should be performed by a qualified electrician in accordance with all local and national electrical codes.
- Ensure the supply voltage matches the contactor's rated coil voltage (220V/230V AC).
- Do not operate the contactor if it is damaged or shows signs of wear.
- Avoid contact with live terminals.
3. Product Features
- Contact Type: 2 Normally Closed (NC) contacts, 2 poles.
- Rated Voltage: 220V/230V AC coil voltage.
- Rated Current: 63 Amp.
- Mounting: 35mm DIN rail mount for easy installation.
- Coil: Sufficiently wound copper coil for reliable operation.
- Contacts: Silver alloy contacts for durability and conductivity.
- Material: Flame-resistant housing.
- Efficiency: Low power consumption and low noise operation.
- Durability: Designed for long operational life.
Image: Key features of the Heschen HSR1-63 AC Contactor, including its copper coil, compact design, low power consumption, silver alloy contacts, flame-resistant material, TH35 DIN rail compatibility, low noise, and long operational life.
4. Specifications
| Parameter | Value |
|---|---|
| Product Name | Domestic AC Contactor |
| Model | HSR1-63 |
| Contact Type | 2 NC, 2 poles |
| Rated Coil Voltage | 220V/230V AC |
| Rated Current (Ie) | 63 Amp (AC-7a), 25 Amp (AC-7b) |
| Insulation Voltage (Ui) | 500V AC |
| Rated Impulse Withstand Voltage (Uimp) | 2.5kV |
| Mounting Type | 35mm DIN Rail |
| Overall Dimensions (L*W*T) | 82 x 65 x 37 mm (3.2" x 2.6" x 1.4") |
| Net Weight | 224g |
| Degree of Protection | IP20 (device only), IP40 (in modular enclosure) |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Electrical Endurance | 1,000,000 cycles |
| Mechanical Endurance | >12,000,000 cycles |
| Recommended Copper Cable (Control) | 1.5-2.5mm² (Rigid/Flexible) |
| Recommended Copper Cable (Power) | 6-25mm² (Rigid), 6-16mm² (Flexible) |
| Tightening Torque (Control) | 0.8 N·m |
| Tightening Torque (Power) | 3.5 N·m |
AC-7a: Resistive loads (e.g., incandescent lamps and other low-inductance loads)
AC-7b: Inductive motor loads (e.g., compressor motors in refrigerators)

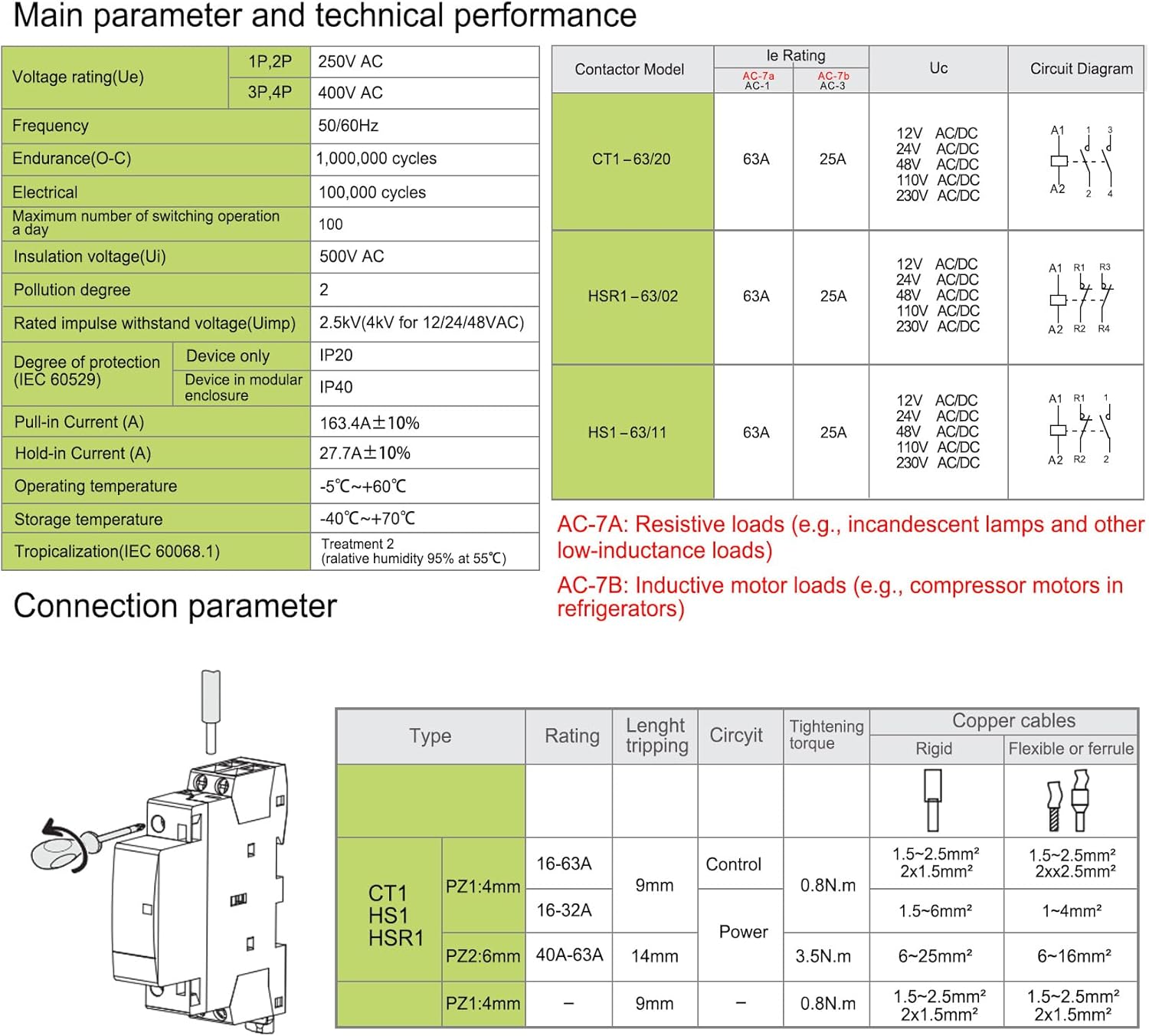

Image: Detailed technical specifications and connection parameters for Heschen contactors, including wire sizes and tightening torques for control and power circuits.
Image: Dimensional drawing of the Heschen HSR1-63 AC Contactor, providing measurements for installation planning.
5. Setup and Installation
5.1 Mounting
The Heschen HSR1-63 contactor is designed for quick and secure mounting on a standard 35mm DIN rail. Ensure the DIN rail is properly secured within an electrical enclosure.
5.2 Wiring
Refer to the wiring diagram below for correct connections. Ensure all connections are tight and use appropriate wire gauges as specified in the 'Specifications' section.
- Connect the 'L' (Live) and 'N' (Neutral) wires from your power source to the 'INPUT' terminals of your control equipment.
- Connect the control equipment's output to the contactor's coil terminals (A1 and A2).
- Connect the load to the contactor's power terminals (R1, R3, R2, R4).
- Ensure proper polarity and phase connections.

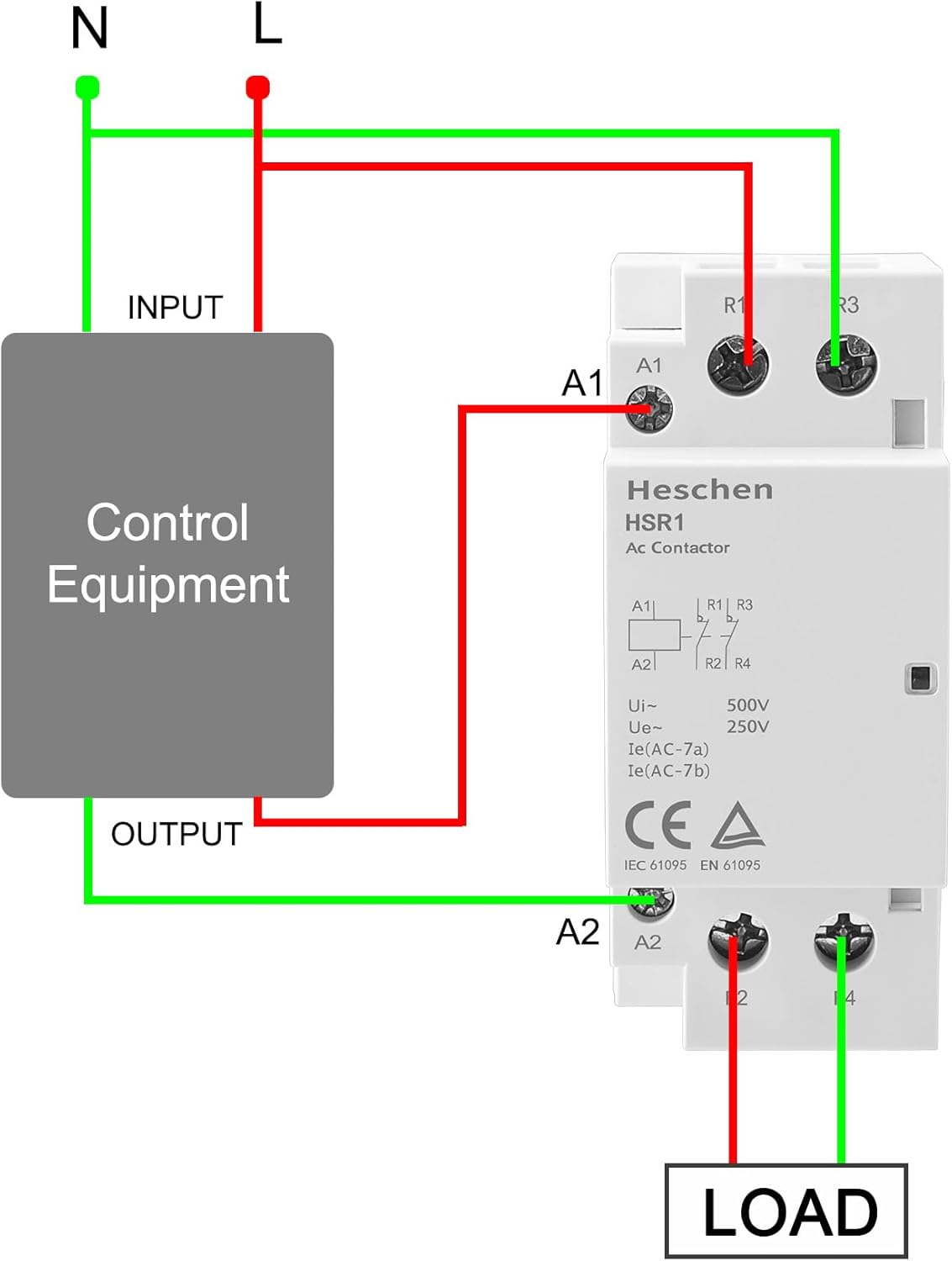

Image: Wiring diagram illustrating the connection of the Heschen HSR1 AC Contactor with control equipment and an electrical load.
6. Operating Instructions
The Heschen HSR1-63 AC Contactor operates by energizing its coil. When the rated control voltage (220V/230V AC) is applied to the coil terminals (A1, A2), the internal mechanism activates, causing the normally closed (NC) contacts to open, thereby interrupting the connected circuit. When the coil is de-energized, the contacts return to their normally closed state, completing the circuit.
Some models may feature a manual ON/OFF indicator or switch for visual status or temporary operation. Observe the indicator for the current state of the contactor.
Image: Close-up of the contactor showing the ON/OFF indicator and key electrical ratings.
7. Maintenance
To ensure optimal performance and longevity of your Heschen HSR1-63 AC Contactor, follow these maintenance guidelines:
- Regular Inspection: Periodically inspect the contactor for any signs of physical damage, discoloration, or excessive wear.
- Terminal Connections: Verify that all terminal connections are secure and tightened to the specified torque (0.8 N·m for control, 3.5 N·m for power). Loose connections can lead to overheating and poor performance.
- Cleanliness: Keep the contactor free from dust, dirt, and foreign particles. A clean operating environment helps prevent operational issues and extends component life.
- Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges.
8. Troubleshooting
If you encounter issues with your Heschen HSR1-63 AC Contactor, refer to the following common problems and their solutions:
8.1 Phenomenon 1: Excessive Noise (Humming/Buzzing)
- Cause 1: Voltage too low, coil not fully engaged.
- Solution: Verify that the control voltage supplied to the coil (A1, A2) matches the rated coil voltage (220V/230V AC). Ensure the voltage is stable and within acceptable tolerances.
- Cause 2: Poor operating environment, foreign particles entering the contactor mechanism.
- Solution: Ensure the installation environment is clean and free from debris. If possible, inspect the contactor for any foreign objects obstructing its movement.
8.2 Phenomenon 2: Overheating
- Cause 1: Recommended voltage not used or voltage too low/too high.
- Solution: Check and correct the supply voltage to the coil. Operating outside the specified voltage range can cause excessive current draw and heating.
- Cause 2: Overload condition on the contacts.
- Solution: Ensure the connected load current does not exceed the contactor's rated current (63A for AC-7a, 25A for AC-7b). Reduce the load or use a contactor with a higher current rating if necessary.

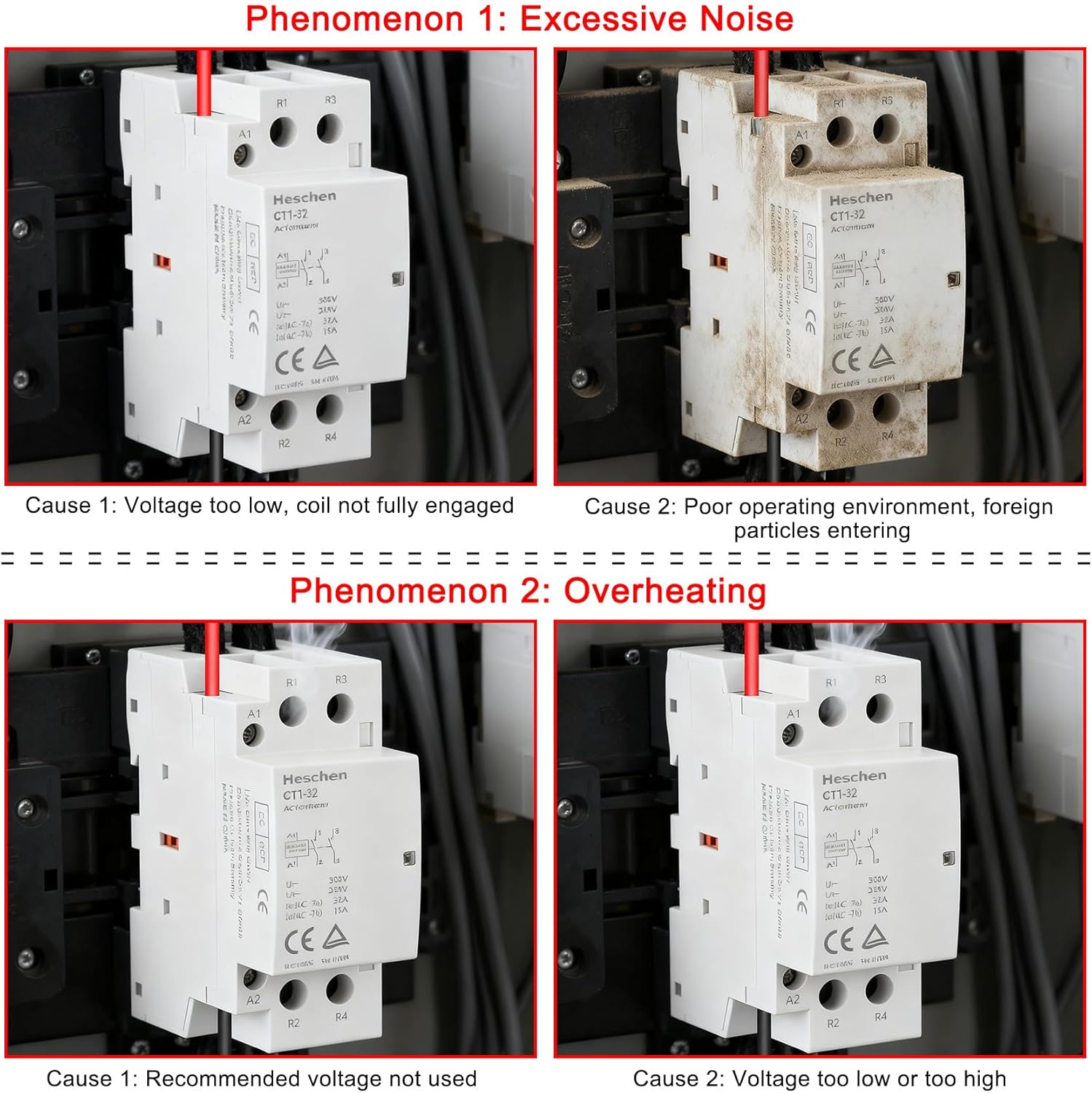

Image: Visual guide for troubleshooting common issues like excessive noise and overheating in AC contactors, with potential causes shown.
9. Application Scenarios
The Heschen HSR1-63 AC Contactor is suitable for a variety of applications, including but not limited to:
- Frequent start-stop and reverse rotation control of electric motors.
- Automated control of domestic water heaters.
- Lighting auto start/stop systems.
- Automatic door control systems.
Image: Examples of typical applications for the Heschen AC Contactor, demonstrating its versatility in controlling different electrical systems.
10. Warranty and Support
For warranty information, technical assistance, or further inquiries regarding your Heschen HSR1-63 AC Contactor, please refer to the official Heschen website or contact Heschen customer service directly. Keep your purchase receipt for warranty claims.
