EAGLE PEAK GH18 Portable Tunnel Greenhouse Instruction Manual

1. Product Overview

The EAGLE PEAK GH18 Portable Tunnel Greenhouse is designed to provide a protected environment for your plants. Its compact size and portable design make it suitable for various gardening needs, from starting seeds to protecting delicate plants from adverse weather conditions. This greenhouse features a durable alloy steel frame and a transparent, UV-protected polyethylene (PE) cover.

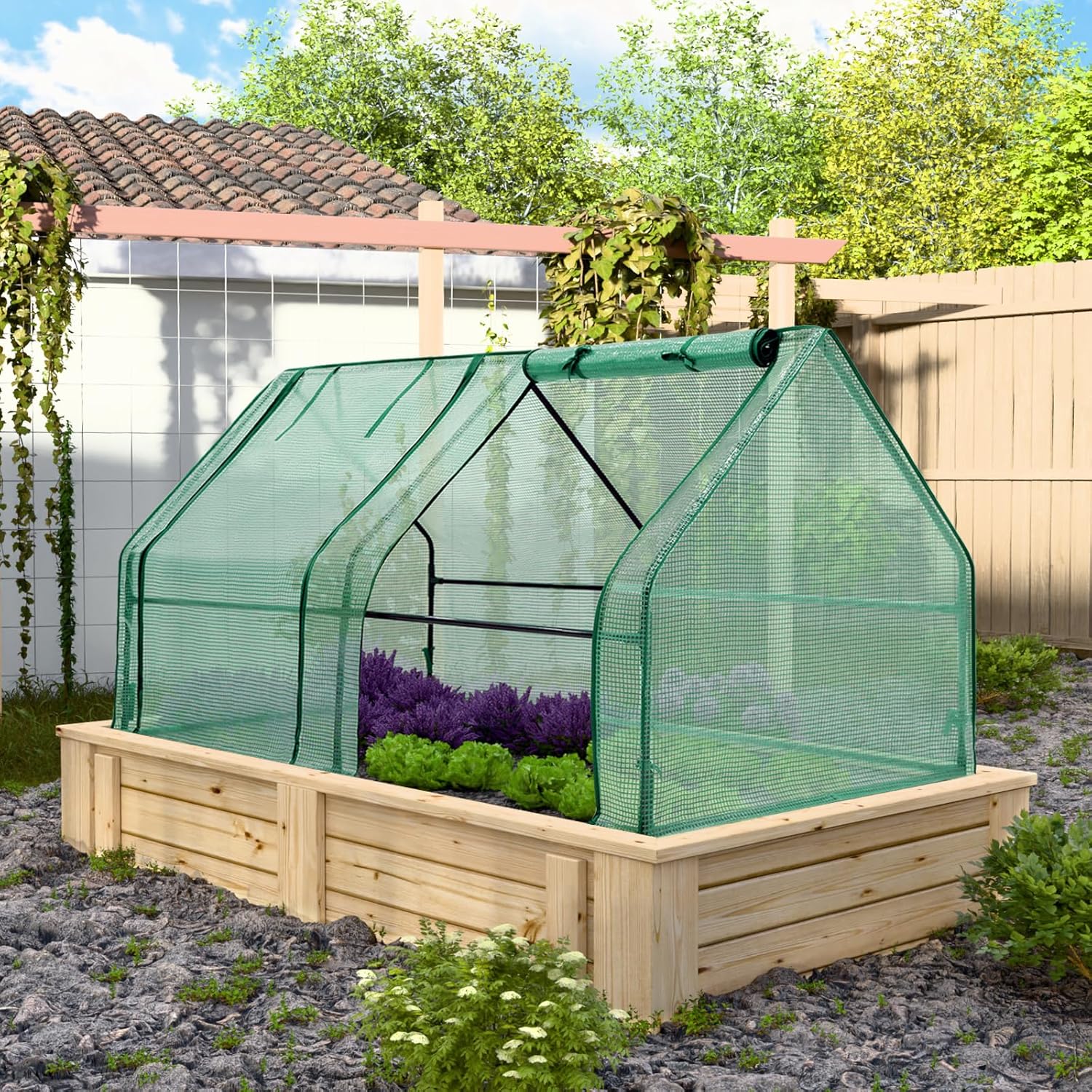

Image: The EAGLE PEAK Portable Tunnel Greenhouse installed in a garden bed, providing shelter for various plants.

• Dimensions: 71 inches (L) x 36 inches (W) x 36 inches (H)
• Frame Material: Durable Alloy Steel
• Cover Material: Water-resistant, UV-protected, non-toxic Polyethylene (PE)
• Access: Two zippered roll-up doors for easy plant access and ventilation.

2. Safety Information

Please read and understand all safety instructions before assembling and using this product. Failure to follow these instructions may result in injury or damage to the product.

• Ensure the greenhouse is assembled on a level surface.
• Always secure the greenhouse to the ground using the provided stakes and additional weights (e.g., stones, sandbags) to prevent wind damage.
• Do not use the greenhouse in extreme weather conditions, such as heavy winds, snow, or hail, without adequate additional reinforcement.
• Keep children and pets away from the assembly area.
• The PE cover is non-toxic and odorless, but avoid prolonged direct skin contact if irritation occurs.

3. Package Contents

Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

Image: All components of the greenhouse, including the PE cover, various poles, connectors, and ground stakes.

4. Setup

Assembly of the EAGLE PEAK Tunnel Greenhouse is designed to be straightforward and requires no tools. Follow these steps for proper setup:

1. Assemble the Base Frame: Connect the straight poles using the appropriate T-connectors and 4-way cross connectors to form the rectangular base of the greenhouse. Ensure all connections are secure.
2. Install Vertical Supports: Insert the vertical poles into the T-connectors and 4-way cross connectors on the base.
3. Attach Roof Structure: Connect the curved poles and remaining straight poles using the Y-connectors and 3-way cross connectors to form the arched roof structure.
4. Drape the Cover: Carefully place the PE cover over the assembled frame. Ensure the zippered doors are positioned correctly.
5. Secure the Cover: Use the integrated ties on the cover to secure it to the frame.
6. Anchor the Greenhouse: Push the provided ground stakes through the loops at the base of the greenhouse into the soil. For added stability, especially in windy conditions, place heavy objects like stones or bricks on the excess fabric skirt around the base.

Image: Visual guide for connecting the high-quality poles and connectors during assembly.

Image: Details of the anchoring system, showing how to secure the cover and frame with ropes, use stones to weigh down the fabric, and anchor with stakes.

5. Operating Instructions

Proper operation ensures optimal plant growth and greenhouse longevity.

• Ventilation: Utilize the two zippered roll-up doors to control airflow and temperature inside the greenhouse. Roll them up during warmer periods for ventilation and roll them down to retain heat.
• Humidity Control: To increase humidity, place a container of water inside the greenhouse. This is particularly beneficial for tropical plants or seedlings.
• Plant Placement: Arrange plants to maximize sunlight exposure and allow for adequate air circulation. The three sections of the greenhouse provide ample room for various plants.
• Environmental Protection: The PE cover provides cold protection, UV resistance, and water resistance, creating a stable environment for your plants.

Image: Details of the greenhouse features, including the two zippered roll-up doors for easy access and the heat-retaining PE cover.

Image: Overview of the greenhouse dimensions and protective qualities, including cold protection, water resistance, and UV resistance.

6. Maintenance

Regular maintenance will extend the life of your greenhouse.

• Cleaning: Periodically clean the PE cover with mild soap and water to ensure maximum light penetration. Avoid abrasive cleaners.
• Frame Inspection: Regularly check all pole connections and connectors for tightness and stability. Re-secure any loose parts.
• Cover Integrity: Inspect the PE cover for any tears or damage. Small tears can be repaired with greenhouse repair tape to prevent further damage.
• Anchoring: Ensure the ground stakes remain firmly in place and any additional weights are secure, especially after strong winds.
• Zipper Care: Keep zippers clean and lubricated if necessary to ensure smooth operation.

Image: The fabric skirt at the base of the greenhouse, designed for ground sealing and securing with weights.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Greenhouse unstable in wind: Ensure all ground stakes are fully inserted. Place additional heavy objects (e.g., bricks, large stones) on the fabric skirt around the base. Consider using additional ropes or ties to secure the frame to a fixed structure.
• Zippers are stiff or stuck: Clean any dirt or debris from the zipper teeth. Apply a silicone-based lubricant or zipper wax to improve movement. Avoid forcing the zipper.
• Cover does not fit correctly: Double-check that the frame is assembled according to the instructions and that all poles are fully inserted into their connectors. Ensure the cover is oriented correctly before attempting to secure it.
• Insufficient heat retention: Ensure all doors are fully zipped down and secured. Check for any gaps or tears in the cover. Placing containers of water inside can help absorb heat during the day and release it slowly at night.

8. Specifications

9. Warranty and Support

EAGLE PEAK offers a 1-year limited after-sale protection from the original date of purchase. This warranty covers the frames and tops of our greenhouses. For any questions, concerns, or assistance, please contact our professional service team. We are committed to providing reliable support for your product.
