COLORLIFE Water Vortex Tornado Night Lamp Instruction Manual

1. Product Overview

The COLORLIFE Water Vortex Tornado Night Lamp creates a mesmerizing water vortex effect with integrated LED lighting. It is designed for indoor use as a decorative item or night light, featuring multiple color options and remote control functionality.

Image: The COLORLIFE Water Vortex Tornado Night Lamp, showcasing the lamp itself, the remote control, and a bag of decorative confetti.

Package Contents:

• Water Vortex Tornado Night Lamp Unit
• Remote Control
• USB Power Adapter
• Decorative Confetti (optional use)

2. Setup Instructions

2.1 Filling the Lamp

1. Carefully remove the top cover of the lamp.
2. Fill the lamp with clean tap water up to the indicated fill line. Do not overfill.
3. If desired, add the provided decorative confetti into the water.
4. Securely replace the top cover, ensuring it is properly sealed to prevent leaks.

Image: An exploded diagram showing the internal components of the lamp, including the base, motor, and water chamber, illustrating how it is assembled.

2.2 Power Connection

1. Connect the USB cable to the lamp's power input port.
2. Plug the USB power adapter into a standard 120V AC electrical outlet.

Image: A close-up of the USB power adapter plugged into a standard wall outlet, demonstrating the power connection.

3. Operating Instructions

3.1 Powering On/Off

• Press the ON button on the remote control or the power button on the lamp base to turn on the lamp.
• Press the OFF button on the remote control or the power button on the lamp base to turn off the lamp.

3.2 Using the Remote Control

The included remote control allows you to customize the lighting and vortex effects.

Image: The remote control with various buttons for color selection, brightness, and mode changes.

• Color Buttons: Select from a variety of static colors (Red, Green, Blue, White, etc.).
• Brightness Adjustment: Use the sun icons to increase or decrease the light intensity.
• Mode Buttons: Choose from different lighting modes such as FLASH, STROBE, FADE, and SMOOTH for dynamic color transitions.

Image: Four lamps side-by-side, each illuminated in a different color (red, green, blue, purple), demonstrating the color-changing capability.

3.3 Noise Level

The lamp's motor generates a low-level operational sound. While generally quiet, some users may perceive it as a slight hum or soft whirring noise.

4. Maintenance

4.1 Cleaning

• Before cleaning, ensure the lamp is unplugged from the power source.
• Wipe the exterior of the lamp with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• For internal cleaning or water replacement, carefully remove the top cover. Empty the old water and refill with fresh, clean tap water.

4.2 Water Quality

Using distilled water can help prevent mineral buildup and maintain the clarity of the vortex effect over time.

5. Troubleshooting

• Lamp does not turn on:
  Ensure the power adapter is securely plugged into both the lamp and a working electrical outlet. Check if the outlet is functional.
• Vortex is weak or not forming:
  Verify that the lamp is filled with water to the correct level. Ensure the top cover is securely in place.
• Remote control is unresponsive:
  Check the battery in the remote control and replace if necessary. Ensure there are no obstructions between the remote and the lamp's sensor.
• Unusual noise during operation:
  A slight hum is normal. If the noise is excessively loud or grinding, ensure the lamp is on a stable, flat surface and that no foreign objects are inside the water chamber interfering with the motor.

6. Specifications

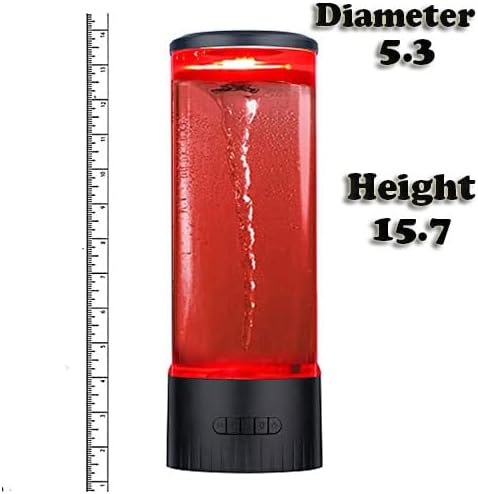

Image: A visual representation of the lamp's dimensions, indicating a height of 15.7 inches and a diameter of 5.3 inches.

7. Warranty and Support

Specific warranty information for the COLORLIFE Water Vortex Tornado Night Lamp is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please contact the manufacturer directly through their official website or the retailer where the product was purchased.
