Hyper Tough 132 Piece Fast Wiring Set

Introduction

The Hyper Tough 132 Piece Fast Wiring Set provides a comprehensive collection of electrical connectors and terminals for various wiring applications. This set is ideal for automotive, marine, home, or DIY electrical projects, offering quick and reliable connections. The included storage box helps keep components organized and easily accessible.

Safety Information

Always observe the following safety precautions when working with electrical components:

• Disconnect Power: Ensure all power sources are disconnected before working on any electrical circuit. Failure to do so can result in electric shock, injury, or death.
• Use Appropriate Tools: Always use insulated tools designed for electrical work.
• Wear Personal Protective Equipment (PPE): Wear safety glasses and gloves to protect against sparks or sharp edges.
• Inspect Components: Before use, inspect all connectors and wires for damage. Do not use damaged components.
• Proper Wire Gauge: Ensure the connectors are compatible with the wire gauge you are using. Refer to the specifications section for details.
• Secure Connections: Verify that all connections are secure and properly insulated to prevent short circuits.

Package Contents

The Hyper Tough 132 Piece Fast Wiring Set includes a variety of quick-connect terminals, butt connectors, ring terminals, spade terminals, and wire nuts, all organized within a durable plastic storage box.

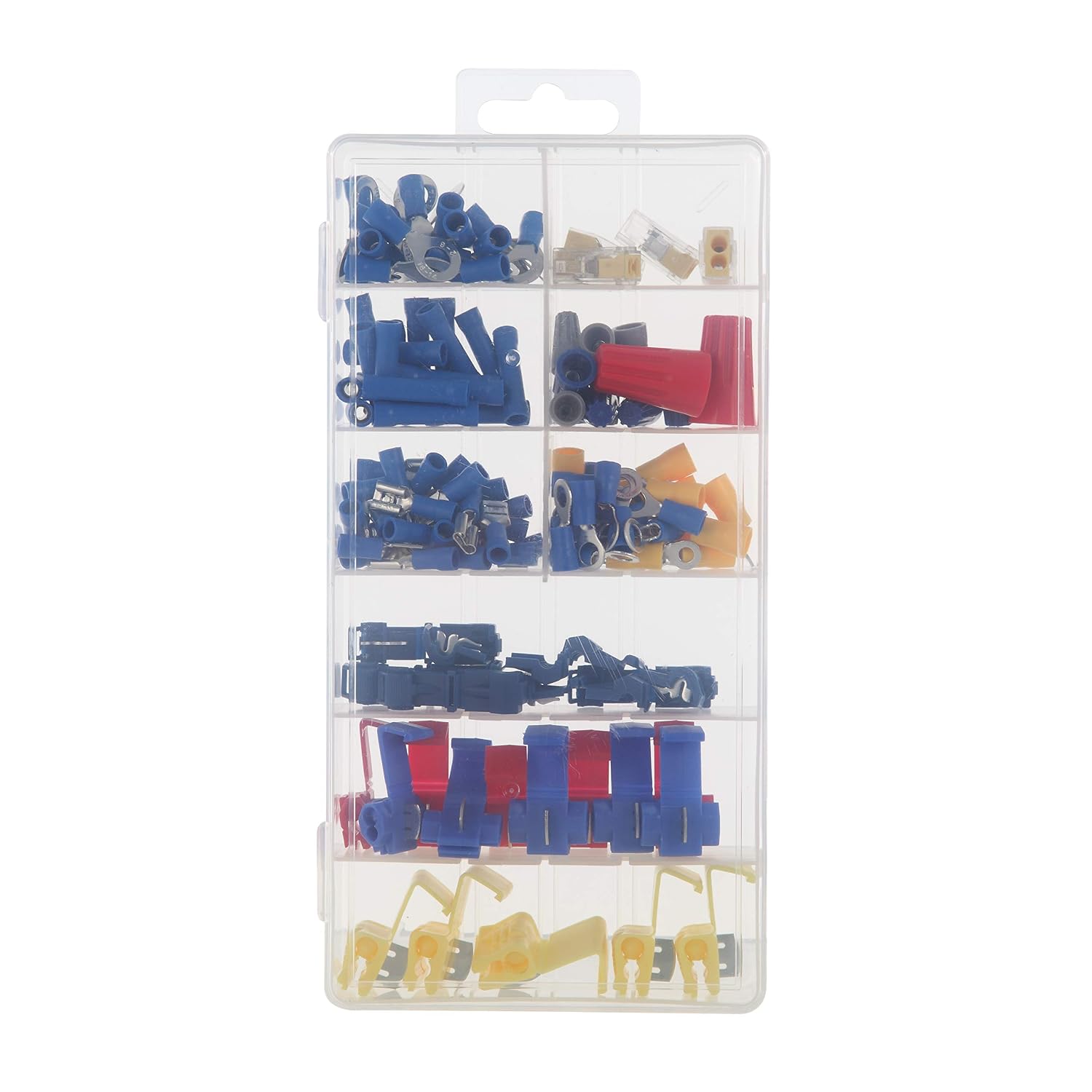

Image: The complete Hyper Tough 132 Piece Fast Wiring Set, showcasing the clear plastic storage box with various connectors visible inside.

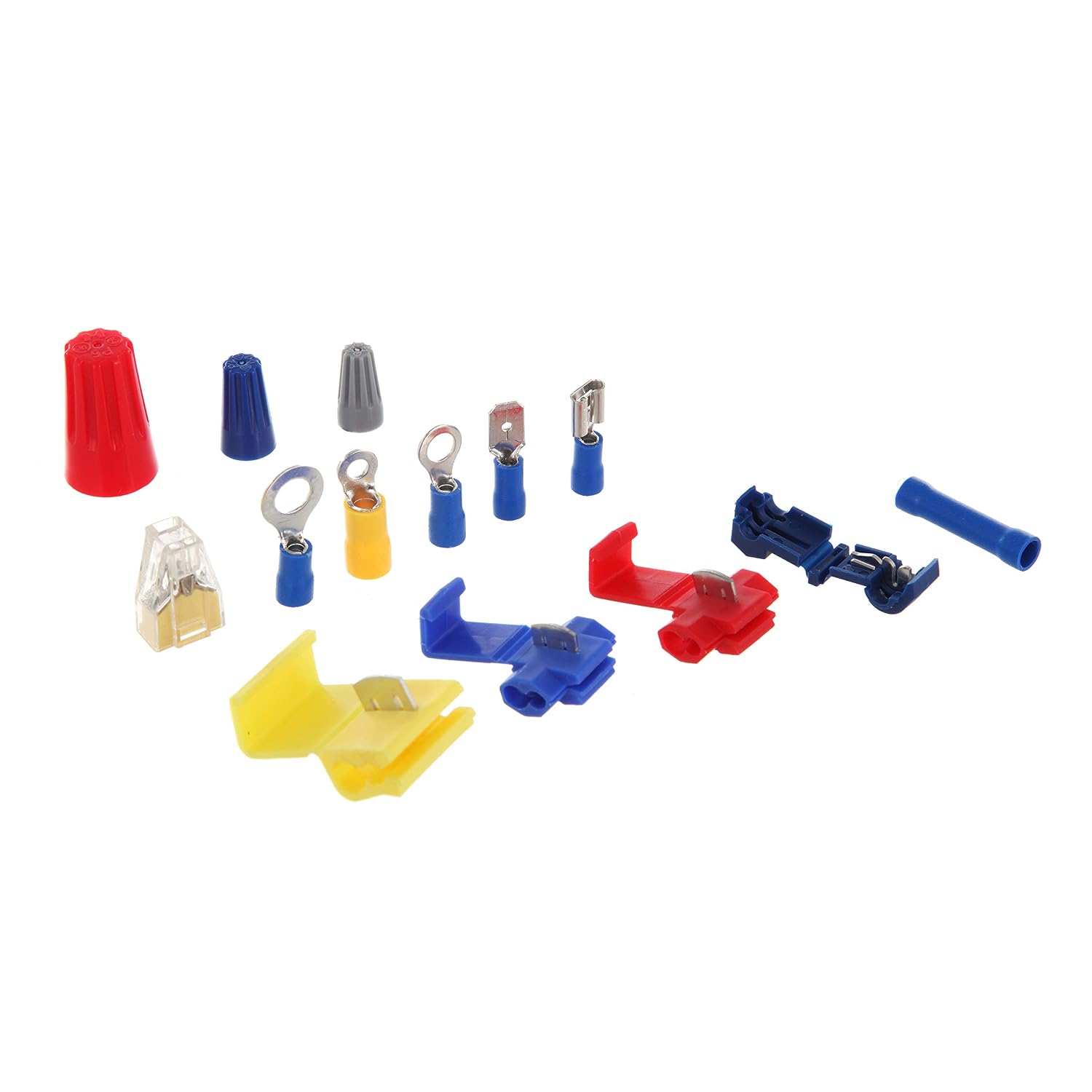

Image: A selection of the various types of connectors included in the set, laid out to show their individual forms and colors.

Image: The storage box opened, revealing the neatly organized compartments holding different types and sizes of wiring connectors.

Setup and Preparation

1. Identify Wire Gauge: Determine the gauge of the wire you intend to connect. Select the appropriate connector size (e.g., red for 22-18 AWG, blue for 16-14 AWG, yellow for 12-10 AWG).
2. Strip Wires (if necessary): For terminals requiring a stripped wire end (e.g., ring terminals, butt connectors, quick disconnects), carefully strip approximately 1/4 to 3/8 inch (6-10 mm) of insulation from the wire end using a wire stripper. Avoid cutting or nicking the wire strands.
3. Gather Tools: Have a wire stripper, crimping tool (for crimp-style terminals), and pliers (for quick splices) readily available.

Operating Instructions

Using Quick Splice Connectors

Quick splice connectors allow you to tap into an existing wire without cutting or stripping it, and then connect a new wire.

1. Place the existing wire into the main channel of the quick splice connector.
2. Insert the new wire (stripped or unstripped, depending on connector type) into the side channel.
3. Close the hinged cover over both wires.
4. Using pliers, firmly press down on the metal blade until it pierces the insulation of both wires and locks into place. Ensure the cover is fully closed and latched.

Image: A blue quick splice connector, showing its open design ready to accept wires.

Image: A blue quick splice connector shown in use, connecting a red wire to a blue wire.

Using Quick Disconnect Terminals

Quick disconnect terminals allow for easy connection and disconnection of wires.

1. Strip the wire end approximately 1/4 inch (6 mm).
2. Insert the stripped wire into the barrel of the quick disconnect terminal (male or female).
3. Using a crimping tool, crimp the barrel firmly onto the wire insulation and conductor. Ensure a secure connection.
4. Connect the male and female quick disconnect terminals by pushing them together until they click.

Image: A male and female quick disconnect terminal, one red and one blue, shown connected together.

Using Ring Terminals

Ring terminals are used to connect a wire to a screw or stud.

1. Strip the wire end approximately 1/4 inch (6 mm).
2. Insert the stripped wire into the barrel of the ring terminal.
3. Using a crimping tool, crimp the barrel firmly onto the wire insulation and conductor.
4. Place the ring opening over the screw or stud and secure it with a nut or by tightening the screw.

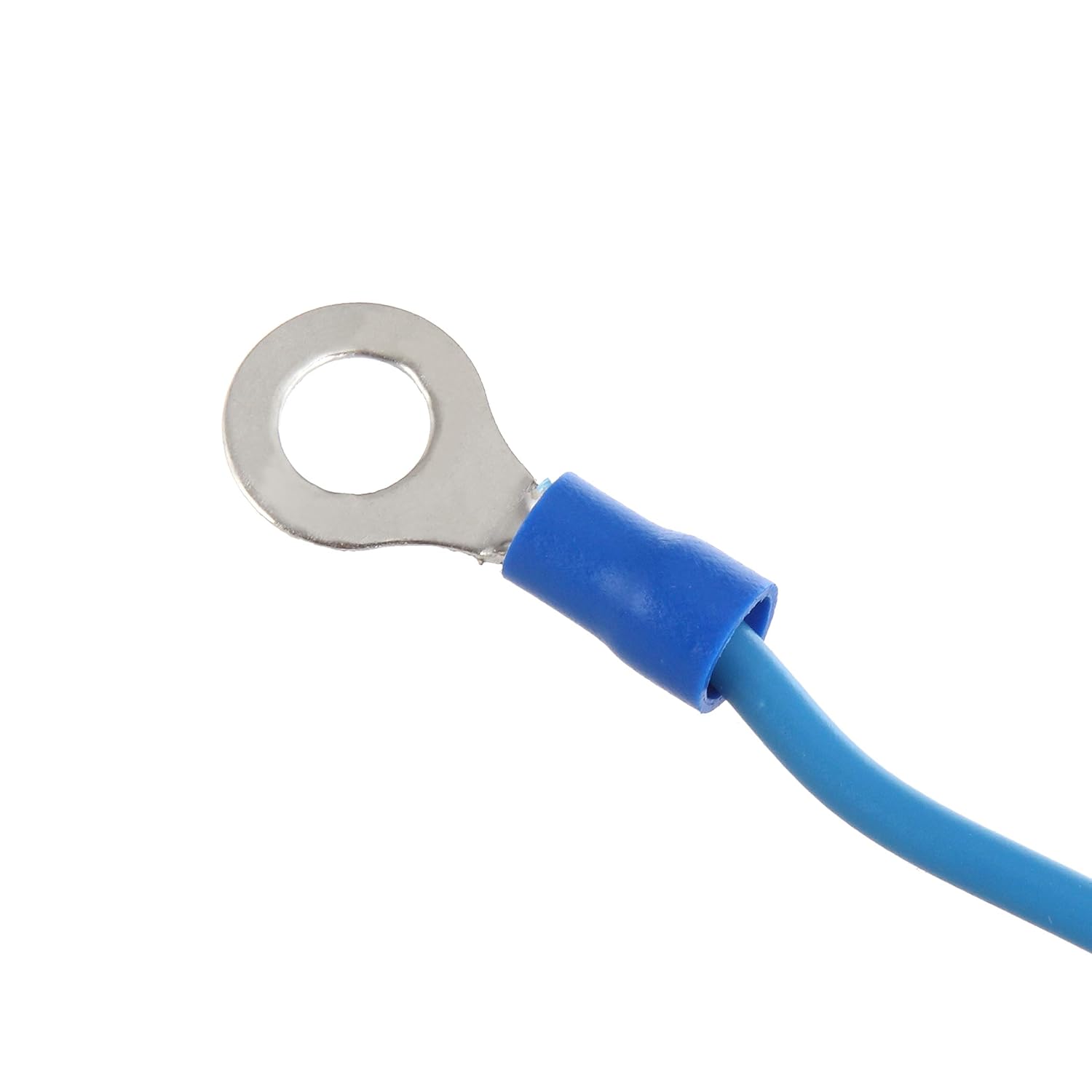

Image: A blue ring terminal, securely crimped onto the end of a blue electrical wire.

Using Butt Connectors

Butt connectors are used to join two wires end-to-end.

1. Strip approximately 1/4 inch (6 mm) of insulation from the end of each wire to be joined.
2. Insert one stripped wire end into one side of the butt connector.
3. Using a crimping tool, crimp the connector firmly onto the wire.
4. Insert the second stripped wire end into the other side of the butt connector.
5. Crimp the second side of the connector firmly onto the second wire.

Image: A blue butt connector shown in use, joining a red wire to a blue wire.

Using Wire Nuts

Wire nuts are used to connect multiple wires together by twisting them.

1. Strip approximately 1/2 inch (12 mm) of insulation from the end of each wire to be joined.
2. Align the stripped ends of the wires together.
3. Twist the wire nut onto the aligned wire ends in a clockwise direction until it is snug and the wires are securely twisted together inside.

Maintenance

The Hyper Tough Fast Wiring Set requires minimal maintenance. To ensure longevity and proper function:

• Storage: Always store the connectors in their original storage box in a dry environment to prevent corrosion.
• Cleanliness: Keep the connectors free from dirt, dust, and moisture.
• Inspection: Periodically inspect the storage box for damage.

Troubleshooting

If you encounter issues during wiring, consider the following common problems and solutions:

• Loose Connection: If a connection feels loose or intermittent, ensure the wire was stripped to the correct length and that the crimp was firm and secure. Re-crimp or replace the connector if necessary.
• Wire Pulls Out: This indicates an insufficient crimp or incorrect wire gauge. Verify the wire gauge matches the connector and re-crimp with proper force.
• No Electrical Continuity: Check that the metal conductor of the wire is making full contact with the metal part of the connector. Ensure the insulation was fully pierced (for quick splices) or stripped correctly.
• Connector Damage: If a connector is bent, cracked, or corroded, do not use it. Replace it with a new one.

Specifications

Warranty and Support

For information regarding warranty, returns, or product support, please refer to the retailer's policy where the product was purchased or visit the official Hyper Tough website. Keep your proof of purchase for any warranty claims.
