1. Product Overview
The CAME KLED KIARO is a 24V LED flashing light designed for automatic gate systems. Constructed from durable ABS material, it features an IP54 protection rating, making it suitable for outdoor use. The Kiaro LED flashers are engineered with high-quality materials and advanced LED lighting technology, ensuring efficient and long-lasting performance. This unit can be integrated with a TOP-A433N antenna (not included) for enhanced functionality.
Figure 1: Front view of the CAME KLED KIARO LED Flashing Light. This image shows the main body of the flasher, which is yellow and translucent, mounted on a black base with the "CAME" logo.
2. Safety Information
Important: This product is professional equipment. Installation should only be performed by a specialized technician to ensure proper function and safety. Incorrect installation can lead to electric shock, fire, or damage to the product and property.
- Always disconnect power before installation, maintenance, or troubleshooting.
- Ensure all electrical connections comply with local electrical codes and regulations.
- Do not expose the device to excessive moisture or extreme temperatures beyond its IP54 rating.
- Keep out of reach of children.
- Do not attempt to modify or repair the device yourself. Contact a qualified technician.
3. Setup and Installation
The CAME KLED KIARO flasher is designed for integration into existing automatic gate systems. Professional installation is highly recommended.
3.1 Mounting
Select a suitable mounting location on or near the gate structure that provides clear visibility and protection from physical damage. The device is rated IP54 for outdoor use.
Figure 2: Side view of the CAME KLED KIARO LED Flashing Light. This image highlights the side profile of the flasher, showing the black base with pre-drilled holes for mounting and cable entry points.
3.2 Electrical Connection
Connect the flasher to a 24V power supply from your gate automation control unit. Ensure correct polarity. Refer to your gate control unit's manual for specific wiring diagrams for accessory connections.
- The flasher operates on 24V. Verify the voltage output from your gate control unit.
- Connect the power wires to the designated terminals on the flasher's base.
- Ensure all connections are secure and insulated to prevent short circuits and water ingress.
Figure 3: Bottom view of the CAME KLED KIARO LED Flashing Light. This image provides a view of the underside of the flasher's base, illustrating the access points for electrical wiring and mounting screws.
3.3 Antenna Integration (Optional)
The flasher is designed to integrate with a TOP-A433N antenna (not included). If using this antenna, follow the antenna's installation instructions for proper connection to the flasher and your gate control system.
4. Operating Instructions
The CAME KLED KIARO LED flasher operates automatically in conjunction with your gate automation system. When the gate is in motion (opening or closing), the flasher will activate to provide a visual warning.
- Activation: The flasher will begin to flash when the gate receives a command to open or close.
- Intermittence: The flasher operates with a 50% intermittence rate, meaning it is on for half the cycle and off for half the cycle, creating a clear visual signal.
- Deactivation: The flasher will cease operation once the gate has completed its movement cycle and is fully open or closed.

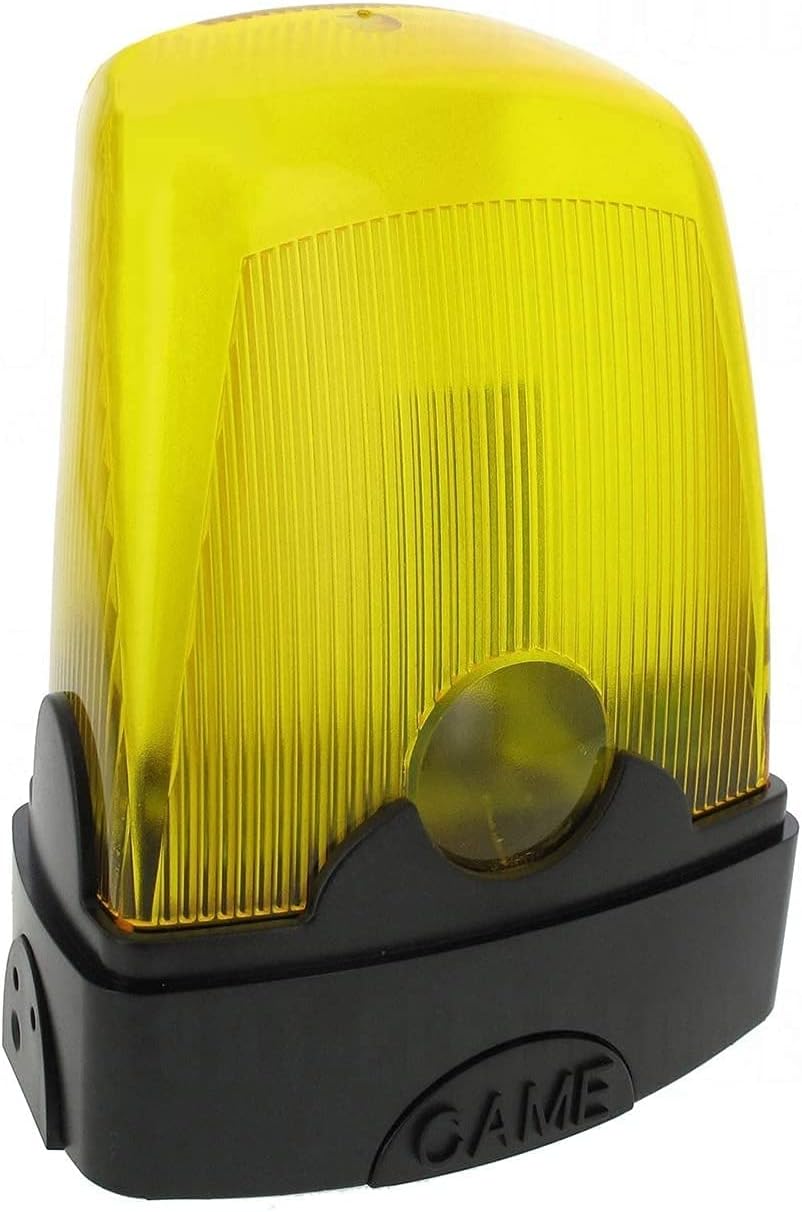

Figure 4: Angled view of the CAME KLED KIARO LED Flashing Light. This image provides a slightly elevated, angled perspective of the flasher, showcasing its overall design and the ribbed texture of the yellow lens.
5. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your CAME KLED KIARO flasher.
- Cleaning: Periodically clean the outer casing with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents.
- Inspection: Regularly inspect the wiring and connections for any signs of wear, damage, or corrosion. Ensure the mounting is secure.
- LED Check: Observe the flasher during gate operation to ensure the LED is illuminating correctly and consistently.
If any issues are observed, refer to the Troubleshooting section or contact a qualified technician.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flasher does not illuminate. | No power supply; Loose wiring; Faulty LED. | Check 24V power supply from gate control unit. Verify all wiring connections are secure. If power is present and connections are good, the LED may be faulty; contact a technician. |
| Flasher illuminates dimly or inconsistently. | Insufficient power; Partial short circuit; Aging LED. | Check power supply voltage. Inspect wiring for damage or corrosion. If issues persist, professional inspection is recommended. |
| Flasher stays on continuously. | Wiring error; Control unit issue. | Verify wiring to the gate control unit. Consult the gate control unit's manual for accessory output settings. |
For problems not listed or if solutions do not resolve the issue, contact a qualified gate automation technician.
7. Specifications
- Model: KLED KIARO
- Brand: Matic Line (Manufactured by Came)
- Voltage: 24V
- Light Source: LED
- Intermittence: 50%
- Material: ABS
- Protection Rating: IP54 (Dust protected, splash resistant)
- Weight: Approximately 0.4 kg
- Compatibility: Designed for automatic gate systems, integrates with TOP-A433N antenna (not included).
8. Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts, please refer to the official Matic Line or Came website, or contact your authorized dealer. Keep your purchase receipt as proof of purchase.
Manufacturer: Came
Brand: Matic Line
