Gretsch G5230T Electromatic Jet Instruction Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Gretsch G5230T Electromatic Jet electric guitar. Please read this manual thoroughly to ensure proper use and to maximize the lifespan of your instrument.

The Gretsch G5230T Electromatic Jet is a solidbody electric guitar featuring a mahogany body, mahogany neck, and laurel fingerboard. It is equipped with two humbucking pickups and a Bigsby tremolo system, offering a versatile range of tones.

Important Safety Information

• Always handle the guitar with care to prevent damage.
• Avoid exposing the instrument to extreme temperatures or humidity.
• Keep the guitar away from direct sunlight and heat sources.
• Ensure all connections are secure before playing or transporting.
• Do not attempt to modify the internal electronics unless you are a qualified technician.

Product Components and Features

The Gretsch G5230T Electromatic Jet features several key components:

• Body: Solid mahogany body in Cadillac Green finish.
• Neck: Mahogany neck.
• Fingerboard: Laurel wood fingerboard.
• Pickups: Two humbucking pickups for rich, powerful tones.
• Bridge: Adjusto-Matic bridge with a Bigsby B50 vibrato tailpiece.
• Controls: Master Volume, Master Tone, Neck Pickup Volume, Bridge Pickup Volume, 3-position pickup selector switch.
• Tuners: Die-cast tuners for stable tuning.

This image displays the guitar's main body, showcasing the vibrant Cadillac Green color, the chrome humbucking pickups, and the distinctive Bigsby tremolo arm. The pickguard with the Gretsch Electromatic logo is also visible.

This image provides a complete frontal perspective of the guitar, from the headstock with its tuners and Gretsch logo, down the mahogany neck with its laurel fingerboard, to the solid mahogany body with its pickups and controls.

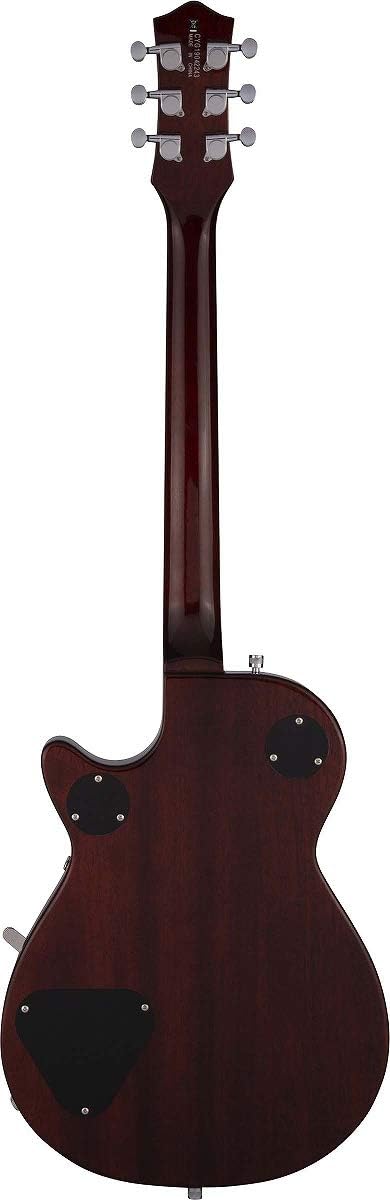

This image shows the rear of the guitar, revealing the natural finish of the mahogany body and neck. The control cavity cover and the neck joint are clearly visible.

Setup and Initial Preparation

Unpacking

Carefully remove the guitar from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. Retain all packaging materials for future transport or storage.

Tuning

Before playing, the guitar must be tuned. Standard tuning for a 6-string guitar is E-A-D-G-B-e (from lowest to highest string). Use an electronic tuner for accuracy. Due to temperature and humidity changes during shipping, the strings may require several tunings before they stabilize.

Stringing the Bigsby Tremolo

The Bigsby B50 vibrato tailpiece requires a specific stringing method:

1. Insert the ball end of the string into the slot on the rotating string shaft of the Bigsby.
2. Pull the string over the roller bar and guide it towards the bridge.
3. Thread the string through the appropriate saddle on the Adjusto-Matic bridge.
4. Wind the string onto the tuning machine post on the headstock.
5. Stretch the string gently and tune to pitch. Repeat for all strings.

Note: New strings will stretch and require frequent re-tuning initially.

Operating Instructions

Connecting to an Amplifier

Connect a standard 1/4-inch instrument cable from the output jack on the guitar to the input jack of your amplifier. Ensure the amplifier's volume is set to a low level before turning it on to avoid sudden loud noises.

Controls Overview

The Gretsch G5230T features a versatile control layout:

• Master Volume: Controls the overall output volume of the guitar.
• Master Tone: Adjusts the overall treble response. Turning it clockwise increases treble, counter-clockwise decreases it.
• Neck Pickup Volume: Controls the volume of the neck pickup.
• Bridge Pickup Volume: Controls the volume of the bridge pickup.
• 3-Position Pickup Selector Switch:
  • Position 1 (Up): Neck pickup only.
  • Position 2 (Middle): Both neck and bridge pickups.
  • Position 3 (Down): Bridge pickup only.

Experiment with different combinations of pickup volumes and the master tone control to achieve a wide array of sounds.

Using the Bigsby Tremolo

The Bigsby B50 vibrato allows for subtle pitch modulation. Gently push or pull the tremolo arm to raise or lower the pitch of the notes. Excessive force or aggressive use may cause the guitar to go out of tune. For optimal performance, ensure the strings are properly seated in the bridge saddles and nut slots.

Maintenance and Care

Cleaning

• After each use, wipe down the strings and body with a clean, soft cloth to remove sweat and oils.
• For the body finish, use a guitar-specific polish or a slightly damp cloth, then buff dry with a clean, soft cloth. Avoid abrasive cleaners.
• Clean the fingerboard periodically with a lemon oil or fretboard conditioner to prevent drying and cracking. Apply sparingly and wipe off excess.

String Replacement

Strings should be replaced regularly, depending on playing frequency and personal preference. Worn or corroded strings can negatively impact tone and intonation. When replacing strings, change them one at a time to maintain neck tension.

Storage

When not in use, store the guitar in a suitable guitar case or gig bag to protect it from dust, impacts, and environmental changes. Avoid storing the guitar in areas with extreme temperature fluctuations or high humidity.

Troubleshooting

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Gretsch customer support or a qualified guitar technician.

Specifications

Warranty and Support

For information regarding the warranty coverage for your Gretsch G5230T Electromatic Jet, please refer to the warranty card included with your purchase or visit the official Gretsch website. Warranty terms and conditions may vary by region.

For technical support, service, or parts inquiries, please contact Gretsch customer service through their official website or authorized service centers. Provide your model number (2507210546) and serial number (if applicable) when contacting support.

Official Gretsch Website: www.gretschguitars.com
