Introduction
The Massimo Motor Warrior200 is a robust mini moto trail bike designed for off-road adventures. Featuring a powerful 196cc engine and wide tires, it offers stability and performance across various terrains. This manual provides essential information for the safe assembly, operation, and maintenance of your Warrior200.
Image: A rider on the Massimo Motor Warrior200 Mini Moto Trail Bike, highlighting its compact size and dimensions.
Safety Information
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65). Always wear a helmet and appropriate safety gear, including eye protection, gloves, and sturdy footwear, when operating the Warrior200. Read and understand all safety warnings and instructions before use. Ensure all fasteners are secure before each ride.
Package Contents
The Massimo Motor Warrior200 mini bike is shipped with the main unit. No other components are included in the box beyond the primary vehicle assembly. Please inspect all parts upon arrival for any damage.
Setup and Assembly
Some assembly is required before the first ride. Carefully unpack all components. It is crucial to check every bolt, nut, and screw for proper tightness before initial operation and periodically thereafter. Loose fasteners can lead to operational issues and safety hazards. Ensure the front tire and handlebars are securely attached and aligned. Verify that the oil level is correct; the bike may not come with oil pre-filled.
Image: Labeled diagram illustrating key components of the Warrior200, including the engine, suspension, and tires.
Operating Instructions
Engine Start-up
Ensure the fuel tank contains fresh gasoline and the engine oil level is adequate. Turn the fuel valve to the ON position. Set the choke if starting a cold engine. Pull the recoil starter firmly until the engine starts. Once running, gradually push the choke lever back to the OFF position as the engine warms up.
Riding the Bike
The Warrior200 features a 196cc four-stroke, single-cylinder engine providing 6.5 HP, capable of reaching a top speed of 25 MPH. Its extra-wide, 19-inch rugged tires are designed for stability and traction on various terrains. The torque converter ensures smooth power delivery. Use the throttle for acceleration and the rear disc brake for reliable stopping power. The single, always-on front headlight provides added visibility.
Image: A rider demonstrating the off-road capability of the Warrior200 mini bike.
Storage Compartment
The faux gas tank on the Warrior200 serves as a convenient enclosed storage compartment. This space can be used to safely stow small items needed for your ride.
Image: Close-up of the storage compartment on the Warrior200.
Maintenance
Regular maintenance is essential for the longevity and safe operation of your Warrior200.
- Chain Tension: Periodically check and adjust the chain tension. A loose chain can lead to poor performance and potential damage. Ensure there is minimal slack in the chain.
- Clutch Inspection: Inspect the clutch for proper engagement and disengagement. Excessive play or stiffness in the clutch mechanism may indicate wear or a need for adjustment.
- Fastener Check: Regularly inspect all bolts, nuts, and screws for tightness. Vibrations during operation can cause fasteners to loosen.
- Oil Level: Check the engine oil level before each ride. Refer to the engine manual for specific oil type and capacity.
- Tire Pressure: Maintain correct tire pressure for optimal handling and tire life.
Image: Rear view of the Warrior200, highlighting the chain drive system and other components.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start or starts with difficulty | Low fuel, incorrect choke setting, spark plug issue, old fuel. | Check fuel level, adjust choke, inspect/replace spark plug, use fresh fuel. |
| Excessive chain slack | Chain stretched or tensioner needs adjustment. | Adjust chain tensioner. If chain is excessively stretched, it may need replacement. |
| Clutch not engaging/disengaging properly (excessive play) | Worn clutch components, improper adjustment. | Inspect clutch for wear. Consult a qualified technician for adjustment or replacement. |
| Engine knocking or seizing | Low oil, contaminated oil, internal engine damage. | Immediately stop operation. Check oil level and quality. Seek professional service. |
| Fenders or foot pegs becoming loose/breaking | Loose fasteners, material fatigue, impact damage. | Regularly check and tighten fasteners. Replace damaged components as needed. |
Specifications
- Engine: 196cc, 4-stroke, single-cylinder, 6.5 HP
- Top Speed: Approximately 25 MPH
- Tires: Extra-wide, 19-inch rugged trail tires
- Brakes: Rear Disc Brake
- Suspension: Hydraulic Front Suspension
- Ground Clearance: 8 inches
- Product Dimensions (L x W x H): 66 x 30 x 40 inches
- Item Weight: 151.7 pounds
- Rider Capacity: Up to 200 lbs
- Recommended Age: 16 months - 10 years (Note: Manufacturer's age recommendation may vary, always prioritize rider skill and safety gear.)

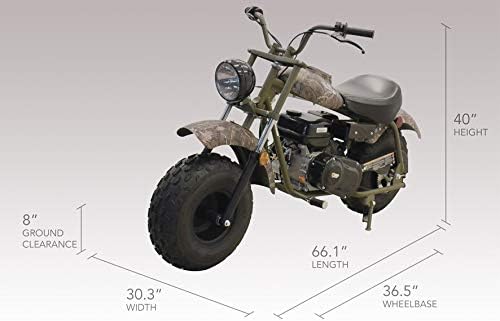

Image: Detailed dimensions of the Warrior200 mini bike.
Warranty and Support
For warranty claims or technical assistance, please contact Massimo Motor Sports customer support. It is recommended to retain your proof of purchase for any warranty-related inquiries. Be aware that transportation of this item is subject to hazardous materials regulations, and specific delivery requirements (e.g., adult presence) apply.
You can visit the official M MASSIMO MOTOR Store for additional information and support.
