1. Introduction
Thank you for choosing the Baridi 18 Bottle Wine Cooler Fridge, Model DH29. This appliance is designed to provide optimal storage conditions for your wine collection, featuring a sleek stainless steel design, digital touch screen controls, and energy-efficient operation. This manual provides essential information for the safe and efficient use of your new wine cooler.
The Baridi DH29 offers a temperature range of 5-18°C, controlled via an intuitive touch screen. Its compressor cooling technology includes an automatic defrost feature for ease of use. With a low noise level of 42dB, it is suitable for various placements, including under counters or on kitchen surfaces. The flexible storage includes removable wooden shelves, accommodating up to 18 standard wine bottles with a maximum height of 330mm.
2. Safety Information
Please read all safety instructions carefully before using the appliance. Keep this manual for future reference.
- Ensure the appliance is placed on a firm, level surface to prevent vibration and noise.
- Do not block ventilation openings. Maintain adequate space around the unit for proper air circulation.
- Do not place the appliance near heat sources such as radiators, direct sunlight, or other heat-producing appliances.
- Avoid placing heavy objects on top of the wine cooler.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the appliance from the power outlet before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Setup
3.1 Unpacking
Carefully remove all packaging materials. Inspect the appliance for any shipping damage. If damage is found, do not operate the unit and contact your retailer immediately.
3.2 Placement
Choose a location that is well-ventilated and away from direct sunlight or heat sources. Ensure there is sufficient space around the unit for proper air circulation (at least 10cm on sides and back). The appliance should be placed on a flat, stable surface to minimize noise and vibration. The product will not reach a higher temperature than the ambient temperature of the room.
3.3 Initial Power-On
After placing the unit, allow it to stand upright for at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant fluids to settle. Once plugged in, allow the unit to operate empty for a few hours to reach its set temperature before loading with bottles.
3.4 Handle Attachment
The door handle may require attachment upon delivery. Carefully align the handle with the pre-drilled holes on the door. Secure it using the provided screws. Note that this may involve temporarily adjusting the rubber seal around the door for access.

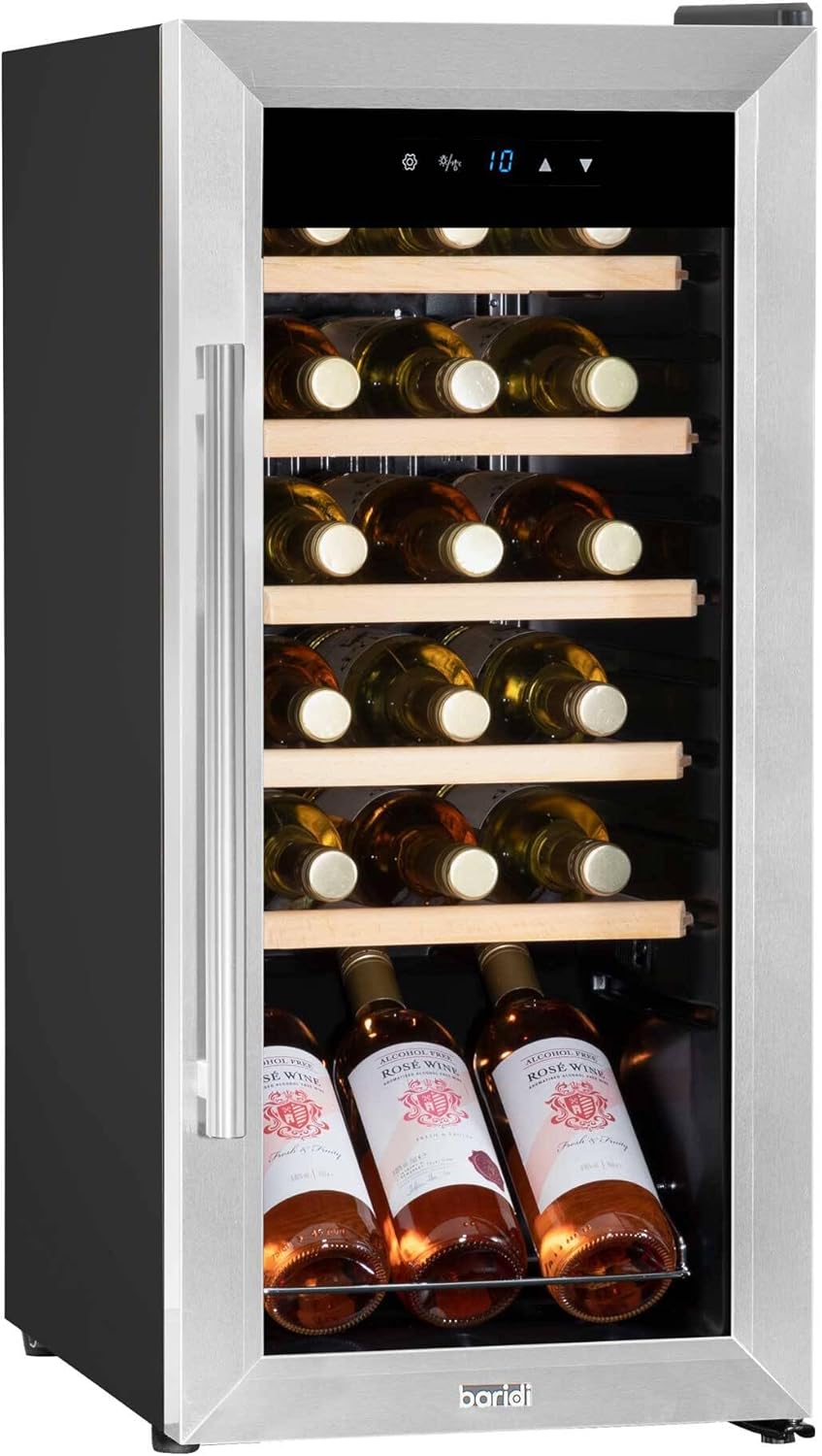

Front view of the Baridi 18 Bottle Wine Cooler Fridge, showcasing its stainless steel finish and tempered glass door. The digital temperature display is visible at the top.
A visual representation of the wine cooler's dimensions, indicating a width of 34.5cm, a depth of 45cm, and a height of 77cm, useful for planning placement.
4. Operating Instructions
4.1 Digital Touch Screen Controls
The wine cooler features a digital touch screen control panel located at the top of the door. Use the up and down arrows to adjust the desired temperature. The temperature range is between 5°C and 18°C. The display will show the current internal temperature.

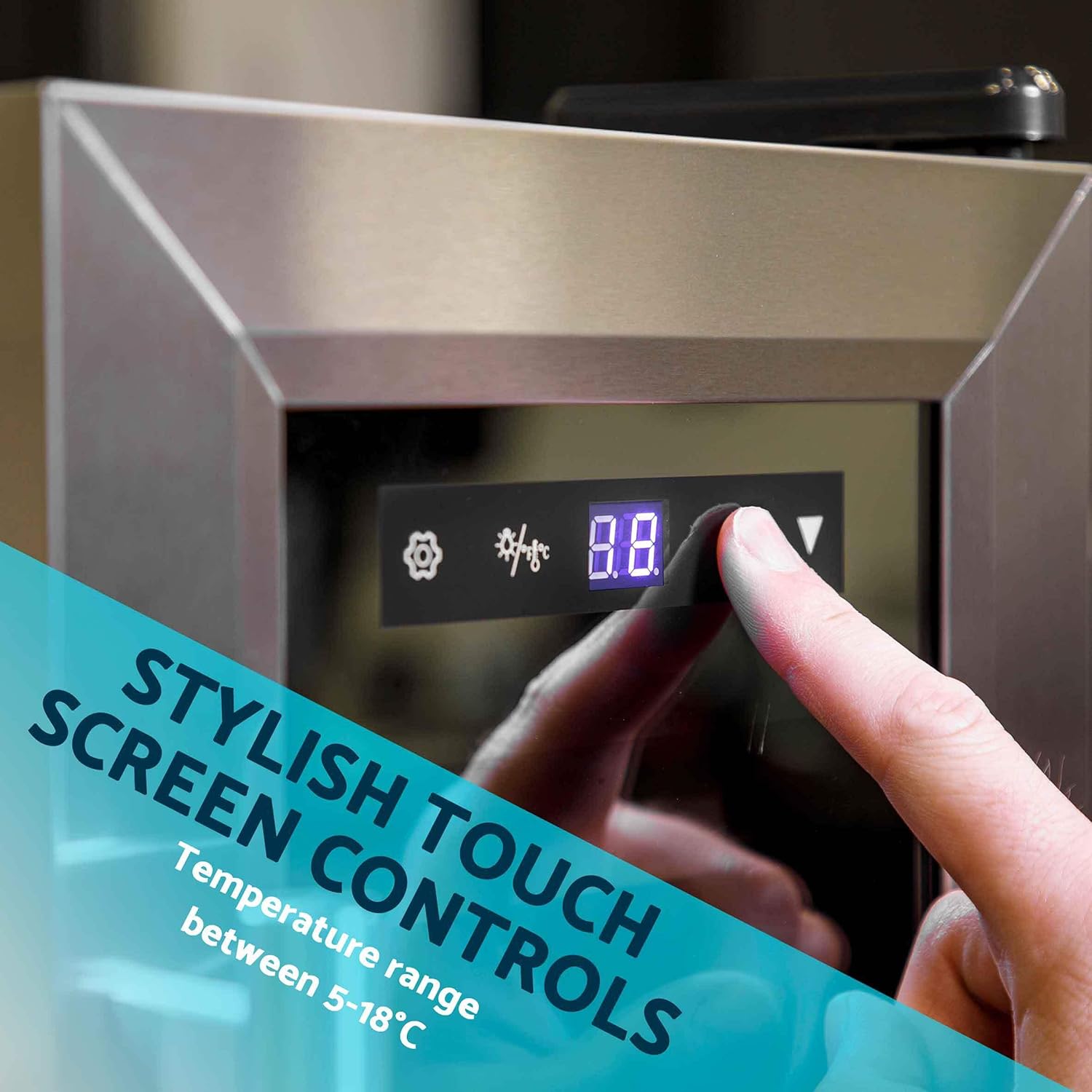

A detailed view of the digital touch screen controls located on the top of the wine cooler, allowing users to precisely set and monitor the internal temperature between 5°C and 18°C.
4.2 LED Interior Light
The wine cooler is equipped with an internal LED light to illuminate your wine collection. This light can typically be turned on or off via a dedicated button on the control panel.
4.3 Loading Bottles
The unit comes with removable stylish wooden shelves made of beech. These shelves are designed to hold up to 18 standard wine bottles. Ensure bottles are placed securely on the shelves. The maximum bottle height accommodated is 330mm.

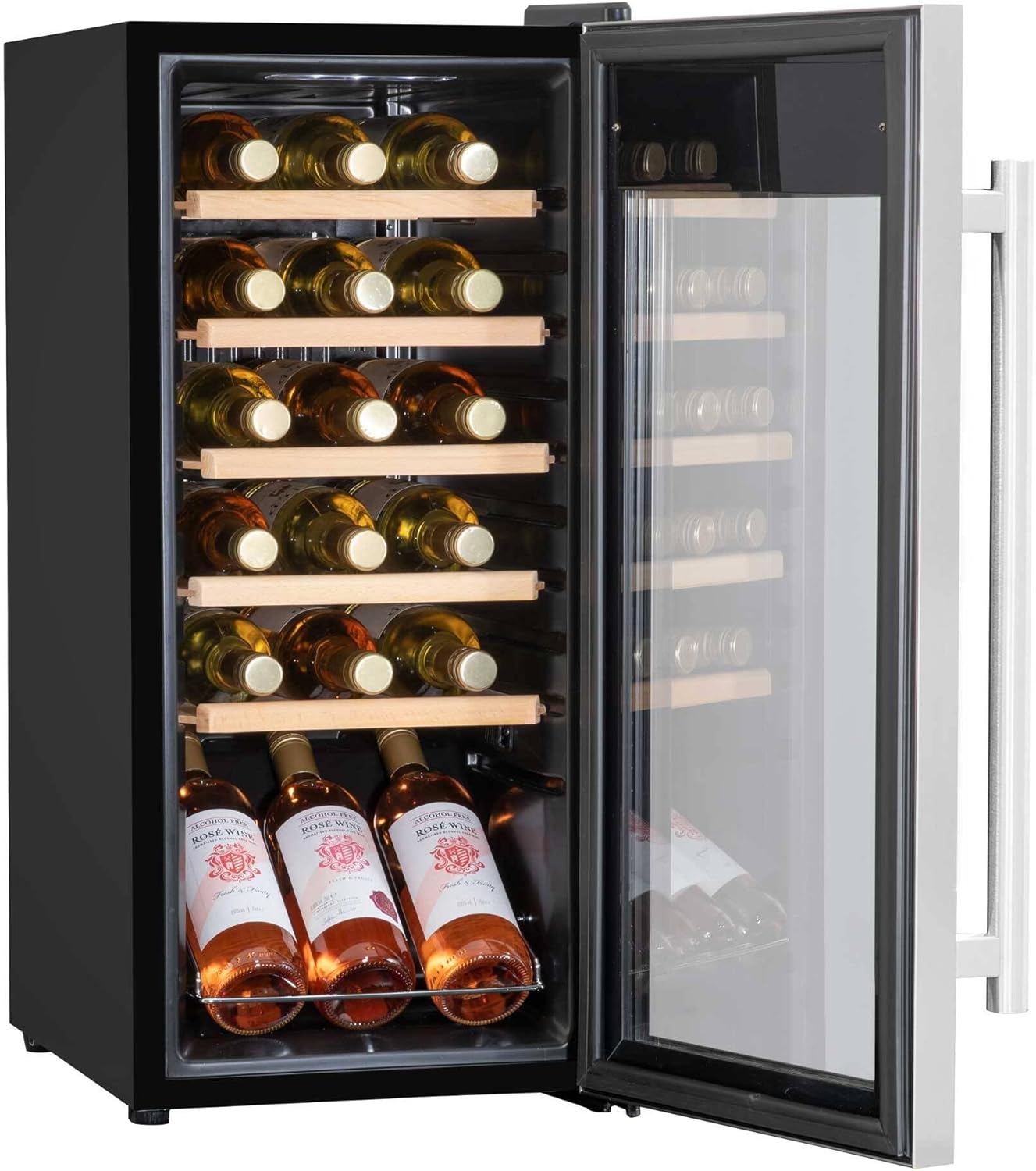

The wine cooler with its door open, revealing the interior layout with multiple wooden shelves designed to hold up to 18 wine bottles. The door features a sleek handle.
5. Maintenance
5.1 Cleaning
Always unplug the appliance before cleaning. Clean the interior and exterior surfaces with a soft cloth and a mild detergent. Do not use abrasive cleaners or solvents. The wooden shelves can be removed for cleaning.
5.2 Defrosting
The Baridi DH29 features an automatic defrost function, minimizing the need for manual defrosting. If ice buildup occurs, it will typically melt and evaporate automatically. Ensure the drain hole (if present) is clear to prevent water accumulation.
6. Troubleshooting
Before contacting customer support, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate | No power; power cord unplugged; circuit breaker tripped. | Check power supply; ensure plug is firmly in outlet; reset circuit breaker. |
| Temperature is not cold enough | Door not closed properly; excessive door opening; high ambient temperature; temperature setting too high. | Ensure door is sealed; minimize door openings; place unit in cooler location; adjust temperature setting lower (minimum 5°C). Note: The unit's lowest temperature is 5°C. |
| Excessive noise | Appliance not level; objects vibrating against the unit; fan obstruction. | Adjust leveling feet; ensure nothing is touching the unit; check for obstructions around the fan. The normal operating noise level is 42dB. |
| Condensation inside | High humidity; frequent door opening. | Ensure door seal is intact; reduce frequency of door openings. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Dellonda (Baridi) |
| Model | DH29 |
| Capacity | 18 Bottles / 50 Litres |
| Temperature Range | 5°C - 18°C |
| Product Dimensions (W x D x H) | 34.5 x 45 x 77 cm |
| Item Weight | 22.3 kg |
| Noise Level | 42dB (43dB on energy label) |
| Annual Energy Consumption | 120 kWh/annum |
| Energy Efficiency Class | G |
| Installation Type | Freestanding |
| Door Material | Glass |
| Shelf Type | Wood (Beech) |
| Max. Bottle Height | 330mm |
The official EU energy label for the Baridi DH29 wine cooler, indicating its energy efficiency class G, an annual energy consumption of 120 kWh, and a noise level of 43dB.
The comprehensive product information sheet for the Baridi DH29 wine cooler, providing detailed technical specifications, energy efficiency data, and contact information for the manufacturer.
8. Warranty and Support
This Baridi wine cooler comes with a minimum duration of 1 year guarantee from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical support, spare parts, or warranty inquiries, please visit the manufacturer's website:
