ANWBROAD 9-Cube Modular Storage Organizer (Model: ULCS009T) Instruction Manual
Comprehensive guide for assembly, usage, and maintenance.
1. Introduction
Thank you for choosing the ANWBROAD 9-Cube Modular Storage Organizer. This versatile storage solution is designed to help you organize various items in your home or office. Please read this manual carefully before assembly and use to ensure proper setup and long-lasting performance.
2. Safety Information
- Keep all small parts away from children and pets to prevent choking hazards.
- Do not overload the cubes. Each cube supports up to 15 lbs (7 kg).
- Ensure all connectors are fully secured during assembly to maintain stability.
- Avoid placing the organizer in direct sunlight or near heat sources to prevent material degradation.
- For added stability, especially if placed on uneven surfaces or in areas with children, consider securing the unit to a wall (mounting hardware not included).
3. Package Contents
Please verify that all components listed below are present before beginning assembly.
Image: Components included in the ANWBROAD 9-Cube Storage Organizer package.
| Component | Quantity |
|---|---|
| PP Plastic Panel | 34 pcs |
| Standard Connectors | 26 pcs |
| Elevate Foot Connectors | 8 pcs |
| Rubber Mallet | 1 pc |
4. Assembly Instructions (Setup)
Follow these steps carefully to assemble your ANWBROAD 9-Cube Modular Storage Organizer. A rubber mallet is provided to assist with securing connections.
- Plan Your Layout: Decide on the desired configuration for your 9-cube organizer. The modular design allows for various arrangements (e.g., 3x3, stepped, individual cubes). Refer to the "DIY Cube Storage Organizer" image for examples.
- Connect Panels to Connectors: Take a standard connector and insert the metal edges of the PP plastic panels into the slots of the connector. Ensure the panels are fully seated into the deepest part of the connector slots.
- Secure Connections with Mallet: Use the provided rubber mallet to gently tap the panels into the connectors. This ensures a tight and stable fit. Listen for a click or feel the panel firmly seat into the connector. Repeat this for all connections.
- Build the Base: Start by assembling the bottom row of cubes. Attach the elevate foot connectors to the bottom-most standard connectors. Ensure the feet are facing downwards and are securely attached.
- Construct Cubes: Continue adding panels and connectors to form individual cubes, then connect these cubes to build your desired structure. Work from the bottom up, ensuring each layer is stable before proceeding to the next.
- Final Check: Once fully assembled, gently push on each panel and connector to confirm all parts are securely fastened. The structure should feel rigid and stable.
Image: Examples of different configurations for the modular cube organizer.
Image: Detailed view of how panels connect to the plastic connectors.
Image: Illustration showing the elevated foot connectors providing clearance from the floor.
5. Usage (Operating)
The ANWBROAD 9-Cube Modular Storage Organizer offers versatile storage options for various items.
- Capacity: Each individual cube measures approximately 11.8" x 11.8" x 11.8" (internal dimensions) and can hold up to 15 lbs (7 kg).
- Recommended Items: Suitable for storing clothes, shoes, books, toys, artworks, decorations, handbags, cosmetics, and other daily essentials.
- Storage Bins: The cubes are designed to fit storage bins smaller than 11.5" x 11.5".
- Placement: Ideal for bedrooms, closets, living rooms, offices, or any area requiring organized storage.
Image: The 9-cube organizer in a living room, showcasing its use for various items.

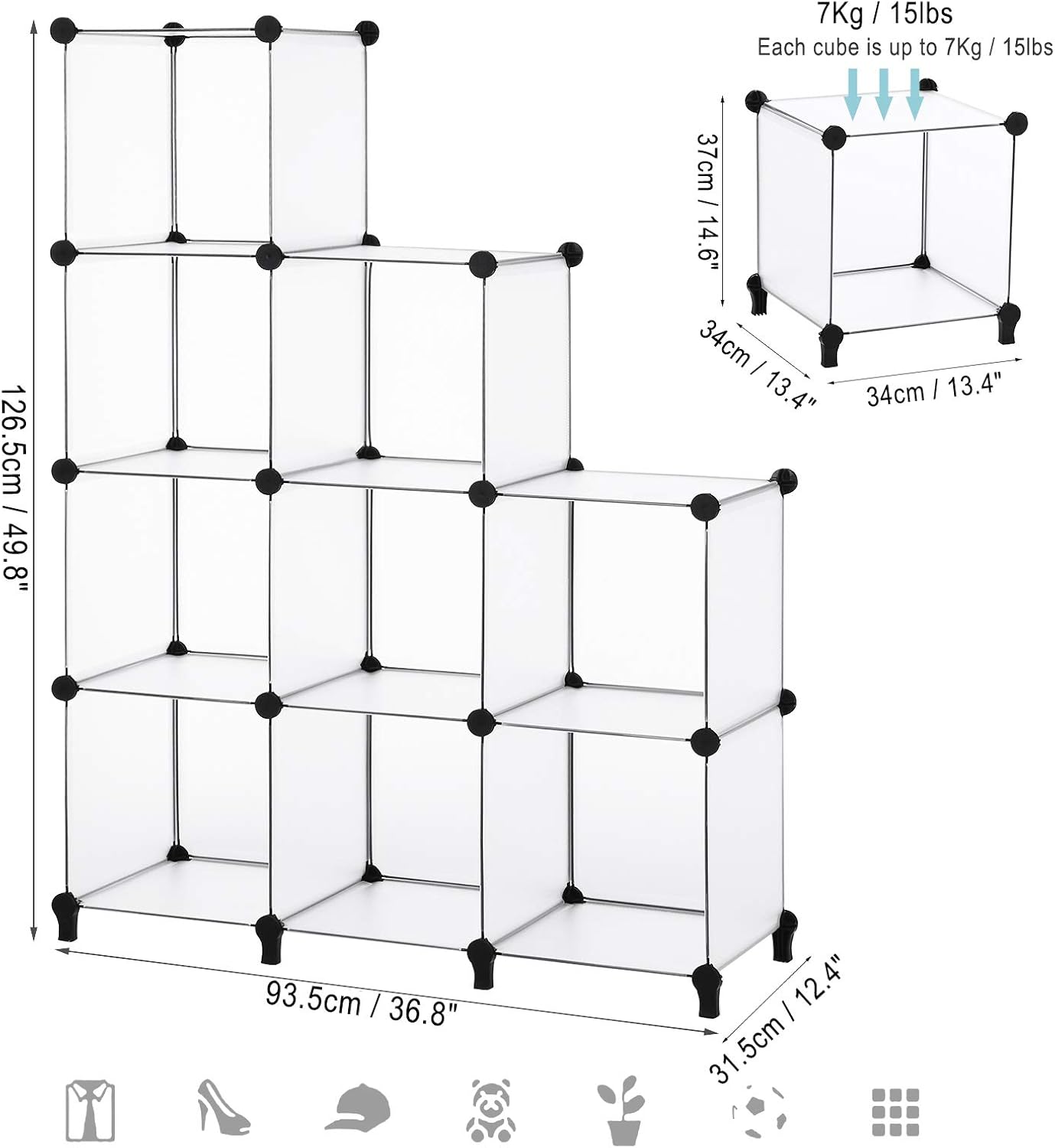

Image: Diagram illustrating the overall dimensions and individual cube capacity.
6. Maintenance
To keep your storage organizer in optimal condition, follow these simple maintenance guidelines:
- Cleaning: Wipe the plastic panels and metal frames with a dry cloth. For stubborn marks, a slightly damp cloth can be used, followed by drying with a clean, dry cloth. Avoid abrasive cleaners or harsh chemicals.
- Inspection: Periodically check all connectors to ensure they remain securely fastened. Re-tap with the rubber mallet if any connections feel loose.
- Relocation: When moving the assembled unit, lift it carefully from the base to prevent stress on the connections. For significant moves, disassembling and reassembling is recommended.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit feels unstable or wobbly. | Connectors are not fully seated. | Use the rubber mallet to firmly tap all panels into the connectors until they are fully secured. Ensure all corners are flush. |
| Panels are difficult to insert into connectors. | Misalignment or insufficient force. | Ensure the panel's metal edge is aligned correctly with the connector slot. Apply firm, even pressure. Use the rubber mallet to assist. Do not force or bend panels. |
| Missing parts. | Packaging error. | Refer to the "Package Contents" section and contact ANWBROAD customer support with your purchase details. |
| Panel tears or breaks during assembly. | Incorrect handling. | When assembling, always hold the panel by its metal frame, not the vinyl siding, to prevent tearing. Contact customer support for replacement parts if necessary. |
8. Specifications
- Model: ULCS009T
- Overall Dimensions (Approx.): 36.8" (D) x 12.4" (W) x 49.8" (H)
- Individual Cube Internal Dimensions (Approx.): 11.8" x 11.8" x 11.8"
- Weight Capacity per Cube: Up to 15 lbs (7 kg)
- Material: PP Plastic Panels, Metal Frame, ABS Connectors
- Number of Cubes: 9
- Assembly Required: Yes
- Care Instructions: Wipe with Dry Cloth
9. Warranty and Support
ANWBROAD is committed to providing quality products. For any questions, concerns, or assistance with your product, please contact ANWBROAD customer support. Please have your model number (ULCS009T) and purchase information ready when contacting support.
