Introduction
This instruction manual provides essential information for the safe and effective installation and maintenance of your Obida Dishwasher Friction Pulley Cable Replacement. Please read this manual thoroughly before proceeding with installation to ensure proper function and to prevent damage to your appliance.
Product Overview
The Obida 13-inch Metal/Plastic Dishwasher Friction Pulley Cable is a replacement part designed to restore the proper balance and support of your dishwasher door. It helps prevent the door from slamming open or closed, ensuring smooth operation.
Key Features:
- Length: Approximately 13 inches
- Material: Durable metal and plastic construction
- Function: Balances and supports the dishwasher door
Safety Information
Always prioritize safety when performing appliance repairs. Failure to follow these safety guidelines may result in personal injury or property damage.
- Disconnect Power: Before beginning any repair, always disconnect the dishwasher from its power source by unplugging it or turning off the circuit breaker.
- Wear Protective Gear: Wear appropriate personal protective equipment, such as gloves and safety glasses, to prevent injury.
- Handle with Care: Be cautious when handling tools and appliance components.
- Professional Assistance: If you are unsure about any step of the installation process, consult a qualified appliance technician.
What's Included
Your package should contain the following item:
- 1 x Obida Dishwasher Friction Pulley Cable (Model 154578801)

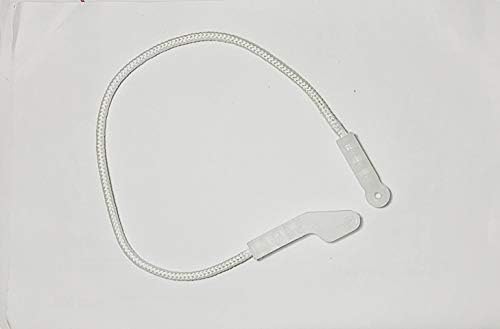

Image 1: The Obida Dishwasher Friction Pulley Cable, showing its full length and both end connectors. This cable is approximately 13 inches long and is made of a white braided material with plastic end pieces.
Compatibility
This replacement cable is compatible with various dishwasher models, including LFID2426TF2A. It replaces part numbers 154578801, 154578801CM, AP3958767, 1196201, and PS1524995.
To ensure compatibility, verify your dishwasher's model number and the required part number before installation.
Installation Instructions
The following steps outline the general procedure for replacing a dishwasher friction pulley cable. Specific steps may vary slightly depending on your dishwasher model. Refer to your dishwasher's service manual for detailed instructions if available.
- Prepare the Dishwasher:
- Disconnect the dishwasher from its power supply.
- Turn off the water supply to the dishwasher.
- Carefully pull the dishwasher out from its cabinet enclosure to access the side panels.
- Access the Cable Mechanism:
- Remove the outer access panels on both sides of the dishwasher. This usually involves unscrewing a few screws.
- Locate the existing friction pulley cable and its attachment points near the door hinges.
- Remove the Old Cable:
- Carefully detach the old, broken, or worn-out cable from its connection points. Note how it was routed.
-
Image 2: A close-up view of one end of the cable, showing the plastic connector designed to attach to the dishwasher mechanism. This connector has a rectangular slot for secure fitting.
- Install the New Cable:
- Attach one end of the new Obida friction pulley cable to its designated anchor point on the dishwasher frame.
- Route the cable correctly around the pulley mechanism.
- Attach the other end of the cable to the dishwasher door hinge assembly.
-
Image 3: A close-up view of the opposite end of the cable, featuring a different plastic connector with a circular eyelet for attachment. This end typically connects to a pivot point or hook.
- Test and Reassemble:
- Gently open and close the dishwasher door to ensure the cable is properly tensioned and the door operates smoothly without slamming.
- Once satisfied with the operation, reattach the side access panels.
- Slide the dishwasher back into its cabinet enclosure.
- Reconnect the power and water supply.
Checking Functionality
After installation, perform the following checks:
- Door Movement: Open the dishwasher door fully and then slowly close it. The door should move smoothly and remain stable at various open positions without dropping suddenly or requiring excessive force to close.
- Balance: The door should feel balanced and supported by the new cable, preventing it from slamming shut or falling open too quickly.
Maintenance
The friction pulley cable is a wear-and-tear component. Regular inspection can help identify potential issues before they lead to failure.
- Periodic Inspection: Annually, or if you notice changes in door operation, inspect the cable for signs of fraying, stretching, or damage to the plastic connectors.
- Cleanliness: Keep the area around the door hinges and pulley mechanism free from debris and grease, which can impede cable movement.
- Replacement: Replace the cable immediately if any damage is observed to maintain proper dishwasher door function and safety.
Troubleshooting
If you encounter issues after installing the replacement cable, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher door still slams or drops. | Cable not installed correctly or is damaged. | Re-check installation steps. Ensure both ends of the cable are securely attached and routed correctly. Inspect the new cable for manufacturing defects. |
| Door is stiff or difficult to open/close. | Cable is too tight or improperly routed. | Verify the cable routing and ensure it is not binding on any components. The cable should have appropriate tension but not be overly tight. |
| New cable breaks shortly after installation. | Incorrect installation, underlying issue with the dishwasher's hinge mechanism, or manufacturing defect. | Ensure proper installation. Inspect the dishwasher's hinge and pulley system for any sharp edges or obstructions that could damage the cable. Contact Obida customer support if you suspect a product defect. |
Specifications
- Brand: Obida
- Model Number: 154578801
- Part Number: 154578801
- Item Length: Approximately 13 inches
- Material: Metal, Plastic
- Color: White
- Item Weight: Approximately 0.634 ounces
- Package Dimensions: Approximately 1.93 x 1.85 x 0.43 inches
- Replaces Part Numbers: 154578801, 154578801CM, AP3958767, 1196201, PS1524995
- Compatible Models: LFID2426TF2A (and others requiring listed part numbers)
Warranty Information
For specific warranty details regarding your Obida Dishwasher Friction Pulley Cable, please refer to the product packaging or contact Obida customer support directly. Keep your proof of purchase for warranty claims.
Customer Support
If you require further assistance, have questions about installation, or need to report a product issue, please contact Obida customer support. Refer to the contact information provided on the product packaging or the official Obida website.
