1. Important Safety Information
Please read all instructions carefully before using your new refrigerator. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Electrical Safety: Ensure the refrigerator is connected to a grounded power outlet. Do not use extension cords.
- Ventilation: Maintain adequate space around the refrigerator for proper ventilation to prevent overheating.
- Flammable Materials: Do not store explosive substances or flammable materials inside the refrigerator.
- Children Safety: Supervise children to ensure they do not play with the appliance. Keep packaging materials out of reach of children.
- Cleaning: Always unplug the refrigerator before cleaning or performing maintenance.
2. Product Overview

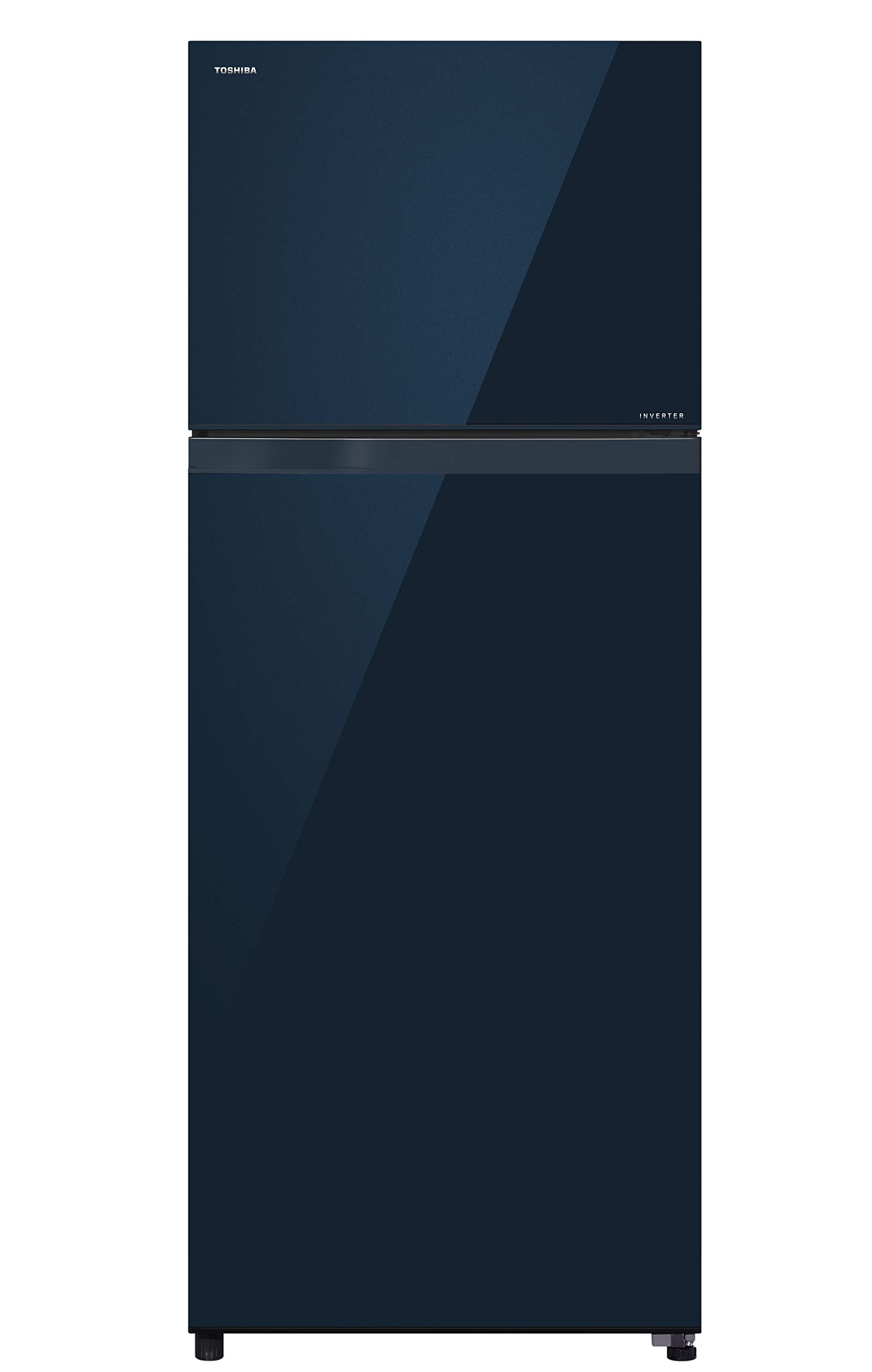

The TOSHIBA GR-AG46IN is a 445 L 2-Star Inverter Frost-Free Double Door Refrigerator designed to keep food fresh and hygienic. It features an energy-efficient inverter and innovative technologies like Cool Air Wrap, LED Hybrid Deodoriser, and Real Inverter for optimal food preservation.
Figure 2.1: Interior view of the TOSHIBA GR-AG46IN Refrigerator.
Key Features:
- Capacity: 445 Litres, suitable for families with 2 to 4 members.
- Energy Rating: 2 Star for energy efficiency.
- Defrost System: Automatic (Frost-Free).
- Compressor: Inverter Compressor for efficient and quiet operation.
- Shelf Type: Toughened Glass shelves for durability.
- Deodorizer: LED Hybrid Deodorizer for odor control and hygiene.
- Crisper: AG+ Crisper to keep fruits and vegetables fresh longer.
- Control: Digital Feather Touch Control on the door.
Figure 2.2: Key features of the TOSHIBA GR-AG46IN Refrigerator.
Product Video Overview:
Video 2.1: An overview of the TOSHIBA GR-AG46IN Refrigerator, showcasing its design, capacity, and key features like the digital touch control, auto ice maker, LED Hybrid Deodorizer, Ultra-Fresh Room, and AG+ Crisper.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including tape and protective films. Inspect the refrigerator for any damage during transit. Keep packaging materials for potential future transport or service.
3.2 Placement
- Place the refrigerator on a firm, level floor.
- Ensure adequate space around the unit for proper air circulation (at least 10 cm at the back and sides, 30 cm at the top).
- Avoid direct sunlight or heat sources.
- Do not place in areas with extreme temperatures or high humidity.
3.3 Leveling
Adjust the leveling feet at the bottom of the refrigerator to ensure it stands stable and level. This prevents vibrations and ensures proper door sealing.
3.4 Power Connection
Plug the refrigerator into a dedicated, grounded 3-prong electrical outlet. Do not use adapters or extension cords. Allow the refrigerator to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.
3.5 Initial Startup
After plugging in, the refrigerator will begin cooling. It may take several hours for the internal temperature to reach the desired level. Avoid placing food inside until the refrigerator has reached its operating temperature.
Figure 3.1: Dimensions of the TOSHIBA GR-AG46IN Refrigerator.
4. Operating Instructions
4.1 Digital Feather Touch Control
The refrigerator features a digital feather touch control panel on the exterior door for easy temperature management and mode selection. Use the touch buttons to adjust settings without opening the door.
Figure 4.1: Digital Feather Touch Control Panel.
4.2 Temperature Settings
Adjust the refrigerator and freezer temperatures using the control panel. Refer to the display for current settings. Recommended settings are typically 3-5°C for the refrigerator and -18°C for the freezer.
4.3 Auto Ice Maker
The automatic ice maker provides convenient access to ice. Fill the water reservoir as instructed. The ice maker will automatically produce and store ice cubes in the designated bin.
Figure 4.2: Location of the Auto Ice Maker.
4.4 Ultra-Fresh Room
The chiller compartment, also known as the Ultra-Fresh Room, allows for temperature settings down to -3°C. This feature is ideal for keeping specific items like meat or fish fresh for longer periods without freezing them solid.
Figure 4.3: Ultra-Fresh Room in the refrigerator compartment.
5. Features and Technologies
5.1 LED Hybrid Deodorizer
The LED Hybrid Deodorizer system utilizes 2 photocatalyst filters and an LED lamp to actively decompose odors and inhibit bacterial growth within the refrigerator compartment. This ensures a fresh and hygienic environment for your food, preserving its original flavor.
Figure 5.1: LED Hybrid Deodorizer system.
5.2 AG+ Crisper
The AG+ Crisper is designed with silver (AG+) ions mixed into the material, which helps to restrict bacterial growth. This feature keeps fruits and vegetables fresh for a longer duration, maintaining their quality and nutritional value.
Figure 5.2: AG+ Crisper for fresh produce.
5.3 Dual Cooling Zone
With air-flow from two ducts, the Dual Cooling Zone ensures that items stored in the door pockets, such as bottles and cans, are chilled faster and more effectively. The pockets are designed to be spacious for multiple items.
Figure 5.3: Dual Cooling Zone mechanism.
5.4 Real Inverter Technology
The Real Inverter technology integrates both the compressor and fan motor, allowing for precise temperature control and energy efficiency. This results in stable cooling performance, reduced noise, and lower electricity consumption.
5.5 Big Vegetable Box

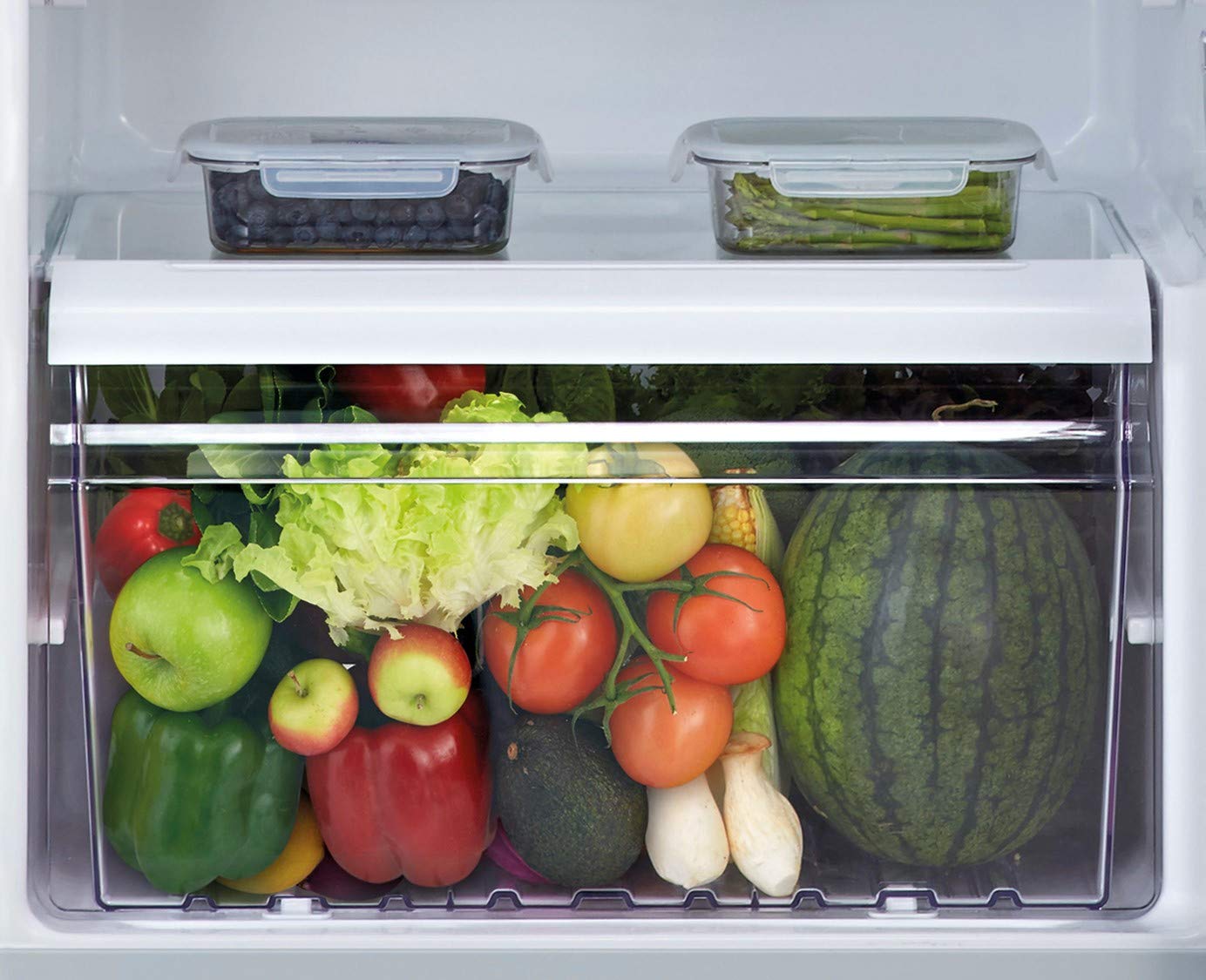

The refrigerator includes a generously sized vegetable box, providing ample space to store a large quantity of fruits and vegetables. It is designed with wheels underneath for smooth and easy opening and closing.
Figure 5.4: Big Vegetable Box with wheels.
6. Maintenance and Care
6.1 Cleaning the Interior
- Unplug the refrigerator before cleaning.
- Wipe the interior with a soft cloth dampened with a mild detergent solution.
- Rinse with clean water and dry thoroughly.
- Remove shelves and drawers for separate cleaning if necessary.
6.2 Cleaning the Exterior
- Clean the exterior surfaces with a soft cloth and a mild, non-abrasive cleaner.
- For the glass door finish, use a glass cleaner and a soft cloth to avoid scratches.
- Regularly clean the door gaskets to ensure a tight seal.
6.3 Frost-Free System
This refrigerator is equipped with a frost-free system, eliminating the need for manual defrosting. If ice buildup occurs, check if the door is sealing properly or if the temperature settings are too low.
6.4 Power Outage
In case of a power outage, keep the refrigerator doors closed to maintain the internal temperature for as long as possible. Avoid opening the doors unnecessarily.
7. Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power cord unplugged; temperature setting too high; door not closed properly. | Check power connection; adjust temperature; ensure door is sealed. |
| Unusual noises | Refrigerator not level; items vibrating inside; compressor noise (normal). | Level the refrigerator; rearrange items; normal compressor sounds are expected. |
| Water leakage | Drain hose blocked; excessive humidity. | Clear drain hose; ensure proper ventilation. |
| Odor inside | Food items not covered; deodorizer not functioning optimally. | Cover all food items; ensure LED Hybrid Deodorizer is active. |
If the problem persists after checking these points, please contact customer service.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | TOSHIBA |
| Model Name | GR - AG46 IN ( XG ) |
| Model Number | GR-AG46IN(XK) |
| Capacity | 445 litres |
| Configuration | Double Door |
| Colour | Blue (Bluish Green Glass finish) |
| Special Feature | Inverter Compressor |
| Defrost System Type | Automatic (Frost-Free) |
| Shelf Type | Toughened Glass |
| Cooling Method | Compressor |
| Number Of Shelves | 2 |
| Refrigerant | R-600A |
| Product Finish Type | Glass |
| Freezer Capacity | 120 Litres |
| Item Weight | 75000 Grams (75 kg) |
| Annual Energy Consumption | 296 Kilowatt Hours |
| Fresh Food Capacity | 325 litres |
| Installation Type | Freestanding |
| BEE Star Rating | 2 Star |
| Dimensions (H x W x D) | 177.0 cm x 68.0 cm x 71.7 cm |
9. Warranty and Support
9.1 Warranty Information
- Product Warranty: 1 year on the entire product from the date of purchase.
- Compressor Warranty: 10 years on the compressor.
- Please retain your purchase receipt for warranty claims.
9.2 Included Components
The product package includes:
- 1 Unit Refrigerator
- User manual with Warranty Card
9.3 Customer Support
For any service-related queries, technical assistance, or warranty claims, please contact TOSHIBA customer service. Refer to the warranty card or TOSHIBA's official website for specific contact details in your region.
