Italiana Camini Yulia 810970 Pellet Stove User Manual
Model: 810970 Yulia
Introduction
This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Italiana Camini Yulia 810970 Pellet Stove. Please read this manual thoroughly before operating the appliance. Keep this manual for future reference.
The Italiana Camini Yulia pellet stove is designed to provide comfortable heating using an ecological fuel source. It features a practical control panel for programming heating times and offers optional remote control capabilities.
Safety Information
Always adhere to local building codes and regulations when installing and operating the pellet stove.
- Ensure proper ventilation.
- Do not store flammable materials near the stove.
- Regularly clean the chimney and flue pipes.
- Only use approved wood pellets as fuel.
- Keep children and pets away from the hot surfaces of the stove.
Product Overview
The Yulia pellet stove is equipped with an integrated auger system that transports fuel from the pellet reservoir to the crucible. The reservoir has a capacity of 24 kg, allowing for extended heating periods.
Setup and Installation
Unpacking
Carefully remove the pellet stove from its packaging. Inspect for any damage that may have occurred during transit. Retain all packaging materials until the stove is fully installed and operational.
Location Requirements
- Install the stove on a non-combustible floor or a suitable floor protector.
- Maintain minimum clearances from combustible materials as specified by local codes and the stove's technical specifications.
- Ensure adequate fresh air supply for combustion.
Flue Connection

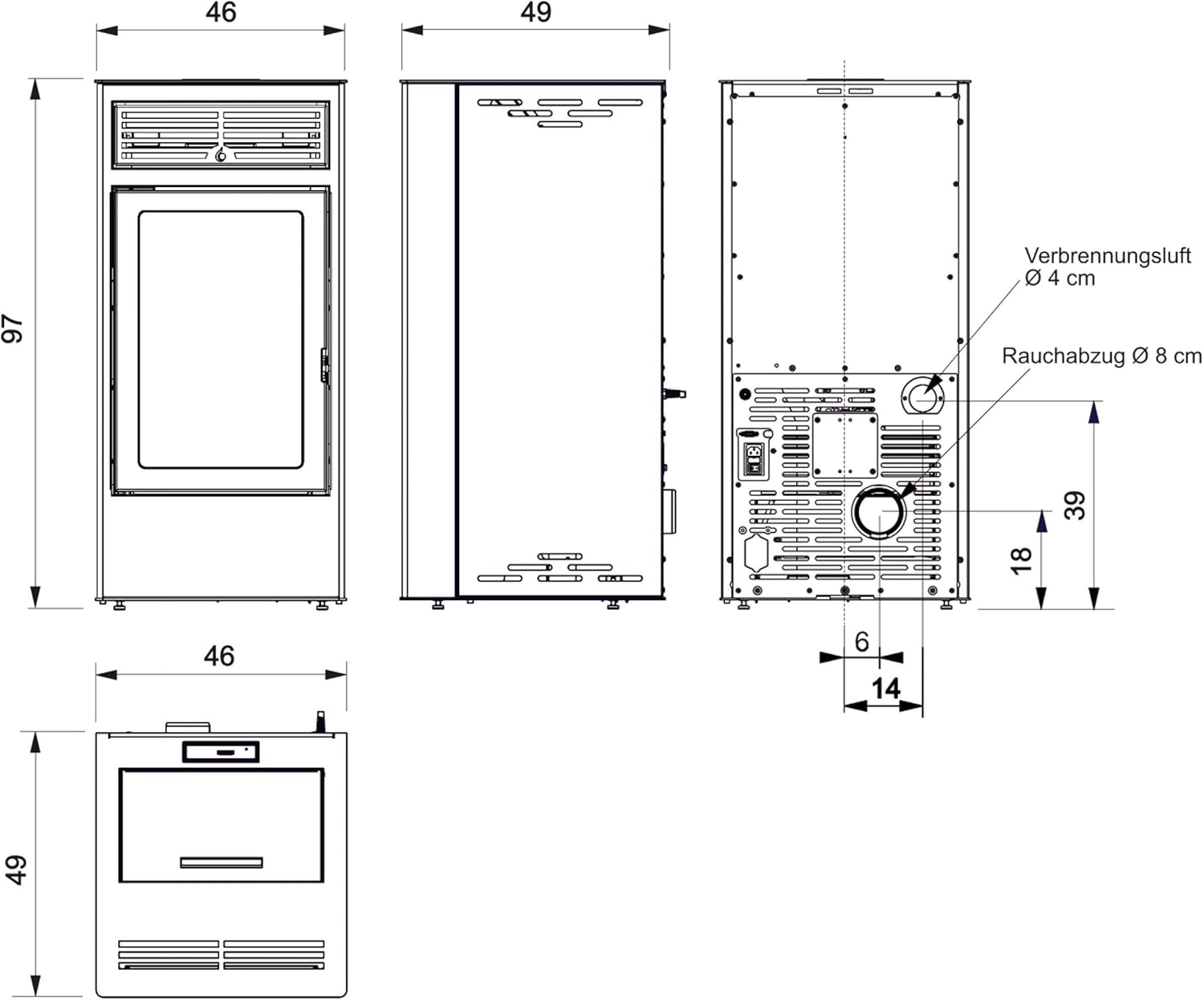

Connect the stove to a suitable chimney or flue system. The smoke exhaust diameter is Ø 8 cm. All connections must be sealed properly to prevent leaks. Refer to Figure 2 for exhaust and air inlet locations.
Electrical Connection
Connect the stove to a grounded electrical outlet. Ensure the voltage and frequency match the stove's requirements.
Operating Instructions
Filling the Pellet Hopper
Open the hopper lid located on the top of the stove. Pour wood pellets into the hopper, ensuring not to overfill. The hopper capacity is 24 kg.
Control Panel Overview
The control panel on the top of the stove allows you to manage various functions. It displays operational status, error messages, and allows for programming.
Programming Heating Times
The stove supports daily, weekly, and weekend programming modes. These modes are independent, allowing for flexible heating schedules.
- Access the programming menu via the control panel.
- Select the desired mode (Daily, Weekly, or Weekend).
- Set the desired ON/OFF times for each period.
- Confirm settings to save.
Optional Accessories
- Remote Control: An optional remote control can be used for convenient operation.
- GSM Module M: Allows control via SMS commands.
- WiFi Kit M: Enables operation via smartphone and tablet applications.
Maintenance
Regular maintenance is crucial for the efficient and safe operation of your pellet stove.
Daily Maintenance
- Empty the ash pan.
- Clean the burn pot (crucible) to remove any clinkers or unburnt pellets.
- Wipe the glass door with a suitable glass cleaner when cool.
Weekly Maintenance
- Clean the heat exchanger tubes.
- Vacuum the internal components to remove dust and ash buildup.
Annual Maintenance
- Have the chimney and flue pipes professionally cleaned.
- Inspect all seals and gaskets for wear and tear. Replace if necessary.
- Check electrical connections.
Troubleshooting
This section provides solutions to common issues you might encounter. For problems not listed here, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Stove does not ignite. | No pellets in hopper; clogged burn pot; faulty igniter. | Refill hopper; clean burn pot; check igniter connection or replace. |
| Low heat output. | Poor quality pellets; dirty heat exchanger; insufficient air supply. | Use high-quality pellets; clean heat exchanger; check air intake for obstructions. |
| Excessive smoke. | Blocked flue; wet pellets; improper air settings. | Clean flue; use dry pellets; adjust air settings according to manual. |
Specifications
| Feature | Value |
|---|---|
| Brand | Italiana Camini |
| Model | Yulia 810970 |
| Nominal Power | 6.9 kW |
| Efficiency | 88% (Energy Efficiency Class A+) |
| Heated Volume Coverage | Up to 180 m³ (Suitable for spaces up to 72 sq meters) |
| Pellet Hopper Capacity | 24 kg |
| Smoke Exhaust Diameter | Ø 8 cm |
| Combustion Air Inlet Diameter | Ø 4 cm |
| Color | Grey |
Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your authorized Italiana Camini dealer.
For technical support or service inquiries, please contact Italiana Camini customer service or your local distributor.
