NSKI GT-F6 750ml LED Display Ultrasonic Cleaner User Manual

Introduction

This manual provides detailed instructions for the safe and effective operation of your NSKI GT-F6 750ml LED Display Ultrasonic Cleaner. Please read this manual thoroughly before first use and retain it for future reference.

Safety Information

To ensure safe operation and prevent damage to the device or injury, please observe the following safety precautions:

• Do not immerse the main unit in water or other liquids.
• Ensure the power cord is undamaged and properly connected to a grounded outlet.
• Do not touch the liquid in the tank during operation.
• Keep the device out of reach of children.
• Do not operate the cleaner without liquid in the tank.
• Unplug the device before cleaning or when not in use.
• Avoid using flammable or corrosive cleaning solutions.

Package Contents

Upon unpacking, please verify that all the following items are included:

• 1 x NSKI GT-F6 Ultrasonic Cleaner Main Unit
• 1 x Watch Stand
• 1 x Washing Basket
• 1 x User Manual (this document)
• 1 x Power Cord

Image: The NSKI GT-F6 Ultrasonic Cleaner main unit, along with the included watch stand, washing basket, and user manual.

Product Overview

The NSKI GT-F6 Ultrasonic Cleaner utilizes ultrasonic waves to provide thorough cleaning for various items. Key components include:

• Main Unit: Houses the ultrasonic transducer and control circuitry.
• Stainless Steel Tank: The reservoir for cleaning solution.
• Lid: Covers the tank during operation.
• LED Display: Shows the remaining cleaning time.
• Control Buttons: "On/Off" and "Time" buttons for operation.

Image: A detailed view highlighting the sound cover, 304 stainless steel liner, ABS material casing, and LED display of the ultrasonic cleaner.

Image: The NSKI GT-F6 Ultrasonic Cleaner with its LED display illuminated, showing a cleaning time of 180 seconds.

Setup

1. Place the ultrasonic cleaner on a stable, flat, and dry surface.
2. Open the lid and fill the stainless steel tank with water. Ensure the items to be cleaned will be completely immersed, but do not exceed the 'MAX' fill line indicated inside the tank.
3. Place the items to be cleaned into the washing basket or directly into the tank if suitable. For watches, use the provided watch stand.
4. Close the lid.
5. Connect the power cord to the cleaner and then plug it into a grounded electrical outlet.

Image: The NSKI GT-F6 Ultrasonic Cleaner with its lid open, revealing the stainless steel tank with a clearly marked 'MAX' fill line.

Operating Instructions

The NSKI GT-F6 offers various cleaning modes for different needs.

General Cleaning

For routine cleaning of items:

1. Fill the tank with normal tap water. Ensure items are fully immersed but water does not exceed the MAX line.
2. Press the "On/Off" button to power on the device.
3. Press the "Time" button repeatedly to select the desired cleaning cycle (90, 180, 280, 380, or 480 seconds). The selected time will be displayed on the LED screen.
4. The cleaning process will start automatically after selecting the time.
5. Once the cycle is complete, the device will automatically shut off.
6. Unplug the device and carefully remove the cleaned items.

Thorough Cleaning

For enhanced cleaning results:

• Follow the "General Cleaning" steps.
• Add a few drops of universal detergent to the water. Commercial dishwashing detergent, preferably without lipid-replenishing substances, is recommended.
• Proceed with the cleaning cycle as described above.

Partial Cleaning

For larger items that cannot be fully immersed:

• Place the item partially into the tank with the lid open.
• Important: Do not touch the liquid during operation when the lid is open.
• Run the desired cleaning cycle.

Ultra Cleaning

For items requiring extensive cleaning:

• First, perform a "Thorough Cleaning" procedure.
• Replace the used water with fresh water and detergent.
• Repeat the "Thorough Cleaning" process until the items are completely clean.

Recommended Applications

The NSKI GT-F6 is suitable for cleaning a wide range of items, including:

• Jewelry: Necklaces, rings, earrings, bracelets.
• Timepieces: Eyeglasses, watch chains, waterproof watches.
• Personal Care Items: Shaver heads, razor blades, dentures, combs, toothbrushes.
• Metal Articles: Watch parts, coins, spoons, forks.
• Stationery: Pen-heads, printer-heads, ink cartridges, seals.
• Contact Lenses: Use appropriate contact lens cleaning solution and basket.

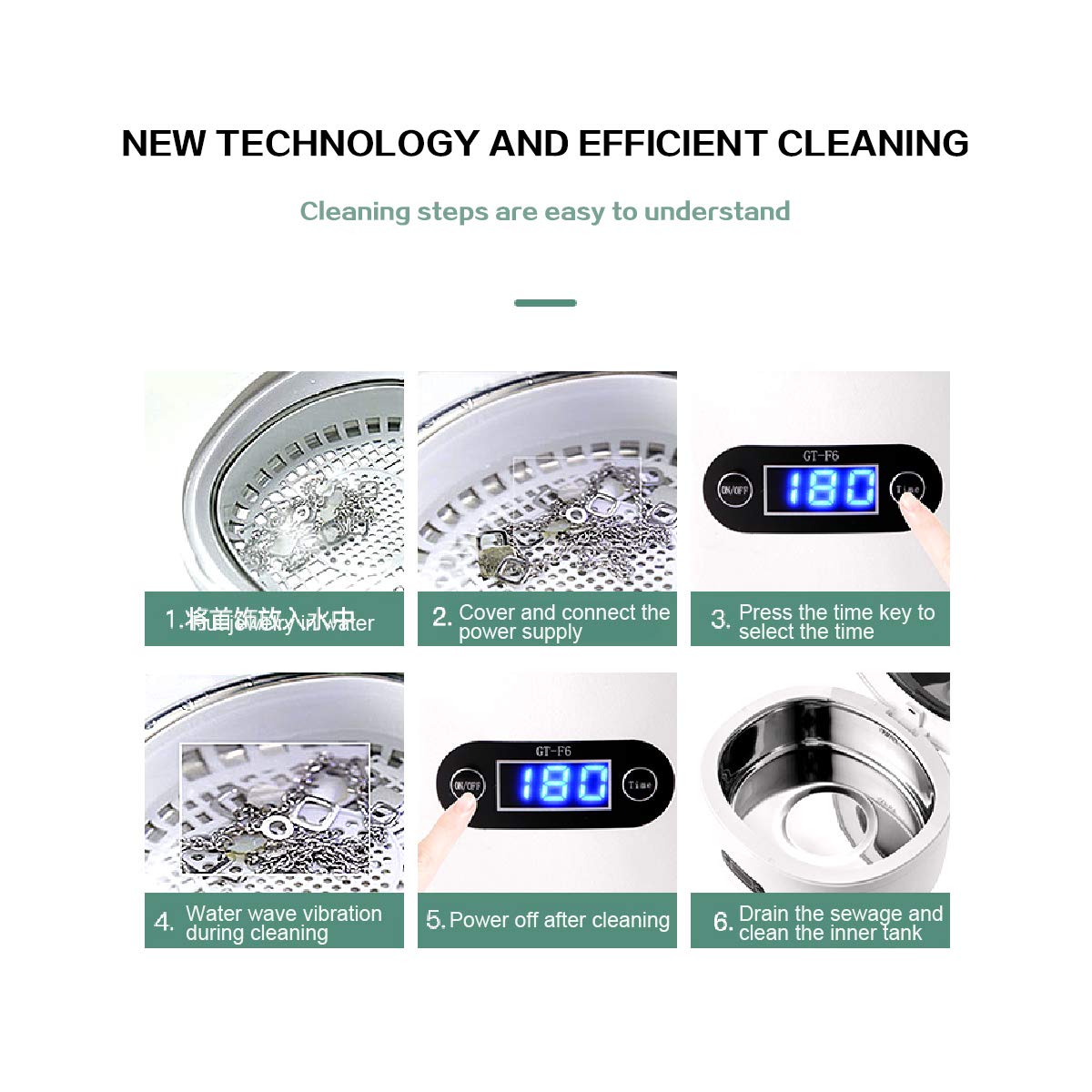

Image: A visual guide demonstrating the six steps of the cleaning process: 1. Add water and items, 2. Close lid and connect power, 3. Select time, 4. Ultrasonic vibration during cleaning, 5. Power off after cleaning, 6. Drain and clean tank.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your ultrasonic cleaner.

• After Each Use: Unplug the device. Drain the water from the tank. Wipe the tank and exterior with a soft, damp cloth. Do not use abrasive cleaners.
• Storage: Store the cleaner in a cool, dry place when not in use. Ensure the tank is empty and dry.
• Avoid: Do not use organic solvents, strong acids, or strong alkalis as cleaning solutions, as these can damage the device.

Troubleshooting

If you encounter issues with your NSKI GT-F6 Ultrasonic Cleaner, refer to the following common problems and solutions:

Specifications

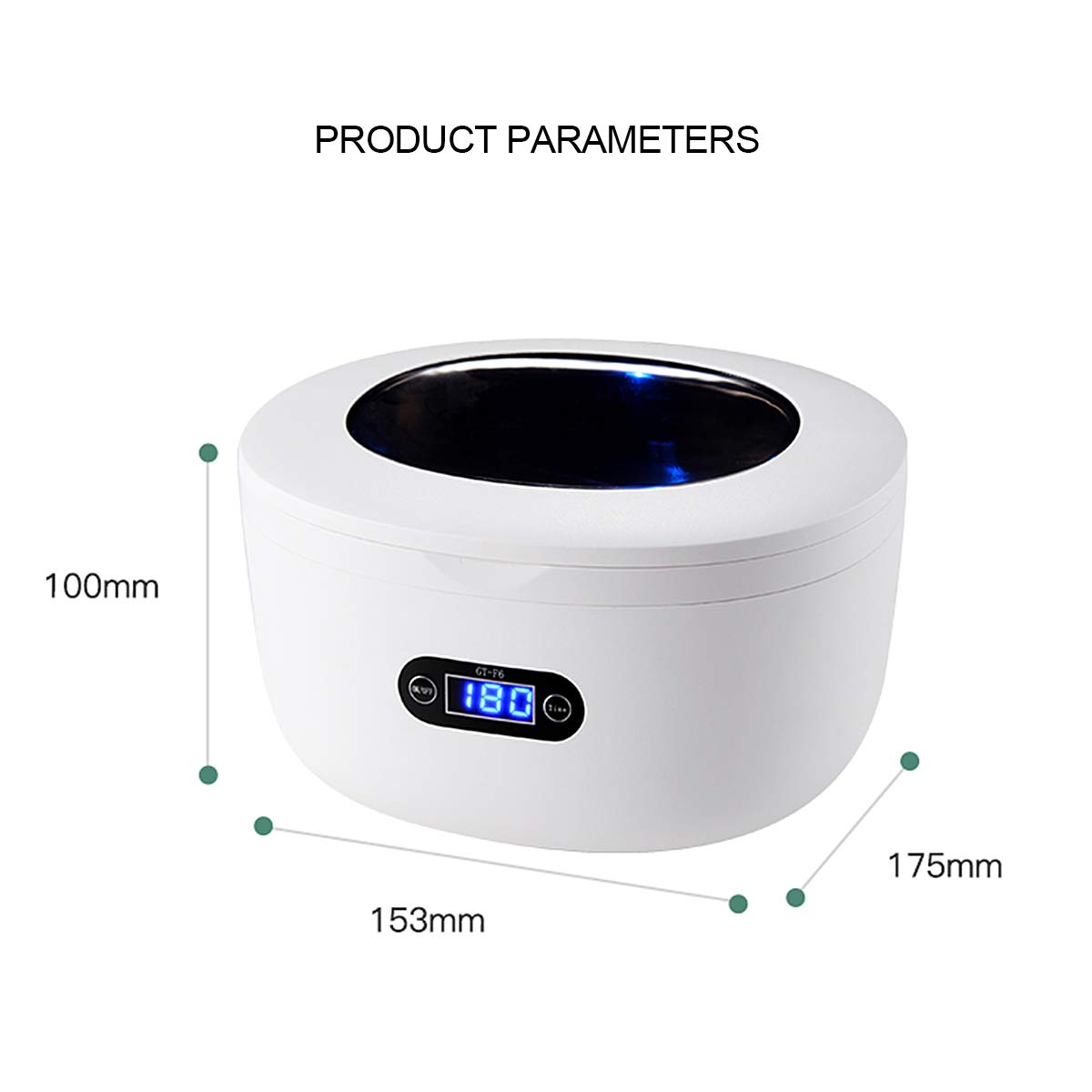

Image: A diagram illustrating the overall dimensions of the NSKI GT-F6 Ultrasonic Cleaner: 175mm length, 153mm width, and 100mm height.

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official NSKI website. Please retain your proof of purchase for warranty claims.
