Bosch BGL6POW1 Pro Power Bagged Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the Bosch BGL6POW1 Pro Power Bagged Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.

The Bosch BGL6POW1 is designed for powerful and thorough cleaning, featuring ProPower technology and a turbo brush for deep cleaning results on various surfaces.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage:

• Read all instructions before using the appliance.
• Do not operate the vacuum cleaner without the dust bag and filter properly installed.
• Do not vacuum water or other liquids, hot ashes, sharp objects, or flammable/explosive substances.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Unplug the appliance from the power outlet before cleaning or performing maintenance.
• This appliance is for household use only.
• Do not allow children to play with the appliance.

3. Package Contents

Ensure all items are present in the packaging:

• Bosch BGL6POW1 Vacuum Cleaner Unit
• Flexible Hose
• Telescopic Tube
• Floor Nozzle (ProPower)
• Turbo Brush
• Crevice Nozzle
• Upholstery Nozzle
• Integrated Multi-purpose Brush
• Dust Bag (pre-installed or separate)
• User Manual

Image: The Bosch BGL6POW1 vacuum cleaner unit, along with its flexible hose, telescopic tube, floor nozzle, turbo brush, crevice nozzle, and upholstery nozzle, demonstrating the complete set of accessories.

4. Setup

1. Unpacking: Carefully remove all components from the packaging.
2. Attach Hose: Insert the flexible hose into the suction opening on the main unit until it clicks into place.
3. Assemble Tube and Nozzle: Connect the telescopic tube to the hose handle. Attach the desired nozzle (e.g., floor nozzle, turbo brush) to the end of the telescopic tube.
4. Check Dust Bag and Filter: Ensure the dust bag is correctly inserted and the HEPA filter is in place before first use. Refer to the "Maintenance" section for details on checking and replacing these components.

Image: The Bosch BGL6POW1 vacuum cleaner, fully assembled with its red telescopic tube and black floor nozzle, ready for use.

5. Operating Instructions

5.1 Powering On and Off

1. Plug the power cord into a suitable electrical outlet (240V).
2. Press the On/Off button located on the main unit or the Remote Power Control on the handle to start the vacuum cleaner.
3. To turn off, press the On/Off button again.

5.2 Adjusting Suction Power (Remote Power Control)

The Bosch BGL6POW1 features Remote Power Control, allowing you to adjust suction power directly from the handle for optimal performance on all floor types.

• Use the '+' button on the handle to increase suction power.
• Use the '-' button on the handle to decrease suction power.
• The "Turbo" button activates maximum suction for intensive cleaning, especially useful for carpets.

Image: A detailed view of the ergonomic handle with integrated controls, including the power button, suction adjustment (+/-), and a dedicated Turbo button for enhanced cleaning power.

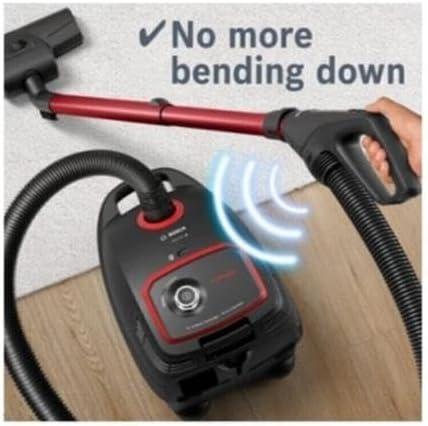

Image: A user operating the vacuum cleaner, demonstrating the convenience of the remote power control on the handle, eliminating the need to bend down to adjust settings on the main unit.

5.3 Using Different Nozzles

• Floor Nozzle: Ideal for hard floors and low-pile carpets.
• Turbo Brush: Features a high-speed rotating roller for precise and deep cleaning of carpets and rugs.
• Crevice Nozzle: For narrow gaps, corners, and hard-to-reach areas.
• Upholstery Nozzle: For cleaning furniture, curtains, and other textile surfaces.
• Integrated Multi-purpose Brush: For gentle cleaning of furniture and difficult-to-access corners.

Image: The Bosch BGL6POW1 vacuum cleaner in action on a light-colored carpet, demonstrating its effectiveness in a typical home environment.

Image: An illustrative diagram showcasing the powerful airflow and suction mechanism within the vacuum cleaner's floor nozzle, highlighting its efficient cleaning design.

6. Maintenance

6.1 Replacing the Dust Bag

The PowerProtect System ensures optimal results even when the dust bag fills up. However, for continued performance, replace the dust bag when the indicator shows it is full or suction power decreases significantly.

1. Unplug the vacuum cleaner from the power outlet.
2. Open the dust bag compartment cover.
3. Carefully remove the full dust bag. Most Bosch dust bags have a self-closing mechanism.
4. Insert a new genuine Bosch dust bag, ensuring it is properly seated in the holder.
5. Close the dust bag compartment cover securely.

Image: An open view of the vacuum cleaner's interior, clearly showing the white Bosch dust bag and the HEPA filter compartment, illustrating how to access them for maintenance.

6.2 Cleaning/Replacing Filters

Your Bosch BGL6POW1 is equipped with a HEPA filter. Regular cleaning or replacement of filters is crucial for maintaining suction power and air quality.

• Motor Protection Filter: Check this filter regularly. If it is dirty, tap it out or wash it if washable (refer to specific instructions on the filter). Replace if damaged.
• HEPA Exhaust Filter: This filter cleans the exhaust air. It should be replaced approximately once a year, or more frequently depending on usage. Do not wash HEPA filters unless explicitly stated.

Always ensure filters are completely dry before reinserting them into the vacuum cleaner.

6.3 Cleaning the Nozzles and Accessories

Remove any tangled hair, threads, or debris from the brushes and openings of the nozzles. You can use scissors to cut tangled hair from the turbo brush roller.

7. Troubleshooting

If the problem persists after attempting these solutions, please contact Bosch customer support.

8. Specifications

9. Warranty and Support

9.1 Motor Guarantee

Your Bosch BGL6POW1 vacuum cleaner comes with a 10-year motor guarantee, ensuring high and constant performance thanks to Bosch motor technology, manufactured in Germany. For full terms and conditions, please visit www.bosch-home.com.

Image: A circular emblem prominently displaying "10 YEARS MOTOR GUARANTEE" with the Bosch logo and German flag colors, signifying the long-term reliability of the motor.

9.2 Customer Support

For technical assistance, spare parts, or warranty claims, please contact Bosch customer service in your region. You can find contact information on the official Bosch website or in the documentation provided with your appliance.

Please have your model number (BGL6POW1) and serial number (if applicable) ready when contacting support.
