Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your YUEWO BW-1000A Bottle Water Dispenser Pump System. This system is designed to deliver pressurized water from 5-gallon water bottles to various appliances such as coffee/tea machines, water dispensers, refrigerators, and ice makers. Please read this manual thoroughly before use to ensure proper function and longevity of the product.
Image: YUEWO BW-1000A Bottle Water Dispenser Pump System showing overall design and dimensions (19cm/7.5inch height, 14cm/5.5inch width, 7.6cm/3inch depth).
Product Features
- Bottle Water Dispenser Pump System: Operates with 110V AC power, ideal for 5-gallon water bottles, providing on-demand water for various applications.
- Compact and Light Structure: Constructed from plastic, featuring an ultra-light frame and compact size for easy portability and placement.
- Noise Dampening Feet: Equipped with rubber feet to minimize operational noise, ensuring quiet performance.
- Large Flow Rate: Capable of pumping up to one gallon of water per minute for quick and efficient dispensing.
- Easy to Install: Available in single or double tube configurations for convenience. Features a universal seal cap compatible with most water containers and quick-disconnect ports for simple connection to filtration kits or appliances.

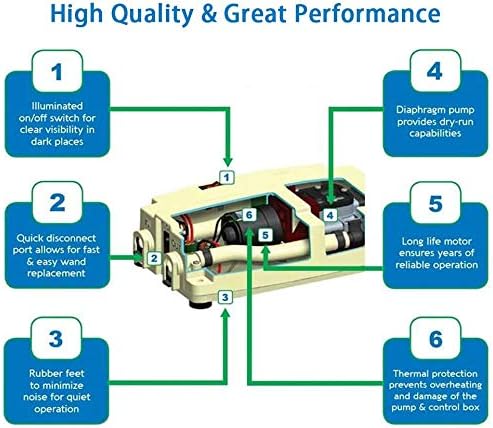

Image: Diagram highlighting key internal features including the illuminated on/off switch, quick disconnect port, rubber feet, diaphragm pump, long-life motor, and thermal protection.
Package Contents
Verify that all components are present in the package:
- Pump Module (Bottled Water Dispenser Unit)
- Water Inlet Tube(s) with universal seal cap(s) (Double Tube variant includes two)
- 20ft Discharge Tubing (clear)
- Quick-Connect Fittings
- Mounting Hardware (if applicable)
Image: All components of the YUEWO BW-1000A system laid out, including the pump module, inlet tubes, clear discharge tubing, and various accessories.
Specifications
| Specification | Detail |
|---|---|
| Brand | YUEWO |
| Model Number | BW-1000A |
| Color | White |
| Material | Plastic |
| Power Source | AC |
| Voltage | 110 Volts |
| Item Weight | 6.39 Pounds |
| Maximum Flow Rate | 1 Gallon Per Minute |
| Product Style | Pump |
Setup Instructions
Follow these steps to properly set up your water dispenser pump system:
- Prepare Water Bottle: Ensure your 5-gallon water bottle is clean and full. Remove the cap.
- Insert Inlet Tube: Place the inlet tube(s) into the water bottle(s). The universal seal cap should fit snugly over the bottle opening to prevent air leakage.
- Connect Tubing: Connect the clear discharge tubing to the quick-connect port on the pump module. Ensure a secure connection.
- Connect to Appliance: Route the other end of the discharge tubing to your desired appliance (e.g., refrigerator, coffee maker, faucet). Make sure the connection to the appliance is also secure.
- Position Pump Module: Place the pump module on a stable, flat surface. The noise-dampening feet will help reduce vibration.
- Power Connection: Plug the 110V AC power cord into a standard electrical outlet.
Image: An illustration demonstrating how to connect the pump system to a refrigerator's ice/water dispenser and a coffee maker, drawing water from bottled sources.
Image: Detailed view of the pump unit, highlighting the illuminated on/off switch for visibility and the secure connections for the water inlet and outlet tubes.
Operating Instructions
Once the system is set up, operating it is straightforward:
- Turn On: Flip the illuminated on/off switch on the pump module to the 'ON' position. The light will indicate that the pump is powered.
- Dispense Water: Activate the water dispenser or faucet on your connected appliance. The pump will automatically engage to draw water from the bottle and deliver it under pressure.
- Stop Dispensing: Close the faucet or deactivate the dispenser on your appliance. The pump will automatically stop once the pressure is restored.
- Changing Bottles: Before changing an empty water bottle, always turn off the pump using the on/off switch. Replace the bottle, then re-insert the inlet tube and turn the pump back on.
Video: A demonstration of the YUEWO Bottle Water Dispenser Pump System in operation, showing water being drawn from a 5-gallon bottle and dispensed through a faucet.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your pump system:
- Cleaning: Periodically wipe down the exterior of the pump module with a damp cloth. Do not immerse the unit in water.
- Tubing Inspection: Regularly check the inlet and discharge tubing for any kinks, cracks, or blockages. Ensure all connections remain secure.
- Filter Cleaning (if applicable): If your system includes an inline filter, follow the manufacturer's instructions for cleaning or replacement.
- Storage: If storing the unit for an extended period, drain all water from the system and store it in a dry, cool place.
Image: Visual representation of the ease of maintenance for the pump system, emphasizing quick and simple procedures.
Troubleshooting
If you encounter issues with your pump system, refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not turn on | No power, switch off, loose connection | Check power outlet, ensure switch is ON, verify power cord connection. |
| No water dispensed | Empty water bottle, kinked/blocked tubing, air in system, loose connections | Replace water bottle, check tubing for obstructions, ensure all connections are tight, prime the pump if necessary by opening the faucet until water flows. |
| Pump runs continuously | Leak in system, float switch malfunction, faucet/dispenser open | Check all tubing and connections for leaks. Ensure faucet/dispenser is fully closed. If problem persists, contact customer support. |
| Low water flow | Partially blocked tubing, low water level, air in system | Check tubing for partial blockages. Ensure water bottle is sufficiently full. Prime the pump. |
| Excessive noise | Pump not stable, air in system, worn components | Ensure pump is on a flat, stable surface. Check for air in the system. If noise is persistent and unusual, contact customer support. |
Warranty and Support
YUEWO products are manufactured to high-quality standards. For specific warranty information, please refer to the product packaging or contact YUEWO customer support directly. If you have any questions, require technical assistance, or need to report a defect, please reach out to the manufacturer through their official channels or the retailer where the product was purchased.
For further assistance, visit the YUEWO Store on Amazon.
