GIMILI Kitchen Faucet User Manual

1. Introduction

Thank you for choosing the GIMILI Kitchen Faucet with Pull Down Sprayer. This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your new faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Figure 1: GIMILI Kitchen Faucet (Brushed Nickel, Traditional Style)

2. Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Always turn off the main water supply before beginning any installation or maintenance.
• Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
• Ensure all connections are secure and watertight to prevent leaks.
• Do not use abrasive cleaners or harsh chemicals on the faucet's finish, as this may cause damage.
• If you are unsure about any part of the installation process, consult a qualified plumber.

3. Product Features

The GIMILI Kitchen Faucet is designed with advanced features for convenience and durability:

• Three-color LED Light Design: The LED light changes color automatically based on water temperature (blue for cold, green for warm, red for hot), providing a visual indicator and helping prevent scalding. The LED is water-flow powered, requiring no batteries. (Note: LED function operates only in Stream mode, not in Spray mode).
• Easy Operation: Features a high-arc, 360-degree swivel spout for full sink access and a retractable pull-down sprayer. The single handle allows for easy control of both water temperature and flow volume.
• Dual-Function Sprayer: Offers two settings: STREAM for filling water and SPRAY for rinsing, providing stable water pressure and making cleanup easier.
• High-Quality Material: Constructed from durable 304 stainless steel, resistant to dirt and water stains.
• CUPC-Certified Components: Includes a CUPC-certified explosion-proof hose and a CUPC-certified faucet cartridge, ensuring lead-free water and long-term reliability (10+ year lifespan for cartridge).
• Easy Installation: Pre-installed hoses and a sturdy metal nut simplify the setup process.

Figure 2: Smart Temperature-Sensing LED (No Batteries Needed)

Figure 3: Dual-Function Sprayer Modes

Figure 4: 360° Free Rotation Feature

4. Included Components

The GIMILI Kitchen Faucet package includes the following components:

• Faucet Body with integrated handle
• Pull-down Sprayer Head
• Pre-installed Hot and Cold Supply Hoses
• Mounting Hardware (nut, washers)
• Instruction Manual (this document)

Note: A deck plate is not included and must be purchased separately if needed (ASIN: B088WQSZ7P).

5. Setup and Installation

Follow these steps for proper installation of your GIMILI Kitchen Faucet:

1. Prepare the Installation Area: Ensure the main water supply is turned off. Clear the area under the sink. Verify that your sink has a single mounting hole with a diameter of 1.4 inches. A minimum clearance of 21 inches is recommended between the cabinets and countertop for optimal faucet height.

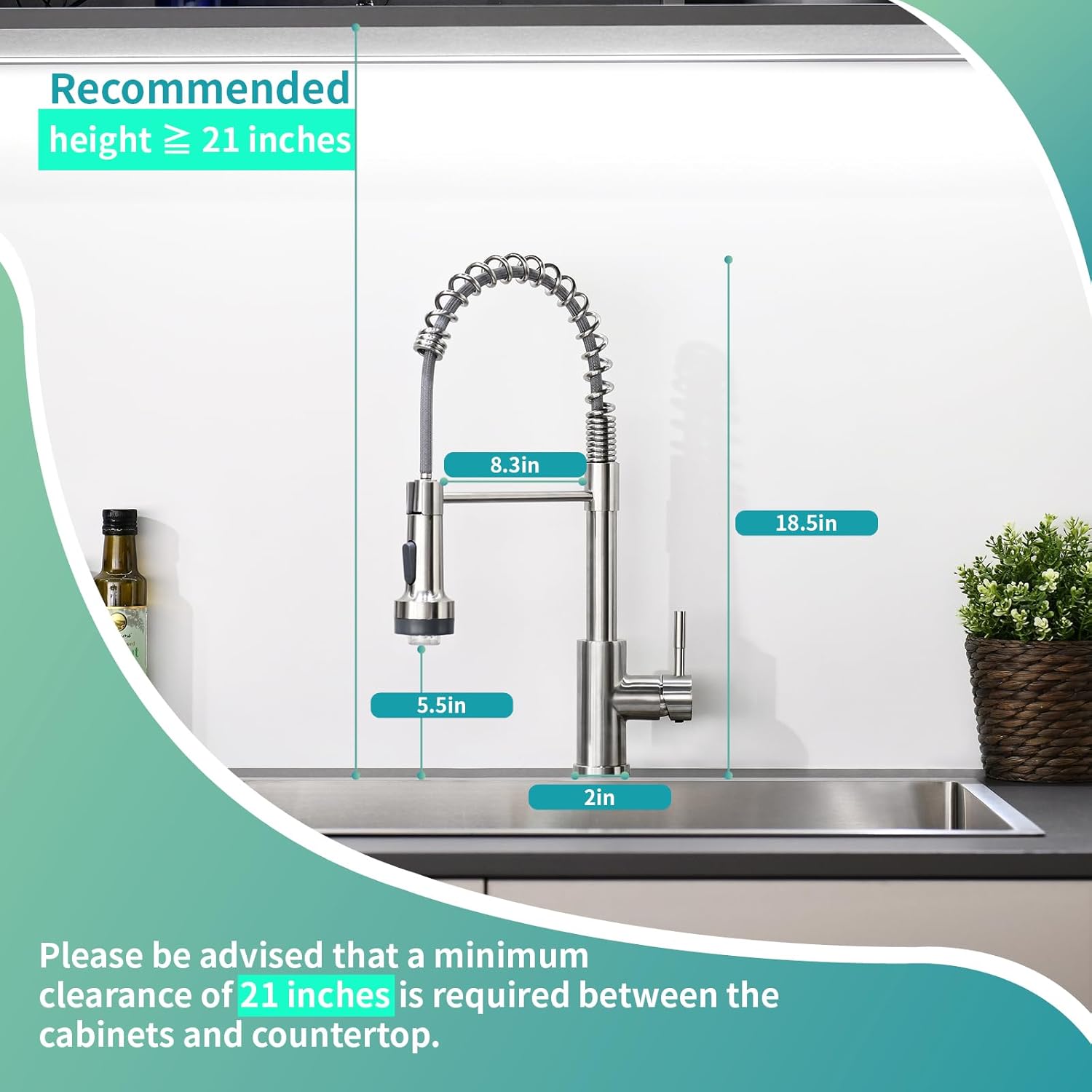

Figure 5: Faucet Dimensions and Clearance Requirements

2. Insert Faucet into Hole: Place the faucet body into the mounting hole on your sink or countertop.
3. Secure the Faucet: From underneath the sink, slide the rubber washer, metal washer, and mounting nut onto the threaded shank of the faucet. Tighten the mounting nut securely to hold the faucet in place.
4. Connect Water Supply Lines: Connect the pre-installed hot and cold supply hoses to your hot and cold water supply valves. Ensure connections are tight to prevent leaks. The hose length is 18 inches.

Figure 6: Connecting Supply Hoses
5. Attach Sprayer Hose Weight: Install the weight onto the pull-down hose, typically about 6-8 inches from the bottom of the loop, to ensure the sprayer retracts smoothly.
6. Test for Leaks: Once all connections are made, slowly turn on the main water supply and check for any leaks. Tighten connections as necessary.

6. Operating Instructions

• Water Flow and Temperature Control: Use the single handle to control both water flow volume and temperature. Lift the handle to increase flow, and move it left for hot water or right for cold water.
• Sprayer Function: The pull-down sprayer head offers two modes:
  • Stream Mode: Ideal for filling pots and general washing. The LED light functions in this mode, indicating water temperature.
  • Spray Mode: Provides a powerful spray for rinsing dishes and cleaning. The LED light does not function in this mode.
  Switch between modes using the button on the sprayer head.
• 360° Swivel Spout: The faucet spout can rotate 360 degrees, providing flexibility and reach for various sink tasks.

7. Maintenance and Care

Proper care will ensure the longevity and appearance of your GIMILI Kitchen Faucet:

• Cleaning: Clean the faucet regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish.
• Aerator Maintenance: If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the sprayer head, clean any debris, and reattach.
• Hose Maintenance: Periodically check the pull-down hose for any kinks or obstructions that might impede its retraction.

8. Troubleshooting

Refer to the table below for common issues and their solutions:

9. Specifications

10. Warranty and Support

GIMILI products come with a limited warranty. For specific warranty details, please refer to the documentation included with your purchase or contact GIMILI customer support.

Customer Support:

• For any issues with the LED function, a replacement service is provided.
• Visit the official GIMILI Store on Amazon for more information and support: GIMILI Store
• For general inquiries or technical assistance, please refer to the contact information provided on the product packaging or the GIMILI official website.
