Linea Brasil Rack Recife - Nogueira Instruction Manual

1. Introduction

Thank you for choosing the Linea Brasil Rack Recife - Nogueira. This instruction manual provides essential information for the safe and correct assembly, operation, and maintenance of your new furniture. Please read this manual thoroughly before beginning assembly and retain it for future reference.

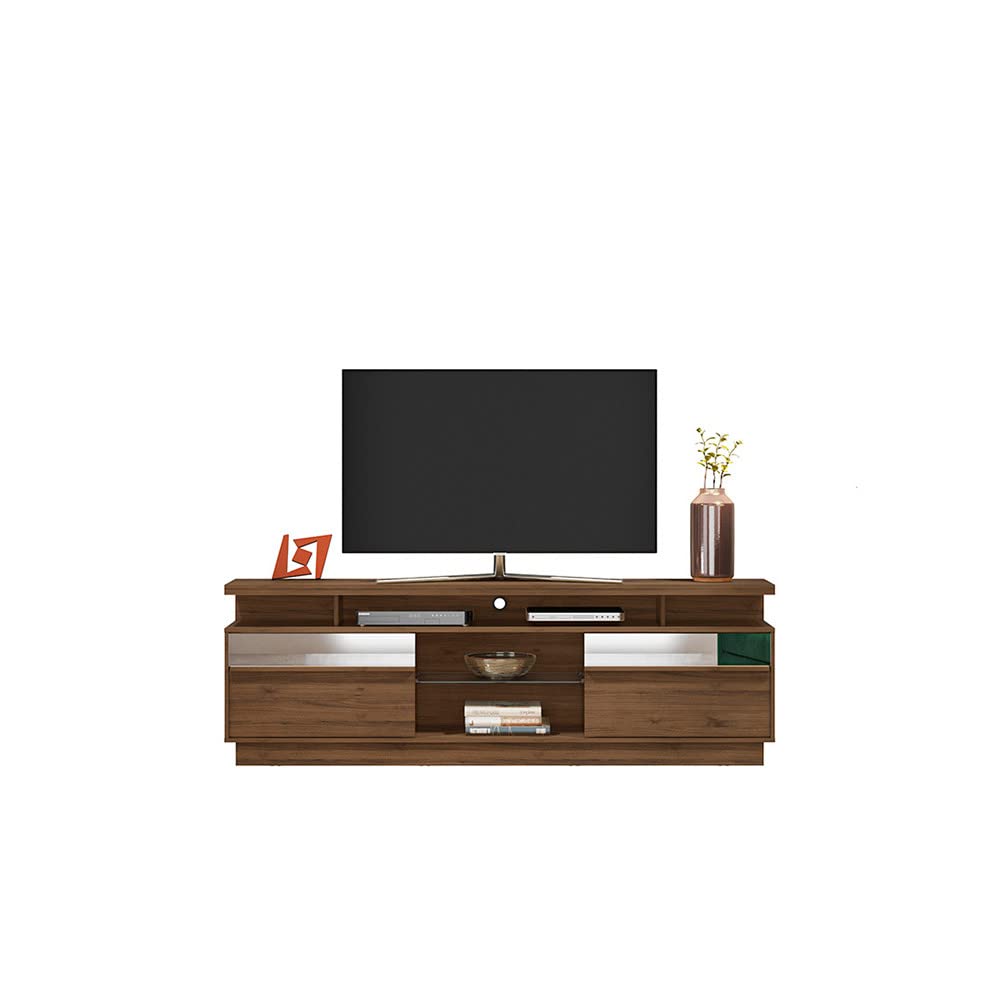

Image 1: The Linea Brasil Rack Recife - Nogueira, a stylish and functional entertainment unit.

2. Safety Information

• Always assemble the product on a soft, clean surface to prevent scratches.
• Ensure all fasteners are securely tightened before use. Periodically check and re-tighten if necessary.
• Do not overload the rack. Refer to the specifications for weight limits.
• Keep small parts and packaging materials away from children and pets to prevent choking hazards.
• Use appropriate tools as specified in the assembly instructions. A drill may be required for certain steps.
• If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.

3. Package Contents

Before starting assembly, verify that all components are present and undamaged. Refer to the parts list provided on the product packaging. Typically, the package includes:

• Wooden panels (top, bottom, sides, shelves, back panel, drawer/door components)
• Hardware kit (screws, dowels, cam locks, hinges, drawer slides, handles)
• Assembly instructions (this document)

Tools required for assembly (not included): Phillips head screwdriver, hammer, and potentially a power drill for pilot holes or specific fasteners.

4. Setup and Assembly

Assembly typically requires two adults. Follow these general steps. For detailed diagrams, refer to the specific instructions included in your product packaging.

1. Prepare the Area: Clear a spacious, clean, and soft area for assembly to prevent damage to the furniture parts and your floor.
2. Identify Parts: Unpack all components and lay them out. Match each part to the corresponding label or diagram in the parts list.
3. Assemble Base Structure: Begin by attaching the side panels to the bottom panel using the provided hardware (dowels, screws, cam locks). Ensure they are aligned correctly.
4. Install Shelves and Dividers: Insert fixed or adjustable shelves and internal dividers into their designated slots or attach them with hardware.
5. Assemble Drawers/Doors: Construct any drawers or doors according to their specific instructions. Attach hinges for doors and slides for drawers.
6. Attach Top Panel: Secure the top panel to the assembled structure.
7. Install Back Panel: Carefully align and attach the back panel using small nails or screws. This adds stability to the unit.
8. Attach Handles/Knobs: Install any handles or knobs on drawers and doors.
9. Final Check: Ensure all connections are tight and the rack is stable. Move the rack to its final position carefully.

Image 2: Technical drawing showing the dimensions of the Rack Recife. Overall dimensions are approximately 2.00m (width) x 0.67m (height) x 0.36m (depth).

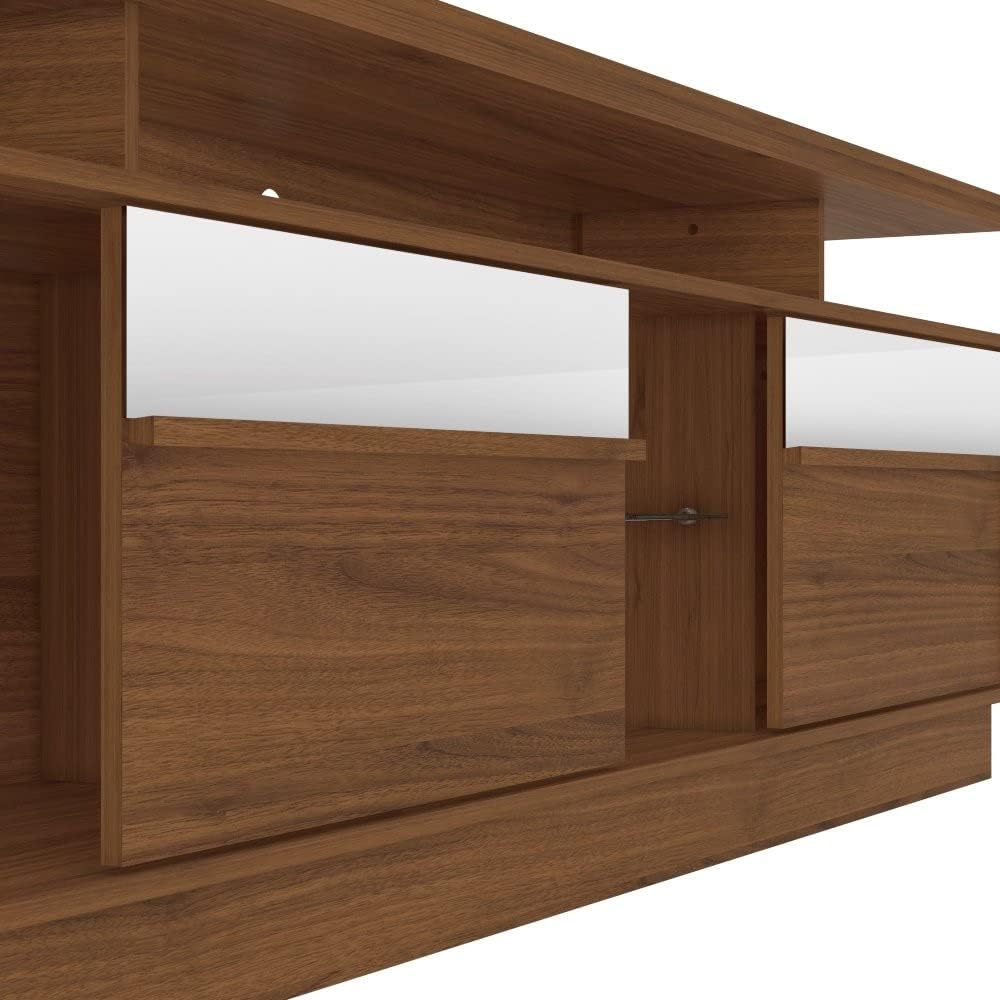

Image 3: Detail view of a section of the rack, possibly illustrating a drawer or shelf support mechanism.

5. Operating Instructions

The Linea Brasil Rack Recife is designed to hold your television and media devices. Follow these guidelines for optimal use:

• Placement: Place your television centrally on the top surface. Ensure the weight is evenly distributed.
• Cable Management: Utilize any available openings or channels in the back panel for cable routing to maintain a tidy appearance and prevent tripping hazards.
• Storage: Use the shelves and drawers to store media players, game consoles, remote controls, and other accessories.
• Ventilation: Ensure adequate airflow around electronic devices placed within the rack to prevent overheating.

Image 4: The Rack Recife integrated into a living space, showcasing its function as a TV stand and storage unit.

6. Maintenance

Proper care will extend the life and appearance of your rack:

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or excessive moisture.
• Spills: Clean spills immediately with a dry cloth to prevent staining or damage to the finish.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration.
• Heat: Do not place hot items directly on the surface. Use coasters or protective pads.
• Hardware: Periodically check and tighten all screws and fasteners to ensure stability.

7. Troubleshooting

If you encounter issues with your rack, consider the following common solutions:

• Wobbly Rack: Ensure all screws and cam locks are fully tightened. Check that the rack is on a level surface. Adjust glides if present.
• Drawers Not Sliding Smoothly: Check that drawer slides are correctly installed and aligned. Ensure no obstructions are in the way.
• Doors Not Closing Properly: Adjust hinges if necessary. Ensure the rack is level and square.
• Scratches/Minor Damage: For minor scratches, touch-up pens or furniture markers matching the Nogueira finish may be used.

8. Specifications

9. Warranty Information

Linea Brasil products typically come with a manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Linea Brasil website for detailed terms and conditions regarding your specific model. Keep your proof of purchase for warranty claims.

10. Support

For further assistance, missing parts, or technical support, please contact Linea Brasil customer service. Contact information can usually be found on the product packaging or the official Linea Brasil website.

Website: www.lineabrasil.com.br (Please check for the most current contact details)
