maXpeedingrods RD65

maXpeedingrods 19-Row AN10 Universal Oil Cooler Kit Instruction Manual

Model: RD65

1. Introduction

This instruction manual provides detailed information for the proper installation, operation, and maintenance of your maXpeedingrods 19-Row AN10 Universal Oil Cooler Kit. Please read this manual thoroughly before installation and use to ensure safe and efficient performance. Keep this manual for future reference.

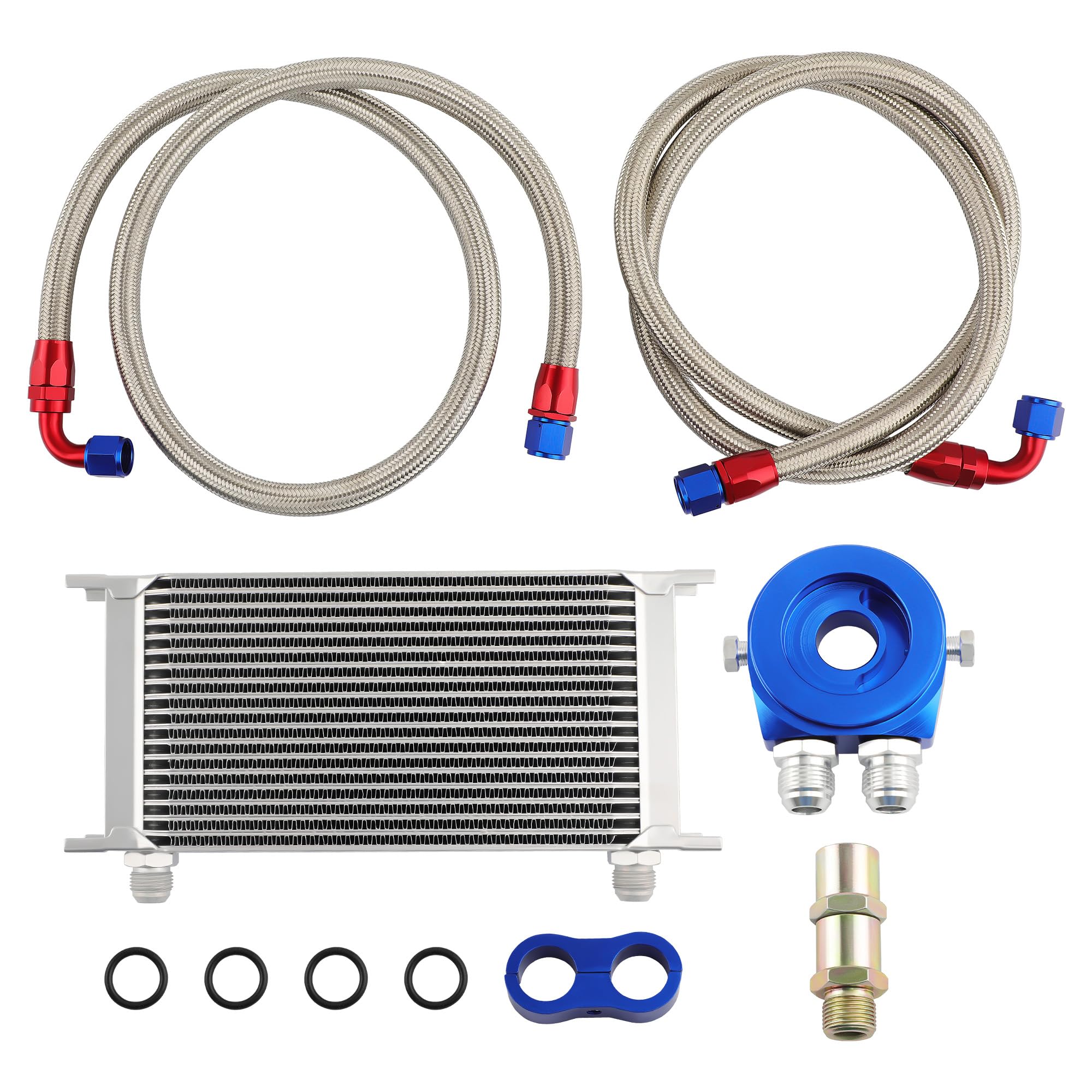

maXpeedingrods 19-Row AN10 Universal Oil Cooler Kit, showing the cooler and its dimensions.

Figure 1.1: Overview of the maXpeedingrods 19-Row AN10 Universal Oil Cooler Kit, highlighting its compact design and AN10 fittings.

2. Product Overview

2.1. Components Included

The maXpeedingrods 19-Row AN10 Universal Oil Cooler Kit includes the following components:

  • 1 x 19-Row Oil Cooler
  • 2 x Flexible Steel Braided Hoses (1 meter each)
  • 1 x Adapter Flange (color may vary, blue or silver)
  • 1 x Mounting Adapter / Threaded Adapter (¾" 16 UNF)
  • O-Rings (quantity as supplied)
Flexible steel braided hoses and O-rings included in the kit.

Figure 2.1: Flexible steel braided hoses and O-rings. The kit includes two hoses, each 1 meter long, and O-rings for sealing connections. Note: Image shows hoses of 1.4m and 1.6m, but product description specifies 2x1m.

AN10 Oil Filter Sandwich Adapter and Threaded Adapter.

Figure 2.2: AN10 Oil Filter Sandwich Adapter (blue) and two threaded adapters (silver) for installation.

2.2. Product Specifications

  • Model Number: RD65
  • Rows: 19
  • Inlet/Outlet Size: AN-10
  • Threaded Adapter: M20 x 1.5 & 3/4 x 16 UNF
  • Oil Filter Screw Diameter: 75 mm
  • Oil Cooler Dimensions (L x H x D, external with bracket): Approximately 33 cm x 14.5 cm x 5 cm
  • Test Pressure: 35 MPa
  • Burst Pressure: 35 MPa
  • Oil Capacity: 0.7 l/min
  • Engine Oil Temperature Reduction: Up to approximately 30 °C
  • Item Weight: 3.75 Kilograms
  • Country of Origin: China
Diagram of the 19-row oil cooler with dimensions: 32.7cm length, 16cm height, 5cm depth.

Figure 2.3: Oil cooler dimensions. The cooler measures 32.7 cm in length, 16 cm in height, and 5 cm in depth, with AN10 fittings.

Technical data summary for the oil cooler kit, including rows, pressure ratings, and dimensions.

Figure 2.4: Summary of technical data, including the number of rows, test and burst pressures, oil capacity, and body size.

3. Safety Information

Always prioritize safety during installation and operation. Improper installation can lead to oil leaks, engine damage, or personal injury. If you are unsure about any step, consult a qualified mechanic.

  • Ensure the engine is cool before beginning installation.
  • Disconnect the vehicle's battery to prevent accidental starting.
  • Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
  • Ensure all connections are tight and secure to prevent leaks.
  • Check for oil leaks after installation and before driving.
  • Do not modify the components of this kit.

4. Setup and Installation

This section outlines the general steps for installing the maXpeedingrods 19-Row AN10 Universal Oil Cooler Kit. Specific vehicle applications may vary. A thermostat is not included with this kit.

  1. Prepare the Vehicle: Park the vehicle on a level surface and engage the parking brake. Allow the engine to cool completely. Disconnect the negative terminal of the battery.
  2. Drain Engine Oil: Drain the engine oil into a suitable container.
  3. Remove Oil Filter: Carefully remove the existing oil filter.
  4. Install Sandwich Plate Adapter:
    • Thread the appropriate threaded adapter (M20 x 1.5 or 3/4 x 16 UNF) into the engine block where the oil filter was located.
    • Place an O-ring onto the AN10 oil filter sandwich adapter.
    • Mount the sandwich adapter onto the threaded adapter, ensuring it is flush and securely tightened. The oil filter screw diameter is 75 mm.
    • Install a new oil filter onto the sandwich adapter.
  5. Mount Oil Cooler:
    • Select a suitable location for the oil cooler, ensuring adequate airflow and clearance from moving parts or hot components.
    • Securely mount the oil cooler using the provided bracket or a custom mounting solution. The cooler dimensions are approximately 33 cm x 14.5 cm x 5 cm.
  6. Connect Hoses:
    • Attach the flexible steel braided hoses to the AN-10 fittings on the sandwich plate adapter and the oil cooler.
    • Ensure all AN-10 connections are tightened properly to prevent leaks. Do not overtighten.
    • Route the hoses away from hot exhaust components, sharp edges, and moving parts. Use hose clamps or ties if necessary to secure them.
  7. Refill Engine Oil: Refill the engine with the recommended amount and type of engine oil.
  8. Initial Start-up and Leak Check:
    • Reconnect the battery.
    • Start the engine and let it idle. Immediately check for any oil leaks around the oil cooler, hoses, and sandwich plate adapter.
    • If leaks are detected, shut off the engine and rectify the connections.
    • Allow the engine to reach operating temperature and re-check for leaks.
  9. Check Oil Level: After the engine has cooled, re-check the engine oil level and top up if necessary.
Detailed view of oil cooler fittings and hose connections.

Figure 4.1: Close-up views of the oil cooler's AN10 fittings and hose connection points, illustrating the components involved in the installation.

5. Operating Instructions

Once installed, the oil cooler operates automatically to reduce engine oil temperature. No specific user interaction is required during normal operation.

  • The oil cooler is designed to maintain optimal engine oil temperatures, especially under high-stress conditions like track driving or heavy towing.
  • Regularly monitor your engine oil temperature gauge (if equipped) to ensure proper cooling performance.
  • The kit is designed to reduce engine oil temperature by up to approximately 30 °C.

6. Maintenance

Proper maintenance ensures the longevity and effectiveness of your oil cooler kit.

  • Regular Inspection: Periodically inspect all hoses, fittings, and the oil cooler for signs of wear, damage, or leaks. Check for any loose connections.
  • Cleaning: Keep the oil cooler fins clean from debris, dirt, and insects to ensure maximum cooling efficiency. Use compressed air or a soft brush to gently clean the fins.
  • Hose Condition: Check the flexible steel braided hoses for any fraying, kinks, or hardening. Replace them if any damage is observed.
  • Oil Changes: Follow your vehicle manufacturer's recommended oil change intervals. The oil cooler does not alter these requirements.

7. Troubleshooting

This section addresses common issues you might encounter with your oil cooler kit.

ProblemPossible CauseSolution
Oil LeakageLoose AN-10 fittings, damaged O-rings, improperly seated sandwich plate or oil filter.Tighten all AN-10 fittings. Inspect and replace O-rings if damaged. Ensure sandwich plate and oil filter are correctly installed and tightened.
Insufficient CoolingBlocked oil cooler fins, improper mounting location (lack of airflow), air in the system.Clean oil cooler fins. Relocate cooler to an area with better airflow if possible. Ensure proper bleeding of the oil system after installation.
Hose Damage/WearFriction against other components, excessive heat exposure, improper routing.Inspect hose routing and secure away from abrasive surfaces or heat sources. Replace damaged hoses immediately.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact customer support.

8. Warranty and Support

maXpeedingrods products are designed for quality and performance. For specific warranty details, please refer to the warranty information provided at the time of purchase or visit the official maXpeedingrods website.

For technical assistance, parts inquiries, or warranty claims, please contact maXpeedingrods customer support through their official channels. When contacting support, please have your product model number (RD65) and purchase information readily available.

Manufacturer: maXpeedingrods

Website: www.maxpeedingrods.com (Please verify the actual support website)
