Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your SPAL 30102120 16-inch Puller Fan. Please read these instructions carefully before installation and retain this manual for future reference. This fan is designed for high-performance automotive cooling applications, including radiators and oil coolers.
Safety Information
- Always disconnect the vehicle's battery before performing any electrical work.
- Wear appropriate personal protective equipment, including eye protection and gloves, during installation.
- Ensure all wiring connections are secure and properly insulated to prevent short circuits.
- Keep hands and loose clothing away from the fan blades when the fan is powered.
- Mount the fan securely to prevent vibration and potential damage.
- Verify correct voltage (12 Volts) before connecting the fan.
Product Overview
The SPAL 30102120 is a 16-inch 12-volt high-performance puller fan, engineered for demanding cooling requirements. It features a straight blade design and delivers an airflow of 1918 CFM.
Features
- 16-inch diameter puller fan.
- 12 Volt operation.
- High-performance straight blade design.
- Airflow capacity of 1918 Cubic Feet Per Minute (CFM).
- Designed for automotive cooling applications, including radiators and oil coolers.

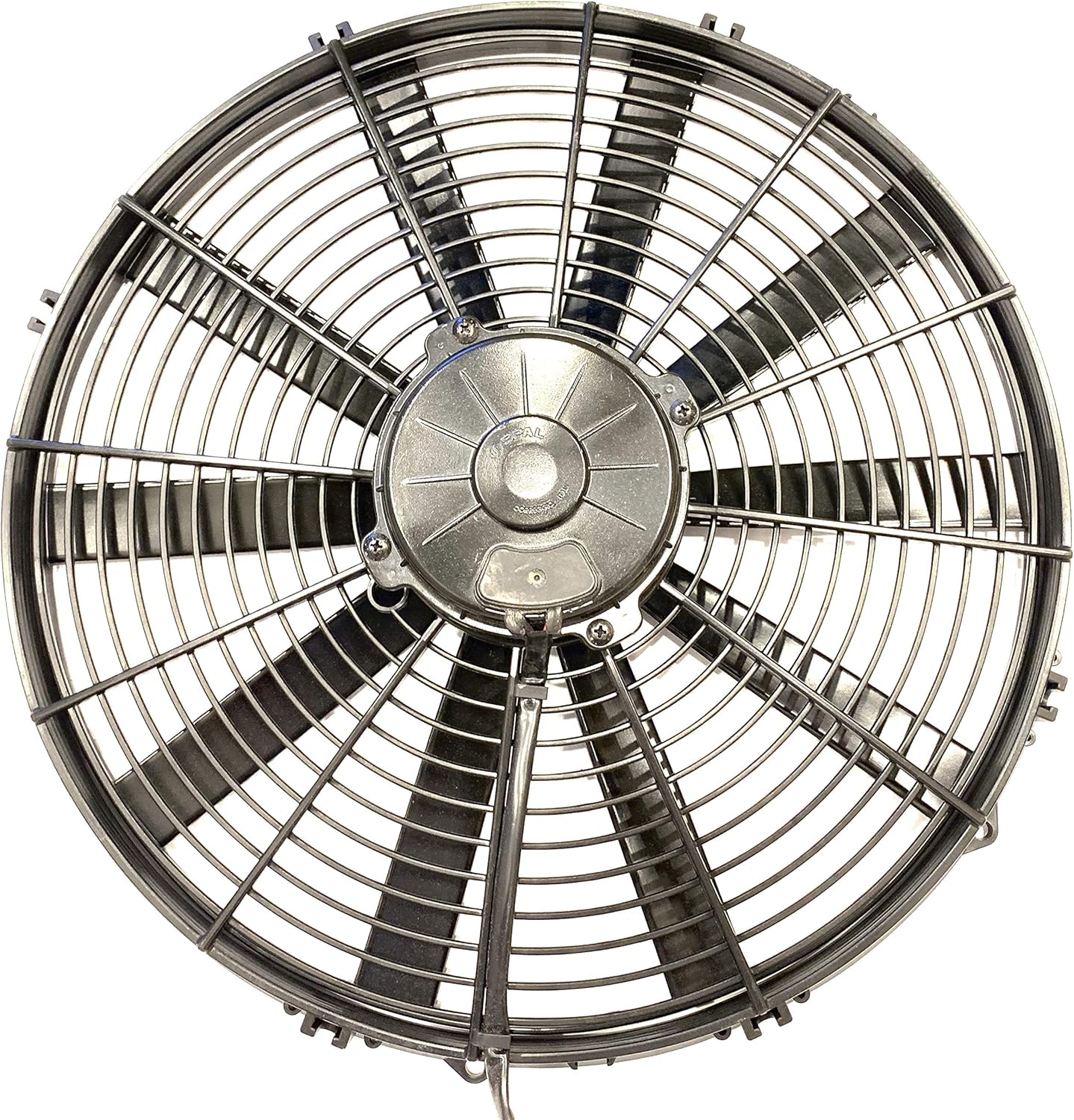

Components
Setup and Installation
Proper installation is crucial for the fan's performance and longevity. This fan is designed to be mounted as a puller fan, meaning it pulls air through the radiator towards the engine.
Mounting Instructions
- Determine Mounting Location: Identify a suitable location on your radiator or oil cooler. The fan should be positioned to maximize airflow through the cooling core.
- Secure Mounting: Use universal brackets and shrouds (not included) to securely attach the fan to the radiator. Ensure there is no interference with other engine components.
- Orientation: As a puller fan, it should be mounted on the engine side of the radiator, drawing air through the radiator core.
Electrical Wiring
The fan operates on a 12-volt DC system. It is recommended to use a relay and an appropriate fuse for protection.
- Power Connection: Connect the fan's positive wire (typically red) to a switched 12V power source, preferably through a relay triggered by a temperature switch or vehicle ignition.
- Ground Connection: Connect the fan's negative wire (typically black) to a reliable chassis ground.
- Fusing: Install a 40 Amp fuse on the positive power line to protect the circuit.
- Wire Gauge: Ensure appropriate wire gauge is used for the current draw to prevent overheating.
Operating Instructions
Once installed, the fan will operate when power is supplied to it. For optimal cooling, the fan should activate when the engine coolant temperature reaches a predetermined threshold, typically controlled by a thermostat or ECU.
- Ensure the fan blades rotate freely without obstruction.
- Monitor engine temperature to confirm the fan is activating and effectively cooling the system.
- Listen for any unusual noises during operation, which may indicate an issue.
Maintenance
Regular maintenance helps ensure the longevity and efficient operation of your SPAL fan.
- Cleaning: Periodically inspect the fan blades and shroud for accumulation of dirt, debris, or leaves. Clean gently with a soft brush or compressed air. Avoid using harsh chemicals.
- Wiring Inspection: Check all electrical connections for corrosion, fraying, or loose terminals. Secure any loose connections.
- Mounting Security: Verify that the fan remains securely mounted and that all mounting hardware is tight.
- Blade Condition: Inspect fan blades for any signs of damage, cracks, or imbalance. Damaged blades should be replaced immediately.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power, blown fuse, faulty relay, loose wiring, faulty temperature switch. | Check power supply, inspect fuse (40 Amp), test relay, verify wiring connections, test temperature switch. |
| Fan runs continuously. | Faulty temperature switch, relay stuck closed, wiring short. | Test temperature switch, inspect relay, check wiring for shorts. |
| Fan is noisy or vibrates excessively. | Loose mounting, damaged blades, debris in fan, worn motor bearings. | Tighten mounting hardware, inspect blades for damage and clear debris, contact support if motor bearings are suspected. |
| Insufficient cooling. | Incorrect fan orientation, blocked radiator fins, low coolant, air in cooling system. | Verify fan is pulling air through radiator, clean radiator fins, check coolant level, bleed cooling system. |
Specifications
| Specification | Value |
|---|---|
| Model Number | 30102120 (VA18-AP70/LL-86A) |
| Type | Puller Fan |
| Blade Type | Straight Blade |
| Diameter | 16 inches |
| Voltage | 12 Volts |
| Air Flow Capacity | 1918 Cubic Feet Per Minute (CFM) |
| Wattage | 130.48 watts |
| Power Connector Type | 3-Pin |

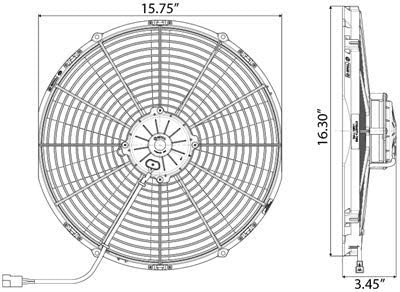

| Product Dimensions (H x W x D) | 16.30" x 15.75" x 3.45" (412mm x 400mm x 88mm) |
| Item Weight | 6.93 pounds (3.14 kg) |
| Recommended Fuse | 40 Amp (13V) |
| Maximum Rotational Speed | 2000 RPM |
| Noise Level | 18 dB |
Warranty and Support
For warranty information or technical support regarding your SPAL 30102120 fan, please refer to the official SPAL website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
Note: Specific warranty terms and conditions may vary by region and retailer.
