casulo Electric Pressure Washer User Manual

1. Introduction

Thank you for choosing the casulo Electric Pressure Washer. This manual provides important information for the proper assembly, operation, and maintenance of your pressure washer. Please read this manual thoroughly before using the product to ensure safe and efficient operation. Keep this manual for future reference.

The casulo Electric Pressure Washer is designed for various cleaning tasks around your home, including decks, patios, driveways, siding, vehicles, and outdoor power equipment. Its powerful 1800-watt motor delivers up to 3500 PSI of water pressure and 2.6 GPM of water flow, providing maximum cleaning power. It features a Total Stop System (TSS) for energy saving and prolonged pump life, along with built-in overheating and protection mechanisms for safety and durability.

2. Safety Information

Always follow basic safety precautions when using this product to reduce the risk of injury or damage. This section outlines critical safety guidelines.

2.1 General Safety Rules

• Always wear appropriate personal protective equipment, such as safety goggles, gloves, and hearing protection.
• Do not operate the pressure washer if you are tired or under the influence of drugs, alcohol, or medication.
• Keep children and bystanders away from the operating area.
• Ensure all connections are secure before starting the unit.
• Never point the spray gun at people, pets, or electrical devices.
• Do not operate the pressure washer in an explosive atmosphere, such as in the presence of flammable liquids, gases, or dust.

2.2 Electrical Safety

• Connect to a properly grounded outlet only.
• Do not use extension cords unless absolutely necessary. If an extension cord is used, ensure it is rated for outdoor use and has a sufficient gauge.
• Inspect the power cord for damage before each use. Do not use if the cord is damaged.
• Always disconnect the power supply before performing any maintenance or cleaning.

2.3 Water Supply Safety

• Ensure the water supply is clean and free of debris.
• Do not use hot water with the pressure washer.
• Always ensure the water supply is turned on before starting the motor to prevent pump damage.

3. Product Overview

Familiarize yourself with the components of your casulo Electric Pressure Washer.

Figure 3.1: Main Components of the Pressure Washer. This image displays the pressure washer unit along with its key accessories: the spray gun, stainless steel wand, high-pressure hose, a cleaning needle, and a set of five quick-connect nozzle adapters.

3.1 Components List

• Pressure Washer Unit with Rolling Wheels and Hose Reel
• Spray Gun
• Stainless Steel Wand
• High-Pressure Hose (20 Feet)
• 5 Quick-Connect Nozzles (0°, 15°, 25°, 40°, 60° for various applications)
• Cleaning Needle
• Power Cord with GFCI Protection

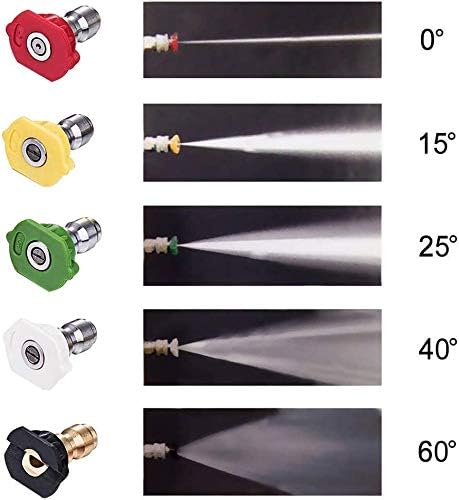

Figure 3.2: Quick-Connect Nozzle Types and Spray Patterns. This image illustrates the five different quick-connect nozzles, each color-coded, and shows the distinct spray pattern produced by each: a concentrated 0-degree stream, a narrow 15-degree fan, a medium 25-degree fan, a wide 40-degree fan, and a low-pressure 60-degree black nozzle typically for detergent application.

4. Setup and Assembly

Follow these steps to assemble your pressure washer before first use.

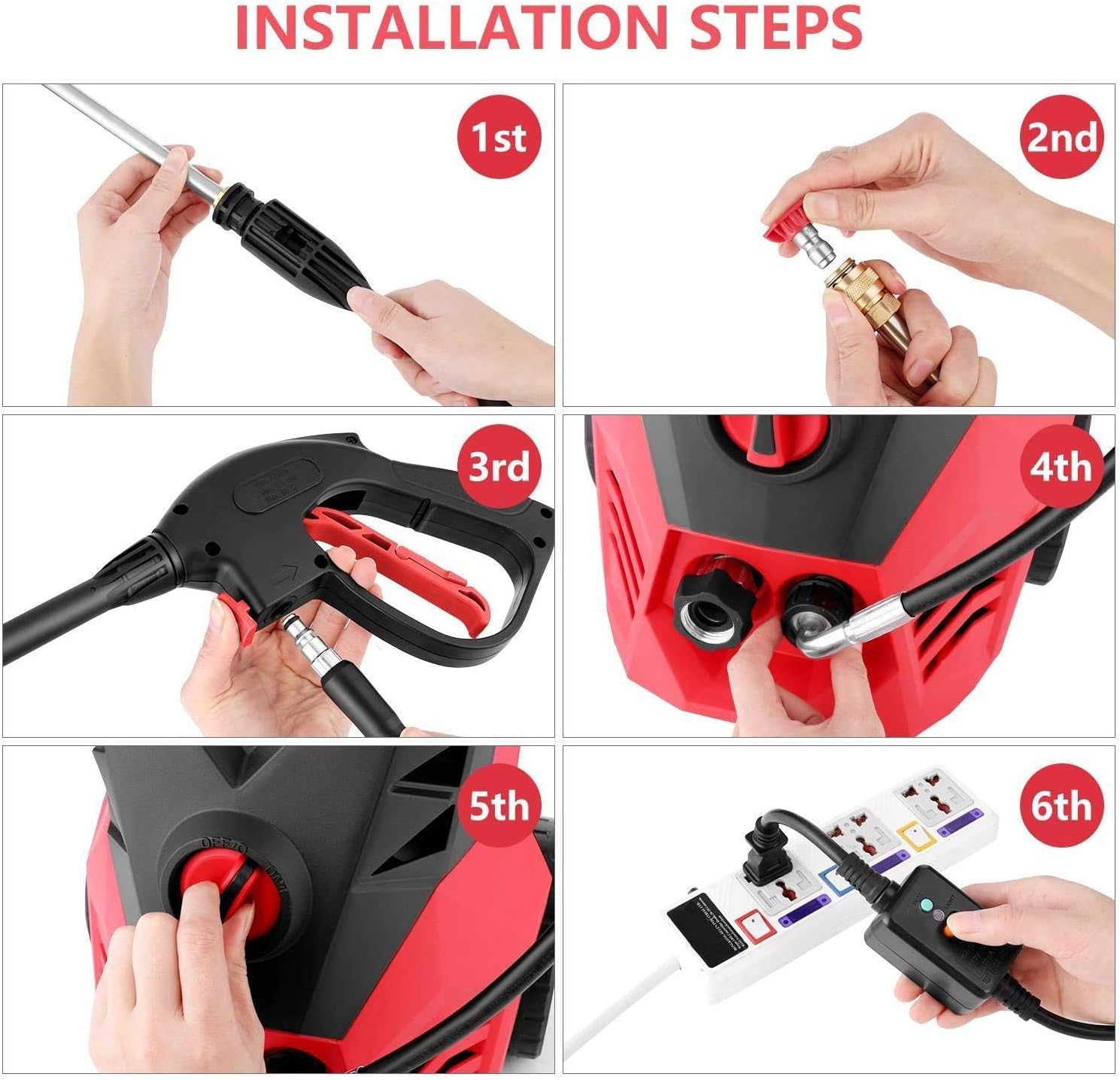

Figure 4.1: Installation Steps. This visual guide demonstrates the six key steps for setting up the pressure washer: attaching the wand to the spray gun, connecting the high-pressure hose to the spray gun, connecting the high-pressure hose to the pressure washer unit, connecting the garden hose to the water inlet, turning on the water supply, and finally, plugging the power cord into an electrical outlet.

1. Attach the Spray Gun and Wand: Connect the stainless steel wand to the spray gun. Ensure it clicks securely into place.
2. Connect High-Pressure Hose: Attach one end of the high-pressure hose to the spray gun and the other end to the high-pressure outlet on the pressure washer unit. Tighten connections firmly.
3. Connect Water Supply: Connect your garden hose (not included) to the water inlet on the pressure washer. Ensure the garden hose is free of kinks and has a minimum diameter of 5/8 inches.
4. Turn on Water: Fully turn on the water supply to the pressure washer. Allow water to flow through the pump and hose to purge any air. Squeeze the trigger on the spray gun to release air until a steady stream of water emerges.
5. Connect Power: Plug the pressure washer's power cord into a grounded 110-120V/60Hz electrical outlet. The power cord includes a GFCI (Ground Fault Circuit Interrupter) for safety. Press the "RESET" button on the GFCI plug before each use.

5. Operating Instructions

Learn how to effectively use your casulo Electric Pressure Washer for various cleaning tasks.

5.1 Starting the Pressure Washer

1. Ensure all setup steps are completed and connections are secure.
2. Turn on the water supply completely.
3. Press the "RESET" button on the GFCI plug.
4. Turn the ON/OFF switch on the pressure washer to the "ON" position. The motor will start.
5. Squeeze the trigger on the spray gun to begin spraying. The Total Stop System (TSS) will automatically shut off the pump when the trigger is not engaged.

5.2 Selecting and Changing Nozzles

The pressure washer comes with 5 quick-connect nozzles, each designed for specific cleaning applications. Always turn off the pressure washer and disconnect the water supply before changing nozzles.

5.3 Cleaning Techniques

• Always test the spray on an inconspicuous area first to avoid damage.
• Start spraying from a distance of 2-3 feet and gradually move closer until the desired cleaning effect is achieved.
• Use overlapping strokes to ensure even cleaning.
• For detergent application, use the black nozzle and ensure the detergent tank is filled.

Figure 5.1: Pressure Washer Applications. This image showcases the versatility of the pressure washer, demonstrating its use for cleaning a car, gently watering plants (likely with a wide-angle nozzle), cleaning a wooden deck, and power washing a concrete pathway.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pressure washer.

6.1 After Each Use

• Flush the System: Disconnect the detergent tank (if used) and run clean water through the system for 1-2 minutes to remove any chemical residue.
• Turn Off and Disconnect: Turn off the pressure washer, turn off the water supply, and unplug the power cord.
• Release Pressure: Squeeze the spray gun trigger to release any remaining pressure in the system.
• Drain Water: Disconnect all hoses and drain any remaining water from the pump, hoses, and spray gun to prevent freezing damage.
• Clean Nozzles: Use the provided cleaning needle to clear any blockages from the nozzle tips.
• Wipe Down: Wipe the exterior of the unit with a damp cloth.

6.2 Storage

• Store the pressure washer in a dry, frost-free area.
• Ensure all components are properly stored on the unit's integrated storage features (hose reel, nozzle holders, power cord wrap).
• If storing for an extended period, consider using a pump protector/antifreeze solution.

Figure 6.1: Integrated Features for Storage and Mobility. This image highlights practical design elements of the pressure washer, including its robust wheels for easy transport, the clearly marked water inlet and high-pressure outlet, the convenient hose reel for neat storage of the high-pressure hose, and a dedicated wrap for the power cord.

7. Troubleshooting

This section addresses common issues you might encounter and their solutions.

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

Technical specifications for the casulo Electric Pressure Washer.

Figure 8.1: Product Dimensions and Specifications. This image provides a visual representation of the pressure washer's height (27.8 inches) and lists its key technical specifications, including Voltage (110-120V/60Hz), Wattage (1800W), Rated pressure (2200PSI), Max. Pressure (3500PSI), Rated.flow rate (1.8GPM), Max.flow rate (2.6GPM), Max.inlet water pressure (1Mpa), Degree of protection (IPX5), Rated temperature (0-40°C), and Machine weight (9.4kg).

9. Warranty and Support

For warranty information or technical support, please contact casulo customer service. Keep your purchase receipt as proof of purchase.

While specific warranty details are not provided in this manual, most manufacturers offer a limited warranty against defects in materials and workmanship for a specified period from the date of purchase. Please refer to the product packaging or the manufacturer's official website for detailed warranty terms and conditions.

For assistance with troubleshooting, parts replacement, or general inquiries, please visit the official casulo store on Amazon or contact their customer support channels.

Note: The customer review video provided in the product data is not an official product video and is therefore not embedded in this manual.
