Introduction
Thank you for choosing the Kingston Brass Heritage GS1248AL Wall-Mount Pull-Down Sprayer Kitchen Faucet. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new faucet. Please read all instructions carefully before beginning installation to ensure safe and correct usage.
The Heritage two-handle wall-mount pull-down sprayer kitchen faucet combines elements of both classical design and modern day technology for an enjoyable and optimum dishwashing experience. It features a high arching spout to easily clean larger dishes, swivel ability to reach any area in and around your sink, and a dual function pull-down sprayer to tackle tough messes.

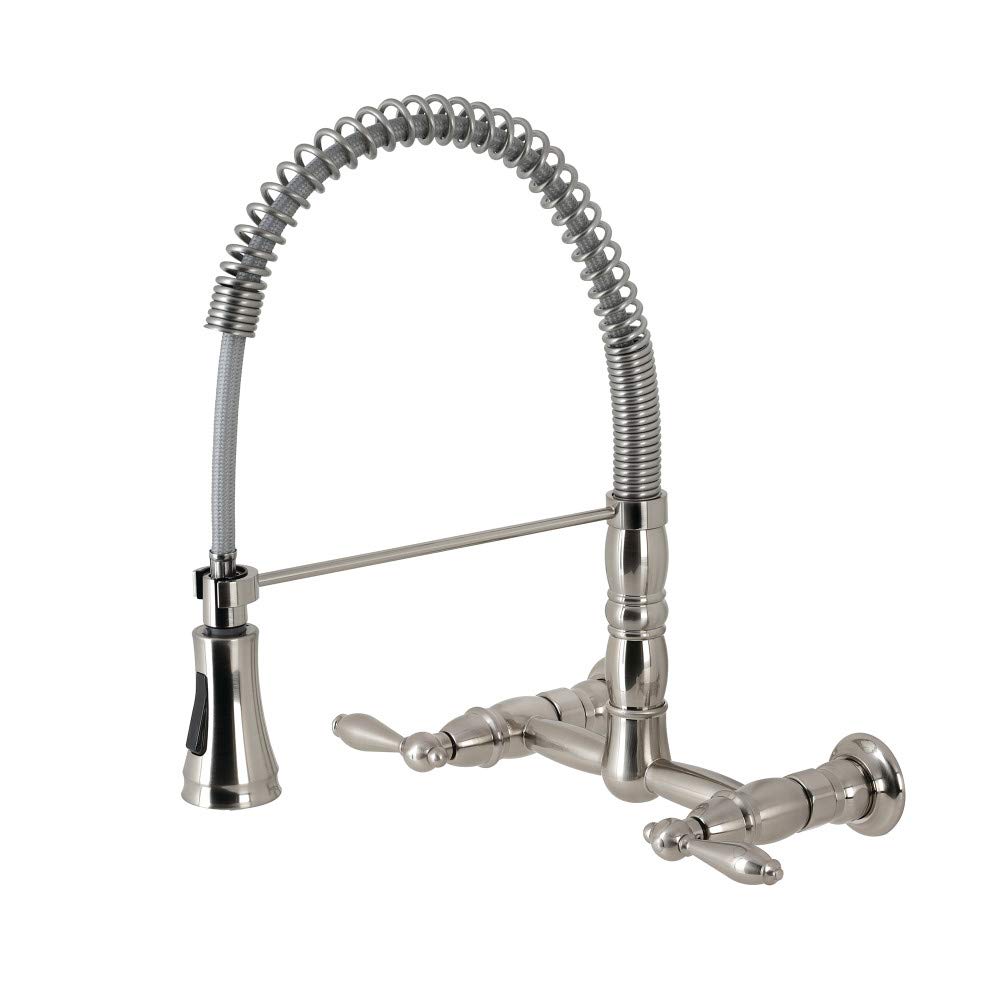

Image: Kingston Brass Heritage GS1248AL Wall-Mount Pull-Down Sprayer Kitchen Faucet in Brushed Nickel.
Safety Information
- Always turn off the main water supply before installing or performing any maintenance on the faucet.
- Wear appropriate personal protective equipment, such as safety glasses, during installation.
- If you are unsure about any part of the installation process, it is recommended to consult a qualified professional plumber.
- This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Package Contents
Verify that all components are present before beginning installation:
- Kingston Brass Heritage GS1248AL Faucet Assembly
- Mounting Hardware
Specifications
| Feature | Detail |
|---|---|
| Brand | Kingston Brass |
| Model Name | Heritage GS1248AL |
| Finish Type | Brushed Nickel |
| Material | Brass |
| Mounting Type | Wall Mount |
| Number of Handles | 2 |
| Hole Count | 2 |
| Special Feature | Pull Down Sprayer |
| Maximum Flow Rate | 1.8 Gallons Per Minute (6.8 LPM) at 60 PSI |
| Inlet Connection | 1/2-14 NPT Female |
| Spout Height | 15.94 Inches |
| Spout Reach | 10 Inches |
| Product Dimensions | 14.13 x 13.13 x 16 inches |
Image: Diagram illustrating key features and dimensions of the Kingston Brass Wall Mount Pre-Rinse Spring Pull-Down Kitchen Faucet.
Installation Instructions
Tools You May Need: Adjustable wrench, pipe wrench, plumber's tape, screwdriver, safety glasses, flashlight.
- Prepare for Installation: Turn off the main water supply to your kitchen. Clear the area around the installation site.
- Remove Old Faucet (if applicable): Disconnect water lines and mounting hardware from the existing faucet. Clean the wall surface thoroughly.
- Mount the Faucet Body: Position the faucet body onto the wall, aligning with the two pre-drilled holes (8-inch centers). Secure the faucet using the provided mounting hardware. Ensure the faucet is level and tightly secured to prevent movement.
- Connect Water Supply Lines: Connect the hot and cold water supply lines to the corresponding inlets on the faucet body. Use plumber's tape on threaded connections to ensure a watertight seal. The faucet uses 1/2-14 NPT female inlet connections.
- Install Sprayer Hose: Connect the pull-down sprayer hose to the designated connection point on the faucet. Ensure all connections are tight.
- Test for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If any leaks are detected, tighten the connections as necessary.
- Flush the Faucet: Remove the sprayer head and turn on the water to flush out any debris from the lines. Run water for a few minutes, then turn off and reattach the sprayer head.
Image: Detailed technical drawing with dimensions for the Kingston Brass Wall Mount Kitchen Faucet, useful for installation planning.
Operating Instructions
- Water Flow Activation: Turn the left handle for hot water and the right handle for cold water. Rotate the handles towards you to increase flow and away from you to decrease flow.
- Pull-Down Sprayer: Grasp the sprayer head and pull it down from its housing. The flexible hose allows for extended reach within and around the sink.
- Stream Function Selection: The sprayer head features a switch or button to toggle between two different stream flow patterns: a steady aerated stream for general washing and a powerful spray for rinsing.
- Spout Swivel: The main spout assembly can be rotated horizontally to direct water flow to different areas of the sink.
- Retracting the Sprayer: After use, guide the sprayer head back into its housing. The design ensures it docks securely.
Maintenance
- Cleaning the Finish: To maintain the brushed nickel finish, clean regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning the Sprayer Head: Over time, mineral deposits may accumulate in the sprayer nozzles, affecting water flow. Gently rub the rubber nozzles to dislodge deposits. For stubborn clogs, unscrew the sprayer head and soak it in a solution of equal parts white vinegar and water.
- Ceramic Disc Cartridge: The faucet is equipped with a drip-free ceramic disc cartridge. If a leak occurs from the handles or spout, the cartridge may need to be replaced. Contact Kingston Brass customer support for replacement parts and instructions.
- Checking Connections: Periodically check all water connections for tightness to prevent leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Faucet leaks from handles or spout | Worn ceramic disc cartridge | Replace the ceramic disc cartridge. Refer to the manufacturer's instructions or contact support. |
| Low water flow | Aerator or sprayer nozzles clogged with debris/minerals | Clean or replace the aerator/sprayer head. Flush water lines. |
| Sprayer does not retract fully | Hose obstruction or insufficient weight | Check for obstructions under the sink. Ensure the counterweight (if applicable) is properly positioned. |
| Water leaks from connections | Loose connections or worn seals | Tighten all connections. Replace any worn O-rings or gaskets. |
Warranty and Support
For warranty information, replacement parts, or technical assistance, please contact Kingston Brass customer support directly. Keep your purchase receipt as proof of purchase.
