1. Introduction
This user manual provides essential information for the installation, usage, and maintenance of your Occus Aluminum Rear Lower & Upper Links for AXIAL SCX10 Wrangler RTR 1/10 Rock Crawler 4WD vehicles. Please read this manual thoroughly before installation to ensure proper fitment and optimal performance.
2. Product Overview
The Occus Aluminum Link Kit is designed as an upgrade or replacement part for AXIAL SCX10 Wrangler 1/10 scale RC rock crawlers. These links are crafted from durable aluminum, offering enhanced strength and longevity compared to standard plastic components. The kit includes both front and rear links with specific lengths to maintain proper suspension geometry.
2.1 Package Contents
- 2 x Front Links
- 2 x Rear Links
Note: Other vehicle components shown in images are for illustrative purposes only and are not included in this package.
2.2 Product Features
- Durable Aluminum Construction
- Designed for AXIAL SCX10 Wrangler RTR 1/10 Rock Crawler 4WD
- Includes both Lower & Upper Links
- Specific lengths: 122mm (Lower) & 130mm (Upper)
- Enhances vehicle stability and performance

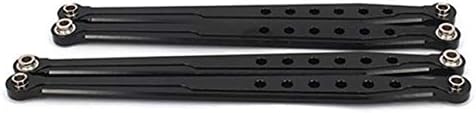

Image 1: Occus Aluminum Rear Lower & Upper Links (Model 1 color)
3. Installation Guide
Installation of the aluminum links requires basic RC vehicle assembly knowledge and tools. It is recommended to refer to your vehicle's original manual for specific disassembly and reassembly procedures.
3.1 Required Tools (Not Included)
- Hex wrenches (appropriate sizes for your SCX10)
- Pliers
- Thread-locking compound (optional, for metal-to-metal screws)
3.2 Step-by-Step Installation
- Prepare the Vehicle: Ensure your AXIAL SCX10 Wrangler is powered off and the battery is disconnected. Place the vehicle on a stable, clean surface.
- Identify Existing Links: Locate the current plastic lower and upper links on your vehicle's suspension system. Note their orientation and connection points.
- Remove Old Links: Carefully unbolt and remove the existing plastic links. Keep track of all screws and hardware.
- Install New Links: Attach the new aluminum links to the corresponding mounting points. Ensure the correct length links are used for the front (122mm) and rear (130mm) positions, and for upper and lower. The links are designed to replace the original AX80043 links.
- Secure Connections: Tighten all screws firmly, but do not overtighten to avoid stripping threads. If desired, apply a small amount of thread-locking compound to metal screws for added security.
- Verify Movement: Once all links are installed, gently articulate the suspension to ensure smooth, unrestricted movement and proper alignment.
Image 2: Example of aluminum links installed on an RC vehicle chassis.
4. Usage and Compatibility
These aluminum links are direct replacement parts designed for the AXIAL SCX10 Wrangler RTR 1/10 Rock Crawler 4WD. They are intended to improve the durability and performance of your vehicle's suspension system. Ensure that your vehicle model is compatible with AX80043 parts before installation.
The links contribute to the vehicle's overall suspension geometry, affecting articulation and stability. Proper installation is crucial for maintaining the intended performance characteristics of your RC crawler.
5. Care and Maintenance
To ensure the longevity and optimal performance of your aluminum links, follow these maintenance guidelines:
- Regular Inspection: Periodically inspect the links for any signs of wear, bending, or damage, especially after heavy use or impacts.
- Cleanliness: Keep the links free from dirt, mud, and debris. Use a soft brush or cloth to clean them. Avoid harsh chemicals that could damage the aluminum finish.
- Check Fasteners: Ensure all screws and fasteners connecting the links to the chassis and axles remain tight. Re-tighten if necessary.
- Lubrication: The pivot balls at the ends of the links generally do not require lubrication, but ensure they move freely.
- Storage: Store your RC vehicle and its components in a clean, dry environment away from extreme temperatures.
6. Troubleshooting
If you encounter issues after installing your new links, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Links do not fit correctly | Incorrect link length used; not compatible with vehicle model. | Verify that the correct 122mm and 130mm links are used for their respective positions. Confirm your vehicle is an AXIAL SCX10 Wrangler RTR. |
| Suspension binds or is stiff | Screws overtightened; pivot balls not seated correctly. | Loosen screws slightly and re-tighten to appropriate torque. Ensure pivot balls are fully seated in their cups. |
| Links become loose during use | Screws not tightened sufficiently; no thread-locking compound used. | Re-tighten all fasteners. Consider using a small amount of removable thread-locking compound on metal-to-metal screw connections. |
7. Technical Specifications
| Specification | Detail |
|---|---|
| Product Name | Aluminum Rear Lower & Upper Links |
| Model Number | AX80043 |
| Compatibility | AXIAL SCX10 Wrangler RTR 1/10 Rock Crawler 4WD |
| Material | Aluminum (Metal) |
| Link Length (Lower) | 122mm |
| Link Length (Upper) | 130mm |
| Color | Model 1 (Black/Silver) |
| Unit Count | 1.0 Count (Set of 4 links) |
Image 3: Aluminum links demonstrating length (122mm shown).
8. Warranty and Support
Occus products are manufactured to high standards. For specific warranty information or technical support, please refer to the retailer or the official Occus website. Keep your proof of purchase for any warranty claims.
For further assistance, please contact the seller through the platform where the purchase was made.
