JABO Part 2033S 540 Motor Drive Board Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of the JABO Part 2033S 540 Motor Drive Board. This drive board is specifically designed for use with JABO 2AS and 2BS series RC Fishing Ship Bait Boats, operating with a 6V lead battery system. Please read this manual thoroughly before use to ensure safe and efficient operation.

2. Safety Information

• Always disconnect power before installing, removing, or performing maintenance on the drive board.
• Ensure correct polarity when connecting the battery to prevent damage to the board and other components.
• Avoid exposing the drive board to water, excessive moisture, or extreme temperatures.
• Do not attempt to modify or repair the drive board yourself. Refer to qualified personnel for service.
• Keep out of reach of children.

3. Product Overview and Components

The JABO Part 2033S is a compact circuit board designed to control the 540 motor in compatible RC bait boats. It features a multi-pin connector for easy integration into the boat's electrical system.

Figure 3.1: Top view of the 2033S drive board, highlighting the main connector and integrated circuits.

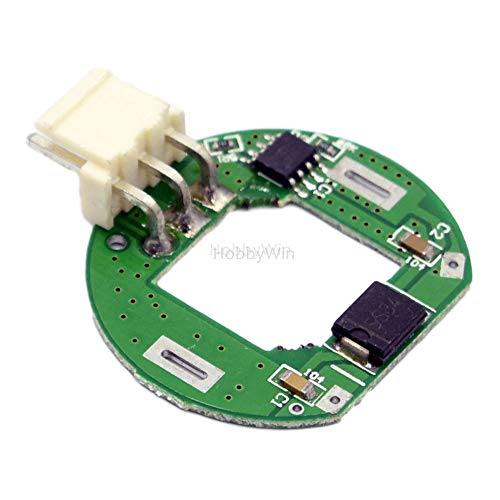

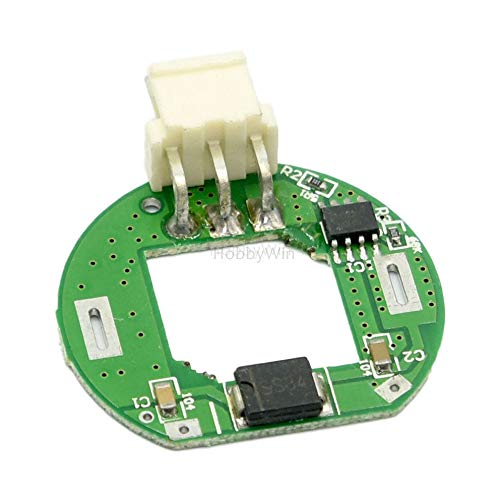

Figure 3.2: Angled perspective of the 2033S drive board, illustrating its compact design.

Figure 3.3: Close-up view of the 2033S board, detailing the surface-mounted components.

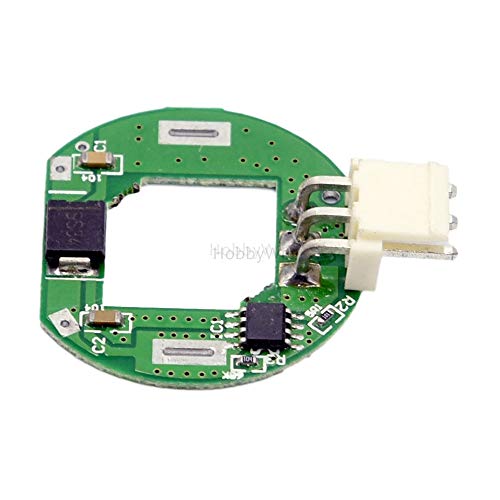

Figure 3.4: Side profile of the 2033S drive board, showing its slim form factor.

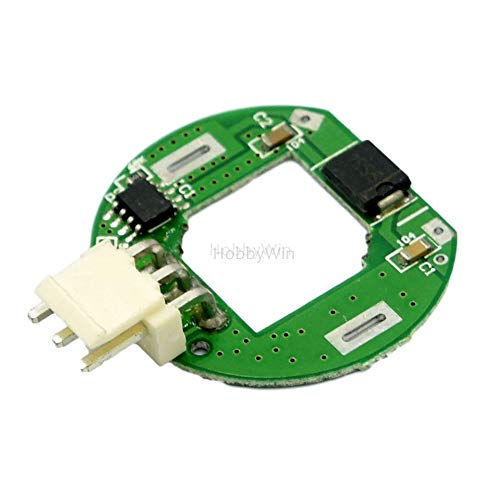

Figure 3.5: Overhead view of the 2033S board, emphasizing the connector and mounting holes.

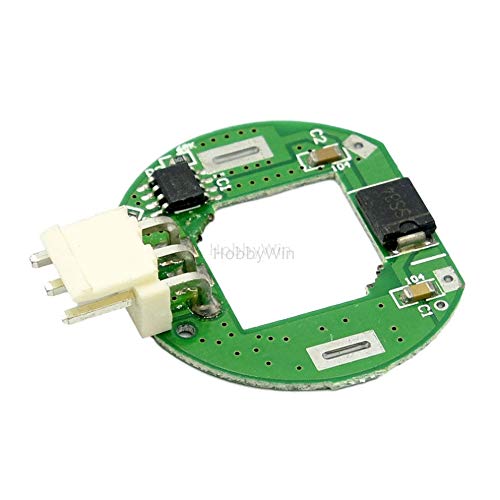

Figure 3.6: Alternative angled view of the 2033S drive board, providing another perspective of its layout.

4. Setup and Installation

Before installation, ensure your bait boat's power is completely off and the battery is disconnected.

1. Identify Connection Points: Locate the existing motor drive board or the designated connection points for the motor, battery, and receiver within your JABO 2AS or 2BS bait boat.
2. Remove Old Board (if applicable): Carefully disconnect and remove the old drive board, noting the orientation and wiring of all connections.
3. Connect the New Board: Connect the JABO Part 2033S drive board to the corresponding terminals for the 540 motor, 6V lead battery, and the boat's receiver/control unit. Pay close attention to polarity (+ and -) for the battery and motor connections. Incorrect polarity can cause damage.
4. Secure the Board: Mount the drive board securely within the boat's housing to prevent movement or damage during operation. Ensure no loose wires can short circuit.
5. Initial Test: Before fully reassembling the boat, connect the 6V lead battery and perform a brief functional test to ensure the motor responds correctly to commands.

5. Operating Instructions

Once installed, the JABO Part 2033S drive board operates in conjunction with your bait boat's existing remote control system.

• Power On: Connect the 6V lead battery to the boat's power system. Ensure the remote control is also powered on and properly paired with the boat.
• Motor Control: Use the throttle stick/lever on your remote control to operate the 540 motor. Forward movement will typically be achieved by pushing the stick forward, and reverse by pulling it back.
• Power Off: Always disconnect the battery from the boat when not in use to prevent accidental discharge or damage.

6. Maintenance

• Cleaning: Periodically inspect the drive board for dust, dirt, or corrosion. Gently clean with a soft, dry brush or compressed air. Do not use liquids.
• Storage: When not in use for extended periods, store the drive board in a dry, cool environment, away from direct sunlight and extreme temperatures.
• Inspection: Regularly check all connections to ensure they are secure and free from damage. Look for any signs of overheating or component discoloration on the board.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding your JABO Part 2033S 540 Motor Drive Board, please contact the seller or manufacturer directly. Retain your proof of purchase for any warranty claims.

Manufacturer: Occus
