1. Product Overview
The HITOP 200W Adjustable Aquarium Heater is designed to maintain a stable and optimal temperature for your aquatic environment. This submersible heater features a built-in thermostat for automatic temperature control and is constructed with thickened quartz glass for enhanced durability and safety. It is suitable for aquariums ranging from 30 to 45 gallons.
- Adjustable Temperature Range: 68°F to 93°F (20°C to 34°C).
- Automatic Operation: The heater automatically turns on or off to maintain the set water temperature.
- Durable Construction: Features 2mm thickened quartz glass, 33% thicker than standard heaters, for increased safety.
- Easy Installation: Equipped with powerful suction cups for flexible placement.
2. Package Contents
Before installation, please ensure all items are present and undamaged.
Image: Contents of the HITOP 200W Aquarium Heater package. Includes the heater unit, three suction cups for mounting, and a stick-on thermometer for monitoring water temperature.
- 1 x HITOP Adjustable Aquarium Heater (200W)
- 3 x Powerful Suction Cups (2 for installation, 1 spare)
- 1 x Sticker Thermometer
3. Setup and Installation
Follow these steps to safely install your aquarium heater.
- Unpack: Carefully remove the heater and accessories from the packaging.
- Attach Suction Cups: Secure the two main suction cups to the heater body. An additional spare suction cup is provided.
- Placement: Position the heater fully submerged in your aquarium. It can be installed vertically or horizontally. Ensure the heater is completely underwater to prevent damage and ensure proper function.
- Secure: Press the suction cups firmly against the inside glass of the aquarium to secure the heater in place.
- Connect Power: Plug the heater into a suitable power outlet (110-120V, 50/60Hz).
- Apply Thermometer: Attach the sticker thermometer to the outside of the aquarium glass, away from the heater, to monitor the water temperature independently.
Image: An example of the HITOP aquarium heater installed horizontally near the bottom of a fish tank, fully submerged. The tank contains fish, gravel, and artificial plants.
Installation Video
Video: This video demonstrates the installation process of the HITOP adjustable aquarium heater, showing how to attach suction cups and submerge the unit in the tank.
4. Operating Instructions
Adjusting the temperature is simple and the heater will maintain it automatically.

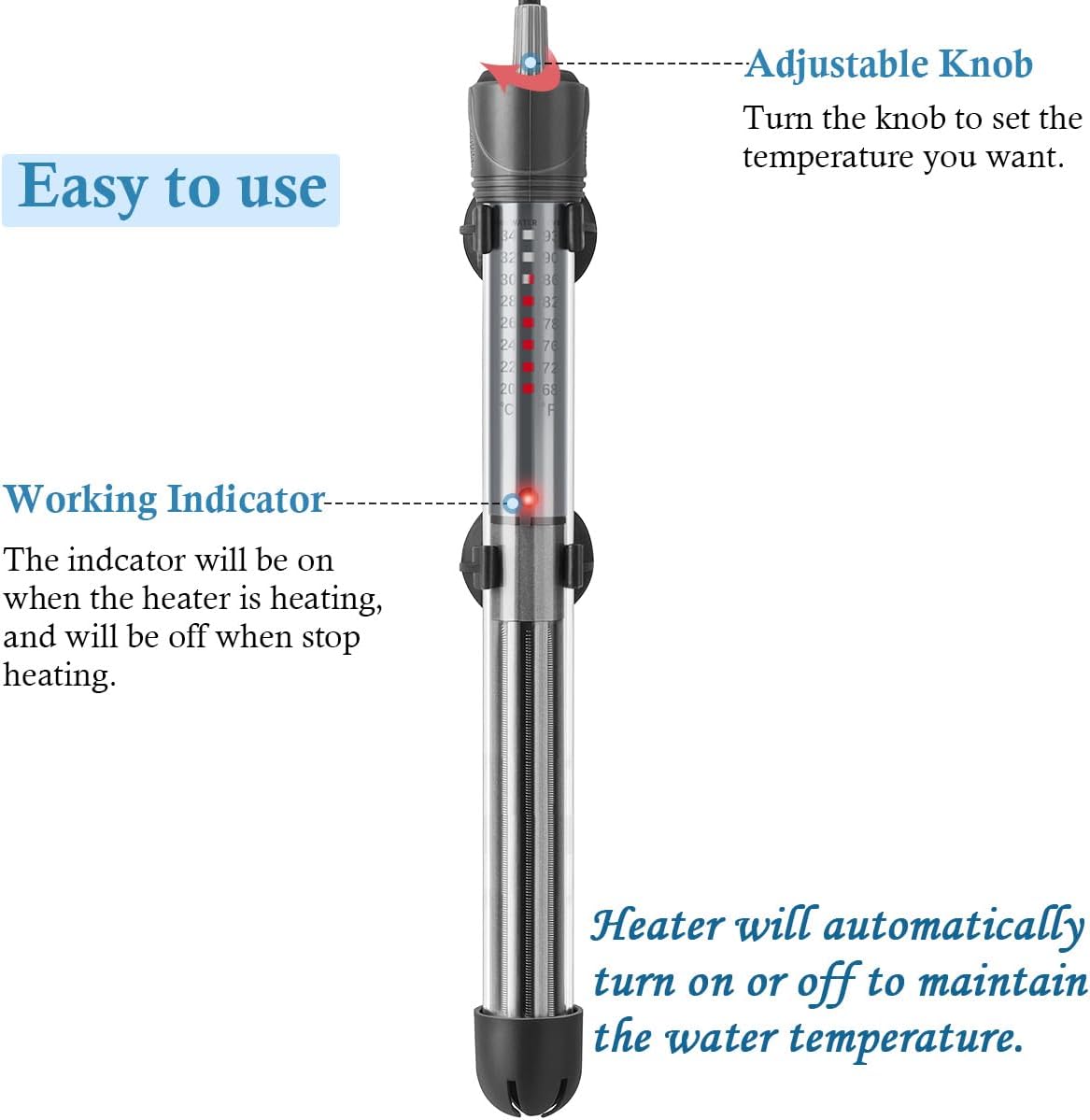

Image: Close-up view of the HITOP aquarium heater highlighting the adjustable temperature knob at the top and the red indicator light that illuminates when the heater is actively heating.
- Set Temperature: Rotate the adjustable knob at the top of the heater to select your desired water temperature within the range of 68°F to 93°F.
- Monitor Indicator: A red indicator light will illuminate when the heater is actively heating the water. It will turn off once the set temperature is reached.
- Verify Temperature: Use the provided sticker thermometer or an external thermometer to verify the actual water temperature, ensuring it matches your desired setting. The heater maintains the set temperature within a ±2°F error margin.
Operation Video
Video: This video demonstrates the operational aspects of the HITOP adjustable aquarium heater, including how to set the temperature using the top dial and observing the heating indicator light.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your heater.
- Cleaning: Periodically clean the heater surface to remove algae or mineral buildup. Always unplug the heater and allow it to cool completely before removing it from the water for cleaning.
- Inspection: Regularly inspect the heater for any signs of damage, such as cracks in the glass or frayed power cords. Discontinue use immediately if any damage is observed.
- Suction Cups: Check the suction cups for wear and tear. Replace them if they lose their grip to ensure the heater remains securely in place.
6. Troubleshooting
If you encounter issues with your heater, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater not turning on (no indicator light) | No power, faulty outlet, or heater malfunction. | Check power connection and outlet. Ensure the heater is fully submerged. If issues persist, contact support. |
| Water temperature is too low/high | Incorrect temperature setting, heater too small for tank size, or heater malfunction. | Adjust the temperature knob. Verify heater wattage is appropriate for your aquarium volume. Ensure proper water circulation around the heater. |
| Heater light is constantly on/off | Rapid temperature fluctuations, or heater thermostat issue. | Check for drafts or external temperature changes affecting the tank. Ensure the heater is fully submerged and water is circulating. |
| Suction cups not holding | Worn out suction cups or dirty glass surface. | Clean the glass surface and suction cups. Replace old suction cups with new ones (a spare is included). |
7. Specifications
Detailed specifications for the HITOP 200W Adjustable Aquarium Heater.
Image: A chart detailing the specifications for various HITOP aquarium heater wattages, including heater length and recommended fish tank size. The 200W model is 10.4 inches long and recommended for 30-45 gallon tanks.
| Feature | Detail |
|---|---|
| Power | 200W |
| Heater Length | 10.4 inches |
| Recommended Tank Size | 30-45 Gallons |
| Power Cord Length | 4.9 feet |
| Voltage | 110-120V, 50/60Hz |
| Temperature Range | 68°F ~ 93°F (20°C ~ 34°C) |
| Material | 2mm Thickened Quartz Glass |
| Item Weight | 11.2 ounces |
| Item Package Dimensions | 13.3 x 3.2 x 1.8 inches |
8. Warranty and Support
HITOP provides a 12-month after-sales service for this product. For any questions, concerns, or warranty claims, please contact HITOP customer support through the retailer where the product was purchased or visit the official HITOP website for assistance.
