SEEKONE 1800W Heat Gun

Introduction

Thank you for choosing the SEEKONE 1800W Heat Gun. This powerful and versatile tool is designed for a wide range of applications, from professional tasks like paint stripping and thawing pipes to creative crafts such as shrinking PVC and working with epoxy resin. Its dual-temperature settings and robust construction ensure efficient and safe operation. Please read this manual thoroughly before use to ensure proper handling, optimal performance, and safety.

Safety Instructions

Your safety is paramount. Always follow these instructions to prevent injury or damage to the heat gun.

• High Temperature Warning: The heat gun produces extremely high temperatures (up to 1112°F / 600°C). Avoid direct contact with the nozzle and heated surfaces.
• Overheat Protection: The unit features a built-in overheat protection device that automatically enters sleep mode if the temperature becomes too high, preventing damage.
• Ventilation: Ensure adequate ventilation when operating the heat gun, especially when working with materials that may produce fumes.
• Flammable Materials: Keep the heat gun away from flammable liquids, gases, and materials.
• Cool Down: Allow the heat gun to cool down completely before storing. Utilize the foldable metal stand for safe cooling.
• Electrical Safety: Do not expose the heat gun to rain or wet conditions. Always unplug the tool when not in use or before changing accessories.

Package Contents

Upon opening your SEEKONE Heat Gun package, you should find the following items:

• 1 x SEEKONE 1800W Heat Gun
• 4 x Nozzle Attachments
• 1 x User Manual (this document)

Product Features

High-Powered & Dual-Temp Control

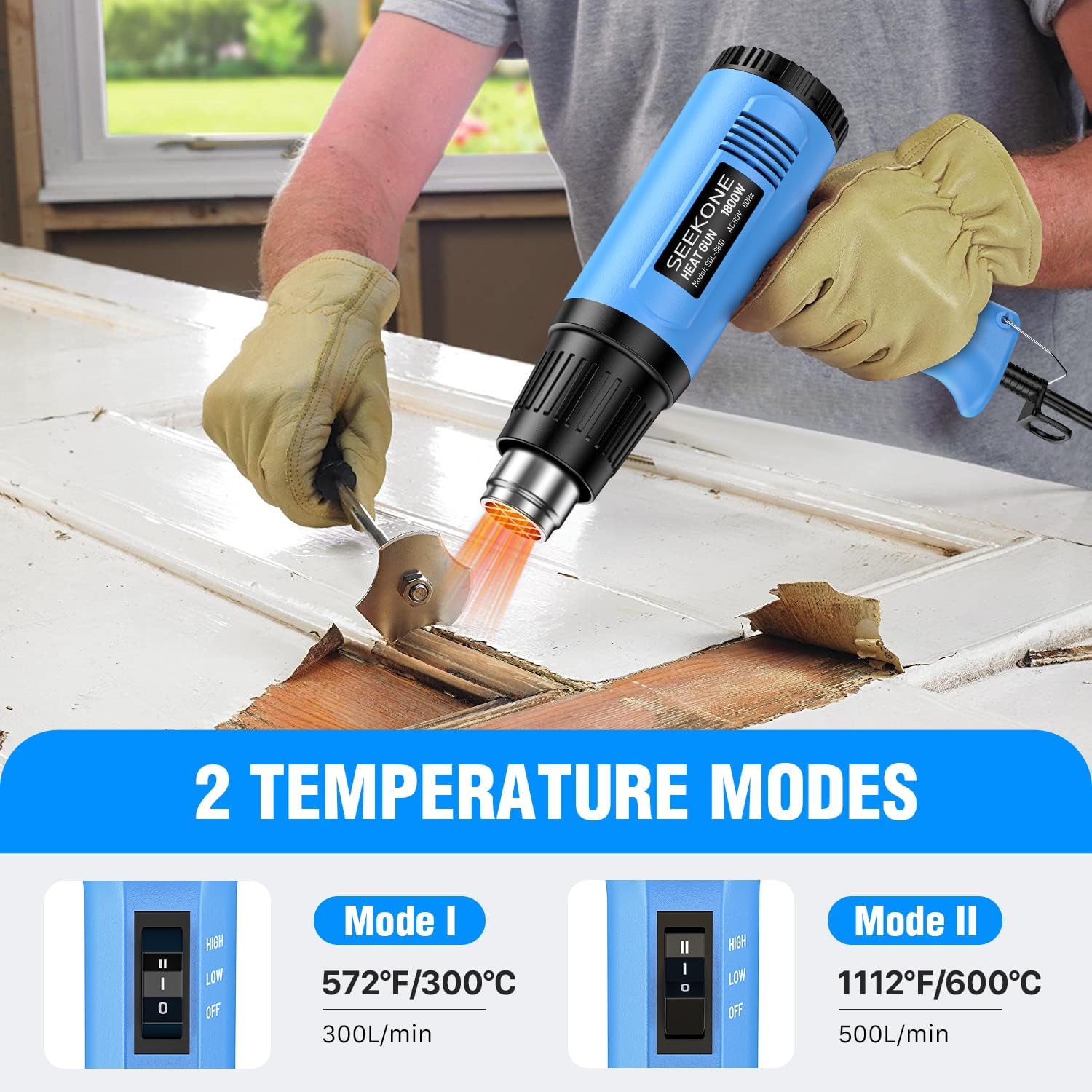

The 1800W motor ensures rapid heating in seconds. It offers two temperature settings: Low (572°F / 300L/min airflow) and High (1112°F / 500L/min airflow), providing precise control for various tasks.

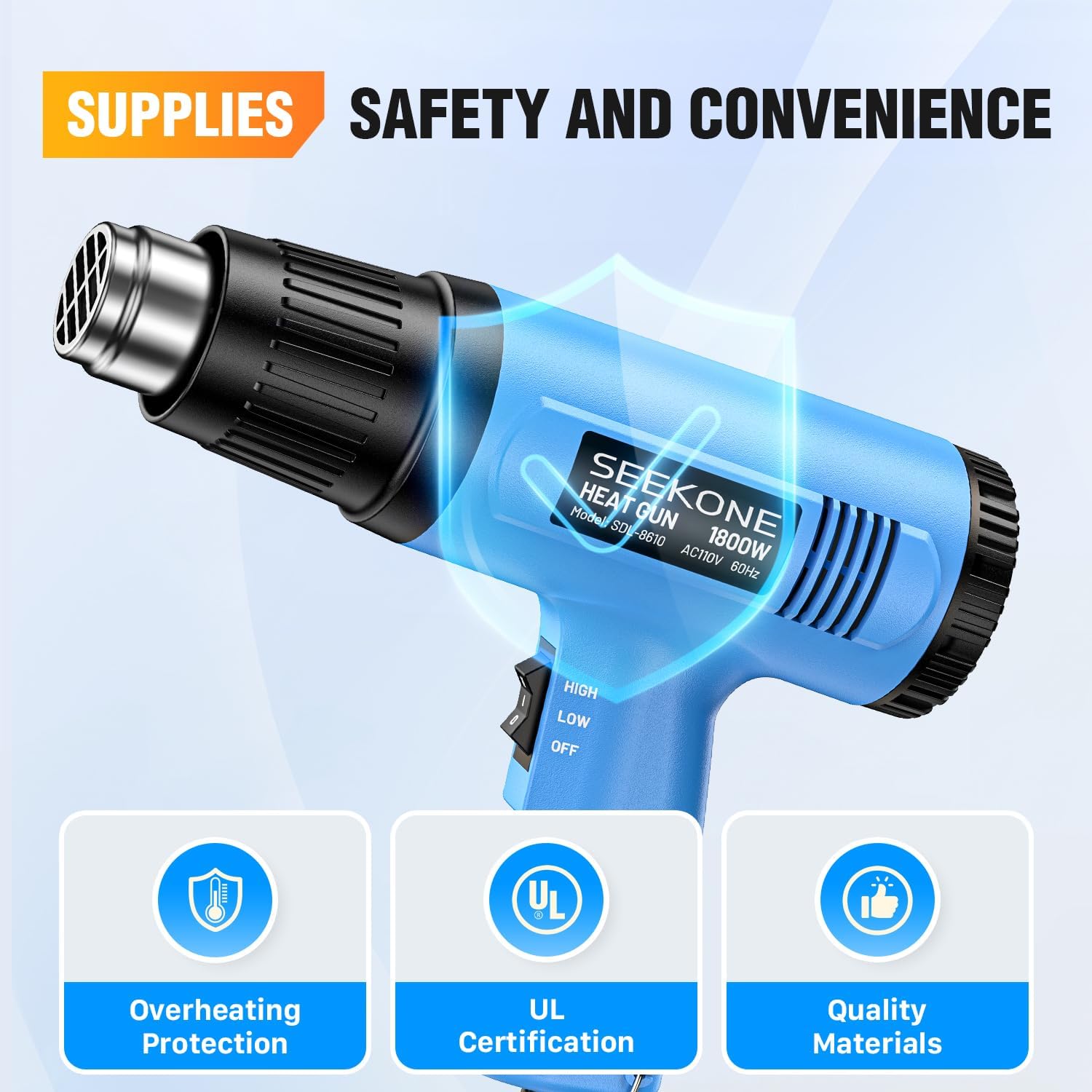

Quality Materials & Overheat Protection

Constructed from durable ABS engineering plastic, resistant to heat, moisture, and corrosion. The grid-type air outlet ensures stable wind speed. Integrated overheat protection automatically activates sleep mode to prevent damage.

Hands-free & Portable Operation

A foldable metal stand allows for stable upright positioning, enabling hands-free operation. The ergonomic handle design provides comfort and reduces fatigue during extended use. A built-in hook facilitates easy storage.

Versatile Applications

Ideal for a wide array of tasks including handicrafts, shrink packaging, epoxy resin work, shrink tubing, mobile phone repair, vinyl wrapping, heating PVC, thawing pipes, paint removal, and loosening rusty bolts.

Setup

1. Unpacking: Carefully remove all components from the packaging. Inspect for any damage.
2. Nozzle Attachment: Select the appropriate nozzle for your task. Align the nozzle with the heat gun's outlet and push it firmly into place. The nozzles are designed for easy slip-on and slip-off attachment.
3. Positioning: For hands-free operation, extend the foldable metal stand located at the base of the handle. Ensure the heat gun is stable on a flat, heat-resistant surface.

Operating Instructions

1. Power Connection: Plug the heat gun into a standard 110V AC power outlet.
2. Temperature Selection: Use the switch on the handle to select your desired temperature setting:
   • LOW: 572°F (300L/min airflow) - Suitable for delicate tasks like shrinking PVC or crafts.
   • HIGH: 1112°F (500L/min airflow) - Ideal for heavy-duty applications such as paint stripping or thawing pipes.
3. Operation: Direct the heat gun nozzle towards the workpiece. Maintain a safe distance to avoid overheating or damaging the material. Move the heat gun steadily to ensure even heat distribution.
4. Cool Down: After use, switch the heat gun to the 'OFF' position. Allow the unit to cool down completely before handling the nozzle or storing the tool. The foldable stand can be used to keep the hot nozzle elevated during cooling.

Nozzle Attachments and Their Uses

The SEEKONE Heat Gun comes with four specialized nozzles to enhance its versatility:

Large Concentrator Nozzle

This nozzle directs a concentrated stream of heat to a specific work surface. It is ideal for tasks requiring precise heat application, such as removing paint from corners, crevices, or arched finishes, and for thawing small frozen pipes.

Reflector Nozzle

Designed to disperse heat evenly around the entire work surface. This nozzle is perfect for welding fittings, bending plastic pipes, or heat shrinking electronic tubing and wires.

Small Round Nozzle

This nozzle helps to keep heat away from glass or other fragile areas. It is suitable for precise work on ledges, window frames, and skirting boards where heat protection for surrounding materials is crucial.

Deflector Nozzle

This nozzle directs a narrow, long stream of heat to the work surface. It is ideal for removing paint or varnish from large, flat surfaces, ensuring efficient and controlled heat application over a wider area.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your heat gun.

• Cleaning: After each use, ensure the heat gun is unplugged and completely cool. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Air Vents: Keep the air intake and exhaust vents clear of dust and debris to prevent overheating and maintain proper airflow. Use a soft brush or compressed air if necessary.
• Cord Care: Regularly inspect the power cord for any signs of damage. Do not use the heat gun if the cord is frayed or damaged.
• Storage: Store the heat gun in a dry, safe place, out of reach of children. Utilize the hanging hook for convenient storage.

Troubleshooting

Specifications

• Model Number: SDL-8610
• Wattage: 1800 watts
• Voltage: 110 Volts
• Temperature Settings: Low (572°F / 300L/min), High (1112°F / 500L/min)
• Item Weight: 1.9 pounds
• Package Dimensions: 10.55 x 9.02 x 3.11 inches
• Cord Length: 1.45 Meters (approx. 5.2ft)
• Material: ABS Engineering Plastic
• Certification: UL

Warranty and Support

SEEKONE is committed to providing high-quality products and excellent customer service. Your heat gun is designed for durability and performance.

• Return Policy: This product is eligible for a 30-day refund/replacement return policy from the date of purchase.
• Technical Support: Our dedicated team of professionals is available to provide ongoing technical assistance for the life of your device. Should you have any questions, require troubleshooting, or need further assistance, please do not hesitate to contact our support team.
