1. Introduction
Thank you for choosing Qunlight 300L LED Icicle Lights. This manual provides essential information for the safe and effective use of your new lighting product. Please read this manual thoroughly before installation and operation, and retain it for future reference.

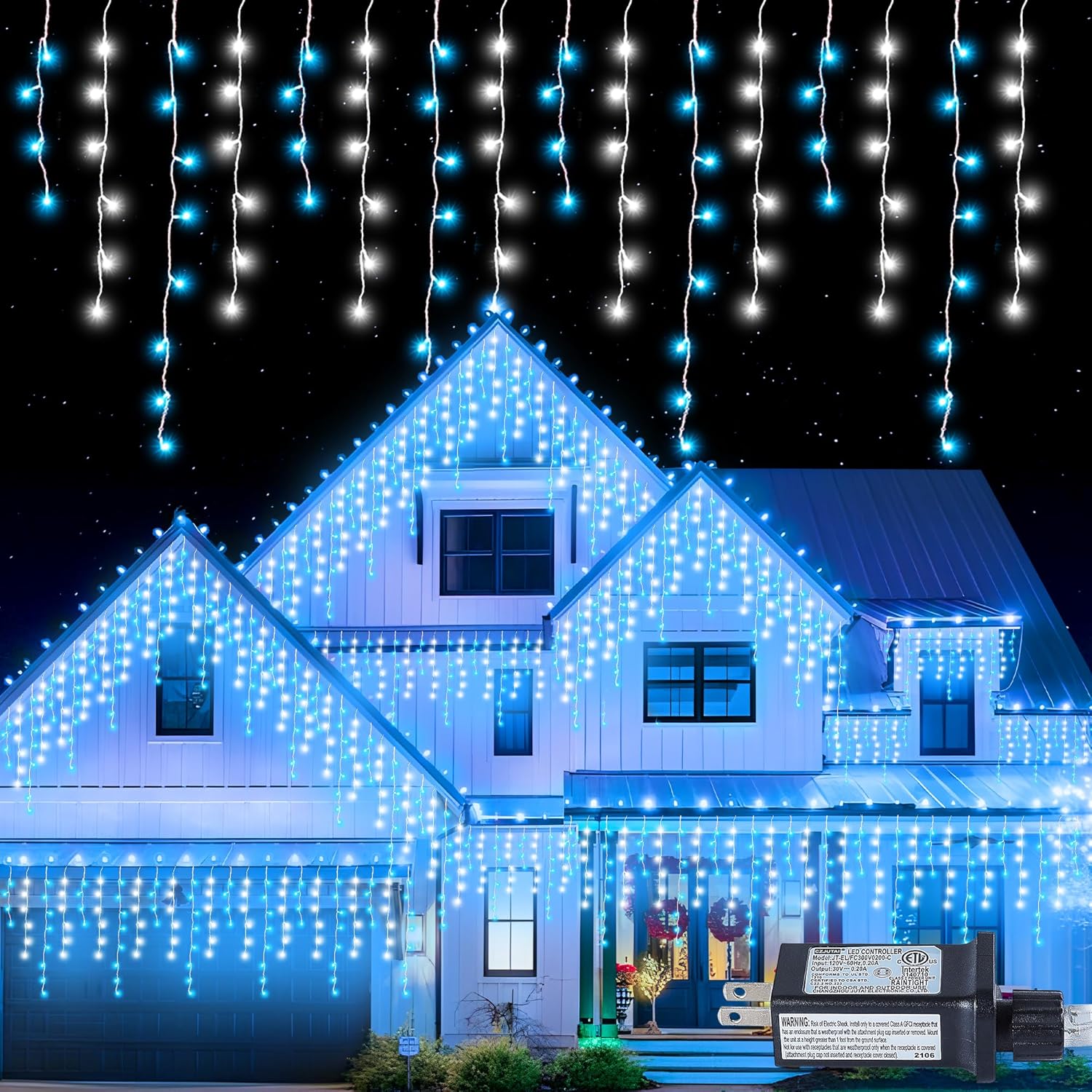

Image: Qunlight 300L LED Icicle Lights installed on a house, displaying a vibrant blue and white illumination against the night sky.
2. Safety Information
To ensure safe operation and prevent damage, please observe the following safety precautions:
- The icicle lights are rated IP44 waterproof for outdoor and indoor decoration. However, the power plug and controller are not waterproof and must be protected from water exposure.
- Operate the lights only with the provided 30V US standard output voltage adapter. Using an incorrect voltage may damage the product and pose a safety risk.
- Do not connect more than three (3) strings of these icicle lights together to avoid overloading the power adapter.
- Ensure all connections are secure before plugging the unit into a power outlet.
- Do not attempt to modify or repair the lights or controller. Refer all servicing to qualified personnel.
- Keep the product away from heat sources, open flames, and corrosive materials.
- Unplug the lights from the power outlet when not in use or before cleaning.
3. Package Contents
Upon opening the package, verify that all components are present and undamaged:
- 1 x Qunlight 300L LED Icicle Light String (Blue+White)
- 1 x 30V Power Adapter with Integrated Controller
4. Product Features
The Qunlight 300L LED Icicle Lights offer a range of features designed for versatile decorative lighting:
- LED Quantity: 300 high-brightness LEDs.
- Length: Approximately 33 feet (10 meters) of illuminated length.
- Drop Design: Features 50 drops with varying lengths (16'', 24'', 32'', 24'') and corresponding LED counts (4, 6, 8, 6 LEDs per drop).
- Lighting Modes: 8 distinct lighting modes controlled by a button on the adapter: Combination, In Waves, Sequential, Slo-Glo, Chasing/Flash, Slow Fade, Twinkle/Flash, and Steady On.
- Connectable: Designed for end-to-end connection, allowing up to 3 strings to be linked together from a single power source.
- Waterproof Rating: IP44 for the light string, suitable for both indoor and outdoor use (power plug and controller require protection from water).
- Low Voltage: Operates on a safe 30V output, ensuring low power consumption and minimal heat generation.
Image: Overview of product features, highlighting the 8 lighting modes, weatherproof design, low-voltage operation, high brightness, and extendable connection capability.
5. Setup Instructions
Follow these steps to set up your Qunlight Icicle Lights:
- Unpack and Inspect: Carefully remove the lights from the packaging. Gently uncoil the string, ensuring not to tangle the drops. Inspect the entire string, including the wires and LEDs, for any signs of damage.
- Connect the Controller: The power adapter includes an integrated controller. Connect the male plug of the light string to the female receptacle on the power adapter. Secure the connection by screwing the plastic collar tightly.

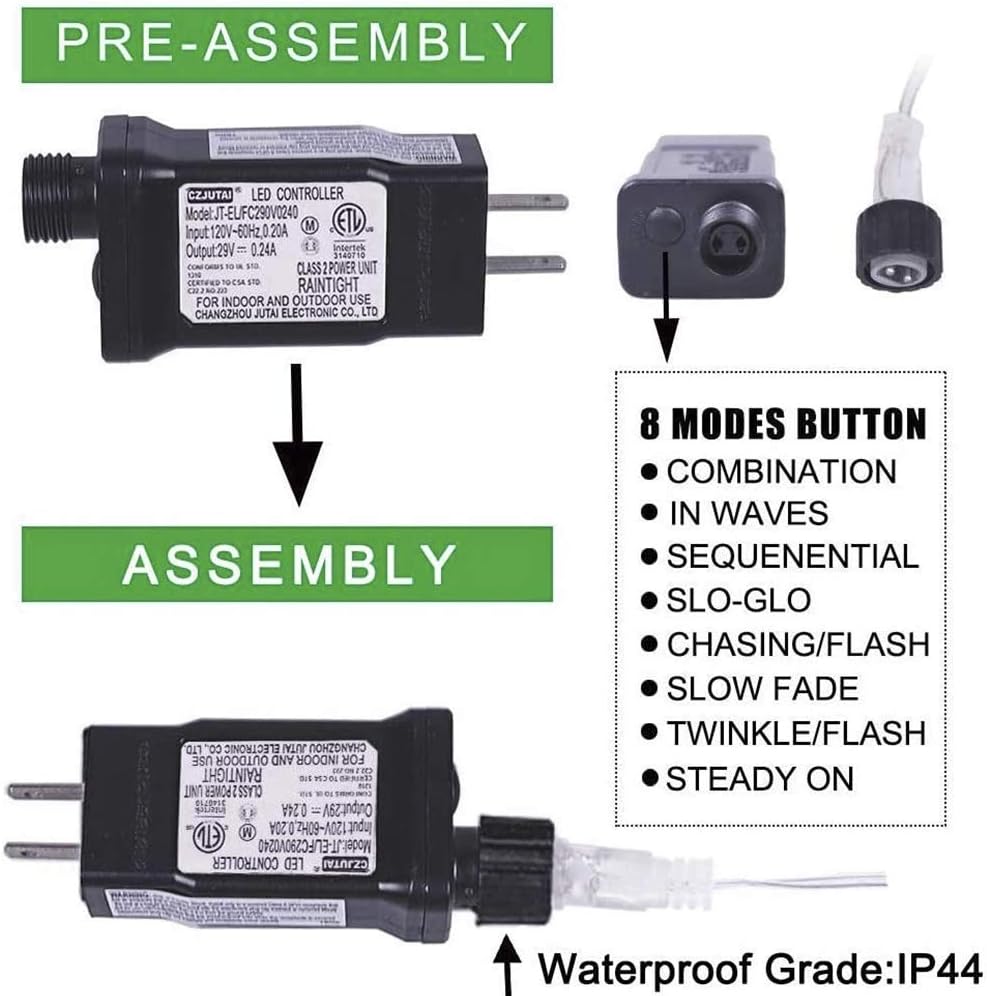

Image: Visual guide for connecting the LED controller to the light string, illustrating the pre-assembly and assembly process.
- Placement: Determine the desired location for your lights. For outdoor use, ensure the power adapter and plug are protected from rain and moisture. The light string itself is IP44 rated.
- Installation: Hang the icicle lights using appropriate fasteners (not included) such as clips, hooks, or zip ties. Ensure the lights are securely fastened to prevent them from falling or being damaged by wind.
- Connecting Multiple Strings (Optional): If you have multiple Qunlight icicle light strings (Model QX-U-O-I-300-BW-C), you can connect up to three strings end-to-end. Connect the male plug of the subsequent string to the female receptacle at the end of the previous string. Secure each connection.

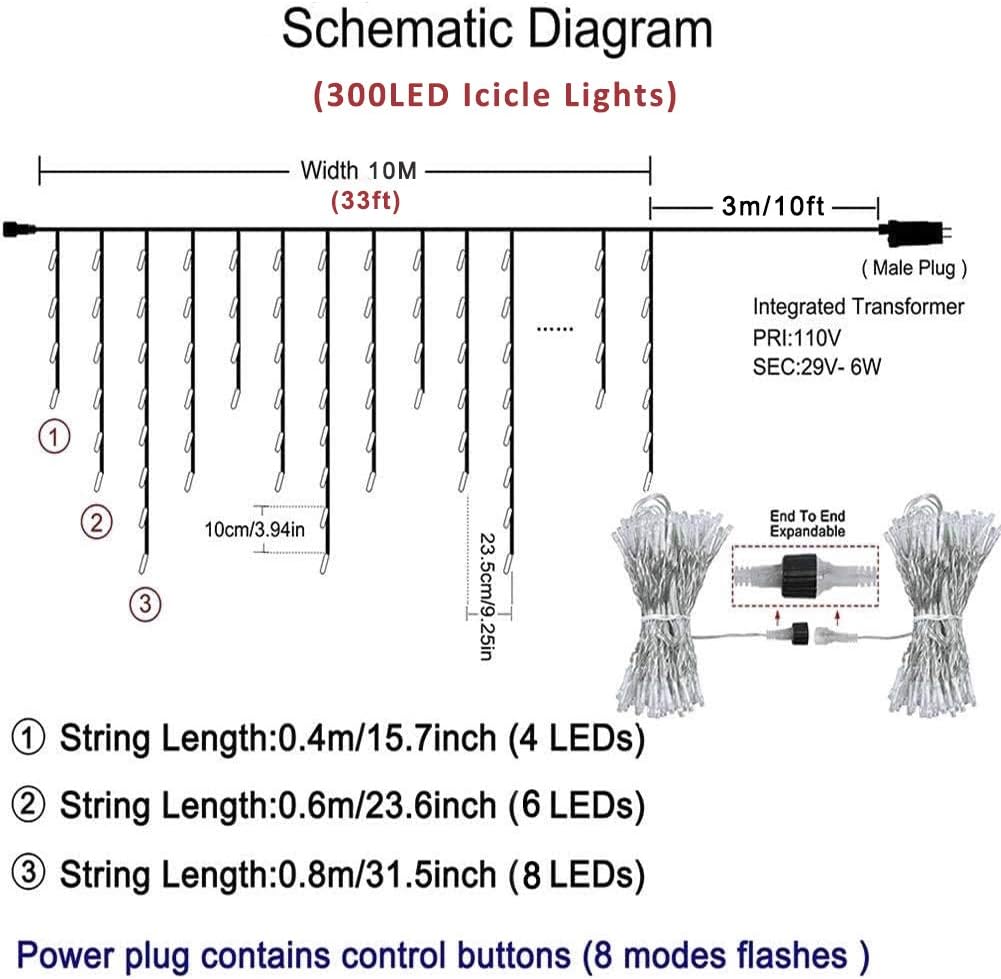

Image: Schematic diagram detailing the dimensions of the 300LED icicle lights, including overall width, drop lengths, and the end-to-end expandability feature.
- Power On: Once installed, plug the power adapter into a standard US 110V AC outlet. The lights should illuminate.
6. Operating Instructions
The Qunlight Icicle Lights feature 8 lighting modes controlled by a single button on the power adapter:
- Locate the button on the power adapter.
- Press the button repeatedly to cycle through the 8 available lighting modes:
- Combination
- In Waves
- Sequential
- Slo-Glo
- Chasing/Flash
- Slow Fade
- Twinkle/Flash
- Steady On
- The controller has a memory function, meaning it will remember the last selected lighting mode when unplugged and plugged back in.
Image: A hand interacting with the mode control button located on the power adapter, used to cycle through the various lighting effects.
7. Maintenance
Proper maintenance will extend the lifespan of your icicle lights:
- Cleaning: Before cleaning, ensure the lights are unplugged. Wipe the light string and LEDs gently with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: When not in use, carefully coil the light string to prevent tangling. Store the lights in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to store them in their original packaging or a protective container.
- Inspection: Periodically inspect the entire light string, including the wiring and connections, for any signs of wear, damage, or corrosion. Address any issues promptly.
- Plug Protection: Always ensure the power plug and controller are protected from water, especially during outdoor use. Consider using a waterproof outlet cover or enclosure.
Image: A hand holding a neatly coiled bundle of the icicle lights, demonstrating proper storage technique to prevent tangling and damage.
8. Troubleshooting
If you encounter issues with your Qunlight Icicle Lights, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power to the outlet. Loose connection. Damaged power adapter/string. | Check if the outlet is working by plugging in another device. Ensure the power adapter is securely plugged into the outlet and the light string is firmly connected to the adapter. Inspect for visible damage. If damaged, discontinue use and contact customer support. |
| Lights flicker or some LEDs are off. | Loose connection. Minor damage to a section of the string. | Check all connections, especially if multiple strings are linked. Inspect the string for kinks or cuts. LEDs are integrated and not replaceable individually. If a significant section is out, contact customer support. |
| Cannot change lighting modes. | Controller button malfunction. | Ensure the button is being pressed firmly. Try unplugging and replugging the unit to reset the controller. If the issue persists, the controller may be faulty; contact customer support. |
| Power adapter gets warm. | Normal operation. Overload (if connecting too many strings). | A slight warmth is normal. If it becomes excessively hot or emits a burning smell, immediately unplug and contact customer support. Ensure no more than 3 strings are connected. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | QX-U-O-I-300-BW-C |
| Light Color | Blue White |
| Light Source Type | LED |
| Number of Light Sources | 300 |
| Total Length | Approx. 33 feet (10 meters) |
| Drop Spacing | 7.87 inches (20 cm) |
| Drop Lengths | 16'', 24'', 32'', 24'' (4, 6, 8, 6 LEDs respectively) |
| Power Source | Corded Electric |
| Input Voltage | 110V AC (US Style Plug) |
| Output Voltage | 30 Volts |
| Wattage | 6 watts |
| Controller Type | Button Control (8 Modes) |
| Water Resistance Level | IP44 (Light string only; plug/controller not waterproof) |
| Material | Plastic |
| Item Weight | 1.4 Pounds |
| Connectable | Yes, up to 3 strings |
10. Warranty and Support
Qunlight is committed to providing high-quality products. If for any reason you are not 100% satisfied with your purchase, please contact our customer service team. We are dedicated to assisting you with returns or refunds as needed.
For support, please visit the official Qunlight store or contact us through the platform where you purchased the product.
