LVYUAN 800W Step Up/Down Voltage Converter Transformer

1. Important Safety Instructions

Please read and understand all instructions before using this voltage converter. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not overload the converter: This 800W converter is not suitable for high-power appliances such as coffee machines, hair dryers, rice cookers, microwave ovens, air conditioners, or curling irons. For such appliances, a higher wattage converter (e.g., 3000W or 5000W) is required.
• Select correct input voltage: Always ensure the input voltage selector switch on the back of the unit is set to match the local power supply (110V-120V or 220V-240V) before plugging in the converter. Incorrect selection can damage the unit and connected appliances.
• Indoor use only: Do not expose the converter to rain or moisture.
• Keep away from children: Store the converter in a safe place out of reach of children.
• Proper ventilation: Ensure adequate airflow around the converter. Do not block ventilation openings.
• Grounding: The converter must be properly grounded.

2. Product Overview

The LVYUAN 800W Voltage Converter Transformer is designed for both step-up and step-down voltage conversion, allowing you to use appliances from different regions. It converts 110V-120V to 220V-240V and vice-versa.

Key Features:

• Bidirectional Voltage Conversion: Step up from 110V-120V to 220V-240V or step down from 220V-240V to 110V-120V.
• Multiple Outlets: Features two US-standard 110V-120V output sockets and two universal 220V-240V output sockets.
• Resettable Circuit Breaker: Provides protection against overload and overcurrent without needing to replace fuses.
• Durable Design: Constructed with a metal casing and a fanless cooling system for quiet, odorless operation.
• High-Quality Toroidal Coil: Ensures stable and efficient power conversion.

Component Identification:

Figure 1: Front Panel - 220V-240V Output Sockets, 110V-120V Output Sockets, Power LED.

Figure 2: Rear Panel - AC Input Select Switch, On/Off Switch with Breaker, Resettable Circuit Breaker, AC Input Port.

3. Setup

1. Unpack the Converter: Carefully remove the converter and all accessories from the packaging.
2. Place the Converter: Position the converter on a stable, flat surface with adequate ventilation. Ensure no objects block the heat output vents on the sides.
3. Select Input Voltage: Locate the Input Voltage Selector switch on the rear panel. CRITICAL: Set this switch to match the voltage of your wall outlet (e.g., 110V-120V if plugging into a US outlet, or 220V-240V if plugging into a European outlet). Incorrect selection will damage the unit and connected appliances.


   Figure 3: Input Voltage Selector

4. Connect Power Cord: Plug the detachable power cord into the AC Input Port on the rear of the converter. Then, plug the other end of the power cord into your wall outlet.
5. Power On: Flip the red ON/OFF switch to the 'ON' position. The green 'POWER' LED on the front panel will illuminate, indicating the unit is ready for use.

Figure 4: Easy Setup Steps

4. Operating Instructions

Once the converter is powered on and the green LED is lit, you can connect your appliances.

1. Identify Appliance Voltage: Check the voltage requirement of your appliance.
2. Select Correct Output Socket:
   • If your appliance requires 110V-120V, plug it into one of the 110V-120V output sockets (typically labeled 'US outlets').
   • If your appliance requires 220V-240V, plug it into one of the 220V-240V universal output sockets.
3. Power On Appliance: Turn on your appliance.

Important Wattage Considerations:

• Always ensure the total power consumption of all connected appliances does not exceed the converter's 800W rating.
• For appliances with motors (e.g., blenders, vacuum cleaners), the startup wattage can be 2-7 times higher than the rated wattage. Consider this surge when selecting a converter.

Figure 5: Wattage Suitability and Recommendations

Video Demonstration:

Video 1: Official LVYUAN Voltage Transformer Converter 800 Watt Overview. This video demonstrates the physical appearance and basic features of the LVYUAN 800W voltage converter.

5. Maintenance

To ensure the longevity and optimal performance of your LVYUAN voltage converter, follow these simple maintenance guidelines:

• Cleaning: Disconnect the converter from the power source before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
• Ventilation: Regularly check that the ventilation openings on the sides of the unit are clear of dust and debris to prevent overheating.
• Storage: When not in use for extended periods, store the converter in a cool, dry place away from direct sunlight and moisture.

6. Troubleshooting

If you encounter issues with your converter, refer to the following common problems and solutions:

• No Power (Power LED Off):
  • Check if the power cord is securely plugged into both the converter and the wall outlet.
  • Ensure the ON/OFF switch is in the 'ON' position.
  • Verify the wall outlet is functioning by plugging in another device.
• Appliance Not Working (Power LED On):
  • Confirm the appliance is plugged into the correct voltage output socket (110V-120V or 220V-240V).
  • Check if the appliance's power consumption exceeds the converter's 800W rating.
  • Inspect the resettable circuit breaker buttons on the rear panel. If a button has popped out, it indicates an overload. Reduce the load and press the button to reset it.


    Figure 6: Resettable Circuit Breaker
  • Ensure the Input Voltage Selector is set correctly for your local power supply.
• Unusual Noise or Smell: Immediately turn off the converter and disconnect it from the power source. Contact customer support.

7. Specifications

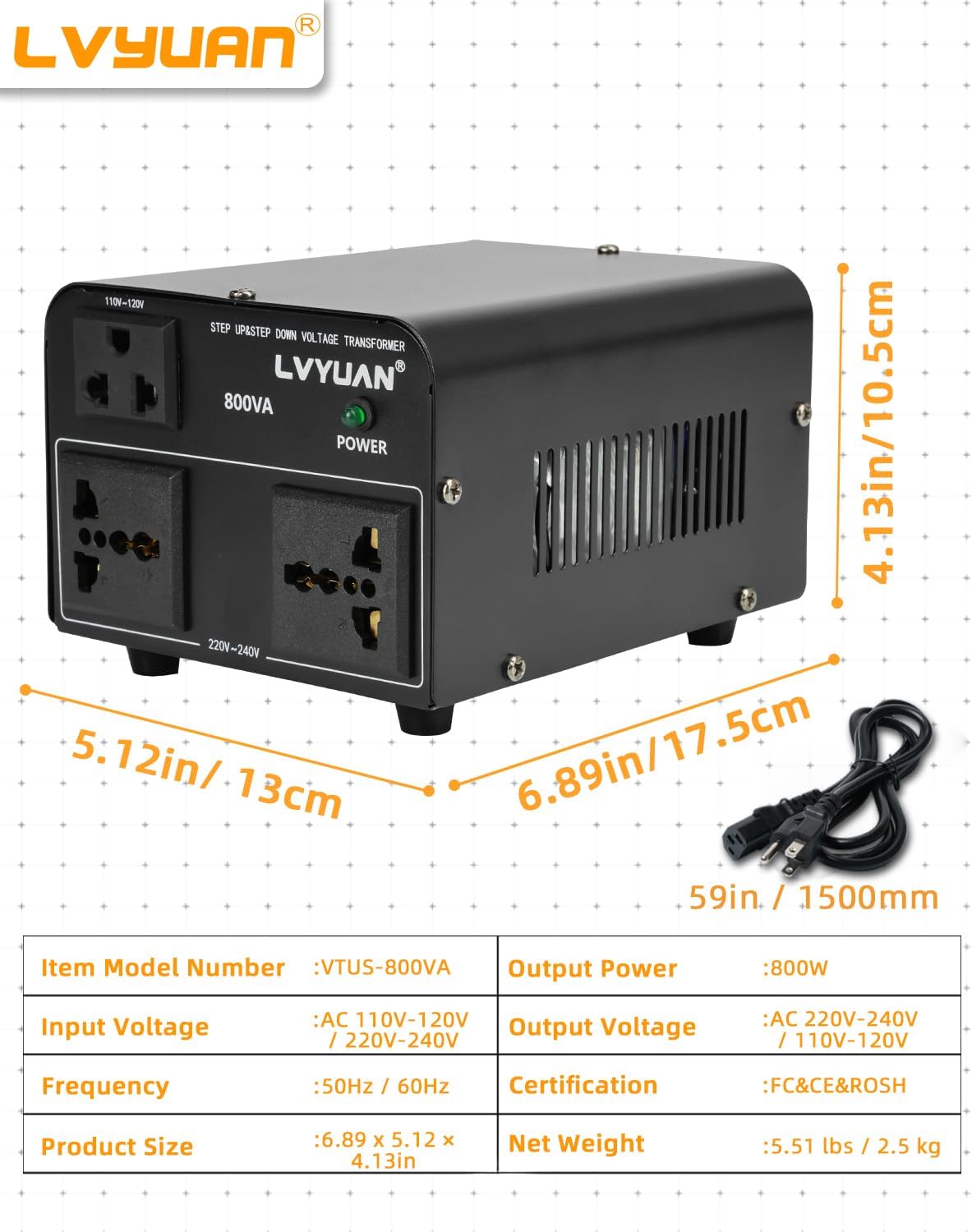

Figure 7: Product Dimensions and Specifications

8. Warranty and Support

Your LVYUAN 800W Voltage Converter Transformer comes with a 3-Year Manufacturer's Limited Warranty.

For any questions, technical assistance, or warranty claims, please contact LVYUAN customer service. We aim to provide a response within 12 hours.

For more information and support, please visit the LVYUAN Store on Amazon.

Figure 8: Warranty and Support Information
