Sunolga YG-2200 500W Fog Machine with 6 LED Lights User Manual

1. Introduction

This manual provides detailed instructions for the safe and effective operation of your Sunolga YG-2200 500W Fog Machine with 6 LED Lights. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Information

• The Sunolga fog machine is certified with FCC, CE, and ROHS for safety.
• Always use the correct type of fog fluid. Do not use flammable liquids or other substitutes.
• Ensure the machine is placed on a stable, level surface.
• Keep the machine away from children and pets.
• Do not touch the nozzle during operation or immediately after use, as it becomes very hot. A "CAUTION HIGH TEMPERATURE DO NOT TOUCH" warning is present on the unit.
• The machine features an integrated electronic high-temperature protection system that will automatically shut off the unit if it exceeds temperature limits.
• Automatic shutdown occurs if the fog fluid solution runs out. Refill the tank to restart operation.
• Do not obstruct the ventilation openings.
• If used indoors, be aware that fog machines can trigger smoke detectors.

3. Package Contents

Verify that all items listed below are included in your package:

• 1 x Sunolga 500W Fog Machine
• 1 x Wireless Remote Control
• 1 x Handle
• 2 x Screws
• 2 x Gaskets
• 1 x Power Cable
• 1 x User Manual

Note: Fog fluid is not included and must be purchased separately.

Figure 3.1: Package contents of the Sunolga YG-2200 Fog Machine. The image displays the fog machine, a wireless remote, a power cable, a handle, and small accessories like screws and gaskets, all neatly arranged.

4. Product Overview

Familiarize yourself with the components of your fog machine.

Figure 4.1: Front view of the Sunolga YG-2200 Fog Machine and its remote control. The machine features a central fog output nozzle surrounded by six LED lights, and a handle on top. The remote shows buttons for fog, LED, and color selection.

Figure 4.2: Rear control panel of the Sunolga YG-2200 Fog Machine. This view highlights the main On/Off switch, a green 'Fog' button for manual operation, the power input socket, and a clear fluid level indicator. Model number YG-2200 and power specifications are also visible.

Figure 4.3: Wireless remote control for the fog machine. It includes 'ON/OFF' buttons for both fog and LED functions, along with 'JUMP', 'FADE', 'FLASH' effects, and 12 distinct color selection buttons.

5. Setup

1. Unpacking and Placement: Carefully remove the fog machine and all accessories from the packaging. Place the machine on a stable, flat, and heat-resistant surface. Ensure there is adequate ventilation around the unit and that the fog output is directed away from people or sensitive equipment.
2. Install Handle: Attach the included handle to the top of the fog machine using the provided screws and gaskets. This handle aids in portability.
3. Fill Fog Fluid Tank: Unscrew the cap of the fluid tank located on top of the machine. Carefully pour high-quality, water-based fog fluid into the tank. Do not overfill. The tank capacity is 350ml (0.079 gal). Monitor the fluid level indicator on the back of the machine. Securely replace the cap.
4. Connect Power: Plug the power cable into the power input socket on the back of the machine, then plug the other end into a standard AC 90-130V 60Hz or AC 220-240V 50Hz electrical outlet, depending on your region.

6. Operating Instructions

1. Power On and Warm-up: Flip the red 'On/Off' switch on the back of the machine to the 'On' position. The machine will begin to warm up. The preheating indicator lamp on the control panel will be red during this phase. Warm-up time is approximately 3-5 minutes.
2. Ready for Use: Once the preheating indicator lamp turns green, the machine is ready to produce fog.
3. Using the Wireless Remote Control:
   • Fog Control: Press the 'ON' button under 'FOG' to emit fog. Press 'OFF' to stop.
   • LED Control: Press the 'ON' button under 'LED' to turn on the LED lights. Press 'OFF' to turn them off.
   • Color Selection: Choose from 12 adjustable colors by pressing the corresponding color buttons on the remote.
   • Special Effects: Select 'JUMP' for color jumping, 'FADE' for color fading, or 'FLASH' for strobe effects.
   • The remote control has an effective range of 5-6 meters.
4. Manual Fog Button: Alternatively, you can press the green 'Fog' button on the back of the machine to manually spray fog.
5. Fog Output: The machine produces approximately 2000 CFM (cubic feet per minute) of smoke at a distance of 2-3 meters, with a duration of 30-40 seconds per burst.

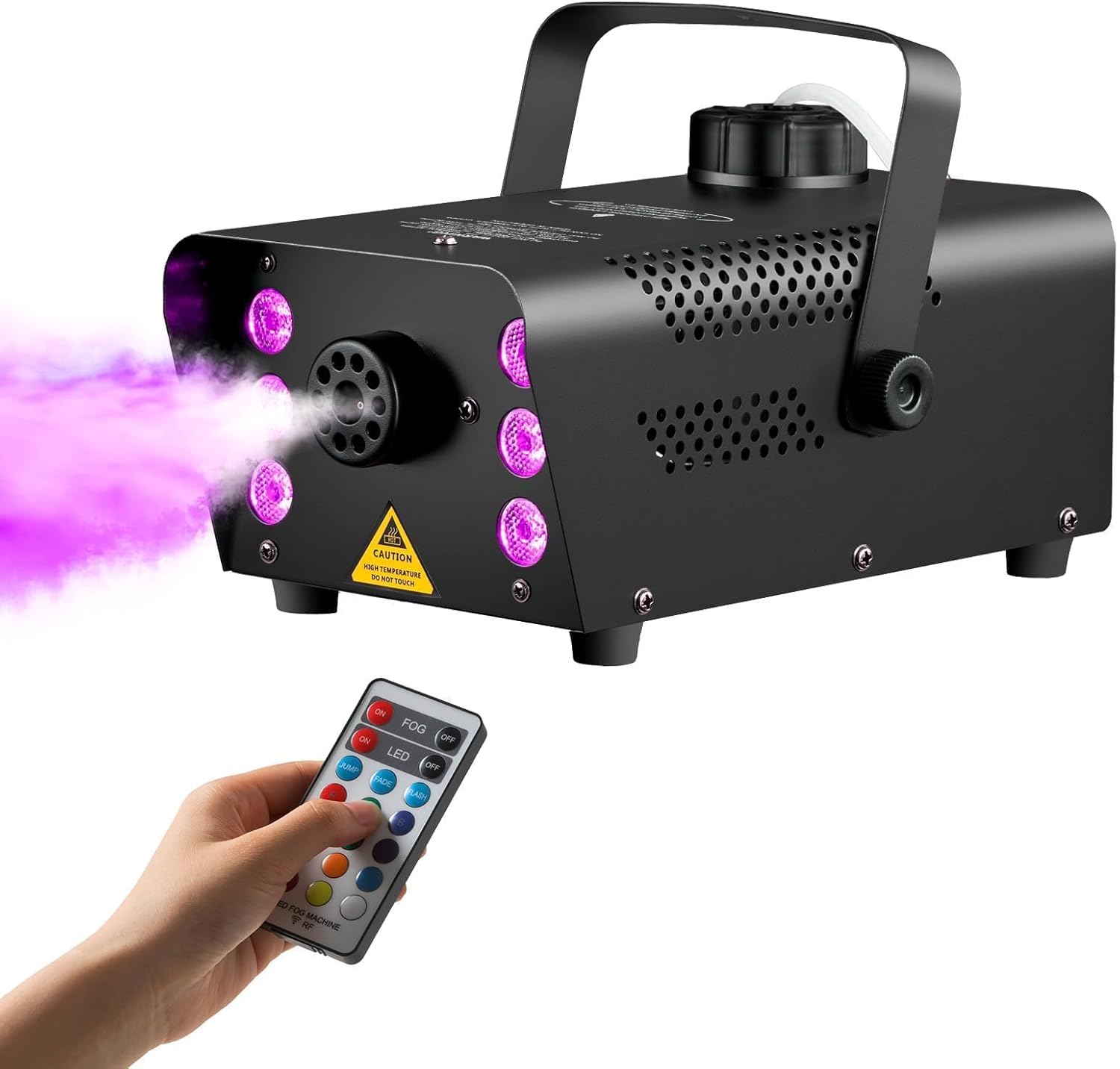

Figure 6.1: Operating the fog machine with the wireless remote. The image shows the machine emitting purple fog, demonstrating the LED light integration with fog output.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your fog machine.

• Cleaning: After every 40 hours of continuous operation or before extended storage, it is recommended to run a cleaning solution through the machine. Use a mixture of 80% distilled water and 20% white vinegar. Fill the fluid tank with this solution and run the machine in a well-ventilated area until the tank is empty. This helps prevent clogs in the heating element.
• Exterior Cleaning: Wipe the exterior of the machine with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: When not in use, ensure the fluid tank is empty or contains fresh fog fluid. Store the machine in a cool, dry place, away from direct sunlight and extreme temperatures.
• Fuse Replacement: If the machine fails to power on, check the fuse. Replace only with a fuse of the same size and type (125V 10A).

8. Troubleshooting

If you encounter issues with your Sunolga fog machine, refer to the following common problems and solutions:

9. Specifications

Figure 9.1: Dimensions of the Sunolga YG-2200 Fog Machine. The image indicates a length of 10.16 inches, a width of 5.5 inches, and a height of 3.9 inches.

10. Warranty and Support

Sunolga stands by the quality of its products. For any questions, concerns, or technical support regarding your YG-2200 Fog Machine, please refer to the contact information provided with your purchase or visit the official Sunolga website. Please retain your proof of purchase for any warranty claims.
