SGEYR HDMI 2.0 Switch 4x1 User Manual

1. Introduction

The SGEYR HDMI 2.0 Switch 4x1 allows you to connect up to four HDMI source devices to a single HDMI display. This device supports high-resolution video up to 4K@60Hz, including HDR and 3D content, and is compliant with HDCP 2.2. It provides a convenient solution for managing multiple HDMI inputs without frequently plugging and unplugging cables.

2. Package Contents

Please check the package contents upon unboxing to ensure all items are present:

• SGEYR HDMI 2.0 Switch 4x1 Unit
• IR Remote Control
• USB Power Cable with Adapter
• User Manual

Image: Contents of the SGEYR HDMI 2.0 Switch 4x1 package.

3. Product Overview

The SGEYR HDMI 2.0 Switch 4x1 features a compact metal casing for durability and efficient heat dissipation. It includes multiple input ports and a single output port, along with status indicators and a control button.

Front Panel

• IR Receiver: For receiving signals from the IR remote control.
• Input Indicators (1-4): LEDs illuminate to show the currently selected HDMI input.
• Power Indicator: LED illuminates when the device is powered on.
• Select Button: Press to manually cycle through the HDMI input sources.

Rear Panel

• HDMI Input Ports (1-4): Connect your HDMI source devices (e.g., game consoles, Blu-ray players, PCs).
• DC 5V Power Input: Connect the provided USB power cable and adapter.

Side Panel

• HDMI Output Port: Connect to your HDMI display (e.g., TV, monitor, projector).

Image: Front and rear views of the HDMI switch, showing input/output ports and indicators.

Image: Detailed view of the HDMI switch dimensions and input ports.

4. Setup Instructions

Follow these steps to connect your SGEYR HDMI 2.0 Switch 4x1:

1. Connect HDMI Source Devices: Use HDMI cables to connect up to four HDMI source devices (e.g., PS4, Xbox, PC, DVD player) to the HDMI Input 1, 2, 3, and 4 ports on the switch.
2. Connect to Display: Connect an HDMI cable from the HDMI Output port on the switch to the HDMI input port on your TV, monitor, or projector.
3. Power On: Connect the provided USB power cable to the DC 5V input on the switch, and then plug the power adapter into a wall outlet. The power indicator LED on the front panel will illuminate.
4. Select Input: The switch will automatically detect and display the first active HDMI source. If multiple sources are active, you can switch between them using the 'Select' button on the front panel or the IR remote control.

Image: Connection diagram for the HDMI switch.

Video: A demonstration of connecting and switching between HDMI sources using the SGEYR HDMI 2.0 Switch 4x1.

5. Operating Instructions

The SGEYR HDMI 2.0 Switch 4x1 offers two methods for switching between connected HDMI sources:

Manual Switching

Press the 'Select' button on the front panel of the HDMI switch to cycle through the input sources (Input 1 → Input 2 → Input 3 → Input 4 → Input 1, and so on). The corresponding LED indicator will light up to show the active input.

IR Remote Control

Use the provided IR remote control to switch inputs directly. Point the remote towards the IR receiver on the front panel of the switch.

• ON/OFF Button: Powers the switch on or off.
• Number Buttons (1, 2, 3, 4): Directly select the corresponding HDMI input source.
• Arrow Buttons: Cycle through the input sources sequentially.

Image: Using the IR remote control to operate the HDMI switch.

6. Key Features

The SGEYR HDMI 2.0 Switch 4x1 is designed to enhance your audio-visual experience with the following features:

• HDMI 2.0 Compliance: Supports the latest HDMI 2.0 standards.
• 4K@60Hz Resolution: Delivers crystal-clear video at resolutions up to 3840x2160 at 60Hz.
• HDR Support: Compatible with High Dynamic Range for enhanced contrast and color.
• 3D Support: Enjoy immersive 3D content.
• HDCP 2.2 Compliance: Ensures compatibility with protected content.
• High Bandwidth: Supports 18Gbps data transmission for stable and fast signals.
• Automatic Switching: Can automatically switch to the newly powered-on source.
• Manual & Remote Control: Flexible input selection via button or IR remote.
• Wide Compatibility: Works with various HDMI devices including game consoles (PS3/PS4, Xbox), DVD/Blu-ray players, PCs, HDTVs, and projectors.

Image: The HDMI switch supports 4K UHD HDR standards.

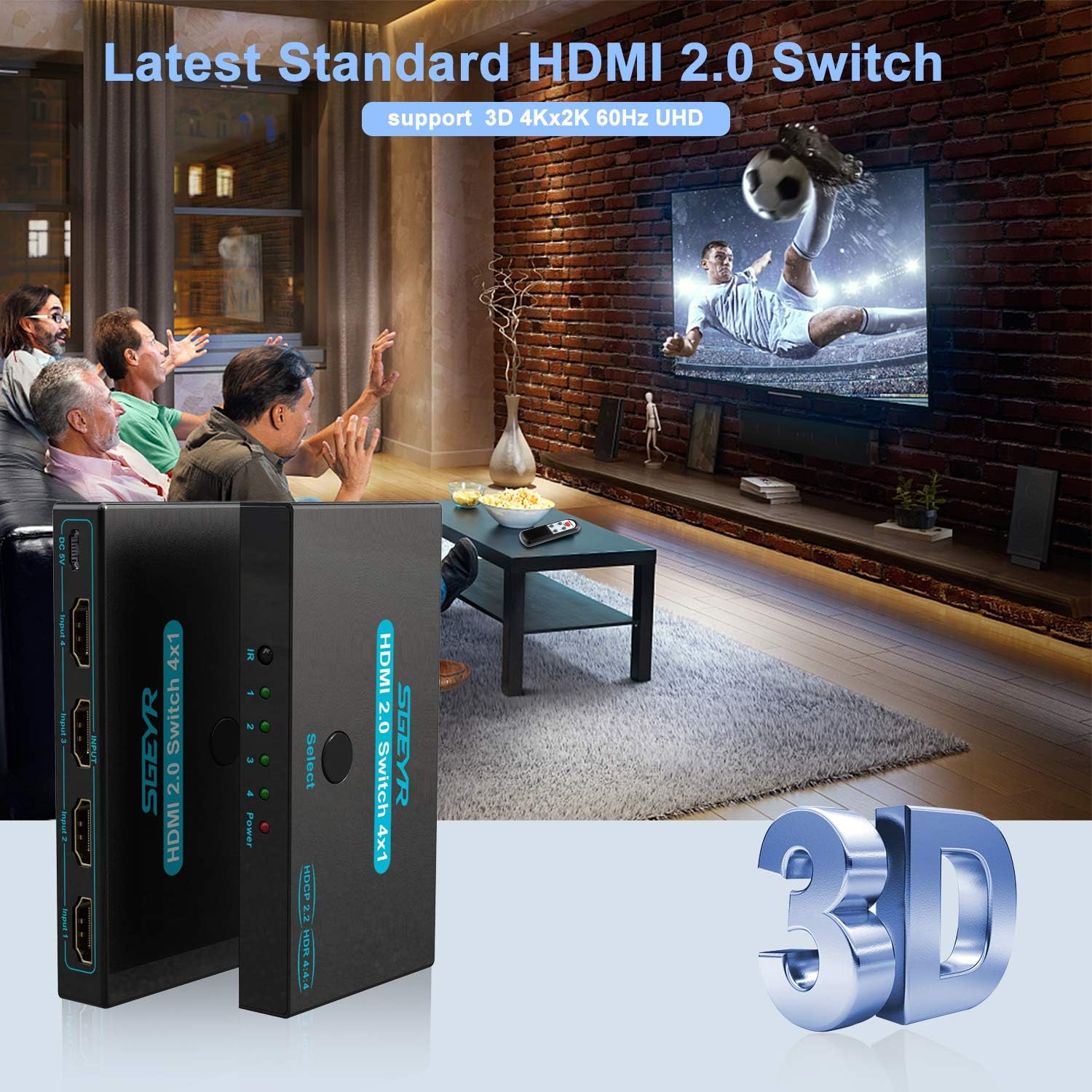

Image: The HDMI switch supports 3D and 4Kx2K 60Hz UHD.

Image: Enjoying 4K Ultra HD gaming with the HDMI switch.

7. Specifications

8. Troubleshooting

If you encounter issues with your HDMI switch, please refer to the following common problems and solutions:

• No Signal / Black Screen:
  • Ensure all HDMI cables are securely connected to both the source devices, the switch, and the display.
  • Verify the power adapter is correctly connected and the power indicator on the switch is lit.
  • Try using different HDMI cables, especially high-quality HDMI 2.0 cables for 4K@60Hz content.
  • Cycle through the input sources manually using the 'Select' button on the switch or the remote.
  • Check your display's input settings to ensure the correct HDMI port is selected.
  • Some devices may require a specific boot order. Try powering on the display first, then the HDMI switch, and finally the source device.
• Flickering or Intermittent Signal:
  • This can often be resolved by using shorter, higher-quality HDMI cables.
  • Ensure the power supply is stable.
  • Reduce the resolution or refresh rate of the source device to see if the issue persists.
• Remote Control Not Working:
  • Ensure there are no obstructions between the remote and the IR receiver on the switch.
  • Check and replace the batteries in the remote control.
  • Confirm the remote is pointed directly at the IR receiver.
• No Audio:
  • Verify that the audio settings on your source device and display are correctly configured.
  • Ensure the HDMI cables are fully inserted.
  • Test with a different HDMI cable.

9. Maintenance

To ensure the longevity and optimal performance of your SGEYR HDMI 2.0 Switch 4x1, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to clean the device. Avoid using liquid or aerosol cleaners.
• Placement: Place the switch in a well-ventilated area, away from direct sunlight, heat sources, and moisture.
• Handling: Handle the device with care. Avoid dropping or subjecting it to strong impacts.
• Power: Always use the provided power adapter. Disconnect power during electrical storms or when unused for long periods.

10. Warranty and Support

SGEYR is committed to providing high-quality products and customer satisfaction. This product comes with a standard manufacturer's warranty covering defects in materials and workmanship under normal use.

• Warranty Period: Please refer to your purchase documentation or the official SGEYR website for specific warranty duration.
• Technical Support: For technical assistance, troubleshooting, or warranty claims, please contact SGEYR customer support. Contact information can typically be found on the product packaging or the official SGEYR website.

SGEYR offers lifetime technical support for its products. Feel free to reach out if you have any questions or require assistance.
