LIVINGbasics Adjustable Height Shower Chair Instruction Manual

1. Product Overview

The LIVINGbasics Adjustable Height Shower Chair is designed to provide a safe and comfortable bathing experience. This bath and shower seat is ideal for individuals who may have difficulty standing for extended periods, including the elderly, seniors, adults with disabilities, pregnant women, or those recovering from surgery or injury. Its thoughtful design aims to reduce the risk of falls and enhance independence in the shower or tub.

Key Features:

• Adjustable Height: Features a 5-level seat height setting to accommodate various user needs.
• Non-Slip Design: Equipped with drain holes to prevent water accumulation on the seat and stable rubber-capped feet for enhanced safety on wet surfaces.
• Lightweight & Durable: Constructed with an aluminum frame, supporting up to 200 lbs while remaining easily portable.
• Ergonomic Handrails: Integrated handrails on both sides provide additional support and stability.

2. Safety Information

Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in injury.

• Weight Capacity: Do not exceed the maximum weight capacity of 200 lbs (100 kg).
• Stability: Ensure all four legs are evenly adjusted and firmly placed on the floor before use.
• Inspection: Regularly inspect the bath chair for any damaged or loose components, cracks, or ruptures in the plastic. Discontinue use if any damage is found.
• Non-Slip Feet: The rubber-capped feet are designed to prevent slipping. Ensure they are clean and free of debris for optimal grip.
• Do Not Stand: This shower chair is designed for sitting only. Do not stand on the chair.
• Adjusting Height: Do not adjust the leg height while seated on the chair.

3. Parts List

Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Seat (with drain holes and integrated handrails)
• Curved Main Frame (x2)
• Leg Extension Pieces (x4)
• Crossbars (x2)
• Knobs/Washers (for securing crossbars)
• Rubber Tips (pre-installed on leg extensions)
• Soft & Removable Pad (optional for comfortable seating)
• Shower Head Holder (optional accessory)

4. Setup and Assembly

The LIVINGbasics Shower Chair is designed for tool-free assembly, typically taking only a few minutes.

1. Attach Main Frames: Insert the curved main frame pieces into the underside of the seat. Ensure they interlock to form an 'X' shape. Secure them using the provided knobs and washers.
2. Install Leg Extensions: Insert the four leg extension pieces into the main frame. Press the push-button on each leg extension and slide it into the corresponding opening on the main frame until it clicks into place. Ensure all legs are securely attached.
3. Adjust Height: Press the push-button on each leg extension and slide the inner tube up or down to your desired height. Ensure the button snaps securely into one of the 5 adjustment holes. Repeat for all four legs, ensuring they are at the same height for stability.
4. Attach Soft Pad (Optional): If using, remove the adhesive backing from the soft pad and firmly press it onto the seat surface, aligning the drain holes.
5. Attach Shower Head Holder (Optional): Snap the shower head holder onto any of the chair's legs at a convenient height.

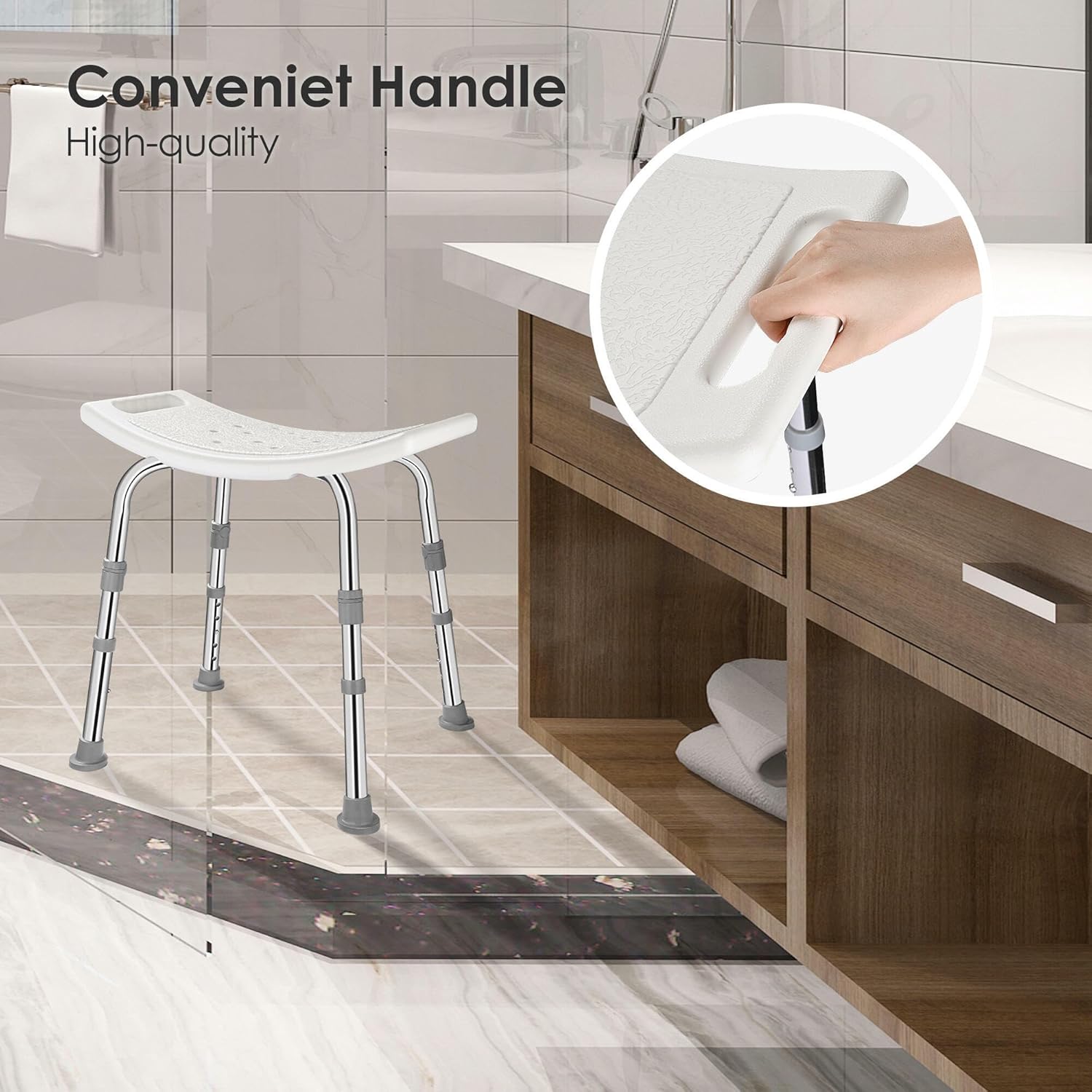

Image: Fully assembled LIVINGbasics Shower Chair, ready for use.

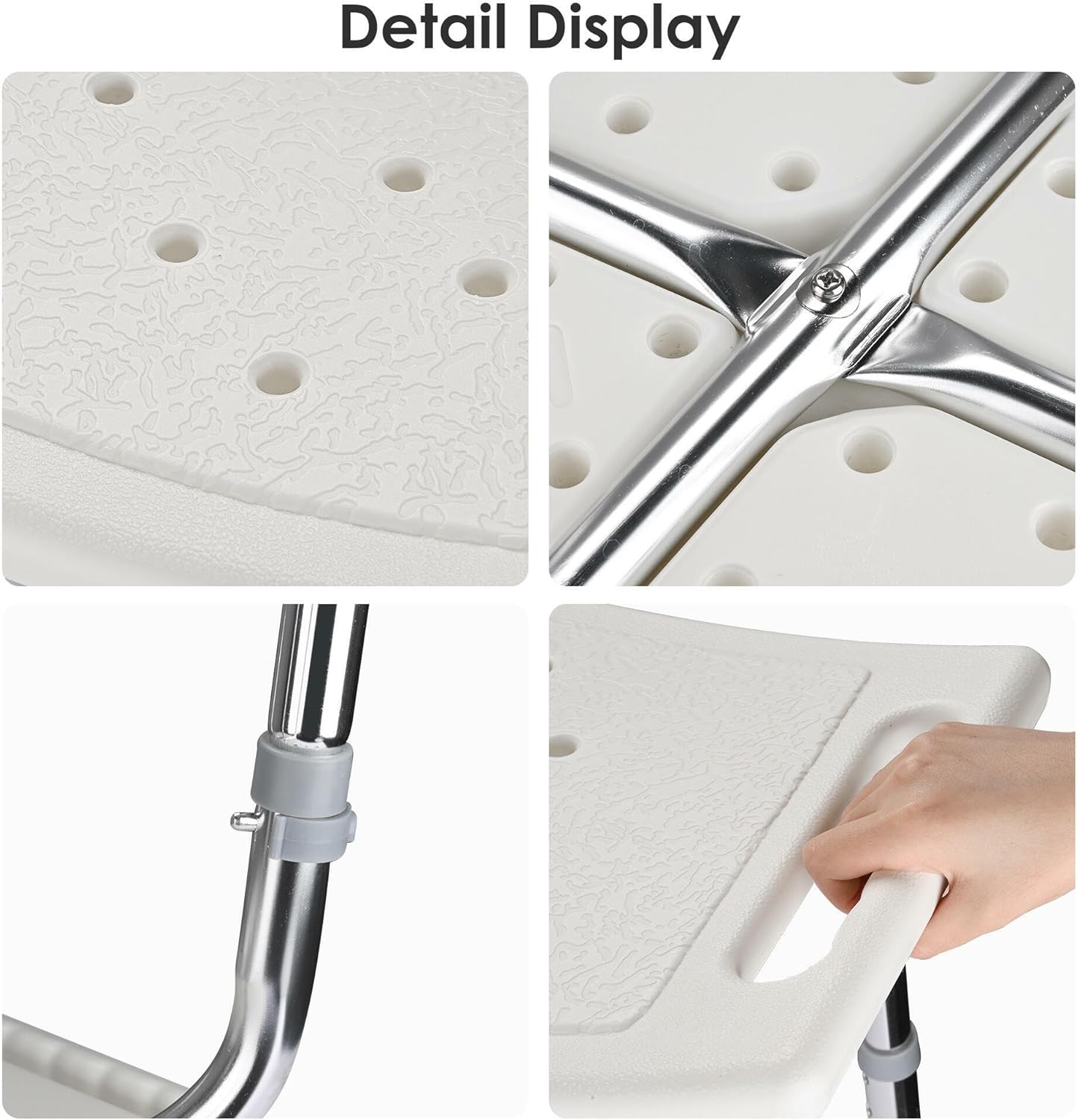

Image: Detail Display showing the underside crossbar connections and leg adjustment mechanism.

5. Operating Instructions

Using your LIVINGbasics Shower Chair is straightforward and designed for convenience.

• Placement: Position the shower chair securely in your shower or bathtub. Ensure all four rubber-capped feet are in full contact with the surface to prevent movement.
• Seating: Carefully sit on the chair, using the integrated handrails for support if needed.
• Height Adjustment: If the height needs to be changed, exit the chair first. Press the push-buttons on each leg and adjust to the desired height, ensuring all legs are set equally.
• Shower Head Holder: If installed, place your detachable shower head in the holder for hands-free showering.

Image: The shower chair positioned inside a shower stall, demonstrating its compact size and stability.

6. Maintenance

Proper maintenance will ensure the longevity and safe operation of your shower chair.

• Cleaning: Clean with regular household cleaning products. Avoid abrasive cleaners or scouring pads that could damage the surface.
• Drying: After each use, allow the chair to air dry to prevent mold and mildew buildup, especially on the removable pad.
• Inspection: Periodically check all screws, knobs, and leg extensions to ensure they are tight and secure. Verify that the rubber tips on the legs are not worn or damaged.

Image: Close-up of the shower chair seat demonstrating the 12 drain holes for efficient water drainage.

7. Troubleshooting

If you encounter any issues with your shower chair, please refer to the following common solutions:

• Chair feels unstable: Ensure all leg extensions are fully inserted and the push-buttons are securely engaged. Verify that all four legs are set to the same height and are making firm contact with the floor.
• Legs are slipping: Check that the rubber tips on the feet are clean and undamaged. Ensure the shower floor is free of excessive soap residue or slippery substances.
• Difficulty adjusting height: Ensure the push-button is fully depressed before attempting to slide the leg extension. If the button is stuck, clean any debris around it.

If you are unable to resolve an issue, please contact LIVINGbasics customer support for assistance.

8. Specifications

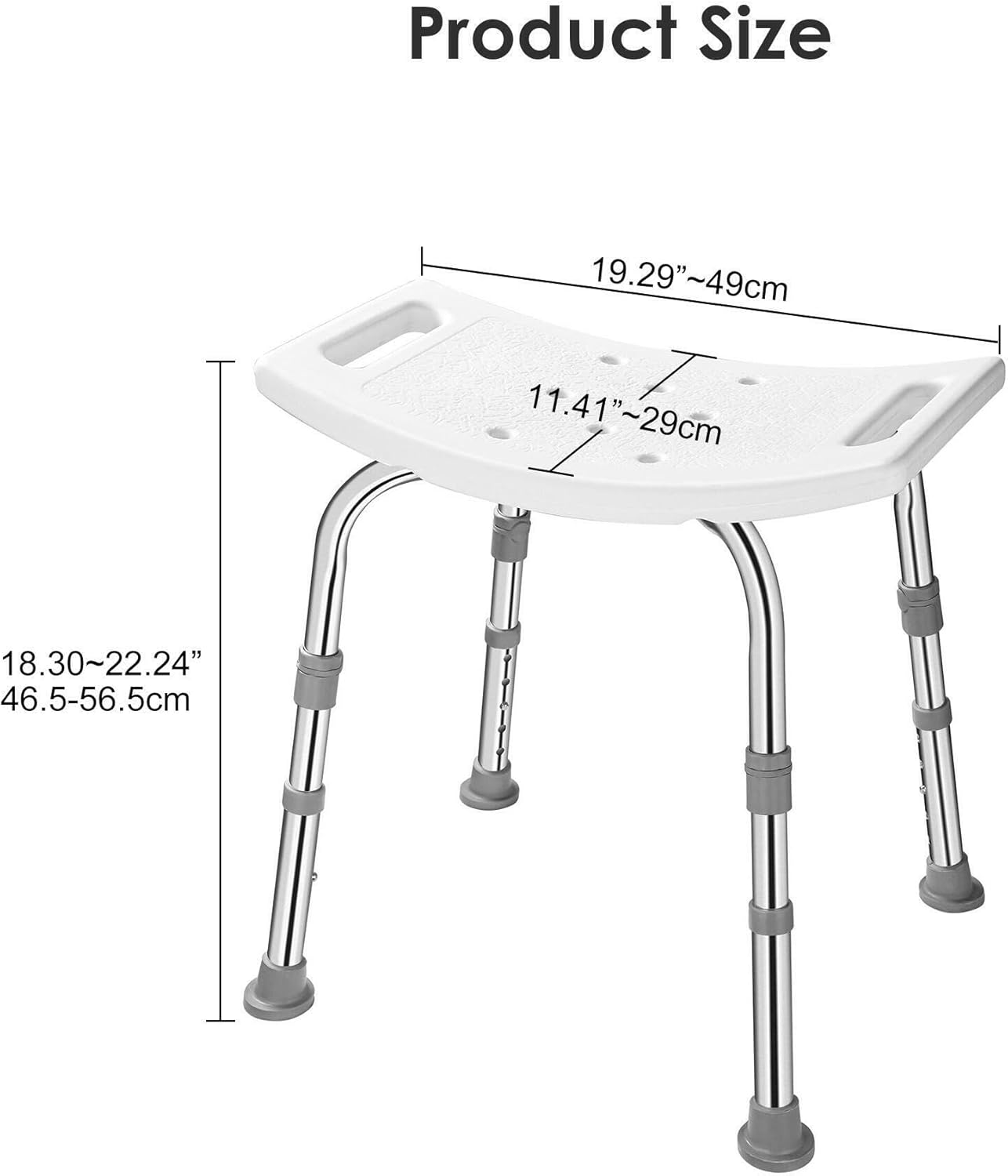

Image: Detailed product dimensions including seat width, depth, and adjustable height range.

Image: Visual representation of the 5-level height adjustment feature of the shower chair.

Image: Close-up view of the non-slip rubber tips on the shower chair legs, designed for stability.

9. Warranty and Support

For warranty information or customer support, please refer to the product packaging or contact LIVINGbasics directly through their official website or the retailer where the product was purchased.
