Product Overview
The True Induction TI-1SSC Commercial Single Burner Induction Cooktop is designed for commercial kitchen environments, offering efficient and precise cooking. This portable unit features a durable stainless steel body and a glass-ceramic cooking surface. It operates on a standard 120V power supply and provides 1750 watts of power.
Key features include:
- Adjustable Leveling Legs for stable placement.
- Automatic Shut-Off if cookware is not present, enhancing safety.
- Stainless Steel Housing for durability and easy cleaning.
- 9 power levels for precise heat control.
- 11 adjustable temperature settings ranging from 150°F to 450°F.
- Quick touch level selection, precise temperature adjustments, wattage settings, and timer options.

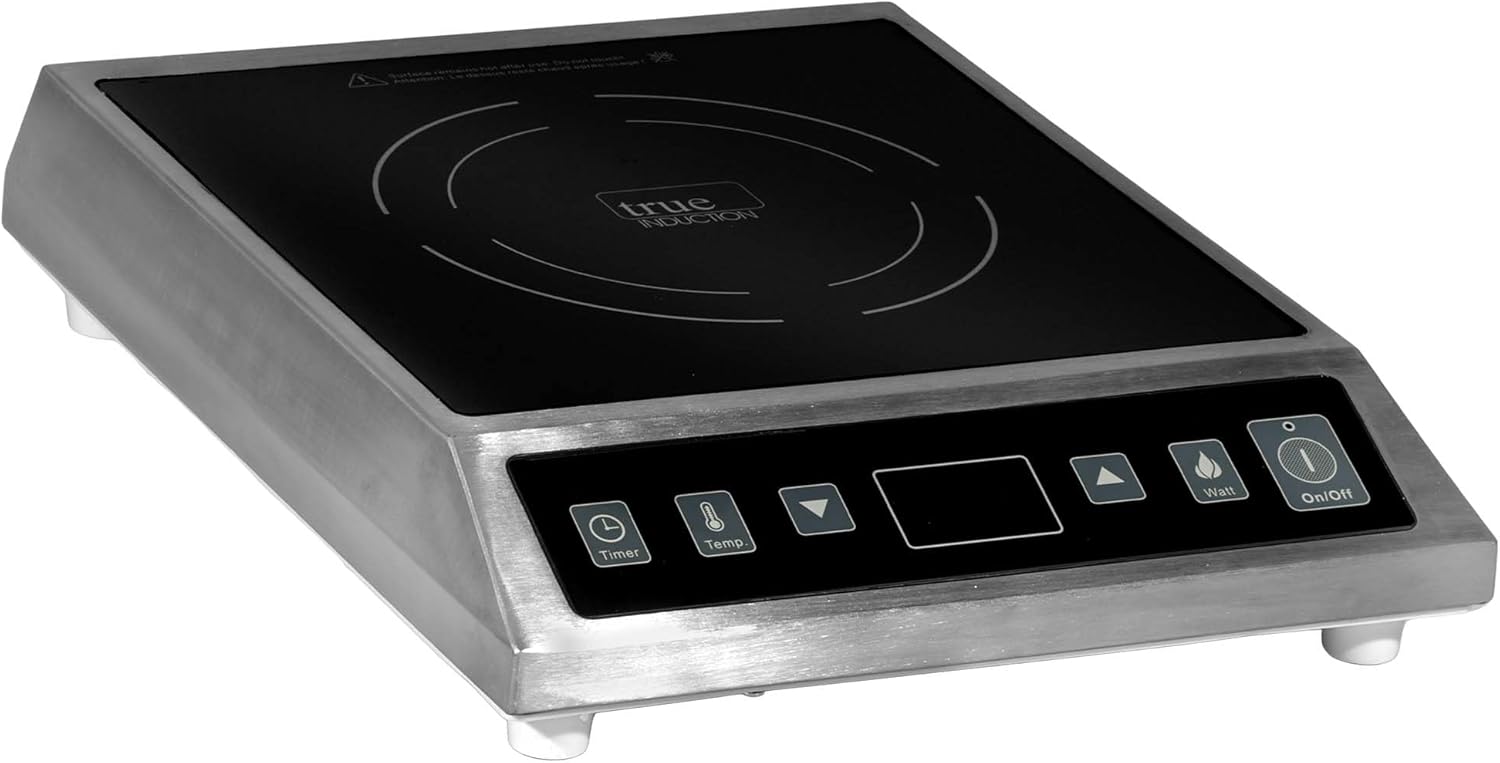

Image: The True Induction TI-1SSC Commercial Single Burner Induction Cooktop, showing its stainless steel base and black glass-ceramic cooking surface with control panel.
Important Safety Instructions
Read all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Electrical Safety: Ensure the power outlet matches the cooktop's voltage (120V). Do not use extension cords unless absolutely necessary and ensure they are rated for the appliance's wattage.
- Placement: Place the cooktop on a stable, level, heat-resistant surface. Ensure adequate ventilation around the unit. Do not block air vents.
- Cookware: Use only induction-compatible cookware. Non-compatible cookware will not heat.
- Hot Surface: The glass-ceramic surface may remain hot after use. Do not touch until it has cooled.
- Children and Pets: Keep children and pets away from the appliance during operation and while it is cooling.
- Water and Liquids: Do not immerse the cooktop in water or any other liquid. Do not operate with wet hands.
- Foreign Objects: Do not place metal objects such as knives, forks, spoons, or lids on the cooktop surface as they can become hot.
- Medical Implants: Individuals with pacemakers or similar medical implants should consult their doctor before using an induction cooktop.
- Cleaning: Always unplug the cooktop before cleaning.
Setup
- Unpacking: Carefully remove the cooktop from its packaging. Retain packaging for future storage or transport.
- Placement: Place the cooktop on a flat, stable, and heat-resistant surface. Ensure there is at least 4 inches (10 cm) of clear space around the unit for proper ventilation.
- Leveling: Adjust the leveling legs on the bottom of the unit to ensure it sits evenly and stably on the counter.
- Power Connection: Plug the power cord into a standard 120V AC electrical outlet. Ensure the outlet is properly grounded.

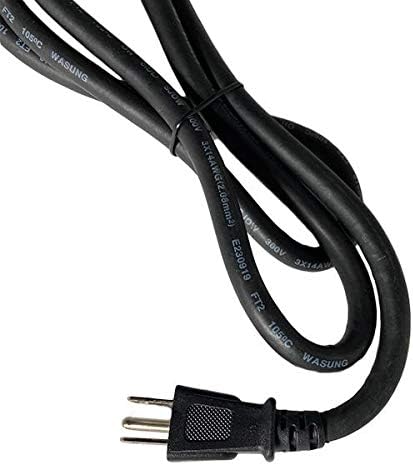

Image: Close-up of the 120V power cord for the True Induction TI-1SSC cooktop.
Operating Instructions
The True Induction TI-1SSC cooktop features a touch control panel for easy operation.
Image: Close-up of the control panel with buttons for Timer, Temp, Watt, and On/Off.
- Power On/Off:
- Press the On/Off button to turn the unit on. The display will illuminate.
- Press the On/Off button again to turn the unit off.
- Cookware Detection: Place induction-compatible cookware on the center of the cooking zone. The unit will automatically detect the cookware. If no cookware is detected within a few seconds, the unit will display an error and shut off.
- Adjusting Power (Wattage):
- After turning on, press the Watt button.
- Use the Up (▲) and Down (▼) arrows to select one of the 9 power levels.
- Adjusting Temperature:
- Press the Temp button.
- Use the Up (▲) and Down (▼) arrows to select a temperature between 150°F and 450°F (in 25°F increments).
- The unit will cycle on and off to maintain the selected temperature.
- Setting the Timer:
- Press the Timer button.
- Use the Up (▲) and Down (▼) arrows to set the desired cooking time.
- Once the timer expires, the cooktop will automatically shut off.
Image: Top-down view of the cooktop showing the digital display set to 365°F.
Maintenance and Cleaning
Proper maintenance ensures the longevity and optimal performance of your induction cooktop.
- Before Cleaning: Always unplug the cooktop from the power outlet and allow it to cool completely before cleaning.
- Glass-Ceramic Surface:
- Wipe the surface with a damp cloth and a mild detergent.
- For stubborn stains, use a non-abrasive ceramic cooktop cleaner.
- Do not use abrasive pads, harsh chemicals, or scouring powders, as these can scratch or damage the surface.
- Stainless Steel Housing:
- Wipe with a soft, damp cloth. For best results, use a stainless steel cleaner and polish.
- Avoid using abrasive cleaners or steel wool, which can scratch the finish.
- Control Panel: Wipe gently with a soft, damp cloth. Ensure no liquid enters the control panel area.
- Ventilation Openings: Keep the ventilation openings clear of dust and debris to prevent overheating. Use a soft brush or vacuum cleaner to gently remove any blockages.
- Storage: When not in use, store the cooktop in a clean, dry place.
Troubleshooting
If you encounter issues with your True Induction cooktop, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | No power, loose plug, faulty outlet. | Check power cord connection. Ensure outlet is functional. Check circuit breaker. |
| Cookware not heating. | Non-induction compatible cookware, cookware not centered, small cookware base. | Use induction-compatible cookware. Center cookware on the cooking zone. Ensure cookware base is large enough (minimum 4.7 inches / 12 cm diameter). |
| Display shows an error code (e.g., E0, E1, E2). | Specific error condition (e.g., no cookware, overheating, internal fault). | Refer to the specific error code in the full manual (if available). Generally, try turning the unit off and on again. Ensure cookware is present and properly placed. If overheating, allow the unit to cool. |
| Unit shuts off unexpectedly. | Overheating, no cookware detected, timer expired. | Allow unit to cool. Ensure cookware is present. Check if the timer was set. |
If the problem persists after attempting these solutions, contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | TI-1SSC |
| Brand | True Induction |
| Power Source | 120V AC |
| Wattage | 1750 watts |
| Number of Heating Elements | 1 |
| Temperature Settings | 11 levels (150°F - 450°F) |
| Power Levels | 9 levels |
| Material | Ceramic Glass, Stainless Steel |
| Color | Black |
| Product Dimensions (D x W x H) | 15" x 12" x 3.5" |
| Item Weight | 10.5 Pounds |
| Certifications | UL197 Listed, CETL Certified, FCC Compliant |

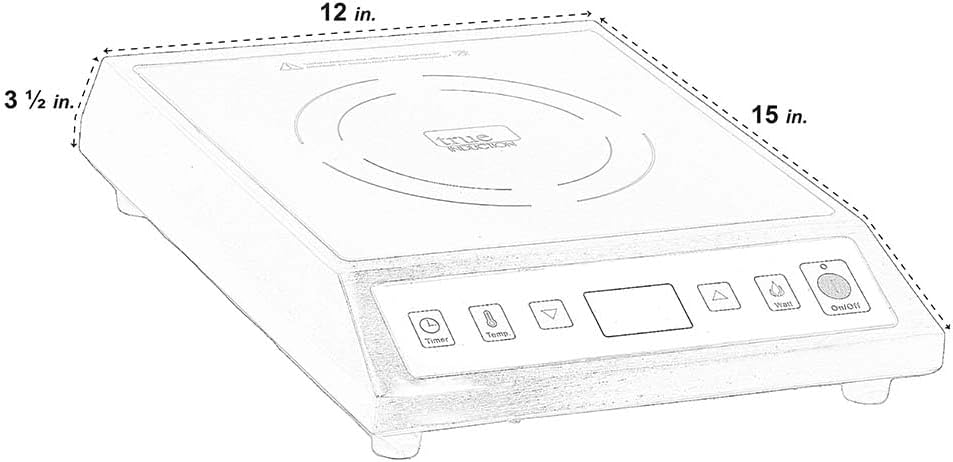

Image: Diagram showing the dimensions of the True Induction TI-1SSC cooktop: 15 inches deep, 12 inches wide, and 3.5 inches high.
Image: Logos indicating UL197 Listed Standards, CETL Certification, and Federal Communications Commission (FCC) compliance.
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact True Induction customer service. Keep your purchase receipt and model number (TI-1SSC) handy when contacting support.
You can often find support contact details on the manufacturer's official website or through the retailer where the product was purchased.
