1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your TEANDE Electric Pressure Washer. Designed for removing dirt and grime, this unit is suitable for cleaning bicycles, cars, garden tools, garden furniture, decks, patios, driveways, and siding.
Please read this manual thoroughly before first use and retain it for future reference.
2. Safety Information
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Electrical Safety: Ensure the power cord is connected to a grounded outlet. The unit includes an inline GFCI for safety. Do not use if the cord is damaged. Keep all connections dry.
- Water Pressure: The pressure washer generates high-pressure water streams. Never direct the spray at people, pets, or electrical devices.
- Personal Protective Equipment: Wear safety glasses or goggles, hearing protection, and appropriate clothing to protect against spray and debris.
- Stability: Operate the pressure washer on a stable, level surface.
- Children and Pets: Keep children and pets away from the operating area.
- Total Stop System (TSS): The unit features a Total Stop System which automatically shuts off the pump when the trigger is not engaged. This prolongs pump life and saves energy.
3. Package Contents
Verify that all items are present in the package:
- TEANDE Electric Pressure Washer Unit
- High Pressure Water Gun (Spray Wand)
- High Pressure Hose (16 ft)
- 4 Quick-Connect Spray Tips (0°, 15°, 25°, 45°)
- Foam Bottle (Detergent Bottle)
- Water Inlet Connector
- Nozzle Cleaning Pin
- Instruction Manual
Image 3.1: Included components of the TEANDE Electric Pressure Washer, showing the main unit, spray gun, hose, nozzles, foam bottle, and manual.
4. Components Overview
Familiarize yourself with the parts of your pressure washer:
Image 4.1: Front and rear view of the pressure washer with key components labeled.
- Portable Handle: For easy transport of the unit.
- High Pressure Water Gun: The main spray tool.
- Gun Stock: Storage location for the spray gun.
- Switch: Power ON/OFF for the unit.
- Inlet: Water supply connection point.
- Outlet: High-pressure hose connection point.
- Foam Bottle: For applying detergent.
- Cable Stock: Storage for the power cord.
- Water Pipe Stock: Storage for the high-pressure hose.
Image 4.2: Detailed views of the detergent bottle, water outlet, water inlet, and cable storage.
5. Setup
- Assemble the Spray Gun: Connect the high-pressure water gun to the spray wand.
- Connect High-Pressure Hose: Attach one end of the 16 ft high-pressure hose to the pressure washer's outlet and the other end to the high-pressure water gun. Ensure connections are secure.
- Connect Water Supply: Attach a garden hose (not included) to the water inlet on the pressure washer. Ensure the garden hose is free of kinks and has a steady water supply.
- Connect Power: Plug the 32 ft power cord with the inline GFCI into a grounded electrical outlet. Ensure the GFCI is functioning correctly before use.
- Purge Air from System: Before turning on the power, turn on the water supply fully. Squeeze the trigger on the spray gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges from the nozzle.
6. Operating Instructions
6.1 Starting the Pressure Washer
- Ensure all connections are secure and the water supply is on.
- Turn the power switch to the "ON" position.
- Squeeze the trigger on the spray gun to begin spraying. The pump will activate.
6.2 Using Spray Tips
The pressure washer comes with 4 quick-connect spray tips for various cleaning tasks:
- 0° (Red): Pin-point jet for intense cleaning of small, stubborn spots. Use with extreme caution.
- 15° (Yellow): Narrow spray for intensive cleaning of smaller areas.
- 25° (Green): Medium spray for general cleaning of larger areas.
- 45° (White): Wide spray for gentle cleaning of delicate surfaces.
To change tips, ensure the pressure washer is off and the trigger is locked. Pull back the collar on the spray gun, insert the desired tip, and release the collar to lock it in place.
6.3 Detergent Application
Fill the foam bottle with appropriate pressure washer detergent. Attach the foam bottle to the spray gun. The detergent will be applied at low pressure. After applying detergent, remove the foam bottle and rinse the surface with a suitable spray tip.
6.4 Total Stop System (TSS)
Image 6.1: Explanation of the Total Stop System (TSS) functionality.
The TSS automatically shuts off the pump when the trigger is released and restarts it when the trigger is pressed. This feature conserves energy, reduces noise, and extends the life of the pump.
6.5 Applications

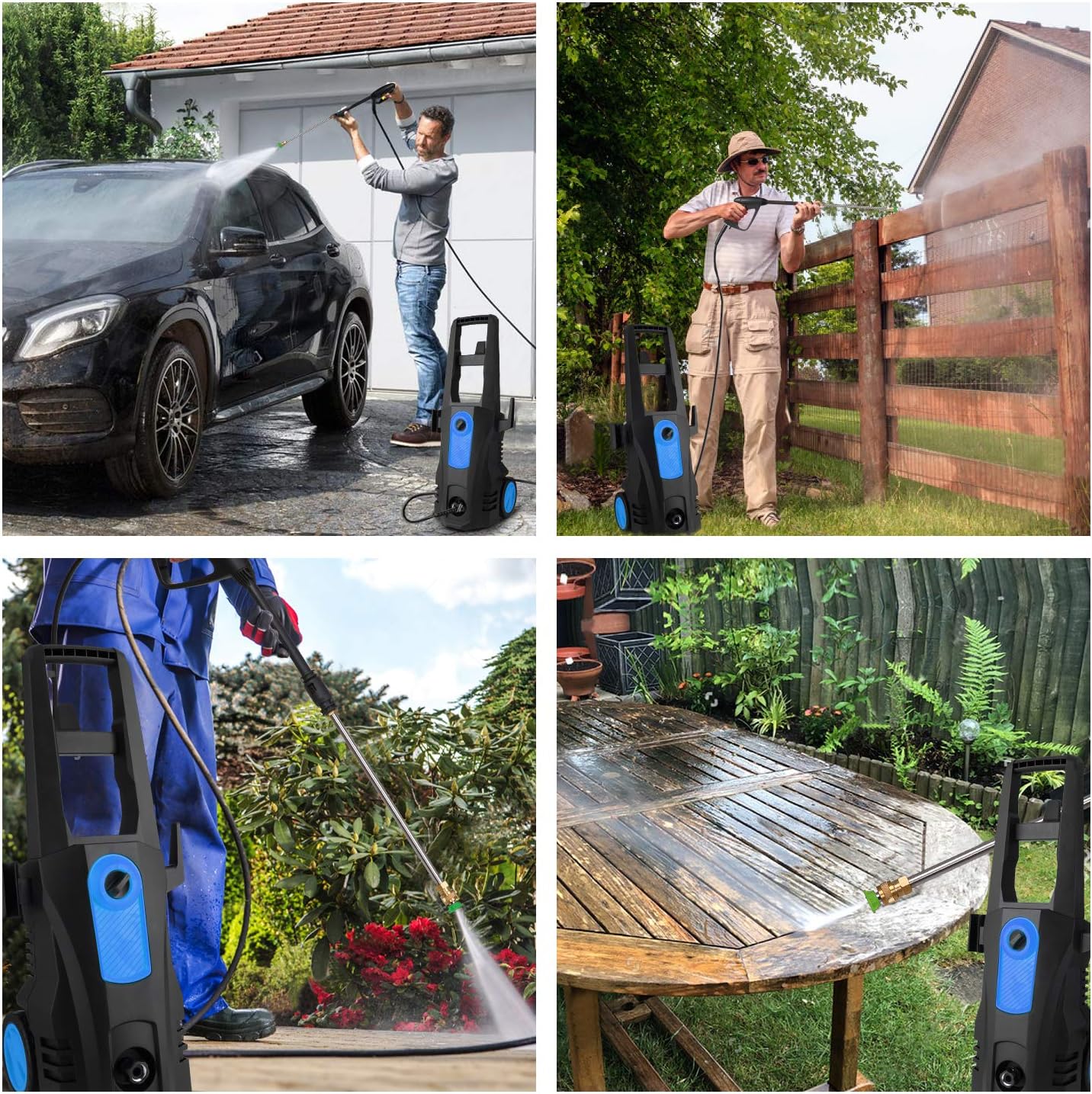

Image 6.2: Examples of the pressure washer in use for cleaning a car, fence, plants, and a patio table.
7. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pressure washer.
- Nozzle Cleaning: If a nozzle becomes clogged, use the provided nozzle cleaning pin to clear any debris.
- Water Filter: Periodically check and clean the water filter at the inlet to prevent debris from entering the pump.
- Storage: Before storing, disconnect the water supply and power. Squeeze the trigger to release any remaining pressure. Drain all water from the pump and hoses to prevent freezing damage in cold climates. Store the unit in a dry, protected area.
- Hose and Cord Care: Coil the high-pressure hose and power cord neatly on their respective storage stocks after each use. Avoid kinking the hose.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power supply; GFCI tripped; Power switch off | Check power connection; Reset GFCI; Turn power switch ON |
| Low pressure | Insufficient water supply; Clogged nozzle; Air in pump; Incorrect nozzle selected | Ensure full water flow; Clean nozzle; Purge air from system; Select appropriate nozzle |
| Water leaks | Loose connections; Damaged O-rings | Tighten all connections; Replace damaged O-rings |
| Motor runs but no water sprays | No water supply; Clogged inlet filter; Air in pump | Check water supply; Clean inlet filter; Purge air from system |
9. Specifications
- Brand: TEANDE
- Model: B089M5S6Y4
- Power Source: Corded Electric
- Maximum Pressure: 3500 PSI (Pound per Square Inch)
- Maximum Flow Rate: 2.6 GPM (Gallons Per Minute)
- Hose Length: 16 Feet
- Power Cord Length: 32 Feet (with inline GFCI)
- Motor Wattage: 1800W
Image 9.1: The portable design of the pressure washer with wheels and handle for easy mobility.
10. Warranty and Support
TEANDE products are designed for durability and performance. For any questions or support needs regarding your pressure washer, please refer to the contact information provided with your purchase or visit the official TEANDE support channels. The product is typically covered by a manufacturer's warranty; please consult your purchase documentation for specific warranty terms and duration.
