Emjoi Power All In 1 Smart Chef Hand Blender User Manual

Introduction

Thank you for purchasing the Emjoi Power All In 1 Smart Chef Hand Blender. This versatile appliance is designed to simplify your kitchen tasks, offering functions such as blending, chopping, shredding, slicing, and ice crushing. With its ergonomic design and powerful 800-watt motor, it provides efficient and reliable performance. Please read this manual carefully before first use to ensure safe and optimal operation.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the appliance.
• To protect against risk of electrical shock, do not immerse the motor unit, cord, or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Keep hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
• Blades are sharp. Handle with care.
• Always ensure the lid is securely locked in place before operating the appliance.
• Do not process hot liquids in the chopper bowl without allowing them to cool slightly.

Product Components

The Emjoi Power All In 1 Smart Chef Hand Blender comes with several components designed for various kitchen tasks:

• Motor Unit: The main body containing the motor, control buttons (ON/OFF, TURBO), and speed dial.
• Blending Shaft: A long stainless steel shaft with an anti-splash blade guard, ideal for blending soups and beverages.
• Chopper Bowl with Blade: A container with a sharp chopping blade for processing ingredients like vegetables, nuts, and ice.
• Whisk Attachment: For whipping cream, beating eggs, and preparing light batters.
• Slicing/Shredding Disc: For uniform slicing and shredding of vegetables and other foods.

Image: The Emjoi Power All In 1 Smart Chef Hand Blender assembled with its chopper attachment, showcasing the main motor unit, the clear chopper bowl, and the handle. This configuration is used for chopping and processing larger quantities of ingredients.

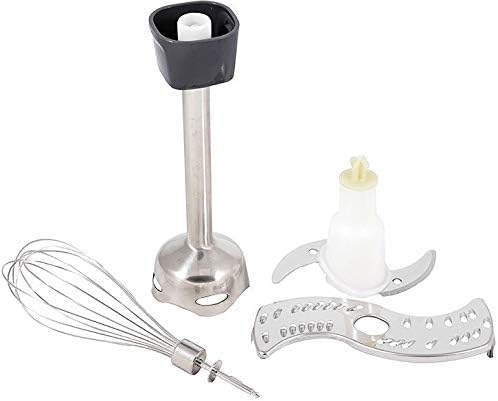

Image: Various accessories included with the Emjoi Power Hand Blender. From left to right: a whisk attachment, the blending shaft, a chopper blade, and a slicing/shredding disc. These attachments enable the multi-functional capabilities of the appliance.

Setup and Assembly

Before first use, clean all parts that will come into contact with food. Refer to the "Cleaning and Maintenance" section.

Assembling the Hand Blender:

1. Align the blending shaft with the motor unit.
2. Twist the blending shaft clockwise until it locks securely into place.
3. To detach, twist counter-clockwise and pull apart.

Image: The Emjoi Power Hand Blender motor unit with the blending shaft attached, ready for use. This configuration is ideal for blending directly in pots or tall containers.

Assembling the Chopper Attachment:

1. Place the chopper blade onto the central pin inside the chopper bowl. Ensure it sits firmly.
2. Add your ingredients to the chopper bowl. Do not overfill.
3. Place the chopper lid onto the bowl, aligning the tabs.
4. Attach the motor unit to the chopper lid, twisting until it locks.

Assembling the Whisk Attachment:

1. Insert the whisk into the whisk gear box.
2. Attach the whisk gear box to the motor unit, twisting until it locks.

Operating Instructions

Always ensure the appliance is properly assembled and plugged into a suitable power outlet before operation.

General Operation:

• Plug the appliance into a power outlet.
• Adjust the speed using the multi-speed dial located on the top of the motor unit.
• Press the "ON" button to start operation at the selected speed.
• For maximum power, press and hold the "TURBO" button. This bypasses the speed dial and operates at full speed.
• Release the button to stop operation.

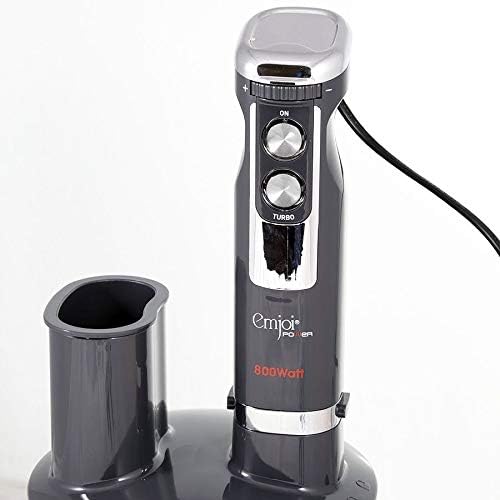

Image: A close-up view of the Emjoi Power Hand Blender's motor unit, highlighting the speed adjustment dial at the top and the "ON" and "TURBO" control buttons. The ergonomic design and LED blue light soft touch buttons are visible.

Specific Functions:

• Blending: Use the blending shaft directly in pots, bowls, or the included beaker. Move the blender up and down gently for even blending. Ideal for soups, sauces, and smoothies.
• Chopping: Use the chopper attachment for onions, garlic, herbs, nuts, and small amounts of meat. Pulse the "ON" or "TURBO" button for controlled chopping.
• Slicing/Shredding: Insert the appropriate disc into the chopper bowl. Feed ingredients through the feed tube. Use for uniform slices or shreds of vegetables like carrots, cucumbers, or cheese.
• Whisking: Use the whisk attachment for whipping cream, egg whites, or mixing light batters. Start at a low speed and gradually increase.
• Ice Crushing: Use the chopper attachment with the chopping blade. Add small ice cubes to the bowl. Use short, powerful pulses with the "TURBO" button until desired consistency is achieved.

Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your Emjoi Power Hand Blender.

• Always unplug the appliance before cleaning.
• Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water or any other liquid.
• Attachments (Blending Shaft, Chopper Bowl, Blades, Whisk, Discs): These parts are dishwasher-safe. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry immediately.
• Blades: Handle blades with extreme care as they are very sharp.
• Ensure all parts are completely dry before storing.
• Store the appliance and its accessories in a dry place, away from direct sunlight and heat.

Troubleshooting

If you encounter issues with your hand blender, refer to the following common problems and solutions:

Specifications

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Emjoi website. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical assistance or inquiries, please contact Emjoi customer service through their official channels.
