1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your NOXARTE 36 Inch Crystal Ceiling Fan. This modern fandelier combines the elegance of a crystal chandelier with the functionality of a ceiling fan, featuring LED dimmable lighting, remote and app control, and a reversible motor for year-round comfort.
Figure 1: NOXARTE 36 Inch Crystal Ceiling Fan with included remote control and smartphone app interface.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Ensure the power is disconnected at the circuit breaker before installation or maintenance.
- All wiring must be in accordance with national and local electrical codes.
- The mounting structure must be capable of supporting the fan's weight (approximately 21.4 pounds).
- Do not bend fan blades when installing, balancing, or cleaning the fan.
- Keep hands, feet, and other objects clear of the rotating fan blades.
- This product is designed for indoor use only.
3. Package Contents
Verify that all components are present and undamaged before beginning installation.
Figure 2: Exploded view of the NOXARTE 36 Inch Crystal Ceiling Fan components.
| Item | Description | Quantity |
|---|---|---|
| 1 | Crystal Ball | 19 pcs |
| 2 | Instruction Manual | 1 |
| 3 | Canopy | 1 |
| 4 | Fan Motor Base | 1 |
| 5 | Light Shade | 1 |
| 6 | Remote Control | 1 |
| 7 | Adapter Cover | 1 |
| 8 | Spare Parts | As needed |
| 9 | Mounting Bracket | 1 |
| 10 | Long Downrod (10") | 1 |
| 11 | Short Downrod (5") | 1 |
| 12 | Hardware Bag | 1 |
4. Specifications
| Feature | Detail |
|---|---|
| Brand | NOXARTE |
| Model Number | SDD0115-3 |
| Color | Chrome |
| Fan Design | Ceiling Fan (Fandelier) |
| Power Source | Hardwire |
| Style | Modern |
| Product Dimensions (Extended) | 36" Diameter |
| Product Dimensions (Retracted) | 16" Diameter |
| Lampshade Dimensions | D16'' x H8'' |
| Ceiling Canopy Dimensions | D5.9'' x H2.3'' |
| Total Height (with 5" rod) | 21'' |
| Total Height (with 10" rod) | 25.7'' |
| Room Type | Bedroom, Living Room, Dining Room, Kitchen Island, Entryway |
| Special Feature | Dimmable LED, Retractable Blades, Reversible Motor |
| Wattage | 72 watts (LED) |
| Number of Blades | 4 (Retractable) |
| Voltage | 120 Volts |
| Control Method | Remote Control, APP Control, Wall Switch (light only) |
| Motor Type | Silent DC Motor |
| Recommended Room Size | 75 to 144 sq.ft. |
| Item Weight | 21.4 pounds |

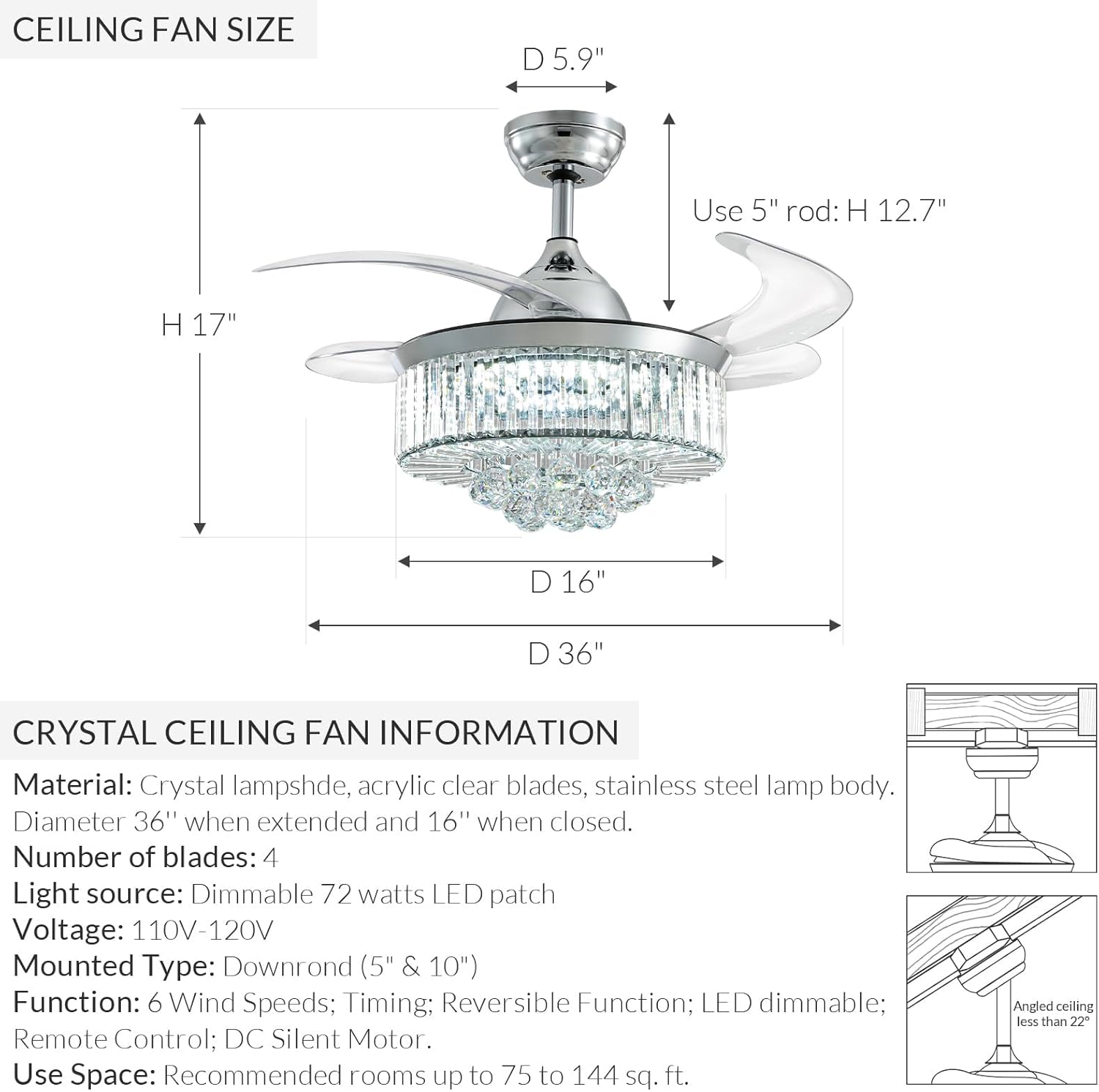

Figure 3: Detailed dimensions of the ceiling fan and its components.
5. Setup and Installation
The NOXARTE Crystal Ceiling Fan is designed for easy installation. All necessary parts for assembly and installation are included. For detailed visual guidance, installation videos can be provided upon request from NOXARTE customer service.
5.1 Downrod Selection
The package includes two downrods: 5 inches and 10 inches, offering flexibility for various ceiling heights. Use the 5-inch downrod for flat ceilings or ceilings less than 9 feet high. Use the 10-inch downrod for higher or angled ceilings (less than 22 degrees). For angled ceilings greater than 22 degrees, please contact customer service for assistance.
Figure 4: Downrod selection guide for various ceiling types.
5.2 Wiring and Mounting
Follow the detailed wiring diagrams and mounting instructions provided in the included User Guide (PDF). Ensure all electrical connections are secure and comply with local codes. The fan motor base and sturdy base are designed for secure ceiling attachment.
Figure 5: Key components of the fandelier, including the retractable blades and silent DC motor.
6. Operating Instructions
6.1 Lighting Control
The integrated 72-Watt LED light strip offers versatile lighting options:
- Dimmable Brightness: Adjust the light intensity from dim to bright using the remote control or app.
- Color Temperature: Choose from three light colors: warm white (2700K), natural light (4500K), and cool white (6000K).
- Wall Switch: The light can be turned on/off using a standard wall switch.
Figure 6: LED Dimmable feature showcasing different light color temperatures.
6.2 Fan Operation
The fan features a silent DC motor and retractable blades for efficient air circulation.
- 6 Fan Speeds: Select from six different fan speeds to suit your comfort needs.
- Two-Way Rotation (Reverse Motor):Downward Airflow: Ideal for summer, providing a cooling effect.Upward Airflow: Ideal for winter, circulating warm air downwards to improve heating efficiency.
- Timer Function: Set timers for automatic fan shut-off.
- Sleep Mode: A quiet mode for undisturbed rest.
Figure 7: Illustration of downward airflow (summer) and upward airflow (winter) modes.
Figure 8: Fan speed recommendations for various comfort levels.
6.3 Control Methods
Your fandelier can be controlled via the included remote control or a dedicated mobile application.
- Remote Control: Provides full control over light (on/off, dimming, color change) and fan (on/off, speed, direction, timer, night mode).
- APP Control: Offers advanced features including time settings, 6 fan speeds, 3-color light adjustments, sleep mode, and timers.
- Wall Switch: Can turn the light on/off.
Figure 9: Available control methods for the NOXARTE ceiling fan.
6.4 Remote Control Instructions
Figure 10: Remote control layout and button functions.
Quick Way to Check the Fandelier:
- Turn off the wall switch for about 1 minute to run out the power in the fandelier, and get the remote ready.
- Then turn on the switch again. The lights will turn on with a short double beep sound. (Your fandelier works in this step.)
- Long press the "SET UP" key within 5 seconds once the light is on. Signal will be matched with the light blinking for one time.
- Then try to control the fan with the remote, see if the fan works accordingly.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: To clean the fan, wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Crystal Care: Gently wipe crystal components with a soft, lint-free cloth.
- Blade Inspection: Periodically check that all screws on the motor housing and blades are tight.
8. Troubleshooting
If you encounter issues with your NOXARTE ceiling fan, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate | No power, loose wiring, remote not paired. | Check circuit breaker. Ensure all connections are secure. Re-pair remote control (refer to Section 6.4). |
| Light does not turn on | No power, LED driver issue, wall switch off. | Check power supply. Ensure wall switch is on. If LED driver is suspected, contact customer service. |
| Remote control not working | Batteries dead, remote not paired. | Replace remote batteries. Re-pair remote control (refer to Section 6.4). |
| Fan wobbles | Loose mounting, unbalanced blades. | Ensure mounting bracket is securely fastened. Check that all blade screws are tight. |
For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact NOXARTE customer service.
9. Warranty and Support
NOXARTE offers a 12-month guarantee on accessories for your ceiling fan. We are committed to providing high-quality after-sales service.
If you experience any issues with accessories or lamp body damage after purchase, please do not hesitate to reach out to us. Our customer support team is available to assist you with any questions or concerns.
For further assistance, please visit the NOXARTE Store on Amazon or contact us directly through the platform.
