1. Product Overview
The Acer Predator Orion 3000 PO3-620-UR13 is a high-performance gaming desktop designed for immersive gaming experiences and demanding computing tasks. It features a robust processor, dedicated graphics, and ample memory and storage to handle a wide range of applications.

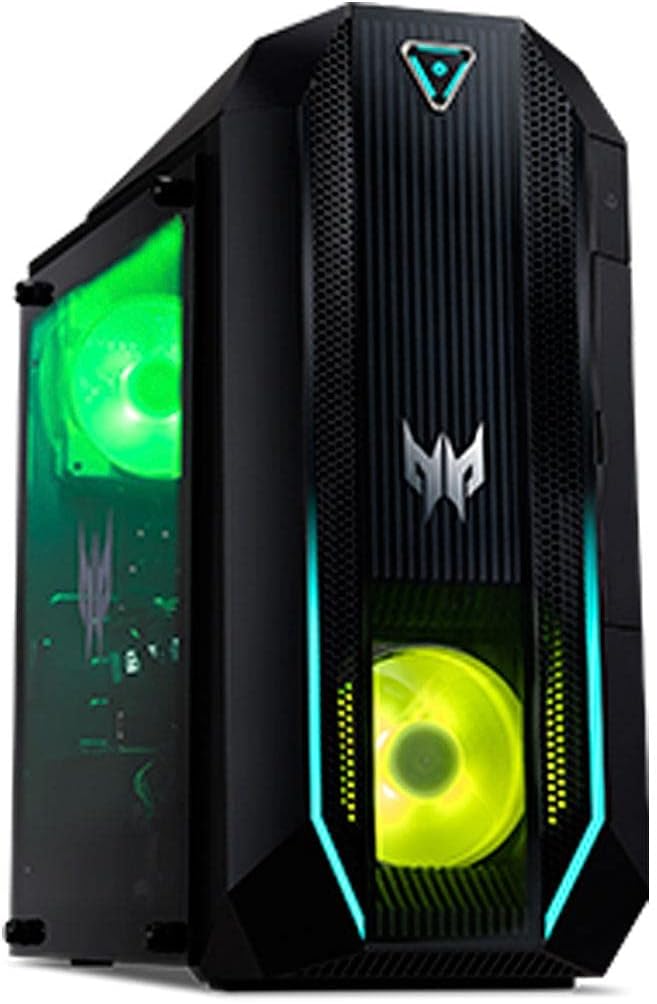

Figure 1.1: Front-angled view of the Acer Predator Orion 3000 Gaming Desktop, showcasing its sleek black chassis and vibrant green internal lighting.
2. Setup Guide
2.1 Unboxing and Component Identification
Carefully remove all components from the packaging. Ensure the following items are present:
- Desktop Unit
- Predator RGB Gaming Keyboard
- Predator RGB Gaming Mouse
- Power Cord
2.2 Connecting Peripherals
- Connect the Monitor: Locate the display ports on the rear of the desktop. This model includes 1 Display Port, 1 HDMI Port, and 1 DVI Port. Connect your monitor using the appropriate cable.
- Connect the Keyboard and Mouse: Plug the USB cables from the Predator RGB Gaming Keyboard and Predator RGB Gaming Mouse into any available USB ports on the desktop. This model features 1 USB 3.2 Type C Gen 2 port (Front), 1 USB 3.2 Gen 2 Port (Front), 4 USB 3.2 Gen 1 Ports (Rear), and 2 USB 2.0 Ports (Rear).
- Connect to Power: Insert the power cord into the power supply unit at the rear of the desktop, then plug the other end into a wall outlet.
- Network Connection: For wired internet, connect an Ethernet cable to the Killer Ethernet E2600 10/100/1000 Gigabit Ethernet LAN port. For wireless internet, the system is equipped with Intel Wireless Wi-Fi 6 AX201 802.11ax.

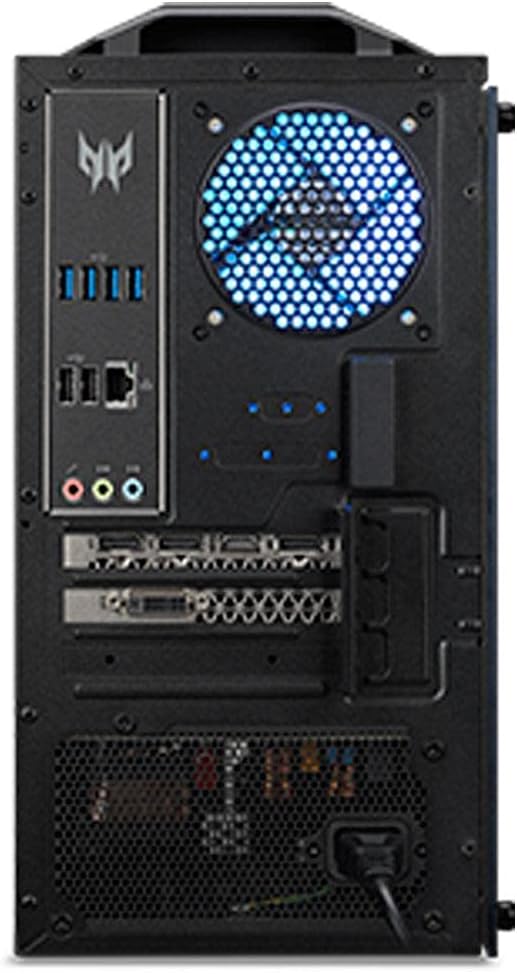

Figure 2.1: Rear view of the desktop, highlighting the various connectivity ports for monitors, USB devices, and network cables.
3. Operating Instructions
3.1 Powering On/Off
To power on the desktop, press the illuminated power button located on the top front of the chassis. The system will boot into Windows 10 Home. To power off, use the standard Windows shutdown procedure (Start Menu > Power > Shut down).

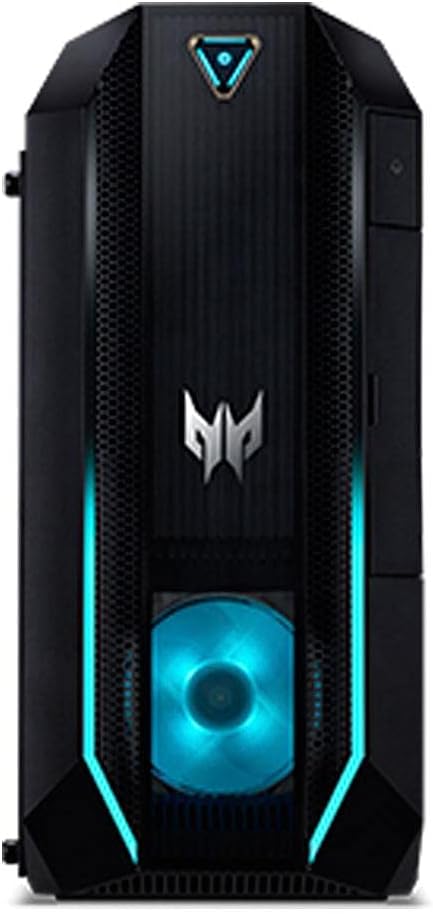

Figure 3.1: Front view of the desktop, showing the power button and customizable RGB lighting elements.
3.2 Key Features and Performance
The Predator Orion 3000 is equipped with a 10th Generation Intel Core i5-10400F 6-Core Processor and NVIDIA GeForce GTX 1660 SUPER Graphics, providing excellent performance for gaming and multitasking. The 12GB DDR4 2666MHz RAM and 512GB NVMe M.2 SSD ensure fast boot times and responsive application loading.
Figure 3.2: A close-up image of the Intel Core i5 10th Gen processor, a key component for the desktop's processing power.
Experience immersive audio with DTS X: Ultra Audio. The system also supports Intel Wireless Wi-Fi 6 AX201 for high-speed wireless connectivity and Bluetooth 5.1 for connecting wireless peripherals.
4. Maintenance
To ensure optimal performance and longevity of your Predator Orion 3000 desktop, regular maintenance is recommended:
- Cleaning: Use a soft, dry cloth to wipe down the exterior of the desktop. For dust accumulation on vents, use compressed air. Ensure the system is powered off and unplugged before cleaning.
- Software Updates: Regularly update your operating system, graphics drivers, and other software to ensure compatibility and security.
- Ventilation: Ensure the desktop is placed in a well-ventilated area to prevent overheating. Avoid blocking the air intake and exhaust vents.
5. Troubleshooting
This section provides solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power | Power cord disconnected, power outlet issue, power supply failure. | Check power cord connection. Try a different outlet. Contact support if issue persists. |
| No Display | Monitor cable loose, incorrect input selected on monitor, graphics driver issue. | Ensure monitor cable is securely connected. Check monitor input settings. Update graphics drivers. |
| System Slowdown | Too many applications running, insufficient RAM, malware. | Close unnecessary programs. Check task manager for resource usage. Run antivirus scan. |
For more complex issues, refer to the official Acer support website or contact their technical support.
6. Specifications
| Feature | Specification |
|---|---|
| Processor | 10th Generation Intel Core i5-10400F 6-Core Processor (up to 4.3GHz) |
| Graphics | NVIDIA GeForce GTX 1660 SUPER with 6GB GDDR6 Video Memory |
| RAM | 12GB DDR4 2666MHz (expandable to 64GB) |
| Storage | 512GB PCIe NVMe M.2 SSD |
| Operating System | Windows 10 Home |
| Audio | DTS X: Ultra Audio |
| Wireless Connectivity | Intel Wireless Wi-Fi 6 AX201 802.11ax Dual-Band (2.4GHz and 5GHz), Bluetooth 5.1 |
| Wired Connectivity | Killer Ethernet E2600 10/100/1000 Gigabit Ethernet LAN |
| Ports (Front) | 1 x USB 3.2 Type C Gen 2, 1 x USB 3.2 Gen 2 |
| Ports (Rear) | 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x Display Port, 1 x HDMI Port, 1 x DVI Port |
| Power Supply | 500W |
| Dimensions (LxWxH) | 15.2 x 6.89 x 15.43 inches |
| Weight | 21.7 pounds (system unit only) |
7. Warranty and Support
This product comes with a 1 Year Parts and Labor Limited Warranty with Toll Free Tech Support (DG. E25AA. 001).
For detailed warranty terms, technical assistance, or to download the full user manual (PDF), please visit the official Acer support website or refer to the included documentation. You can also find the user manual at: Acer Predator Orion 3000 User Manual PDF
