1. Product Overview
This versatile pergola is a functional and decorative addition to your garden or outdoor space, providing shade and protection from rain. It features an adjustable, retractable canopy that can be lowered or raised on both sides using built-in handles, allowing you to control the amount of sunlight or shade.
Constructed from high-quality powder-coated steel, this pergola is sturdy and durable. The roof is made of 180 g/m² polyester with a PA coating, making it water and weather resistant. The canopy can also be removed for washing or storage when not in use.
Key Features:
- Adjustable, retractable sliding canopy for customizable shade.
- Durable powder-coated steel frame.
- Water and weather-resistant polyester canopy with PA coating.
- Easy assembly.
- Includes ground pins for secure anchoring.
2. Important Safety Information
WARNING:
Secure anchoring is highly recommended to prevent overturning, especially in windy conditions. Exercise caution during both assembly and disassembly to avoid injury.
3. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. The package should contain:
- 1 x vidaXL Pergola Frame
- 1 x Adjustable Canopy (Cream White)
- Ground Pins for anchoring
- All necessary assembly hardware (screws, bolts, etc.)
- Assembly Tools (if included, otherwise standard tools required)
4. Setup and Assembly Instructions
Follow these steps carefully for proper assembly. It is recommended to have at least two people for assembly.
- Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the included parts list (if available) to identify each piece.
- Assemble the Frame: Begin by connecting the main support beams and posts. Ensure all connections are secure before proceeding.
- Attach Canopy Support Bars: Insert the canopy support bars (labeled 'E' in the diagram) into the designated slots on the frame.
Image: Diagram illustrating the insertion of support poles (E) into the pergola frame, with arrows indicating direction.
- Install the Canopy Fabric: Slide the canopy fabric (labeled 'L' in the diagram) onto the support bars. Ensure the fabric is correctly oriented and secured.
Image: Close-up view of the canopy fabric (L) being attached to a support pole (E), showing the connection mechanism.
- Secure the Pergola: Once the frame and canopy are assembled, position the pergola in your desired location. Use the provided ground pins to securely anchor the pergola to the ground. This is crucial for stability and safety.
- Final Checks: Verify that all connections are tight and the pergola is stable.
Product Dimensions:
Image: A diagram illustrating the overall dimensions of the assembled pergola, measuring 300 cm (118.1 inches) in length, 300 cm (118.1 inches) in width, and 225 cm (88.6 inches) in height.
5. Operating Your Adjustable Pergola
Your vidaXL pergola features an adjustable, retractable canopy designed for flexible shade control.
- Adjusting the Canopy: Use the built-in handles located on the sides of the canopy. Gently pull or push the handles to slide the canopy sections along the support bars.
- Customizing Shade: The canopy can be lowered or raised on either side independently, allowing you to create partial shade or full coverage as needed.
Image: The pergola with one side of its cream white canopy fully extended downwards, providing shade or privacy.

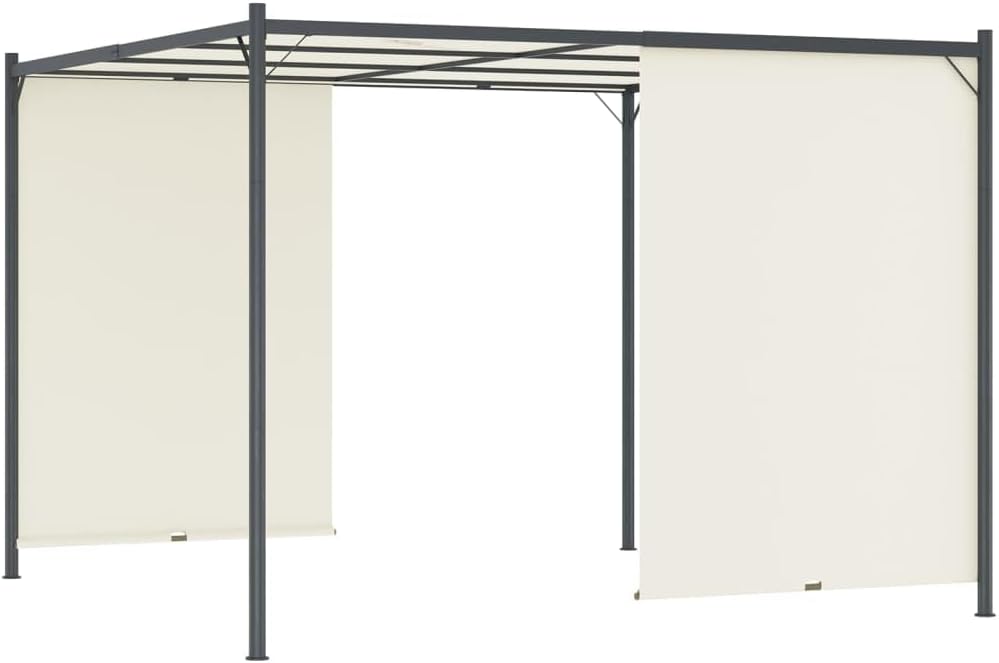

Image: The pergola with both cream white side canopies fully extended downwards, offering maximum shade and enclosure.
- Retracting for Storage/Weather: For prolonged periods of non-use or during strong winds and heavy rain, it is recommended to fully retract the canopy or remove it for storage to prevent damage.
6. Care and Maintenance
Proper care will extend the life and appearance of your pergola.
- Frame Cleaning: Clean the powder-coated steel frame with a mild soap solution and a soft cloth. Rinse thoroughly with clean water and dry completely to prevent rust. Avoid abrasive cleaners or harsh chemicals.
- Canopy Cleaning: The polyester canopy can be removed for cleaning. Hand wash with mild soap and water. Do not machine wash or tumble dry. Ensure the canopy is completely dry before reattaching or storing to prevent mildew.
- Seasonal Storage: During winter months or periods of severe weather, it is advisable to remove the canopy and store it in a dry, protected area.
- Anchoring: Regularly check the ground pins and anchoring points to ensure the pergola remains securely fastened, especially after strong winds.
- Inspection: Periodically inspect all bolts and connections for tightness. Tighten any loose hardware.
7. Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Pergola feels unstable or wobbly. | Loose connections; insufficient anchoring; uneven ground. | Check and tighten all bolts and screws. Ensure ground pins are fully inserted and secure. Relocate to a level surface or use shims if necessary. |
| Canopy does not slide smoothly. | Dirt or debris in tracks; bent support bar; fabric misalignment. | Clean tracks of any obstructions. Inspect support bars for damage. Realign canopy fabric on the bars. |
| Water pooling on canopy. | Canopy not taut enough; improper slope. | Ensure canopy is fully extended and taut. Adjust the slope if possible to allow water runoff. |
| Canopy damaged by wind. | Canopy left extended during strong winds. | Always retract or remove the canopy during high winds. Replace damaged canopy if necessary. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | vidaXL |
| Model Number | 49323 |
| Color | Cream White |
| Dimensions (L x W x H) | 300 x 300 x 225 cm (3L x 3W x 2.25H meters) |
| Weight | 39.1 kg |
| Frame Material | Powder-coated Steel (Alloy Steel) |
| Canopy Material | 180 g/m² Polyester with PA coating |
| Water Resistance Level | Water-resistant |
| UV Protection | UV protective |
| Shape | Square |
| Assembly Required | Yes |
| Country of Origin | China |
9. Warranty Information
This vidaXL pergola comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
10. Customer Support
Should you encounter any issues or have questions not covered in this manual, please contact vidaXL customer support or your retailer for assistance.
- vidaXL Website: www.vidaxl.nl (or relevant regional website)
- Retailer Support: Refer to the contact information provided by your point of purchase.
