Quictent 10x20 ft Heavy Duty Car Canopy Instruction Manual

1. Introduction

Thank you for choosing the Quictent 10x20 ft Heavy Duty Car Canopy. This manual provides detailed instructions for the proper assembly, operation, maintenance, and troubleshooting of your new carport. Please read this manual thoroughly before beginning assembly to ensure safe and efficient use of the product. Proper installation and care will extend the lifespan of your canopy and provide reliable shelter for your vehicle or outdoor activities.

2. Product Overview

The Quictent 10x20 ft Heavy Duty Car Canopy is designed to provide robust and reliable shelter. It features a galvanized steel frame and an extra-thick polyethylene fabric cover, offering protection against various weather conditions. This versatile canopy is suitable for sheltering cars, boats, or creating a shaded area for outdoor gatherings.

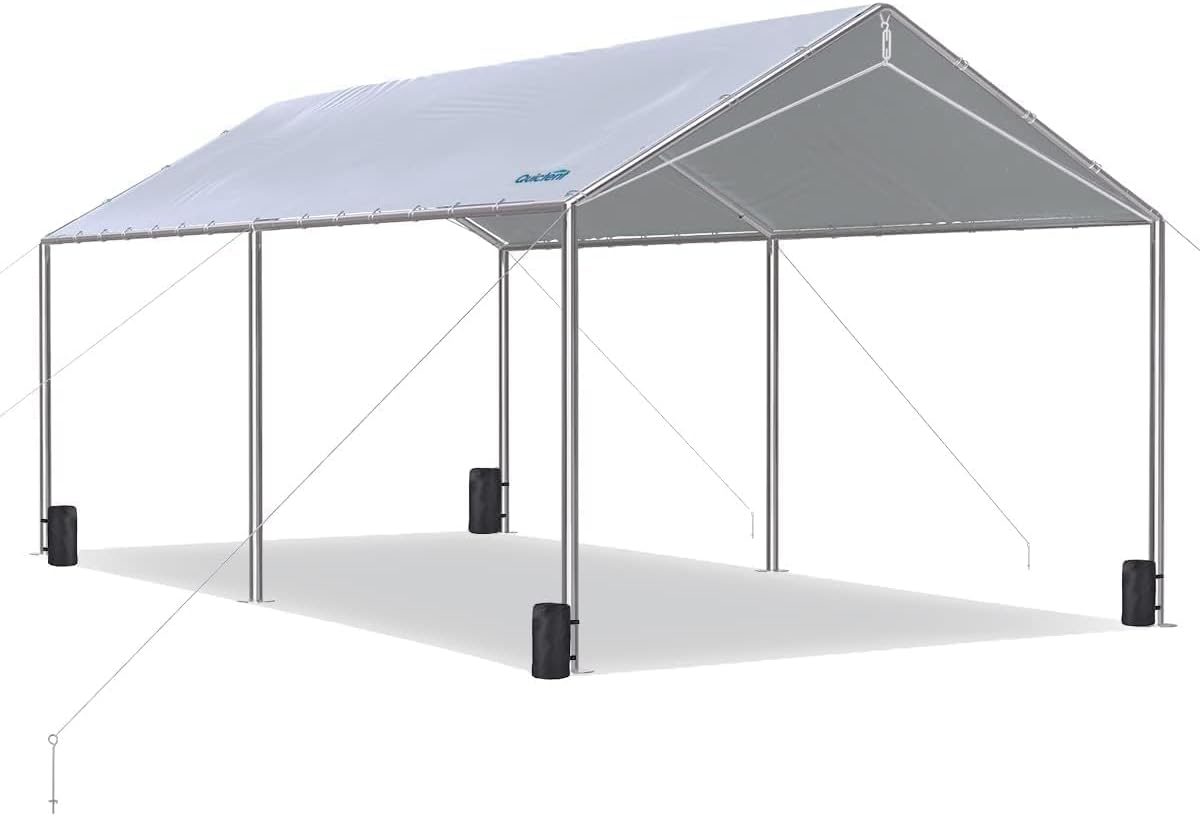

Figure 2.1: The Quictent 10x20 ft Heavy Duty Car Canopy, showcasing its overall structure and design.

3. Key Features

• Reinforced Steel Cables: The car canopy top includes three high-strength steel cables to reinforce the entire structure, significantly enhancing its firmness and preventing structural twisting.

Figure 3.1: Close-up view of the three reinforced steel cables, designed to increase the load-bearing capacity of the canopy top.
• Upgraded Galvanized Tube: Features heavy-duty 1-1/2 inch diameter rust-resistant galvanized steel framework and metal corner joints, improving overall windproof performance and durability.


Figure 3.2: Visual comparison highlighting the two times thicker poles used in Quictent canopies for enhanced strength.

• Extra-thick Polyethylene Fabric: The reinforced PE material is tear-proof, waterproof, and anti-UV, providing industrial-grade cover fabric for long-lasting durability and protection.

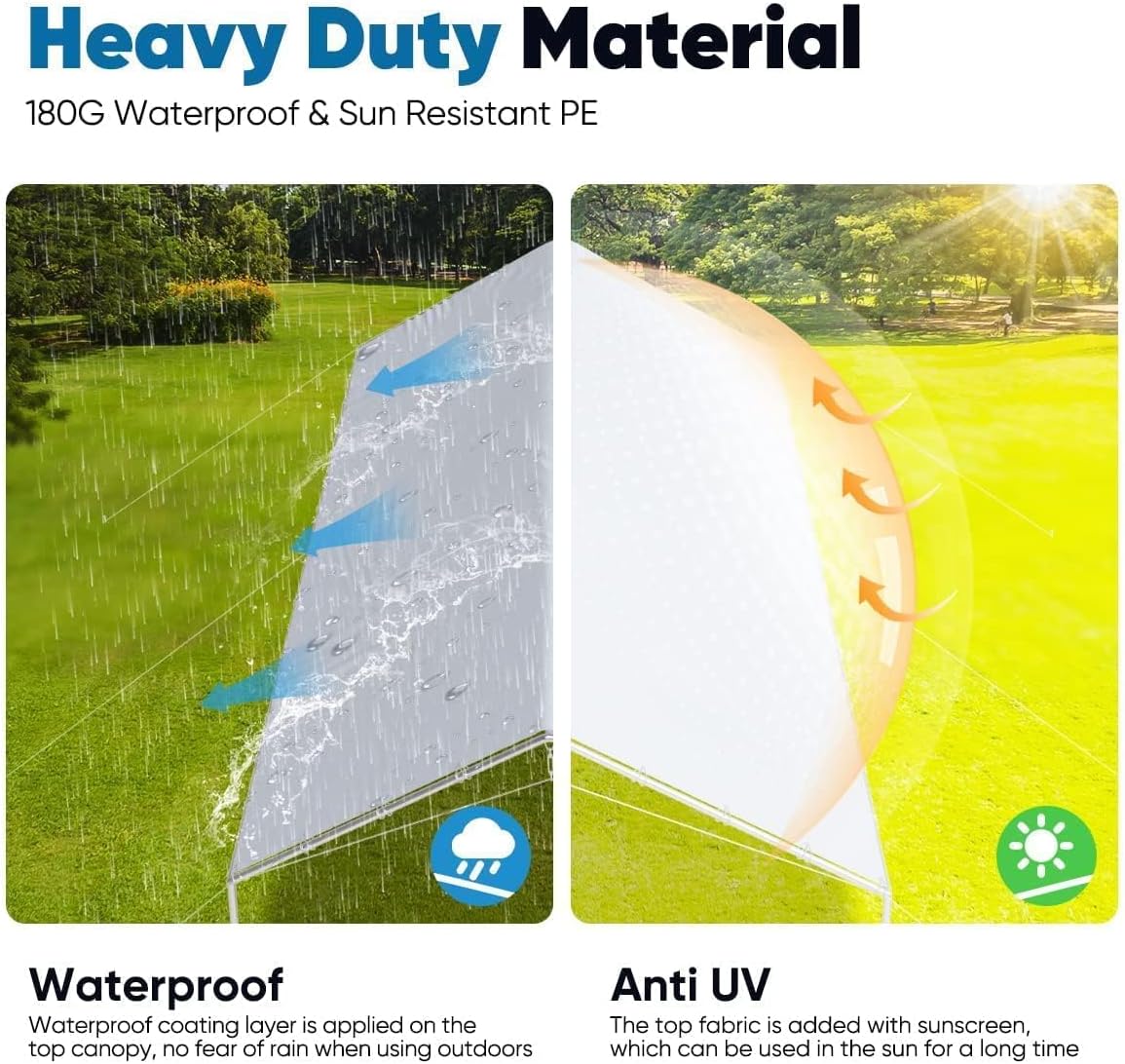

Figure 3.3: Illustration demonstrating the waterproof and anti-UV properties of the heavy-duty polyethylene fabric.
• Drainable Tarp Edge: Designed to prevent water accumulation in heavy rain, ensuring the longevity of the canopy and protecting items underneath.


Figure 3.4: Detail showing the drainable tarp edge, which helps prevent water from pooling on the canopy surface.

• Reinforced Package: The product boxes utilize professional thickened material to reinforce packaging, minimizing potential damage during transit.

4. Setup and Assembly

Assembly of the Quictent canopy is designed to be straightforward, typically requiring two people for optimal ease. Follow these general steps for installation:

1. Build the Top Frame: Begin by assembling the roof structure of the canopy according to the provided diagrams. Ensure all connections are secure.
2. Cover the Frame with the Tarp: Carefully drape the polyethylene tarp over the assembled top frame. Align the tarp correctly before proceeding.
3. Connecting the Leg Steel Pipe: Attach the vertical leg pipes to the top frame. Ensure they are firmly connected to provide stable support.
4. Use Included Accessories to Complete: Secure the canopy using the provided accessories, such as ropes, pegs, and sandbags (if included), to ensure stability and resistance against wind.

Figure 4.1: Visual guide illustrating the four simple steps for canopy installation.

Note: While the instructions are primarily visual, careful attention to detail during each step will ensure a secure and stable structure. It is recommended to have at least two people for assembly.

5. Operating and Usage

The Quictent 10x20 ft Heavy Duty Car Canopy is designed for a variety of outdoor uses, providing reliable shelter and protection.

• Carport: Ideal for protecting vehicles from sun, rain, and other elements. Its generous dimensions accommodate most cars and trucks.


Figure 5.1: The canopy serving as an outdoor parking solution, offering protection for a vehicle.

• Storage Shed: Can be used to store outdoor equipment, tools, or other items that require protection from the elements.

Figure 5.2: The canopy positioned in a courtyard, providing shaded parking space.
• Party Tent/Shelter: Provides a shaded and protected area for outdoor events, family gatherings, or recreational activities.


Figure 5.3: Examples of the canopy's multiple uses, including swimming pool shade, family gathering space, and courtyard parking.

Important Safety Note: Ensure the shelter is securely anchored, especially in windy conditions. Do not use in extreme weather conditions beyond the product's design limits. Keep the shelter away from open flames and heat sources to prevent fire hazards.

6. Maintenance

Regular maintenance will help prolong the life of your Quictent canopy:

• Cleaning: Clean the polyethylene cover periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the fabric.
• Frame Inspection: Regularly inspect the galvanized steel frame for any signs of rust, damage, or loose connections. Tighten any bolts or connections as needed.
• Cable and Rope Check: Ensure the reinforced steel cables and any tie-down ropes are taut and in good condition. Replace any worn or frayed components immediately.
• Snow and Water Removal: In snowy conditions, regularly remove snow accumulation from the canopy top to prevent structural stress. The drainable tarp edge helps with water runoff, but ensure it remains clear.

7. Troubleshooting

Here are some common issues and their potential solutions:

8. Specifications

9. Warranty and Support

Quictent stands behind the quality of its products:

• Lifetime Quality Assurance: Replacement for connectors, pegs, ropes, elastic ropes, etc.
• 1 Year Quality Assurance: For covers and poles.

For any questions, concerns, or to claim warranty service, please contact Quictent customer support. You can often find support information on the seller's page or through the contact details provided with your purchase.

Figure 9.1: Image representing available customer support for inquiries and assistance.
