EuropAce EEO 5301T 30L Convection Oven User Manual

Introduction

This manual provides essential information for the safe and efficient operation of your EuropAce EEO 5301T 30L Convection Oven. Please read these instructions thoroughly before using the appliance and retain them for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the oven.
• Do not touch hot surfaces. Use handles or knobs. Always use oven mitts or potholders when handling hot materials.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause hazards or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "OFF", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or similar items.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
• Exercise extreme caution when removing tray or disposing of hot grease.
• To turn off, turn the timer knob to the "OFF" position.

Product Overview

The EuropAce EEO 5301T is a 30L convection oven designed for versatile cooking. It features a cool-touch double glass door, convection fan, and rotisserie function.

Components and Controls

Figure 1: Front view of the EuropAce EEO 5301T Convection Oven, showing the main body, door, and control panel.

Figure 2: Close-up of the control panel with temperature, function, and timer knobs.

Control Panel Description:

1. Temperature Control Knob: Used to set the desired cooking temperature from 100°C to 250°C.
2. Function Selector Knob: Selects the heating elements and special functions (e.g., upper heating, lower heating, both, convection, rotisserie).
3. Timer Knob: Sets the cooking time up to 60 minutes. Features an auto-off function.

Included Accessories:

Figure 3: Oven interior showing the wire rack and drip pan in position.

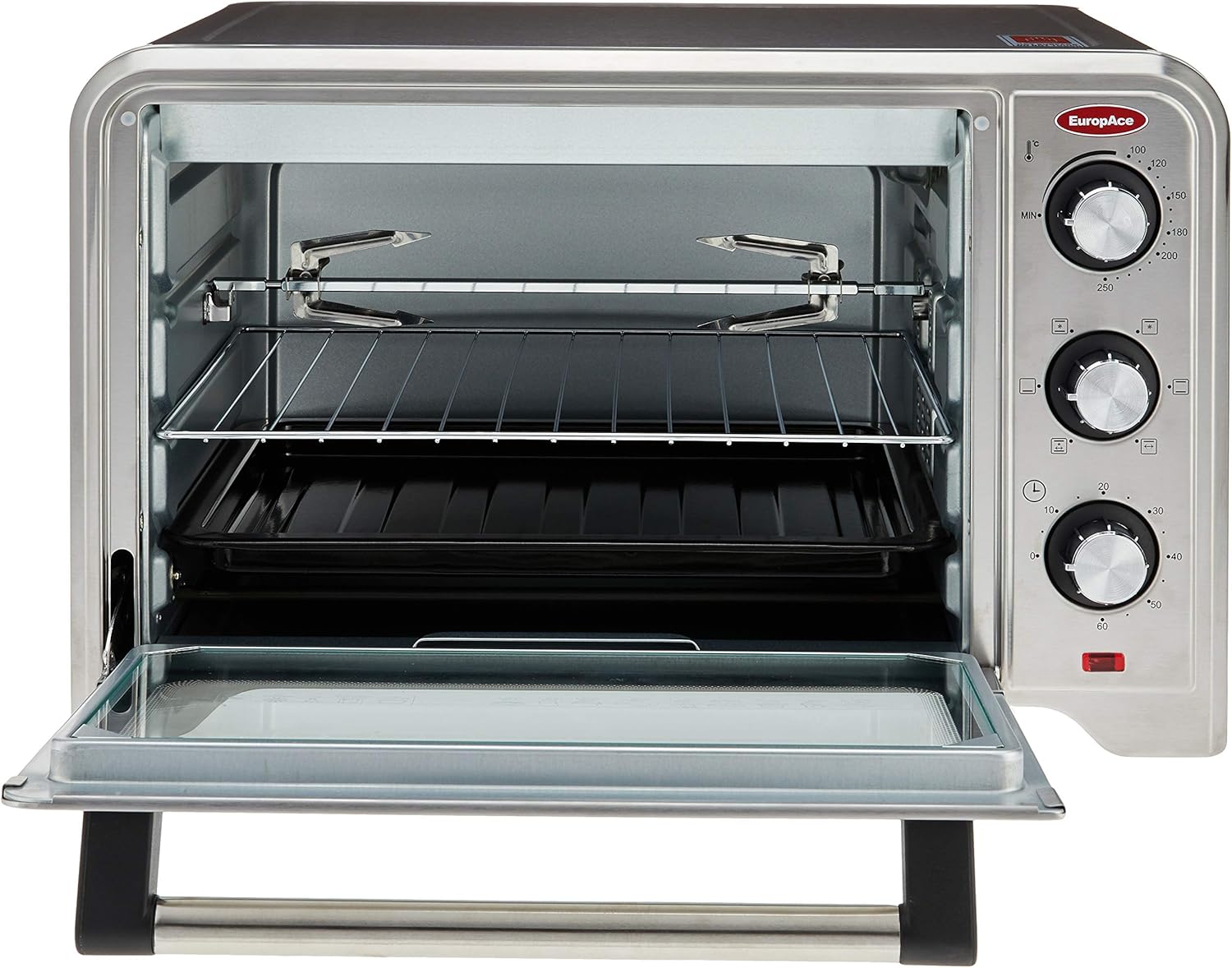

Figure 4: Oven interior demonstrating the rotisserie spit assembly.

• 1 x Oven Unit
• 2 x Wire Racks
• 1 x Drip Pan
• 1 x Rotisserie Spit
• 1 x Crumb Tray
• 1 x Rotisserie Handle

Setup and Installation

1. Unpacking: Carefully remove the oven and all accessories from the packaging. Remove any protective films or stickers.
2. Placement: Place the oven on a stable, level, heat-resistant surface. Ensure there is adequate clearance (at least 10-15 cm) on all sides and above the oven for proper ventilation. Do not place the oven directly against a wall or under cabinets.
3. Initial Cleaning: Before first use, wipe the interior and exterior of the oven with a damp cloth. Wash all accessories (wire racks, drip pan, rotisserie spit, crumb tray) in warm, soapy water, rinse thoroughly, and dry completely.
4. First Use Burn-in: It is recommended to operate the oven empty for approximately 15 minutes at the maximum temperature (250°C) with the function selector set to both upper and lower heating. This will burn off any manufacturing residues and odors. A slight smoke or odor is normal during this process. Ensure the area is well-ventilated.
5. Power Connection: Ensure the oven is unplugged during setup. Once placed, plug the power cord into a grounded 240V AC electrical outlet.

Figure 5: Rear view of the oven, showing the power cord and ventilation slots. Ensure these are not obstructed.

Operating Instructions

General Operation:

1. Prepare Food: Place food on the wire rack or in the drip pan as required.
2. Insert Accessories: Slide the wire rack or drip pan into the desired rack position inside the oven.
3. Set Temperature: Turn the Temperature Control Knob to the desired cooking temperature (100°C - 250°C).
4. Select Function: Turn the Function Selector Knob to choose the appropriate heating mode (e.g., upper heating, lower heating, both, convection, rotisserie).
5. Set Timer: Turn the Timer Knob to the desired cooking time (up to 60 minutes). The oven will begin heating. The power indicator light will illuminate.
6. Cooking Completion: When the set time elapses, the oven will automatically turn off and a bell will sound. To stop cooking before the timer finishes, turn the Timer Knob to the "OFF" position.
7. Remove Food: Carefully remove cooked food using oven mitts.

Specific Cooking Functions:

• Convection Cooking: To activate the convection fan, select a function that includes the convection symbol (usually indicated by a fan icon). The convection fan circulates hot air, promoting faster and more even cooking, ideal for baking and roasting.
• Rotisserie Cooking:
  1. Skewer the food (e.g., chicken) onto the rotisserie spit, securing it with the forks.
  2. Insert the pointed end of the rotisserie spit into the drive socket on the right side of the oven interior.
  3. Rest the square end of the spit onto the support bracket on the left side.
  4. Place the drip pan below the food to catch drippings.
  5. Select the rotisserie function on the Function Selector Knob (indicated by a rotating spit icon).
  6. Set temperature and time as required. The halogen bulb provides even heating during rotisserie cooking.
  7. Once cooking is complete, use the rotisserie handle to carefully remove the hot spit from the oven.
• Halogen Bulb: The internal halogen bulb provides illumination and contributes to even heating, particularly useful during rotisserie cooking.

Care and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your oven.

1. Always Unplug: Before cleaning, always unplug the oven from the power outlet and allow it to cool completely.
2. Crumb Tray: The crumb tray should be removed and cleaned regularly to prevent the buildup of food particles. Slide it out from the bottom front of the oven, empty, wash with warm soapy water, rinse, and dry.
3. Interior Cleaning: Wipe the interior walls with a damp cloth and mild detergent. For stubborn stains, a non-abrasive cleaner can be used. The concealed bottom heating element facilitates easier cleaning of the oven floor. Do not use abrasive cleaners or metal scouring pads as they can damage the surfaces.
4. Exterior Cleaning: Wipe the exterior surfaces with a damp cloth and dry thoroughly. Do not use harsh chemicals or abrasive materials.
5. Accessories: Wash wire racks, drip pan, and rotisserie spit in warm, soapy water. Rinse and dry completely before storing or re-inserting into the oven.
6. Storage: When not in use, store the oven in a clean, dry place.

Troubleshooting

If you encounter issues with your oven, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact EuropAce customer service.

Specifications

Warranty and Support

Your EuropAce EEO 5301T Convection Oven comes with a 2-year warranty. Please retain your proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please contact EuropAce customer service. Refer to the official EuropAce website or your purchase documentation for specific contact details in your region.
