GE 6-Device Backlit Universal Remote Control Instruction Manual

Introduction

This manual provides comprehensive instructions for the GE 6-Device Backlit Universal Remote Control, model 47506. This remote is designed to consolidate control of up to six audio and video devices, offering a streamlined entertainment experience. It features a brushed gold finish, blue LED backlighting, and is preprogrammed for immediate use with Samsung TVs and Roku boxes. Please read this manual thoroughly before use to ensure proper setup and operation.

Product Overview and Features

Figure 1: Front and side view of the GE 6-Device Backlit Universal Remote Control. The remote features a brushed gold finish and an ergonomic design.

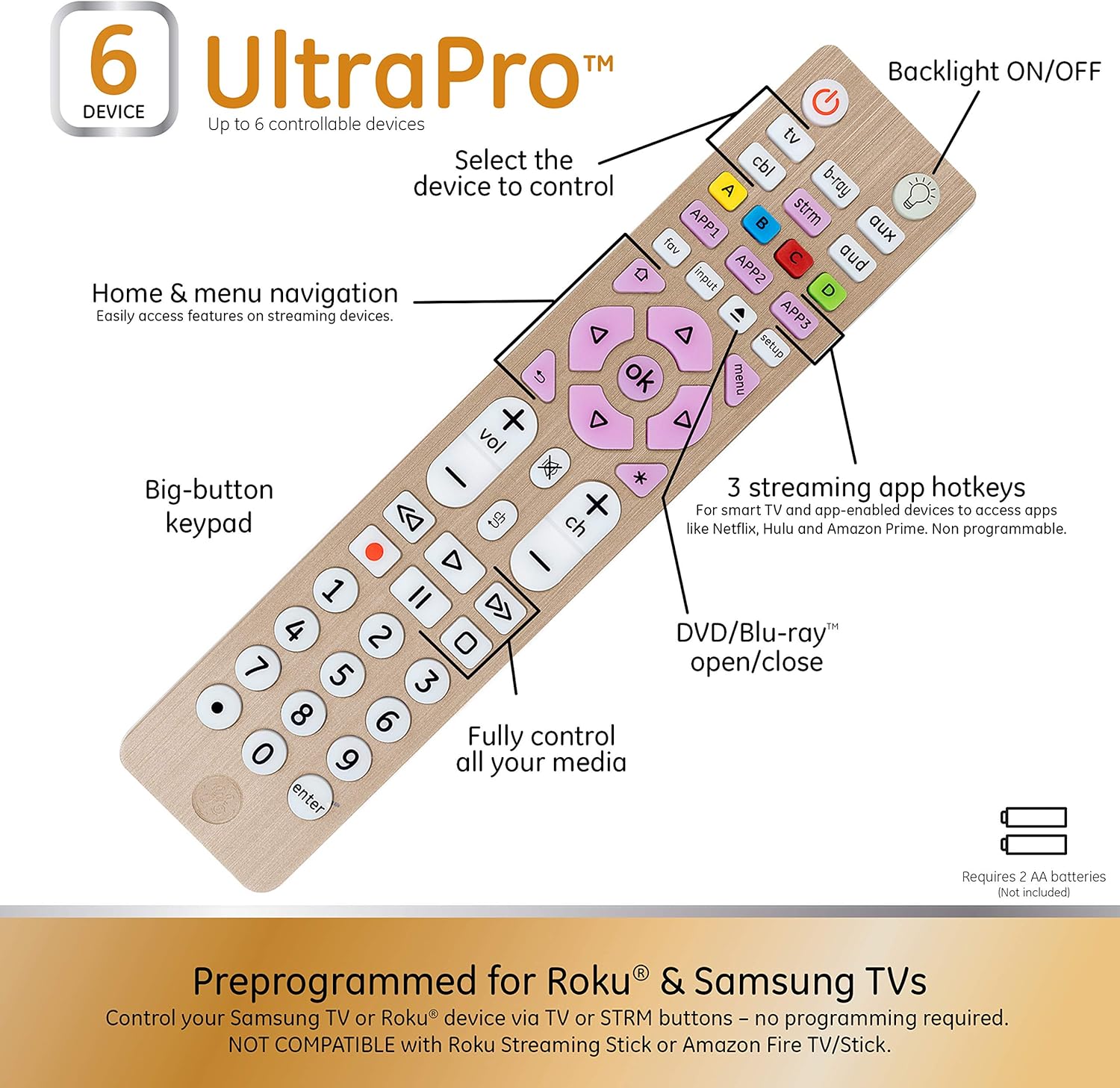

Figure 2: Key features of the UltraPro remote, highlighting the device selection buttons, home and menu navigation, big-button keypad, streaming app hotkeys, and DVD/Blu-ray open/close function.

Figure 3: The remote's soft blue LED backlighting, which enhances visibility in low-light conditions.

Figure 4: The range of devices controllable by this universal remote, including soundbars, streaming media players, home theater systems, TVs, DVD/Blu-ray players, and cable/satellite boxes.

Key Features:

• Multi-Device Control: Operates up to six different audio and video devices.
• Extensive Code Library: Compatible with thousands of audio and video devices from major brands. Note: Not for use with radio frequency devices like Roku Streaming Sticks and Amazon Fire TV/Sticks.
• Preprogrammed for Samsung and Roku: TV and STRM device buttons are preprogrammed for immediate use with Samsung TVs and Roku streaming media boxes (not compatible with Roku Streaming Sticks).
• Full Backlighting: Blue LED backlighting for enhanced visibility in dark or dimly lit rooms.
• Master Volume Control: Adjust audio regardless of the device being used.
• Streaming App Hotkeys: Direct access to pre-assigned streaming applications. These are non-programmable.
• DVR Functions: Advanced DVR controls and simple menu navigation.

Setup and Programming

1. Battery Installation

The remote requires two (2) AA batteries (not included). Ensure correct polarity when inserting the batteries into the battery compartment located on the back of the remote.

2. Programming Your Devices (Direct Code Entry)

Figure 5: Visual guide for programming the remote control to your devices.

1. Find Remote Codes: Locate the remote codes for your specific device brand. These codes are typically found in the included code list or online at www.jascoproducts.com/remotecodes.
2. Enter Setup Mode: Press and hold the SETUP button until the red indicator light on the remote turns on, then release the button.
3. Select Device: Press and release the desired device button (e.g., TV, CBL, STRM, B-RAY, AUD, AUX). The red indicator light will flash once and remain lit.
4. Enter Code: Using the number buttons, key in the first 4-digit code for your device. After entering the last digit, the red indicator light will turn off if the code is valid. If the light flashes and remains on, the code is invalid; re-enter the code.
5. Test Device: Point your remote at the device and test different buttons (e.g., Power, Volume, Channel) to see if the device responds.
6. Repeat for Other Devices: If the device does not respond or not all functions work, repeat the process with the next code listed for your brand until full functionality is achieved. Repeat steps for each additional device you wish to control.

3. Automatic Code Search

If you cannot find a code for your device or prefer an automatic search:

1. Turn on the device you wish to control.
2. Press and hold the SETUP button until the red indicator light turns on, then release.
3. Press and release the desired device button (e.g., TV). The red indicator light will flash once and remain lit.
4. Point the remote at the device and press the POWER button repeatedly (approximately every 2 seconds) until the device turns off.
5. Once the device turns off, press the SETUP button to lock in the code. The red indicator light will turn off.
6. Test the remote's functions with the device. If not all functions work, repeat the search process.

Operating Instructions

Device Selection

To control a specific device, press the corresponding device button at the top of the remote (e.g., TV, CBL, STRM). The remote will then send commands to that device.

Basic Functions

• Power: Press the POWER button to turn the selected device on or off.
• Volume Control: Use the VOL+ and VOL- buttons to adjust the volume. The master volume control feature allows these buttons to always control the TV's volume, regardless of the selected device.
• Channel Control: Use the CH+ and CH- buttons to change channels.
• Mute: Press the MUTE button to silence the audio.
• Number Pad: Use the number buttons (0-9) to directly enter channel numbers or codes.
• Navigation: The directional pad (up, down, left, right) and OK button are used for menu navigation and selection.
• Streaming App Hotkeys: APP1, APP2, APP3 provide direct access to pre-assigned streaming applications. These are non-programmable.
• Backlighting: Press the LIGHTBULB button to activate the blue LED backlighting for the buttons.

Maintenance

To ensure the longevity and optimal performance of your universal remote control:

• Cleaning: Wipe the remote with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Battery Replacement: Replace batteries when the remote's performance degrades or the indicator light does not illuminate. Always replace both batteries at the same time with new AA alkaline batteries.
• Storage: Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.
• Avoid Drops: Protect the remote from physical impact, as drops can damage internal components.

Troubleshooting

Specifications

Figure 6: Physical dimensions of the GE 6-Device Backlit Universal Remote Control.

Model Number:	47506
Brand:	GE
Max Supported Devices:	6
Color:	Gold
Item Weight:	4.8 ounces (approx. 136 grams)
Package Dimensions:	9 x 2.4 x 1.6 inches (approx. 22.86 x 6.1 x 4.06 cm)
Power Source:	2 x AA Batteries (not included)
Special Feature:	Backlit Buttons
Manufacturer:	Jasco Products Company, LLC

Warranty and Support

For warranty information, technical support, or to access the full product manual and code lists, please visit the manufacturer's website or contact their customer service. The official user manual in PDF format can be found at: GE Universal Remote User Manual (PDF).
